PrismJET 54 Gen2 Print & Cut Special with MUSE M60 Vinyl Cutter
Retail price:
SW Wholesale Price:
Sale price:
Sku:
Special Offer!
Purchase between and to receive $[[amount]] in campaign rebates*
SignWarehouse PRO
Become one of our PRO members and get $329.85 back back on this purchase and more!
Credit Key
Pay as low as $/Month by selecting
at checkout
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
When purchasing this product between the displayed dates, you will be issued a partial rebate amount to your account each month until the total amount has been issued.
Overview
Specs
Applications

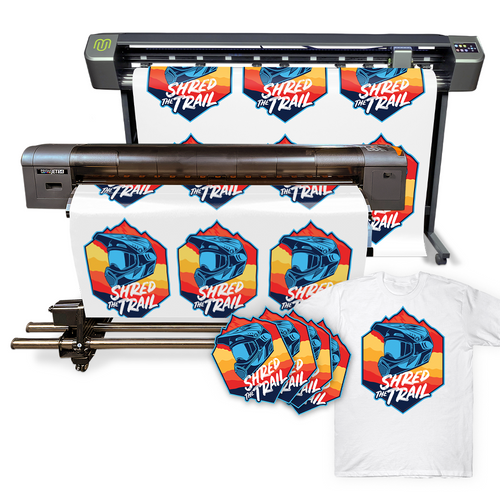

The PrismJET 54 Gen 2 builds on the class-leading features in the newest iteration of our best-selling printer. The advanced TruePoint piezo print head and wave print firmware make printing stunning graphics easier than ever. To get the most out of your PrismJET 54, you’ll want to bundle it with an advanced contour-cutting large format vinyl cutter. There’s no better value in a large-format print and cut system than the PrismJET 54 paired with a MUSE M60 vinyl cutter.
Features:
- New TruePoint print head achieves high productivity and high image quality
- New advanced print head supports the automatic bypassing of clogged nozzles for trouble-free printing
- The larger print head has 11% more nozzles, a higher nozzle resolution
- 12% faster print speeds than PrismJET VJ54
- The built-in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
- DropMaster2 firmware precisely controls dot size and maintains print quality
- FeedMaster automates media feed adjustments to maintain precise high-resolution print production.
- The New Barcode media tracker feature helps monitor media roll status.
- Three head height settings accommodate a wider range of media thickness
- End-user-replaceable wiper, new access door for easier maintenance.
Content:
- PrismJET 54 Gen2 Large-format Printer
- Take up system (Optional Accessory sold separately)
- MUSE M60 vinyl cutter w/camera based registration mark scanning
- 25 ft ethernet cable
- 10FT Power cord
- One year depot warranty
- One year of Complimentary Gold Support *

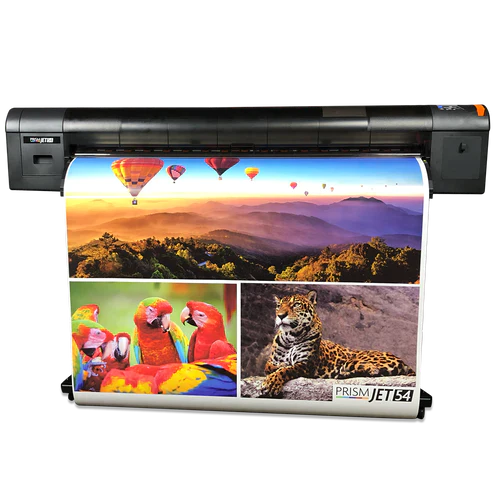

PrismJET 54 Gen2 Specifications:
- Print Technology: Single TruePoint variable drop-on demand piezo print head
- Nozzle Configuration: 1600 (400 nozzles x 4 lines)
- Maximum Resolution: 1200 dpi
- Head Heights: Low: 1.5mm / Middle: 2mm / High: 2.5mm
- Production print speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi
- Banner Mode print speed: 313 sf/hr in Banner4 mode (300 x 600 dpi)
- Max. Media Width: 54 inches (1371mm)
- Max. Print Width: 53.58 inches (1361mm)
- Max. Media Roll Weight: 44 lbs (19.9kg)
- Max. Media Roll Diameter: 6" / 2" (3" optional)
- Media Drying System: Individually controlled pre-heater, fixer & dryer (30 - 50 °C)
- Media take-up system: Optional motorized (Optional Accessory sold separately)
- Media Sheet-off function: One-touch control panel cross-cut function
- Ink Type: Endura Ink PRO eco-solvent ink
- Ink Volume: 220 ml & 1000 ml / 1000 ml
- Ink Colors: CMYK
- UV durability—without lamination: 3 years outdoor
- Data Interface: Ethernet (10BASE-T、100BASE-TX)
- During Printing < 500 W
- In Stand-by: 45 W
- Warming Up ≤ 1550 W
- Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz
- Power Consumption-Operation: AC100V〜120V/AC200V〜240V, T.B.D W or below
- Power Consumption - Sleep Mode: AC100V〜120V/AC200V〜240V, T.B.D W or below
- Operating Temperature: 71 - 86°F (22°C - 30 °C) with Δt: max. 2 °C/h
- Operating Humidity Range: 40% - 60 % (no condensation) with ΔRH: max. 5% RH/h
- External Dimensions: 75.43"W x 26.97"D x 47.95"H (1916 x 685 x 1218 mm)
- Weight: 181.44 lbs (82.3 kg)

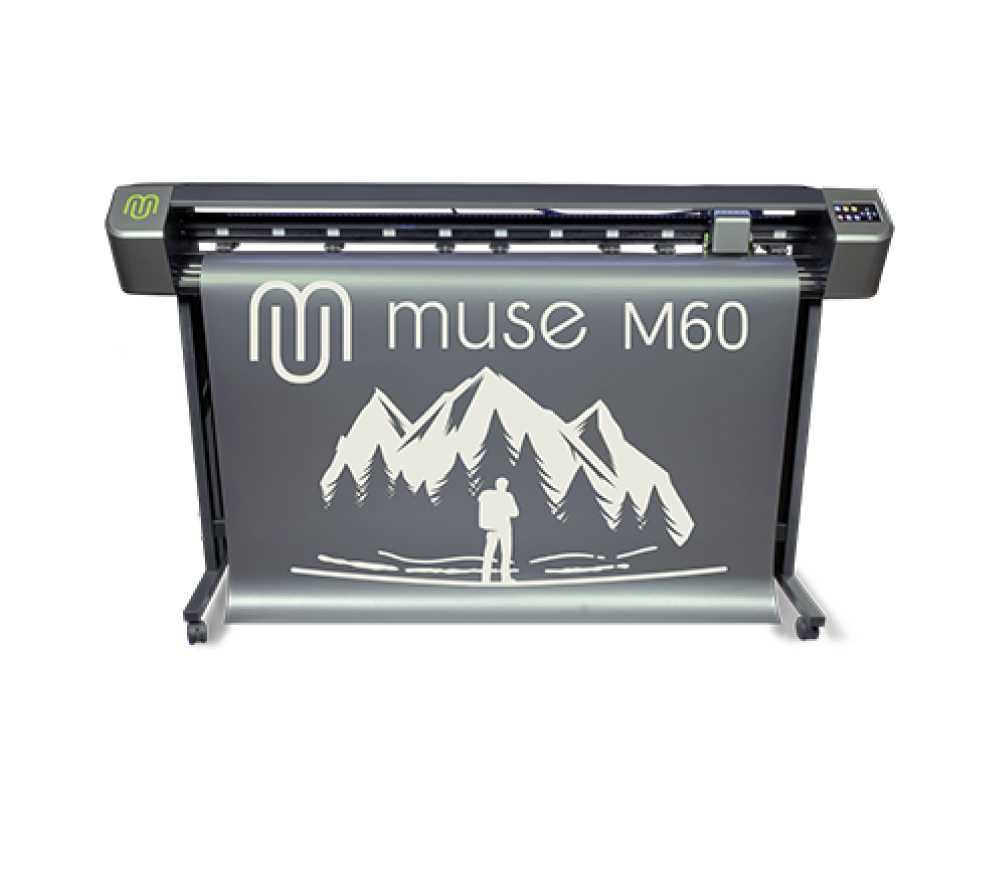

MUSE M60 Specifications:
- Maximum Media width: 64.9 inches (1650 mm)
- Maximum Cutting width: 60 inches (1540 mm)
- Maximum Contour Cut width: 59 inches (1500 mm)
- Tracking: Up to 180 inches
- Maximum Cutting Force: 2,000g
- Maximum Cutting Speed: 24 ips (600 mm/s)
- Maximum Carriage Speed: 27 isp (700 mm/s)
- Drive Method: Micro-Stepper Motor
- Number of Heads: 2
- Contour Cut: Yes, Camera, Automatic activation
- Memory: 128 mb
- Cutting Precision: +/- 0.01 mm
- Repeat Precision: 0.082 mm
- Dimensions (assembled): 72” (W) X 43” (H) X 26” (D)
- Box Dimensions: 76” (W) X 14” (H) X 15” (D) (1920*360*388 mm)
- Shipping Weight: 70 lbs. (32 kg)
- Floor Stand: Yes
- Interface: USB Flash/Wifi/USB Cable
- Power Supply/ V/Hz: 220/50
- Power: <100W
- Working Environment: 41°-95°F (+5° - +35°C)
- What’s in the Box: Warranty Card, blade, blade-holder, 3 plotter blades, plotting pen, hex keys for stand assembly, USB cable, power cable
*Ink and RIP software not included.
PrismJET 54 Gen2 Wide Format Color Printer: One printer. Limitless applications.
Here are some of the ways you can make money with a PrismJET 54 print & cut starter bundle.
- Car Wraps, fleet motor sports & marine graphics
- Commercial and residential wall and floor graphics
- Commercial window displays & P.O.P. graphics
- Industrial labels, peel & stick decals
- Garment decoration; vivid graphics on dark shirts.
- Indoor & outdoor banners
- Exhibition graphics and retail backlit signage
- Outdoor-durable posters
