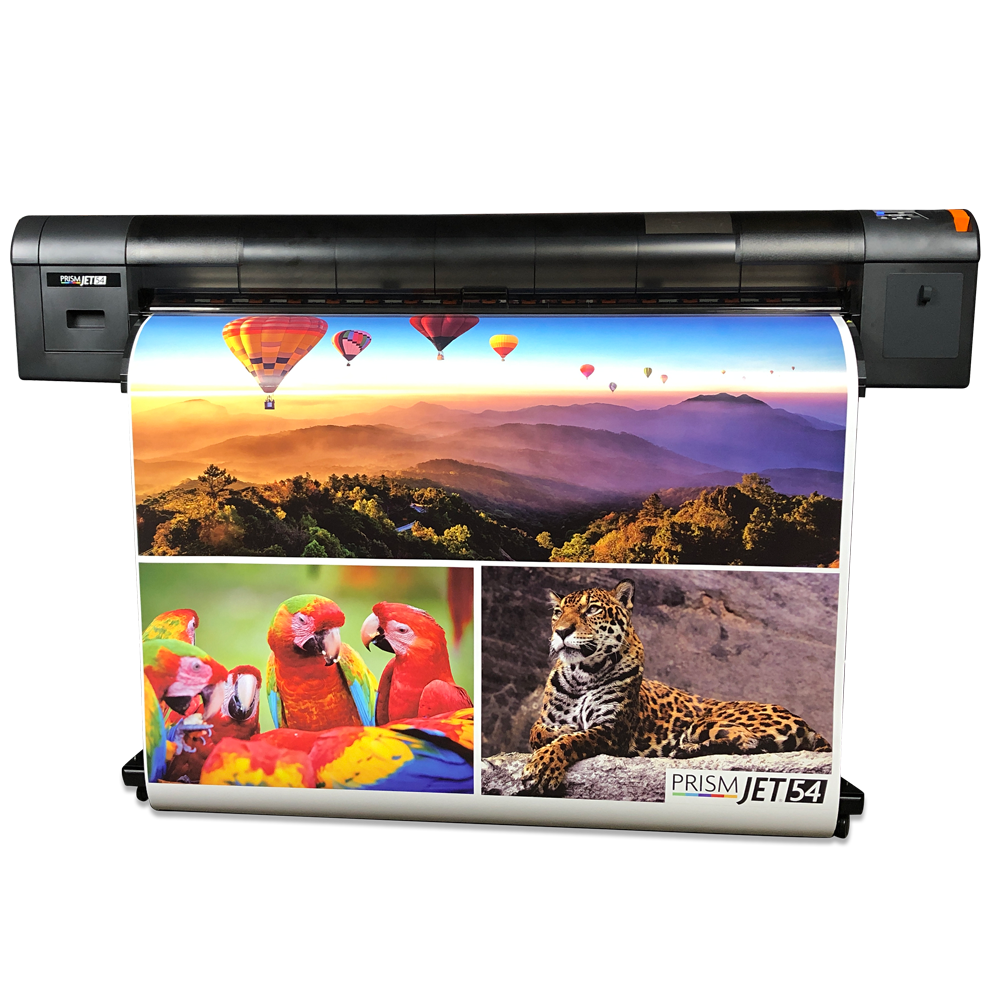

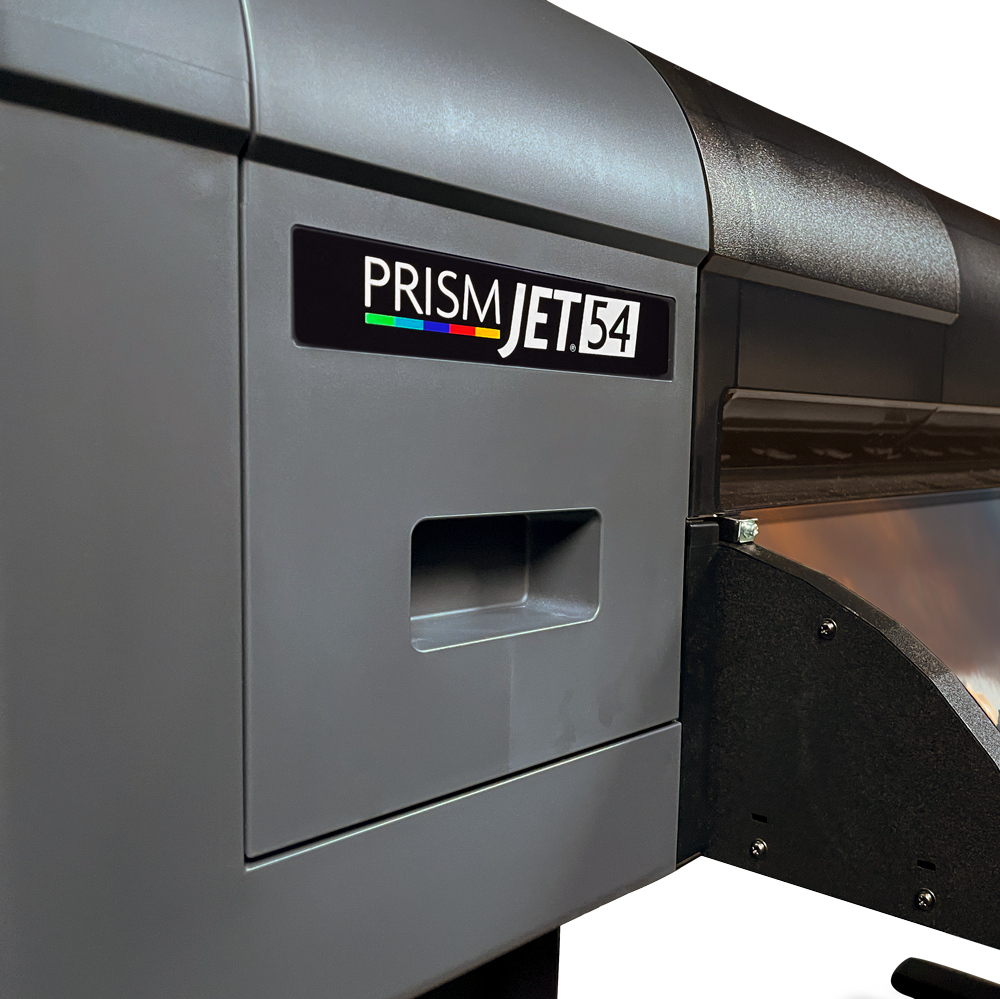

The second-generation PrismJET 54-inch eco-solvent printer is smarter, faster, and simpler. The PrismJET 54 incorporates advances in print head technology and precise Japanese engineering. The new TruePoint piezo print head has more and larger nozzles for faster throughput. The Second-gen is 12% faster than our best-selling VJ54 and has brilliant new features that make it easier to use and maintain. What hasn't changed is the combination of outstanding print quality, high production, and rock-solid reliability.
The Certified Refurbished option is a fleeting, but exceptional value and comes with ink and software. The bundled LXI RIP Design 22 software includes raster and vector design tools, a powerful 64-bit RIP engine, and color management tools. The printer comes with a six-month depot warranty and a full year of complimentary gold support. Engineered and built in Japan. Exclusively from SIGNWarehouse.
Features:
- New TruePoint print head achieves high productivity and high image quality
- New advanced print head supports automatic bypassing of clogged nozzles for trouble-free printing
- The larger print head has 11% more nozzles, higher nozzle resolution
- 12% faster print speeds than PrismJET VJ54
- The built-in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
- DropMaster2 firmware precisely controls dot size and maintains print quality
- FeedMaster automates media feed adjustments to maintain precise high-resolution print production.
- The New Barcode media tracker feature helps monitor media roll status.
- Three head height settings accommodate a wider range of media thickness
- End-user-replaceable wiper, new access door for easier maintenance.
For Finance and Leasing Information
♦ Depot warranty provides for any necessary repair or service to be performed at SIGNWarehouse facility. Gold support for PrismJET customers is currently provided by phone, live chat, email, and remote desktop support.
Content:
- PrismJET 54 large format eco-solvent printer & stand
- Vinyl Express LXi RIP 22 Software
- Set of EnduraINK Pro 220 ml cartridges, CMYK
- 4 EnduraINK Pro Cleaning Cartridges
- Power Cord
- Crossover Cable
- Six month Depot Warranty
- One year of Complimentary Gold Support
PrismJET 54 Specifications:
- Technology: Variable Drop-On-Demand TruePoint Piezo Print Head
- Print Heads: One
- Number of Nozzles: 1600 (400 nozzles x 4 lines)
- Maximum Resolution: 1200 dpi
- Maximum Print Speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi
- Compatible Ink Cartridges: 220 ml, 1000ml
- Maximum media weight: 44 lbs
- Media cross-cut function: Yes. One-touch control panel function
- Head Heights: Low: 1.5mm / Middle: 2mm / High: 2.5mm
- Max. Media Width: 54” (1371 mm)
- Max. Print Width: 53.6” (1361 mm)
- Interface: Ethernet (10BASE-T, 100BASE-TX)
- Take-Up System: (Optional Accessory sold separately)
- Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz
- Width x Depth x Height: 75.43"W x 26.97"D x 47.95"H
- Warranty: Depot warranty, six months
LXi22 Specifications:
- Operating System Windows 10 & 11 *
- RAM 16 - 32 GB
- CPU 3GHz, Intel i5 or i7 equivalent
- Screen Resolution 1920x1080 resolution, 24-bit color
- Working Disc Space SSD with 256GB or more. HHD with 500GB working space or more.
- Internet Broadband internet access (Internet connection required for cloud window features and license activation)
- Maximum Print Speeds * Installing on a Mac using parallels or bootcamp is neither recommended nor supported.
- Indoor & outdoor banners
- Car Wraps, fleet, motorsports, & marine graphics
- Commercial and residential wall and floor graphics
- Peel & stick decals, industrial labels, commercial signage
- Exhibition graphics and retail backlit signage
- Garment decoration; vivid, durable graphics on light and dark apparel
- And many others
