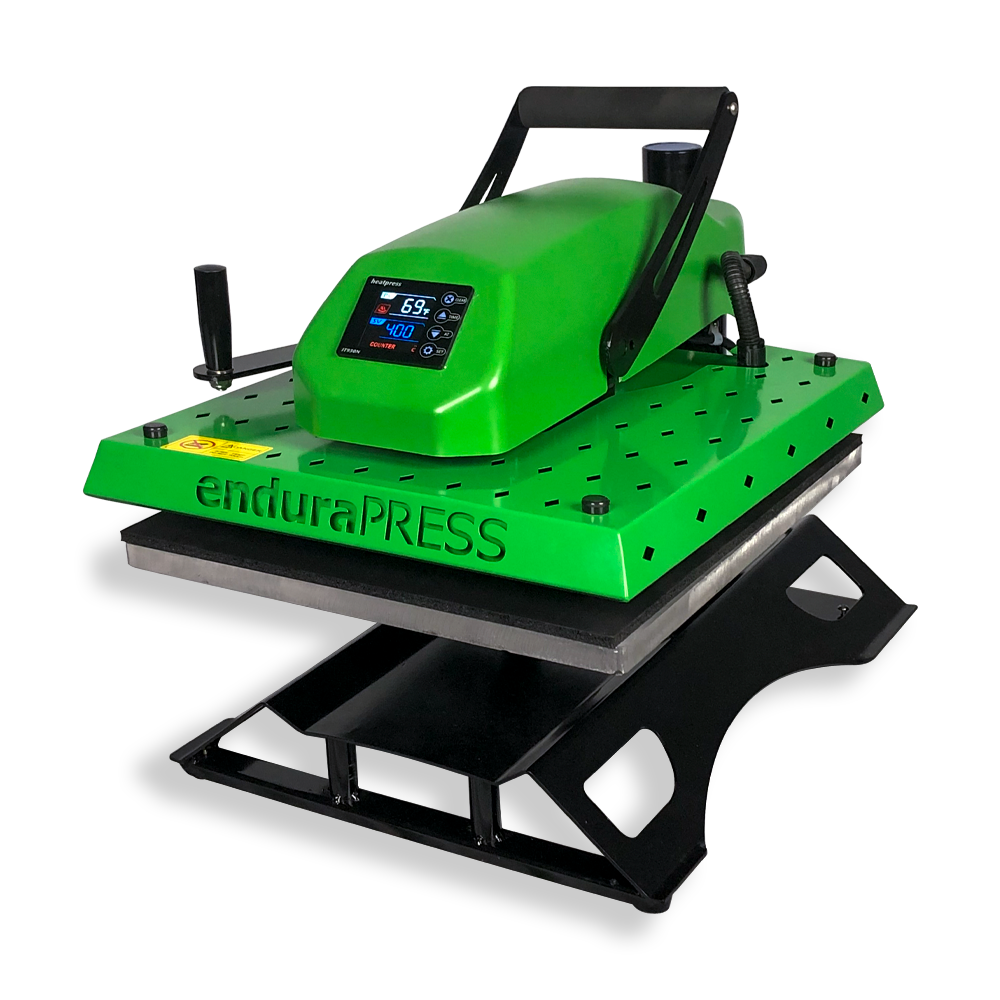

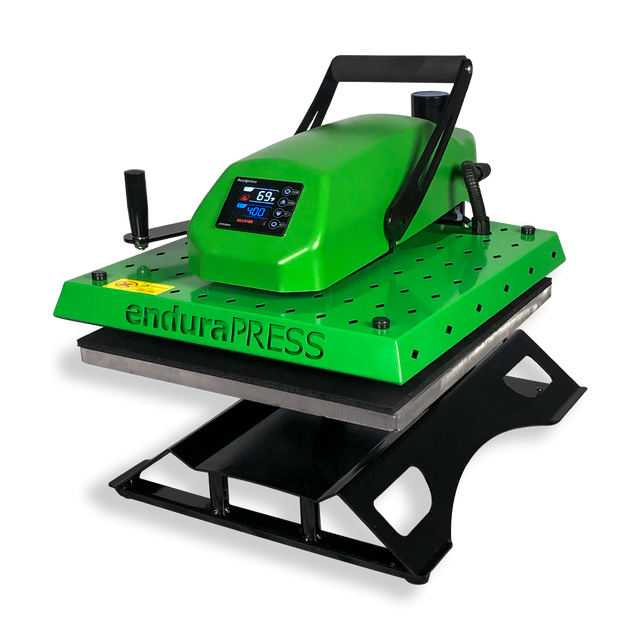

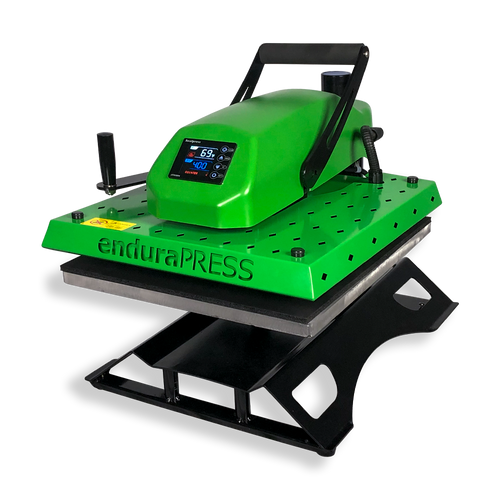

EnduraPRESS SD20 Digital Swing Away Heat Press Machine - 16 in x 20 in

Sku:

Retail Price:

SW Wholesale Price:

SignWarehouse Pro Icon
Pro Rebate:

Receive $26.28 back in your account with

SignWarehouse Pro

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Overview

Specs

Applications

Video

The EnduraPRESS SD20 Digital Swing Away heat press offers many professional features found in other heat presses costing hundreds of dollars more. The full-sized 16 in x 20 in upper heat platen supports pressing larger transfers with 20 inch heat transfer vinyl. The swing away platen design provides more room for setting up substrates, and has optimal vertical pressure which is necessary for thicker substrates such as tiles and mouse pads. The EnduraPRESS SD20 features a solidly constructed table that enables even pressure across the lower platen. The spring-actuated lever allows you to open the press smoothly, even on high pressure settings. All of these features make it an excellent choice for demanding heat transfer applications, including two-step laser transfer paper.

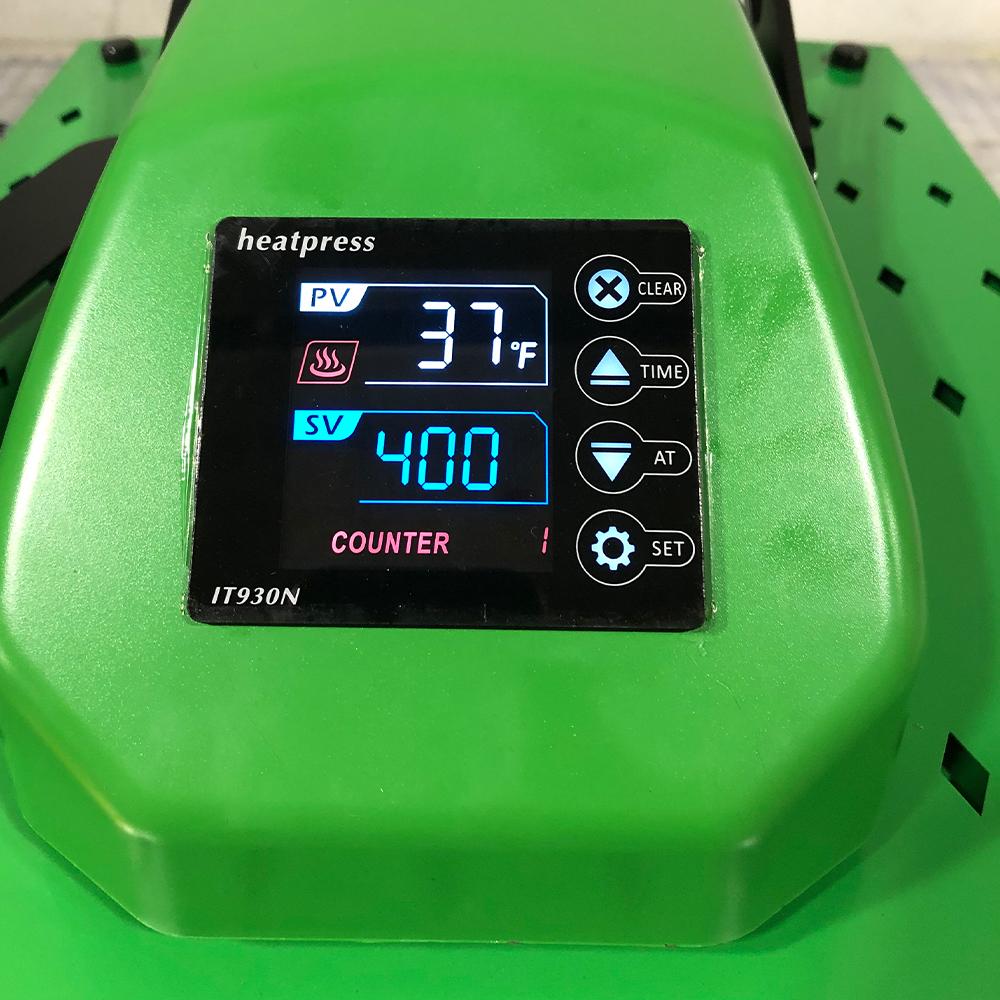

The EnduraPRESS SD20 features a 16 inch x 20 inch heating element that is consistent across the entire platen with a temperature range of up to 480°F. It also features a digital touch-screen LCD control panel which makes it easy to customize controls for a variety of applications. The LCD control panel gives you quick and easy access to cycle time, Celsius to Fahrenheit conversion, a programmable alarm, and temperature display calibration, all accessible in seconds. The EnduraPRESS SD20 swing away design provides excellent pressure and accurate temperature controls allowing for stress free application of even demanding heat transfer products. The EnduraPRESS SD20 is still simple to setup, dependable, and easy to use. See for yourself why the EnduraPRESS SD20 is one of our top selling products.

Features:

  • Swing Away design is ideal for even thicker substrates
  • 16 inch deep x 20 inch wide heating element
  • Ideal for 20 inch heat transfer vinyl
  • Temperature range up to 480°F
  • Easy to use and read digital touch screen LCD panel
  • Celsius to Fahrenheit conversion
  • Programmable alarm
  • Temperature display calibration
  • Extendable base for superior stability
  • High quality durable construction
  • Accurate temperature controls
  • Maximum Pressure: 1,000 lbs of force or 8.3PSI
  • One Year Warranty
  • THIS HEATPRESS WILL ALWAYS SHIP FREIGHT

Applications:

  • Heat transfer vinyl
  • Printable heat transfer vinyl
  • Dye sublimation
  • Two Step Laser Transfer Paper
  • Swing Away designs can be used for almost all substrates even thicker items such as tiles and mouse pads.
  • Swing Away designs provide complete overhead access to laying out your design on the substrate

    For a more information on the many options of the EnduraPRESS SD20 swing away heat press please read the following blog article: Optional Platens for the EnduraPRESS SD20

    READ the User Guide for the EnduraPRESS SD20 Swing Away Heat Press.

      CONTENTS:

      • (1) EnduraPRESS SD20 Heat Press - 16 in x 20 in

      SPECIFICATIONS:

      • 16 in x 20 in platen with consistent temperature throughout
      • Temperature range: 0-480°F
      • Heating speed to 392°F: 20 minutes
      • Maximum Open Height is 0.5"
      • Circuit-breaker reset button: No tripped breakers
      • Temperature display accuracy: Within 5°F
      • Voltage: 110V/60Hz; Power: 1.4kW
      • Shipping weight: 129lbs
      • Shipping dimensions: 29 in x 20 in x 21 in
      • One Year Basic Warranty
      • THIS HEATPRESS WILL ALWAYS SHIP FREIGHT

      Applications:

      • Heat transfer vinyl
      • Printable heat transfer vinyl
      • Dye sublimation
      • Two Step Laser Transfer Paper
      • Swing Away design can be used for almost all substrates even thicker items such as tiles and mouse pads.
      • Swing Away design provides complete overhead access to laying out your design on the substrate
