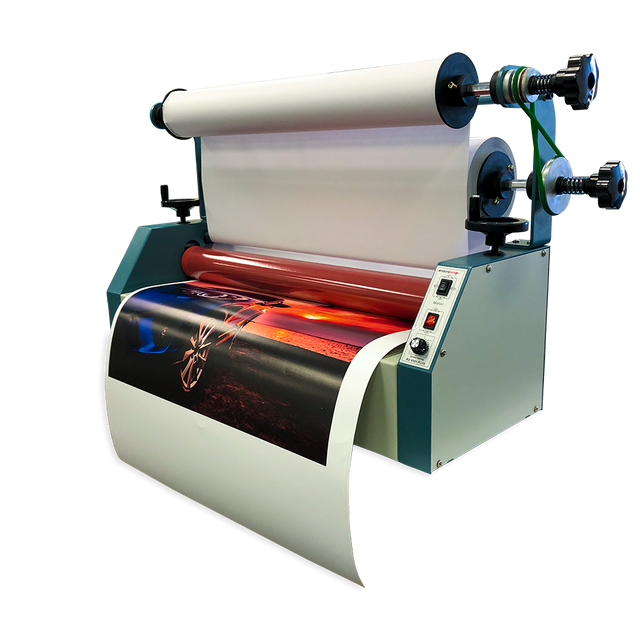

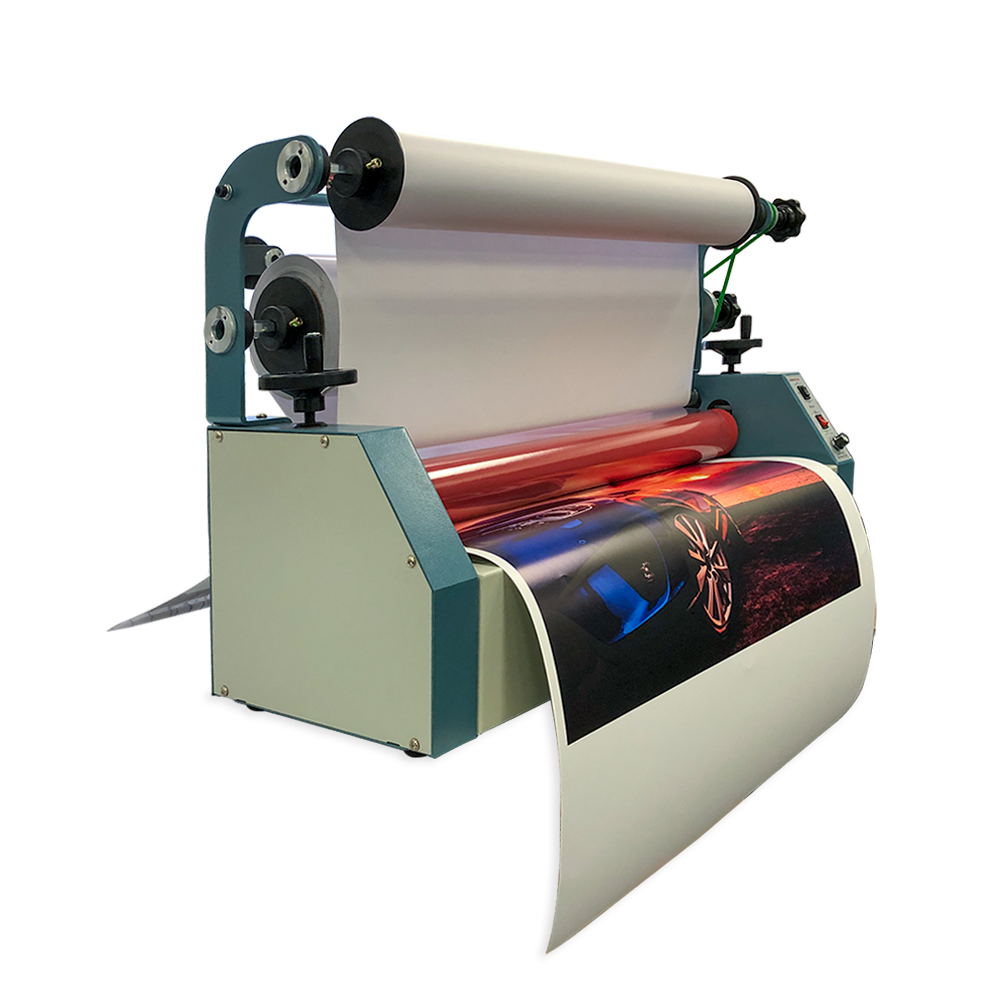

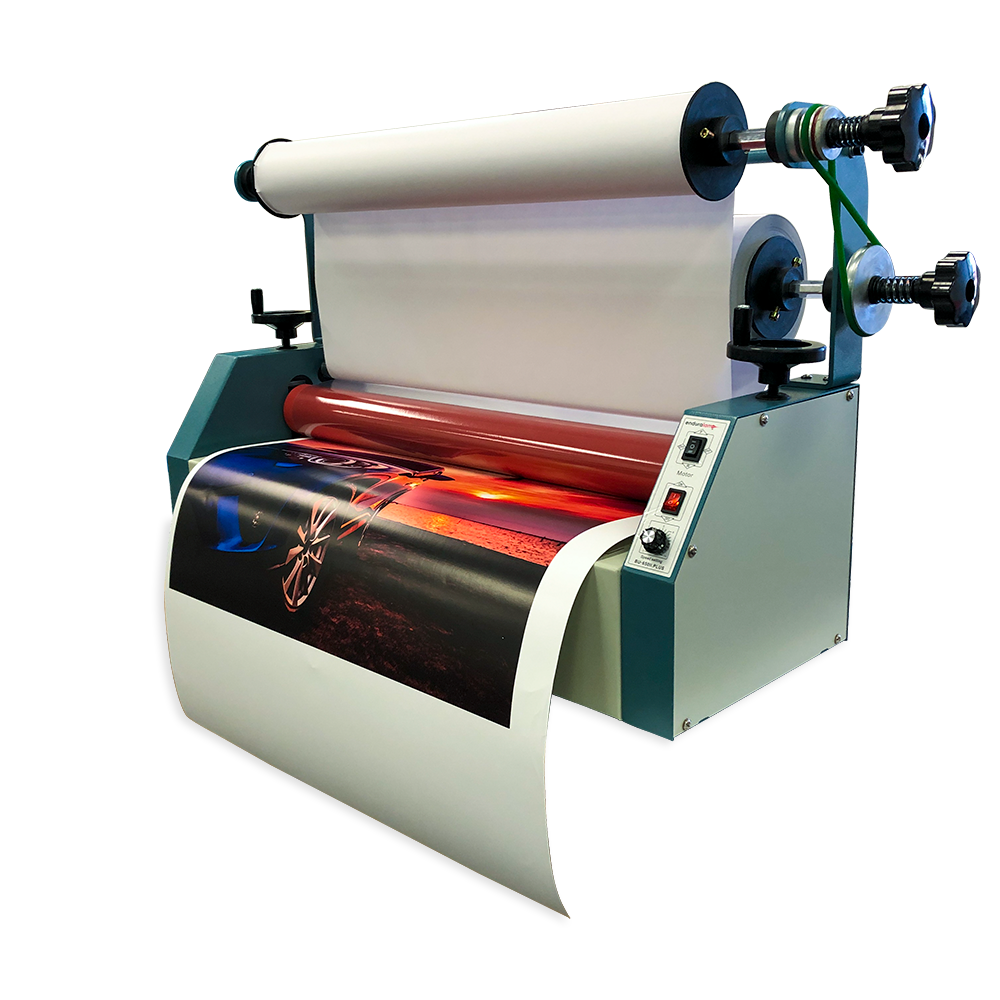

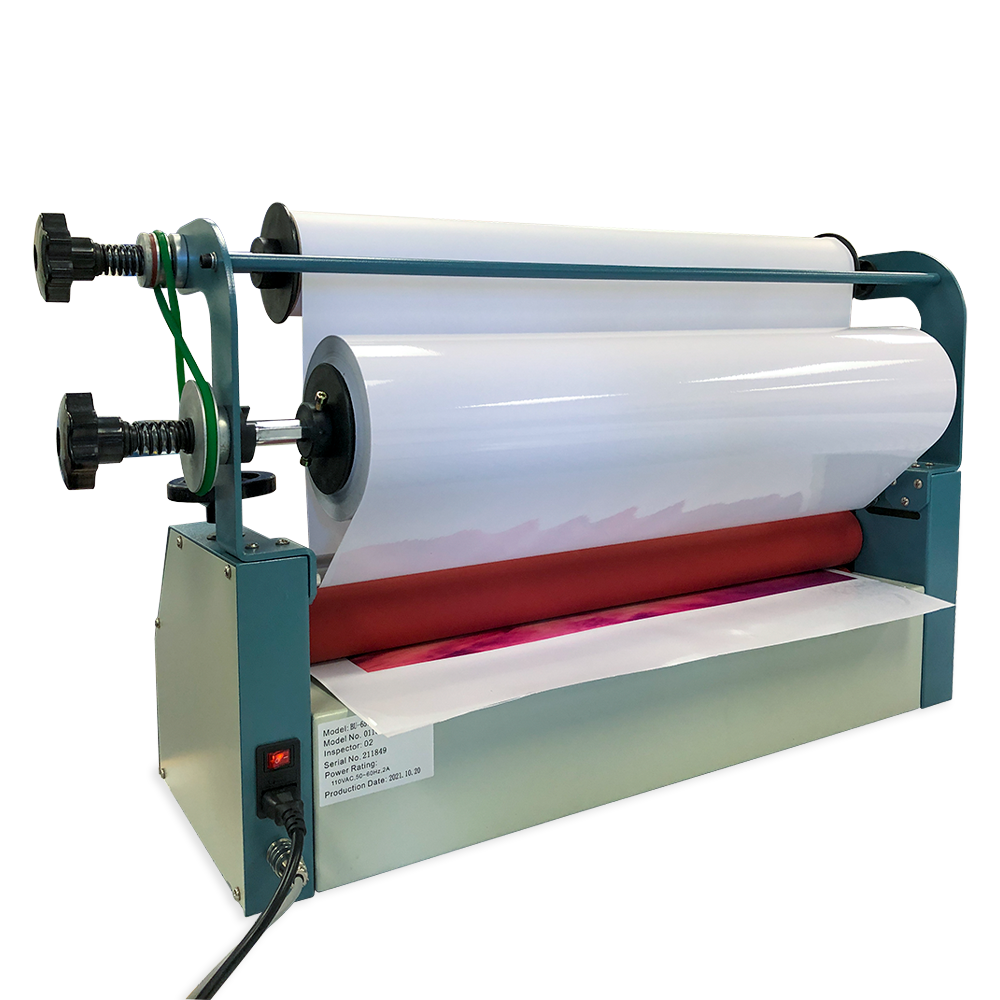

The EnduraLAM 24 is a simple and affordable desktop laminator designed for use with wide-format and desktop printers such as the PrismJET VJ24 and Roland BN-20. The EnduraLAM is engineered with over 25 years of experience in the manufacture of large-format finishing equipment. The EnduraLAM 24 features automatic take-up of the release liner and other features designed to make laminating digital prints efficient and productive. It is simple and economical, but still quite capable.
Features:
- Motor-driven pressure rollers
- Friction-driven media and liner take-up rollers
- Upright media support brackets that can support the weight of 24 inches by 50-yard rolls of overlaminate film
- Designed to conserve power
- Runs at variable speeds
- Can laminate short panels or long jobs
- Machine Model: LMN-ES-C-25
- Maximum laminating width: 25.6 in (650mm)
- Laminating speed: 16 ft/min (5m/min)
- Maximum media roll diameter: 5.9 in (150mm)
- Maximum media thickness: 0.9 in (25mm)
- Roller diameter: 65mm
- Supply voltage: 250V/1A
- Governor Motor DC: 12V30W
- Machine size: 29 x 11 x 20 in (760*280*500mm)
- Machine weight: 95 lbs (43 KG)
- Shipping weight: 95 lbs (43 KG)
- Warranty One Year Warranty: Parts & labor Support One year complimentary Gold Support
- Cold laminating of digital prints
