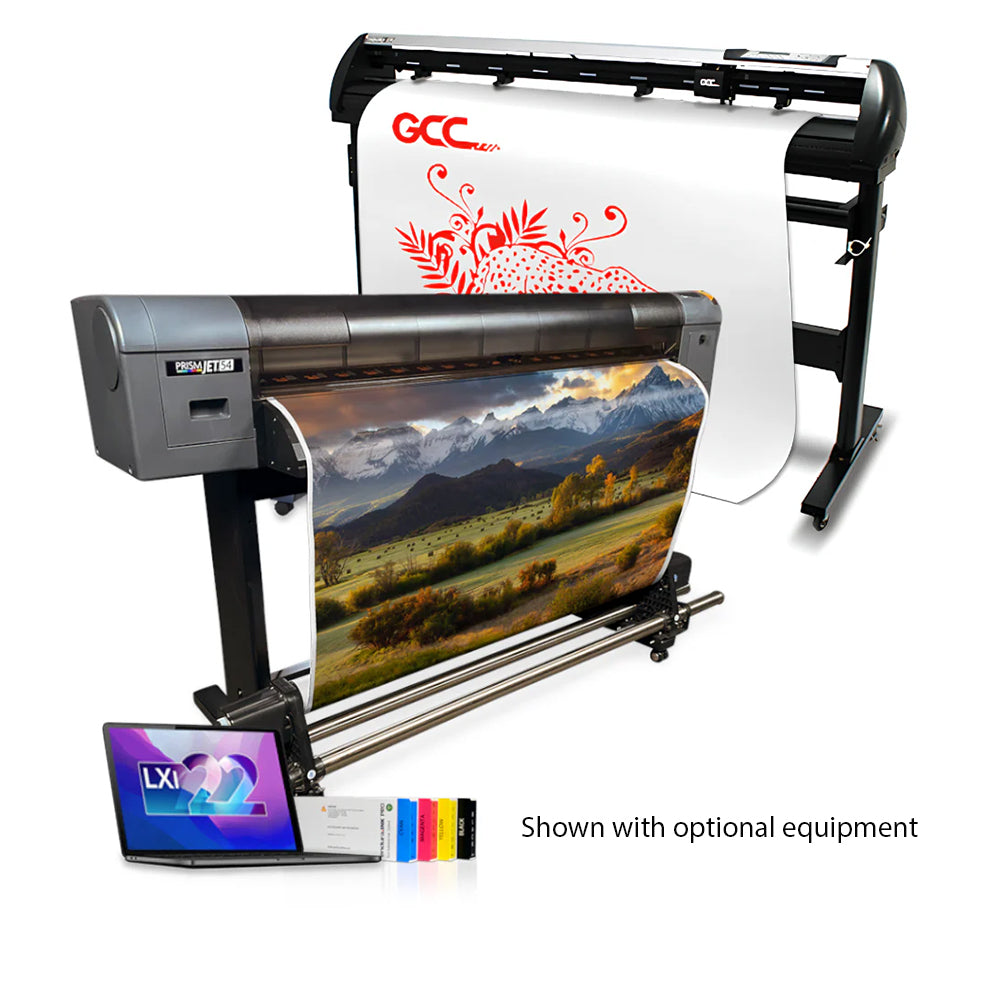

PrismJET 54 Gen2 Print & Cut Pro Package with 64 Inch GCC Jaguar V Vinyl Cutter

Retail price:

SW Wholesale Price:

Sale price:

No customer reviews Write a review

Sku:

Call Now Buy Online

Special Offer!

SignWarehouse PRO

Become one of our PRO members and get $799.75 back on this purchase and more!

Affirm

Pay as low as $/month or 0% APR by selecting Affirm at checkout

Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

* When purchasing this product before the displayed date, your account will be issued a partial credit each month until the total amount has been issued.

Overview

Specs

Applications

Video

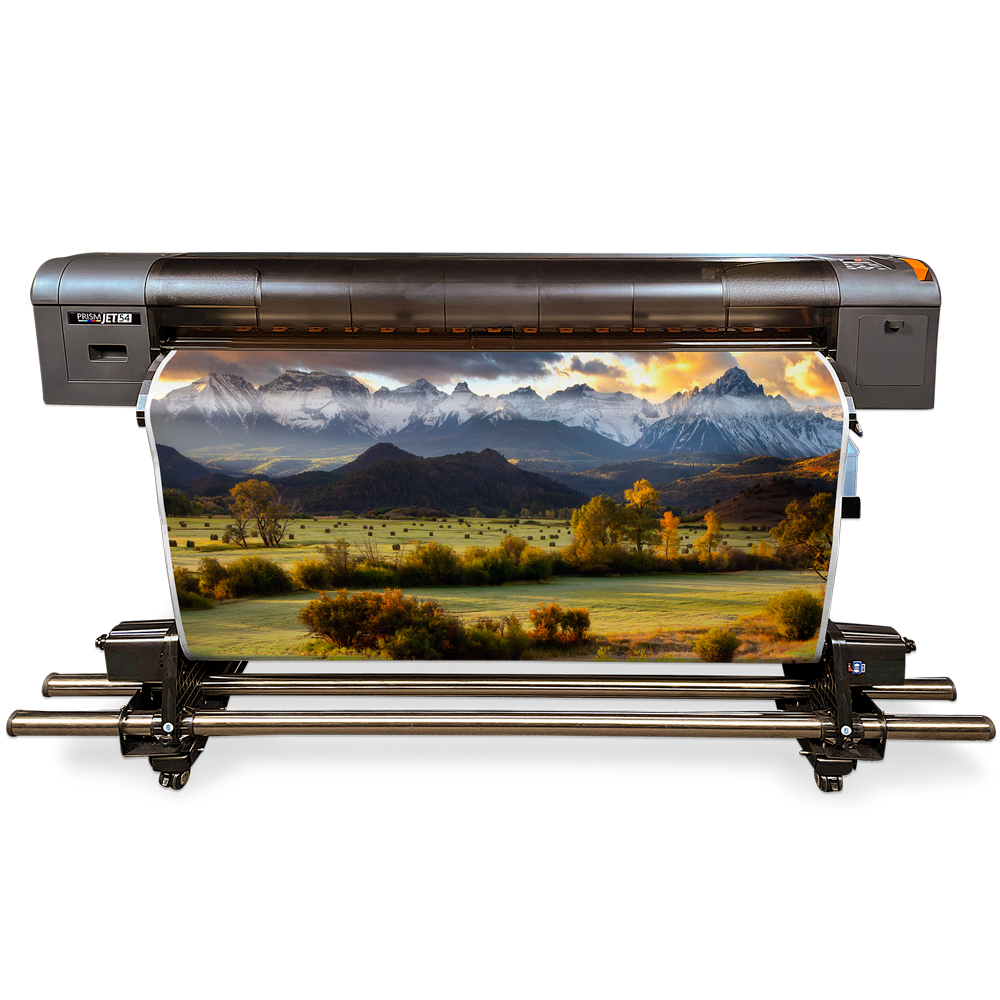

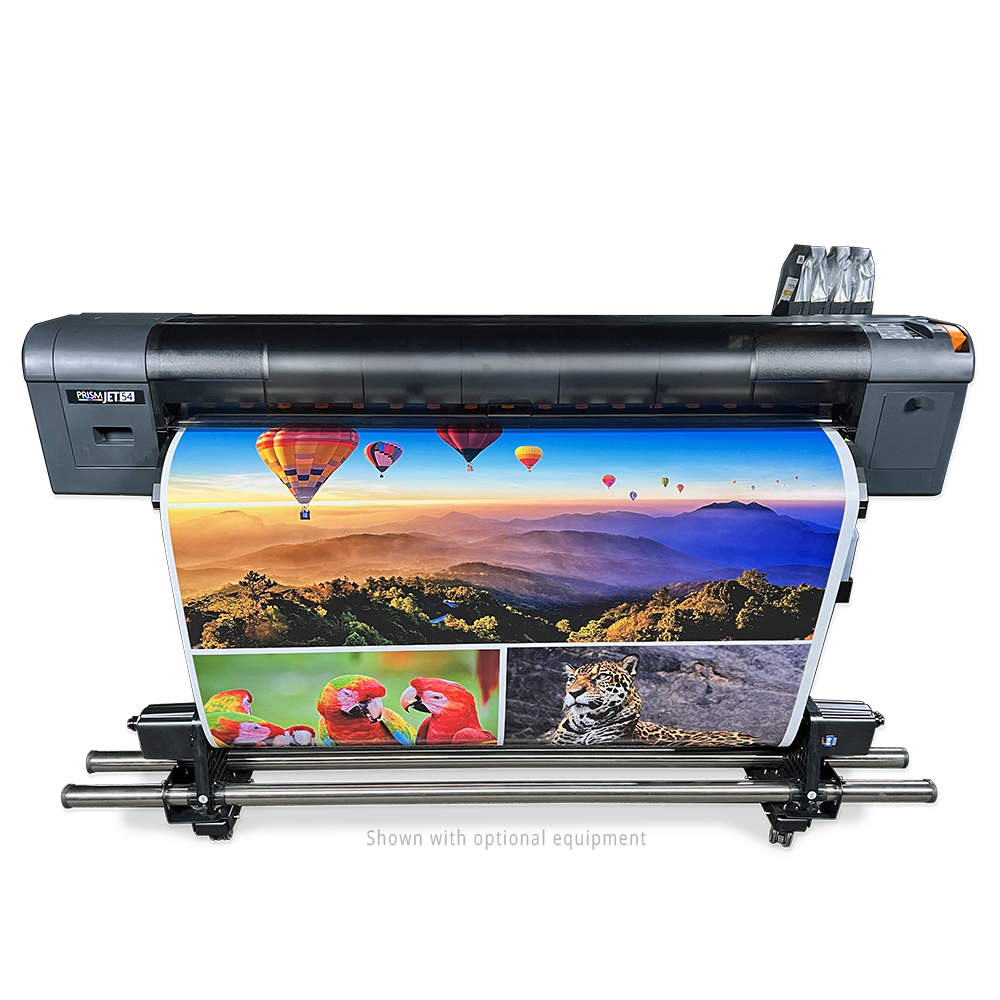

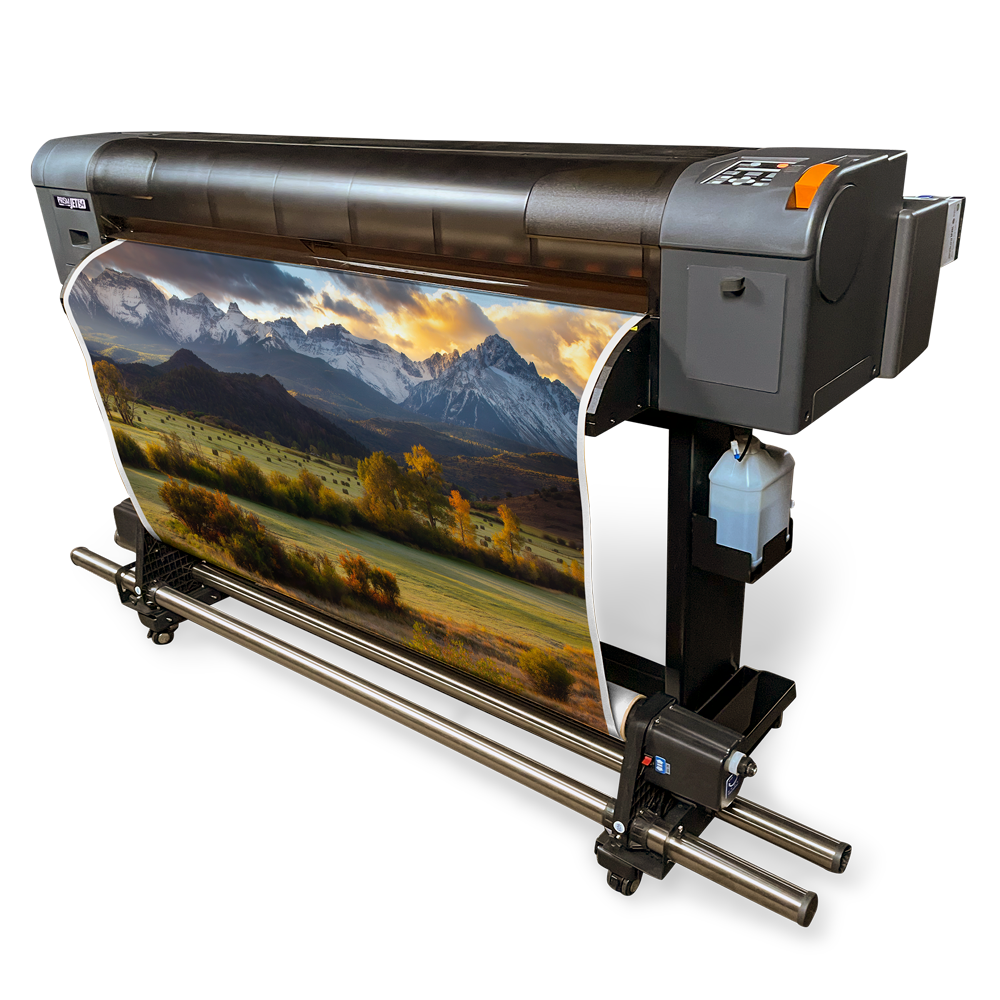

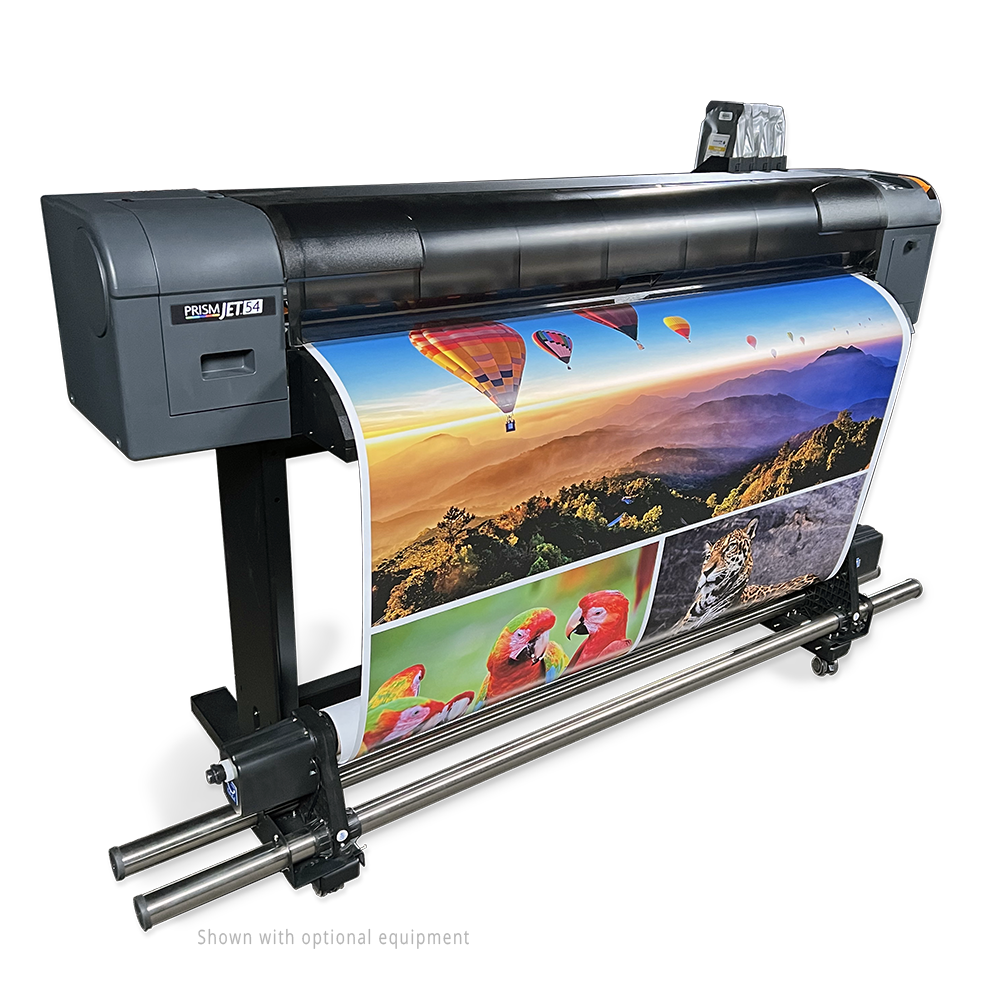

The PrismJET 54 Gen 2 builds on the class-leading features in the newest iteration of our best-selling printer. The advanced TruPoint piezo print head and wave print firmware make printing stunning graphics easier than ever. The new TruPoint print head which improves print speed, accommodates thicker media, and simplifies maintenance. To get the most out of your PrismJET 54, you’ll want to bundle it with an advanced contour-cutting large format vinyl cutter.

If you’re looking for a no-compromises do-it-all decal production system, the PrismJET 54Gen2 bundled with a 64-inch GCC Jaguar V is an unbeatable value. The Jaguar V’s AAS II axis alignment firmware includes automatic rotation mark detection and support for segmented registration marks. These features, plus excellent tracking, enable easier production of large, complex decal production.

The second generation PrismJET 54-inch eco-solvent printer is smarter, faster, and simpler. The PrismJET 54 incorporates advances in print head technology and precise Japanese engineering. The new piezo print head has more and larger nozzles for faster throughput. The Second gen is 12% faster than our best-selling VJ54 and has brilliant new features that make it easier to use and maintain. What hasn't changed is the combination of outstanding print quality, high production, and rock-solid reliability. The bundled LXI RIP Design 22 software includes raster and vector design tools, a powerful 64-bit RIP engine and color management tools. Engineered and built in Japan. Exclusively from SIGNWarehouse.

Features:

  • New TruPoint print head achieves high productivity and high image quality
  • TruPoint print head supports automatic bypassing of clogged nozzles for trouble-free printing
  • TruPoint print head has 11% more nozzles, higher nozzle resolution
  • 12% faster print speeds than PrismJET VJ54
  • Built in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
  • DropMaster2 firmware precisely controls dot size and maintains print quality
  • FeedMaster automates media feed adjustments to maintain precise high resolution print production
  • New Barcode media tracker feature helps monitor media roll status
  • Three head height settings accommodate a wider range of media thickness
  • End user-replaceable wiper, new access door for easier maintenance



https://cdn.shopify.com/s/files/1/0046/2857/8397/files/TruPoint_Logo_Black_250x45_6c629eff-1798-4df4-8f9e-485884feafc8.png?v=1650470824

Content:

  • PrismJET 54 Gen2 Large-format Printer
  • GCC Jaguar V 163LX  64 inch vinyl cutter, stand, and media basket
  • Vinyl Express LXi RIP 22 Design & RIP software
  • Set of EnduraINK PRO 220ml ink cartridges, CMYK
  • Set of 4 EnduraINK PRO cleaning cartridges
  • 50-yard roll of PrismJET 203 glossy printable vinyl
  • 25 ft ethernet cable
  • 10FT Power cord
  • One-year warranty
  • One year of Complimentary Gold Support

PrismJET 54 Gen2 Specifications:

  • Print Technology: Single TruPoint variable drop-on demand piezo print head
  • Nozzle Configuration: 1600 (400 nozzles x 4 lines)
  • Maximum Resolution: 1200 dpi
  • Head Heights: Low: 1.5mm / Middle: 2mm / High: 2.5mm
  • Production print speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi
  • Banner Mode print speed: 313 sf/hr in Banner4 mode (300 x 600 dpi)
  • Max. Media Width: 54 inches (1371mm)
  • Max. Print Width: 53.58 inches (1361mm)
  • Max. Media Roll Weight: 44 lbs (19.9kg)
  • Max. Media Roll Diameter: 6" / 2" (3" optional)
  • Media Drying System: Individually controlled pre-heater, fixer & dryer (30 - 50 °C)
  • Media Sheet-off function: One-touch control panel cross-cut function
  • Ink Type: Endura Ink PRO eco-solvent ink
  • Ink Volume: 220 ml & 1000 ml  / 1000 ml
  • Ink Colors: CMYK
  • UV durability—without lamination: 3 years outdoor
  • Data Interface: Ethernet (10BASE-T、100BASE-TX)
  • During Printing < 500 W
  • In Stand-by: 45 W
  • Warming Up ≤ 1550 W
  • Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz
  • Power Consumption-Operation: AC100V〜120V/AC200V〜240V, T.B.D W or below
  • Power Consumption - Sleep Mode: AC100V〜120V/AC200V〜240V, T.B.D W or below
  • Operating Temperature: 71 - 86°F (22°C - 30 °C) with Δt: max. 2 °C/h
  • Operating Humidity Range: 40% - 60 % (no condensation) with ΔRH: max. 5% RH/h
  • External Dimensions: 75.43"W x 26.97"D x 47.95"H (1916 x 685 x 1218 mm)
  • Weight: 181.44 lbs (82.3 kg)

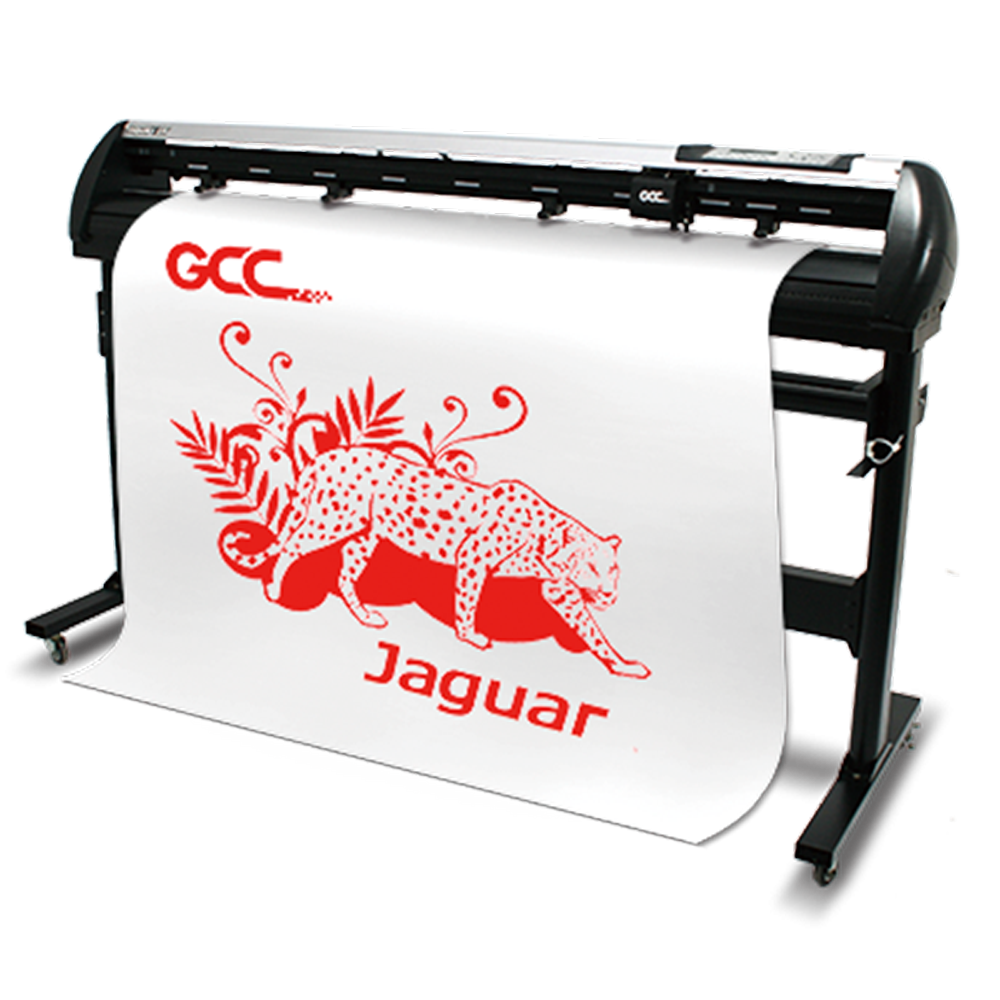

GCC Jaguar V 163LX Specifications:

  • Digital Servo motor
  • Max Cutting Speed: 60 inches per second
  • Max Cutting Force: 600 grams
  • Max Media width: 70.20 inches
  • Max Cutting width: 64 inches
  • Advanced AAS II Axis alignment contour-cutting firmware
  • Number of Push Rollers: 6 Rollers
  • Stand and Media Basket: Included
  • Buffer Memory: 16 MB
  • Interface: USB 2.0 (Full speed), Serial (RS-232C), Ethernet.
  • Power Supply: 100 V to 240 V AC, 50/60 Hz (auto-switching)

PrismJET 54 Gen2 Wide Format Color Printer: One printer. Limitless applications.

Here are some of the ways you can make money with a PrismJET 54 Gen2 Print & Cut Pro Package with GCC Jaguar V.

  • Car Wraps, fleet motor sports & marine graphics
  • Commercial and residential wall and floor graphics
  • Commercial window displays & P.O.P. graphics
  • Industrial labels, peel & stick decals,
  • Garment decoration; vivid graphics on dark shirts.
  • Indoor & outdoor banners
  • Exhibition graphics and retail backlit signage
  • Outdoor-durable posters
