Roland VersaSTUDIO BN2-20A Printer/Cutter - Basics Starter Package

Retail price:

SW Wholesale Price:

Sale price:

No customer reviews Write a review

Sku:

Call Now Buy Online

Special Offer!

SignWarehouse PRO

Become one of our PRO members and get $339.75 back on this purchase and more!

Affirm

Pay as low as $/month or 0% APR by selecting Affirm at checkout

Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

* When purchasing this product before the displayed date, your account will be issued a partial credit each month until the total amount has been issued.

Overview

Specs

Applications

Video

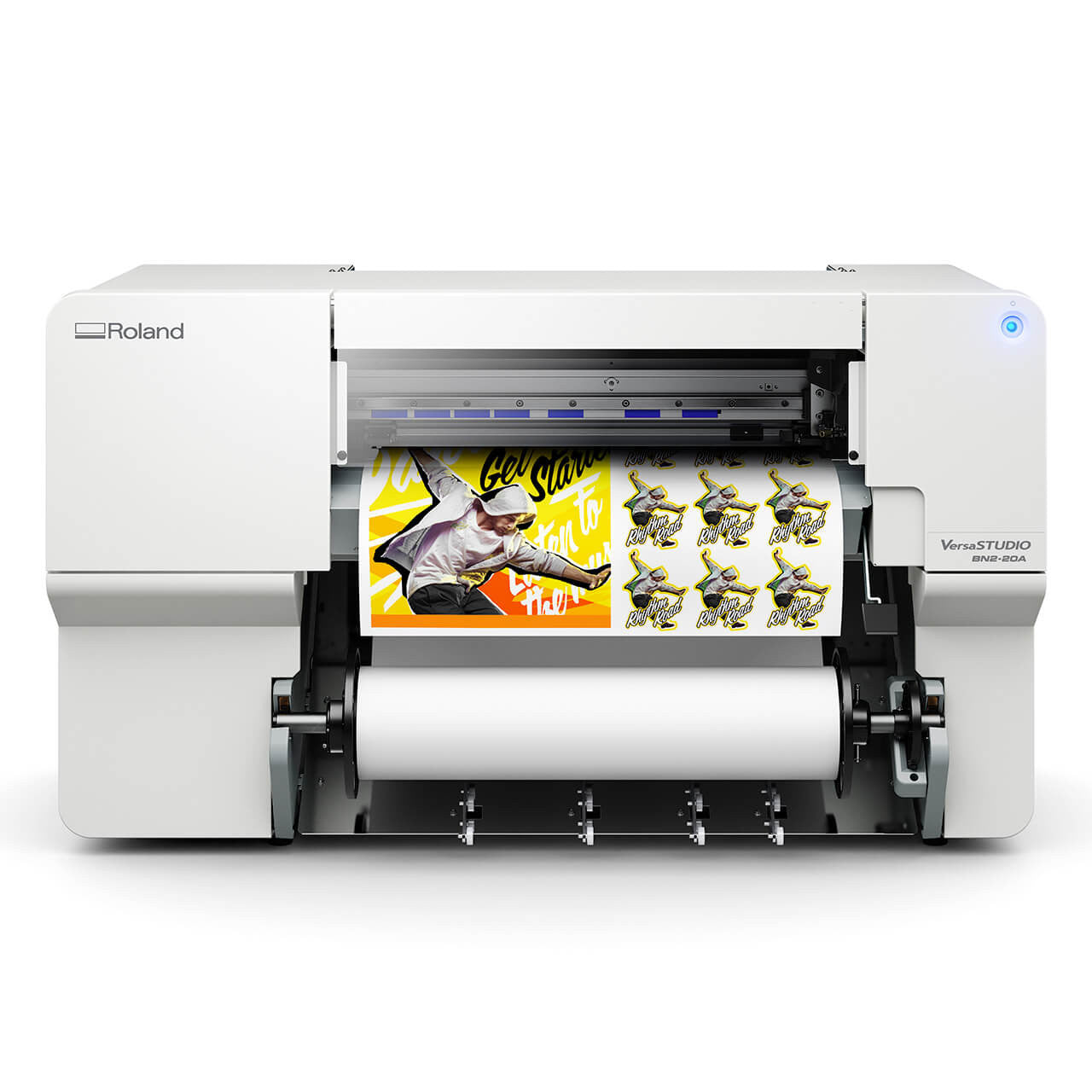

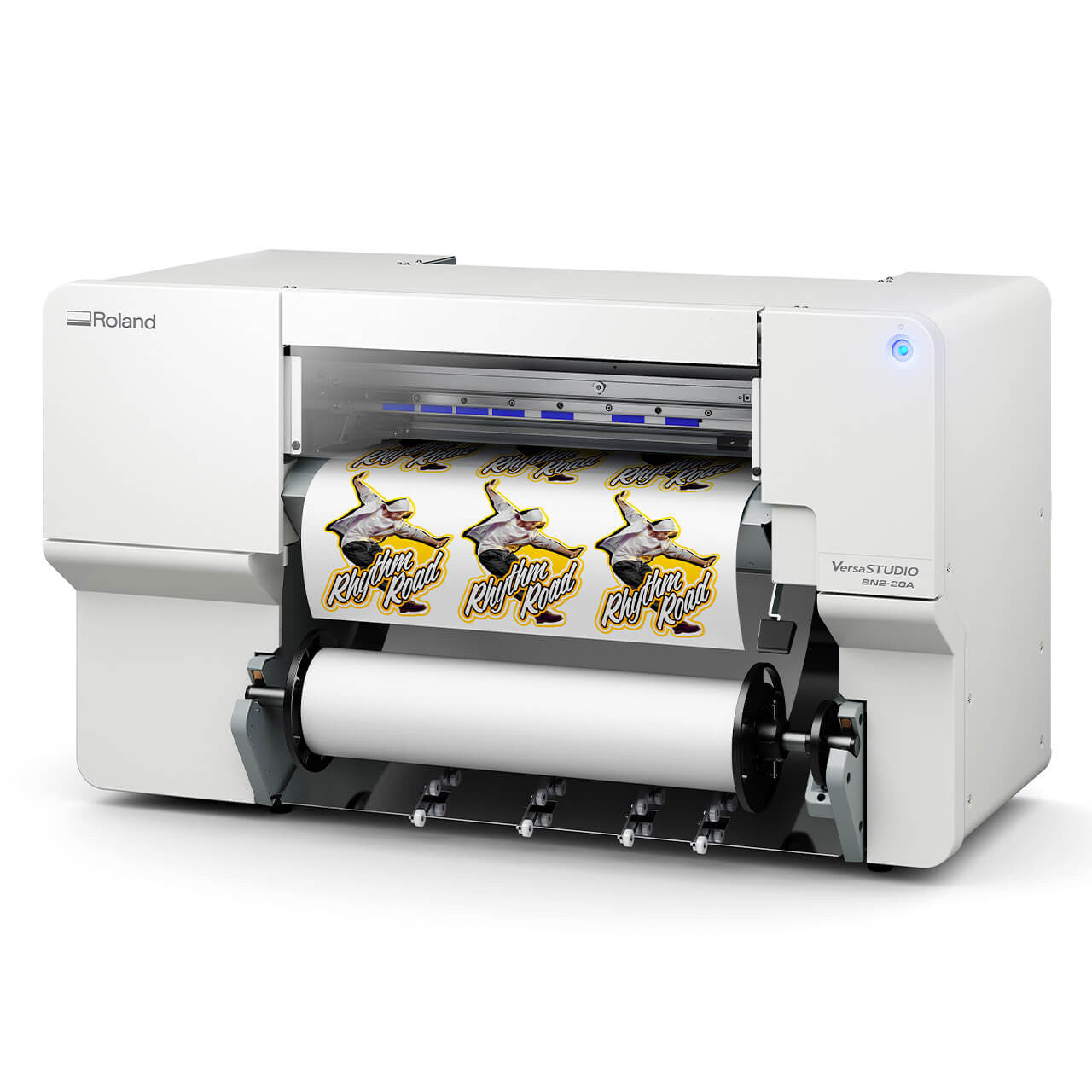

With the next-generation Roland VersaSTUDIO BN2 Series printers, Roland DG has taken a great thing and made it even better. The Roland VersaSTUDIO BN2-20A is a 20-inch compact, eco-solvent printer/cutter that offers significantly faster print speeds than the original BN20. Convenient new features, ease of use, and a space-saving design easily allows for placement in a home, office, or shop.

The VersaSTUDIO BN2 series printers are integrated desktop printer/cutters that support creation of stickers and contour-cut decals in one compact package. The Roland BN2-20A is everything you need to get started in professional print and cut graphics production. The BN20-20A features a 4-color CMYK ink system and a full design to print solution that includes FlexiDESIGNER VersaSTUDIO Edition design software and VersaWorks 6 RIP.

This Basics Starter Bundle for the Roland VersaSTUDIO BN2-20A has all the basic level items you will need to get started. With the added benefit of software, cleaning supplies, online support & training, and warranty.

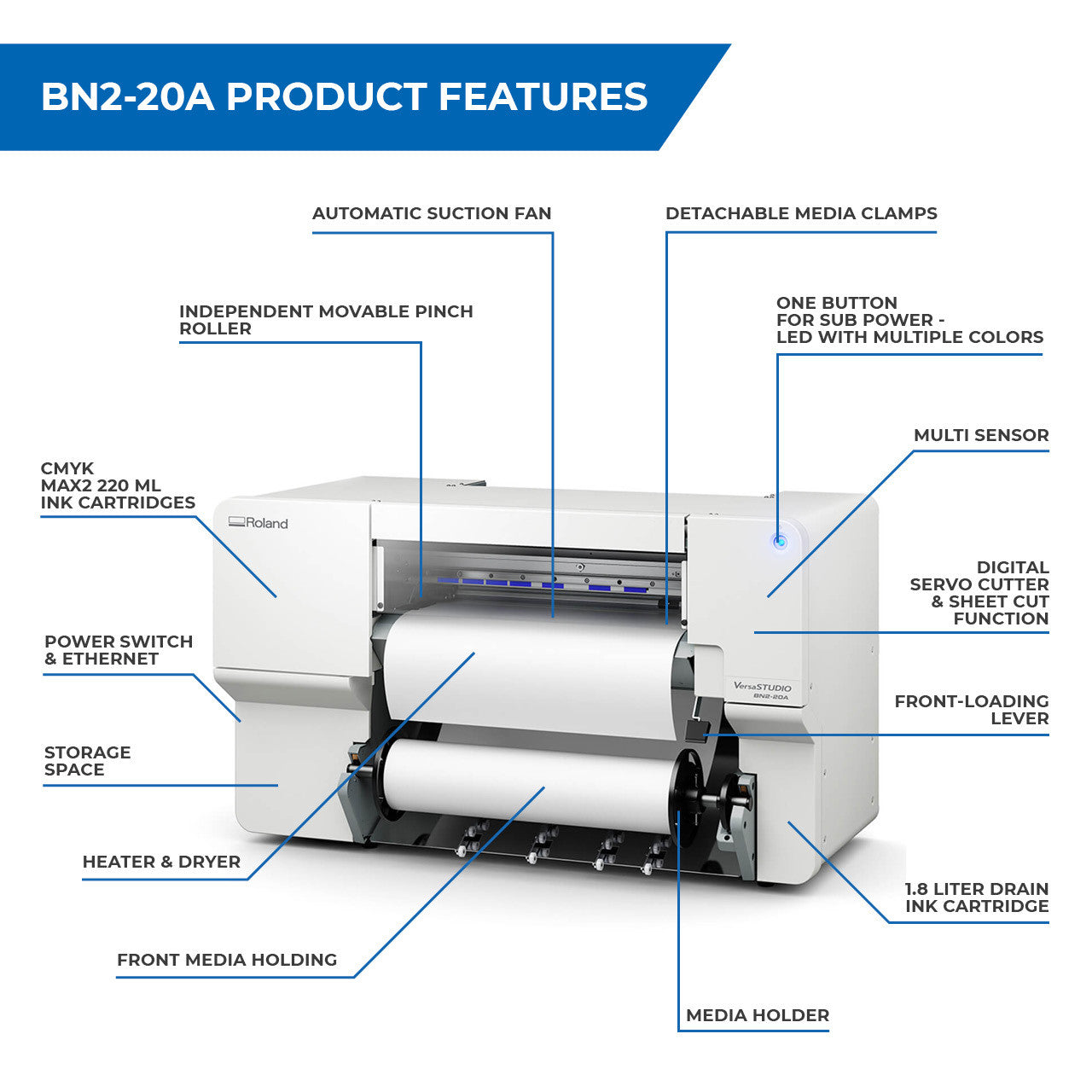

Product Features:

  • Compact, Integrated print & cut workflow

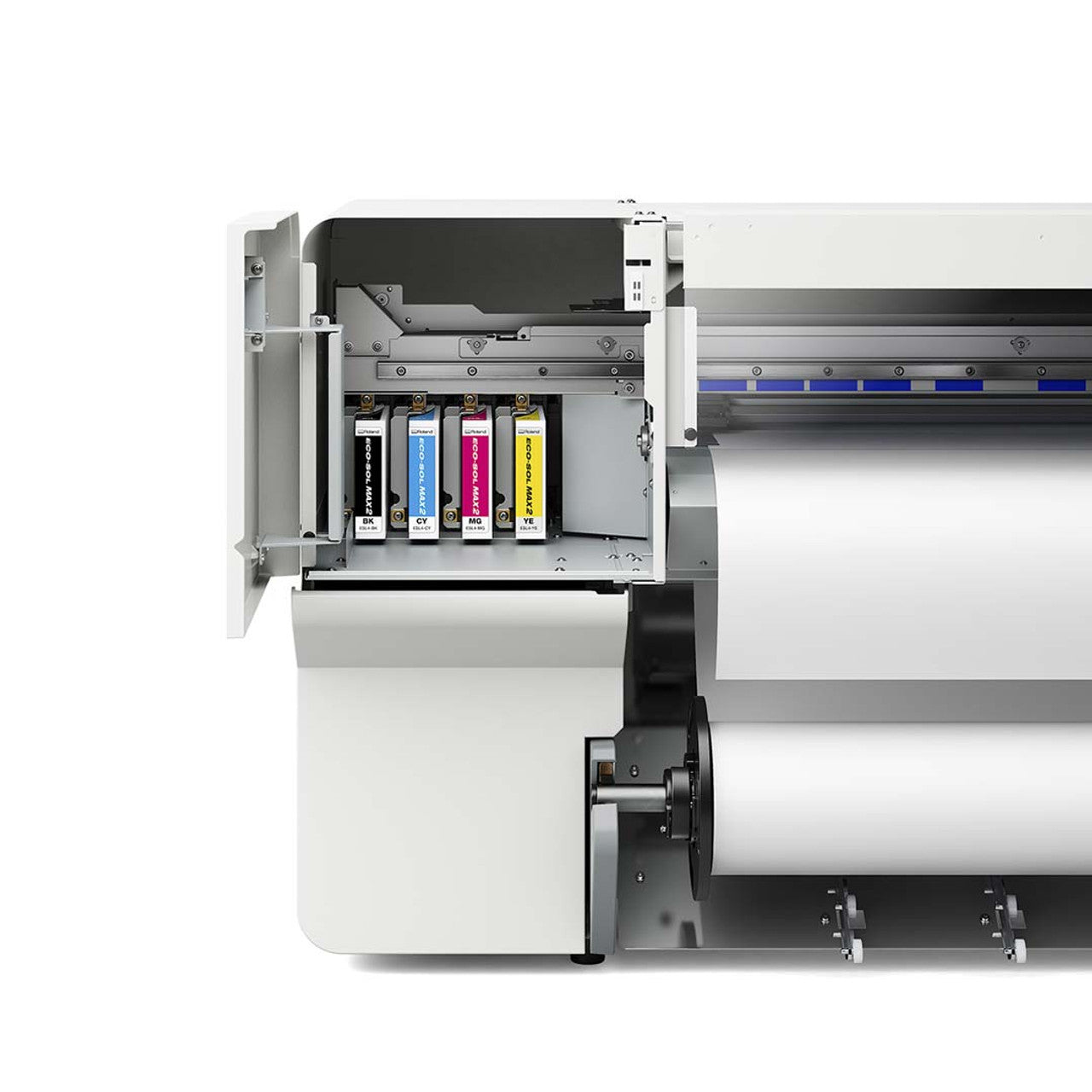

  • Features a 4-color CMYK eco-solvent ink system
  • Professional quality piezo print head, outdoor-durable inks
  • Print speeds 4X Faster than previous BN-20
  • 1440 x 1440 dpi
  • Starter Priced - perfect for aspiring creatives looking for an affordable startup opportunity
  • Easy to Use - the BN2 series retains the BN20's ease of use. Create professional quality graphics with little or no experience
  • Compact footprint - the 20 inch BN2-20A printer/cutter can be used as desktop printers in most office spaces. Perfect for small print shops and home-based businesses
  • Bundled software FlexiDesigner VersaSTUDIO Edition simplifies design & production of professional quality decals
  • Bundled VersaWorks 6 output software optimizes print quality and includes color management tools

Roland DG Warranty Registration

BN2-20 Setup & Training Videos

Roland BN2-20A Basics Starter Bundle Contents:

  • Roland BN2-20A Printer
  • FlexiDESIGNER VersaSTUDIO Edition software, VersaWorks 6 RIP software & Roland DG Connect
  • Set of Eco-Sol 220cc CMYK ink set
  • Roland Cleaning Liquid Kit
  • Online Video Training + Personal Setup Assistance
  • One year depot warranty
  • One year of Complimentary Gold Support



Roland BN2-20A Specifications

Print MethodPiezo ink-jet method
Maximum Resolution1440 dpi
Maximum Print Speed52.8 sq ft/hr *
Printing/Cutting WidthMaximum 18.89 in. (480 mm) **
Media width5.91 to 20.2 in. (150 to 515 mm)
Media thicknessMaximum 1.0 mm (39.3 mil) with liner, for printing
 Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Media Roll Outer diameterMaximum 5.9 in. (150 mm)
Media Roll WeightMaximum 13.2 lb. (6 kg)
Media Core Diameter3 in. (76.2 mm) or 2 in. (50.8 mm )
Ink typeRoland Eco-sol Max2, 220-ml cartridges
Color configurationCyan, Magenta, Yellow, Black
Cutting Speed0.39 to 5.9 in/s (10 to 150 mm/s)
Cutting Force30 to 500 gf
Blade TypeRoland CAMM-1 series blade
Blade Offset0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (cutting)0.025 mm/step (0.98 mil/step)
Media Pre-heater Set Temperature86 to 95 °F (30 to 35 °C) ◘
Media Dryer Set Temperature86 to 100.4 °F (30 to 38 °C )
ConnectivityEthernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving functionAutomatic sleep feature
Rated Input100-240 Va.c. 50/60 Hz 2.1 A
Power consumptionDuring Operation: Approx.185 W
In Sleep Mode: Approx. 27W
Acoustic Noise LevelsDuring Operation: 62 dB (A) or less
In Standby: 60 dB (A) or less
Dimensions42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight137 lbs. (62 kg)
Shipping Dimensions46 in. x 29 in. x 27 in.
Shipping Weight137 lbs.
Shipping Crate/PalletShipped in a box on top of a pallet
Environment: operating â™ Temperature: 68 to 89.6 °F (20 to 32 °C),
 Humidity: 35 to 80 % RH (no condensation)
Environment: non-operatingTemperature: 41 to 104 °F (5 to 40 °C)
 Humidity: 20 to 80 % RH (no condensation)
Bundled softwareFlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect
WarrantyOne Year Depot Warranty
SupportOne year complimentary Gold Support
Included ItemsDedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software
Notes* Draft mode, Generic Media setting
 ** The length of printing or cutting is subject to the limitations of the program
 â—˜ Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.


 â™  Operating environment(Use in an operating environment within this range: See below)





Print and cut with one powerful, compact device!

With the ability to print vibrant, detailed graphics on vinyl, film, heat transfer material, and other types of media, the BN2-20A offers outstanding versatility. This media compatibility, combined with faster print speeds, integrated print/cut functionality, and unsurpassed ease of use, makes these value-packed desktop devices perfect for a wide variety of applications. The BN2 series makes creating everything from custom T-shirts and accessories to eye-catching signs, decals, and wall décor quick and simple – even for print novices.

Popular Applications:

  • Apparel
  • Decals & Labels
  • Small Signs & Posters
  • Art & Photography
  • Printing on Dark, Clear & Metallic Media
