Roland VersaSTUDIO GS2-24 Vinyl Cutter & Stand

No customer reviews Write a review

Sku:

Retail price:

SW Wholesale Price:

SignWarehouse Pro Icon

Sale price:

Get $59.85 back with SignWarehouse PRO

Call Now Buy Online
Add to Wishlist

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Campaign rebates:
When purchasing this product between the displayed dates, you will be issued a partial rebate amount to your account each month until the total amount has been issued.

Overview

Specs

Applications

Video

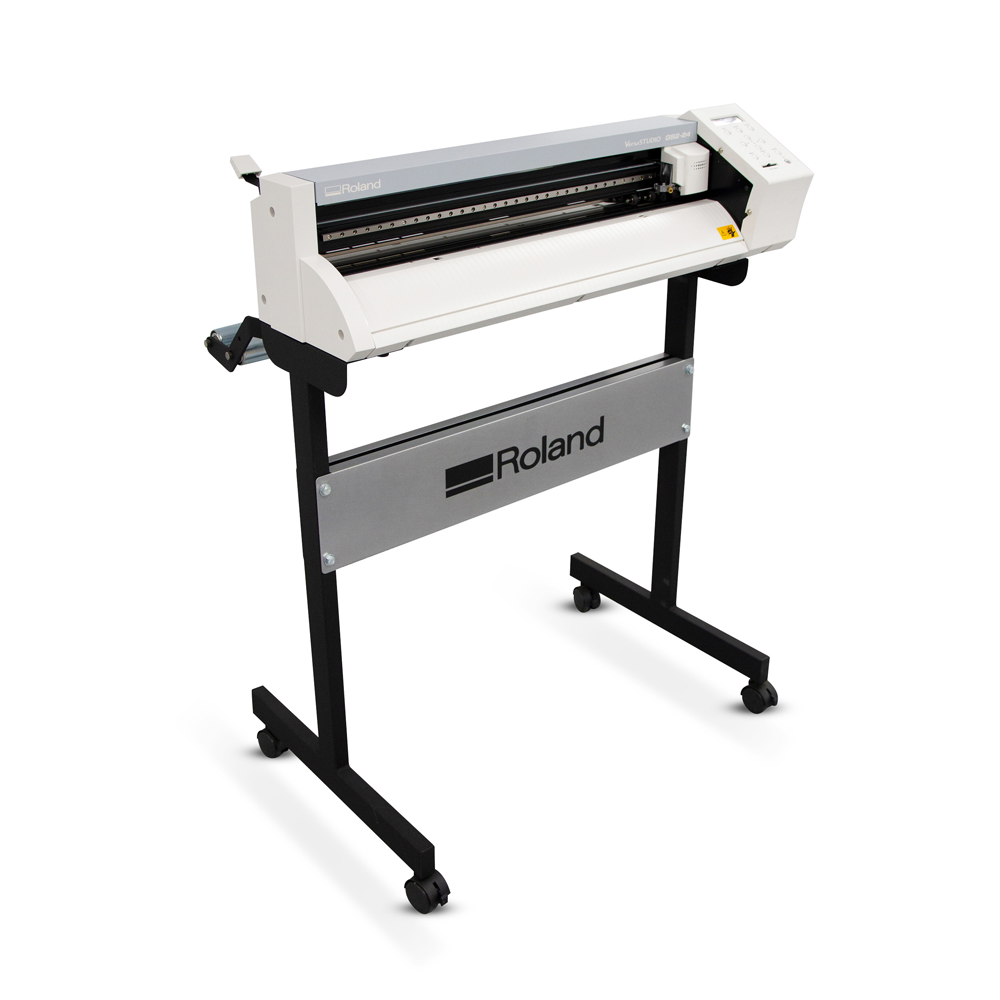

Compact, powerful and easy to use, the Roland VersaSTUDIO GS2-24 desktop cutting plotter is ideal for starting your customization business or bringing graphics production in-house. The GS2-24 improves on the popular GS-24 model with increased cutting speed and 40% more cutting force, plus updated software and connectivity options. The Roland VersaSTUDIO GS2-24 includes everything you need to get started including stand, software and a three year trouble free warranty.

Features:

  • New Roland DG Connect cloud-based service provides an intuitive and feature-focused operating experience.
  • New Connectivity Options: Both USB and Ethernet connectivity are available for the new GS2 24.
  • New DHCP: IP address is automatically assigned. No complicated settings are required.
  • New VersaWorks Features: New VersaWorks features enhance usability and versatility.
  • Increased power to easily cut thicker, denser media.
  • Fast and accurate cut performance
  • Stand included with purchase holds roll media and offers smooth set up
  • Roland DG CutStudio: Bundled design software provides the necessary tools to design and create custom cut graphics for a wide range of applications.
  • Intuitive, user-friendly operation
  • Maximum cutting speed: 33.5 in/s
  • Maximum cutting force: 500gf
  • Cutting width: 22.9 inches
  • Cutting length: 984 inches

Specifications:

  • Drive system Digital control servo motor
  • Cutting mechanism Media-moving method
  • Dimensions 33.9 × 12.6 × 9.3 in. (860 × 319 × 235 mm)
  • Acceptable material size: Width: 1.97 - 27.5 in. (50 - 700 mm) Length: • Roll material: no restriction • Flat material: 3.94 in. (100 mm) or more
  • Maximum cutting area: Width: 22.9 in. (584 mm) Length: 984 in. (25m)
  • Cutter blade: ZEC-U5032
  • Cutting speed: 0.39 - 33.4 in./s (10 - 850 mm/s)
  • Blade force: 30 - 500 grams
  • Mechanical resolution: 0.49 mil./step (0.0125 mm/step)
  • Software resolution: 0.98 mil./step (0.025 mm/step)
  • Connectivity Ethernet: (automatic switching between 10BASE-T and 100BASE-TX) USB 2.0 (FULL SPEED compliant)
  • Replot memory: 2 MB (buffer size: 8 MB)
  • Command system: CAMM-GLIII
  • Power consumption: Approx. 24 W
  • Weight: 30 lb. (13.5 kg)
  • Included items: Cutter, Stand, Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals
  • Warranty: Three Year Trouble-Free Warranty *
     Notes: * Standard warranty coverage is two years. Registration within 60 days of purchase is required to qualify for the free third year of limited warranty coverage.
    Specifications are subject to change without notice.

Applications:

  • Self-Adhesive Vinyl
  • Heat Transfer Vinyl
  • Specialist Materials
  • Magnetic Sheeting
  • Reflective Vinyl
  • Etched Window Frosting Films
  • Stencil Film
  • Papers and Cardstock
