MUSE M60 Expert Package

No customer reviews Write a Review

Sku:

Retail Price:

SW Wholesale Price:

SignWarehouse Pro Icon

Sale Price:

Get $50.85 back with SignWarehouse PRO

As low as $/Month
Select Credit Key at checkout

Call Now
Add to Wishlist

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Overview

Specs

Applications

Video

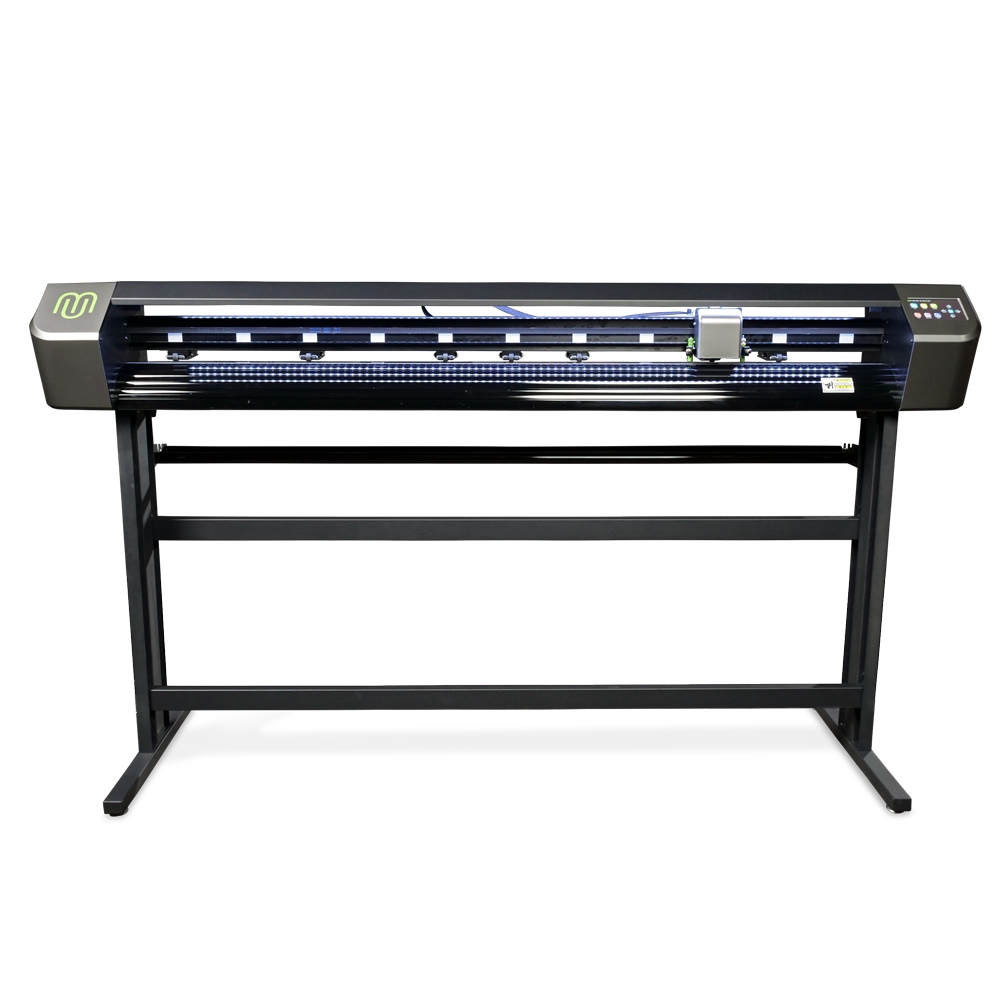

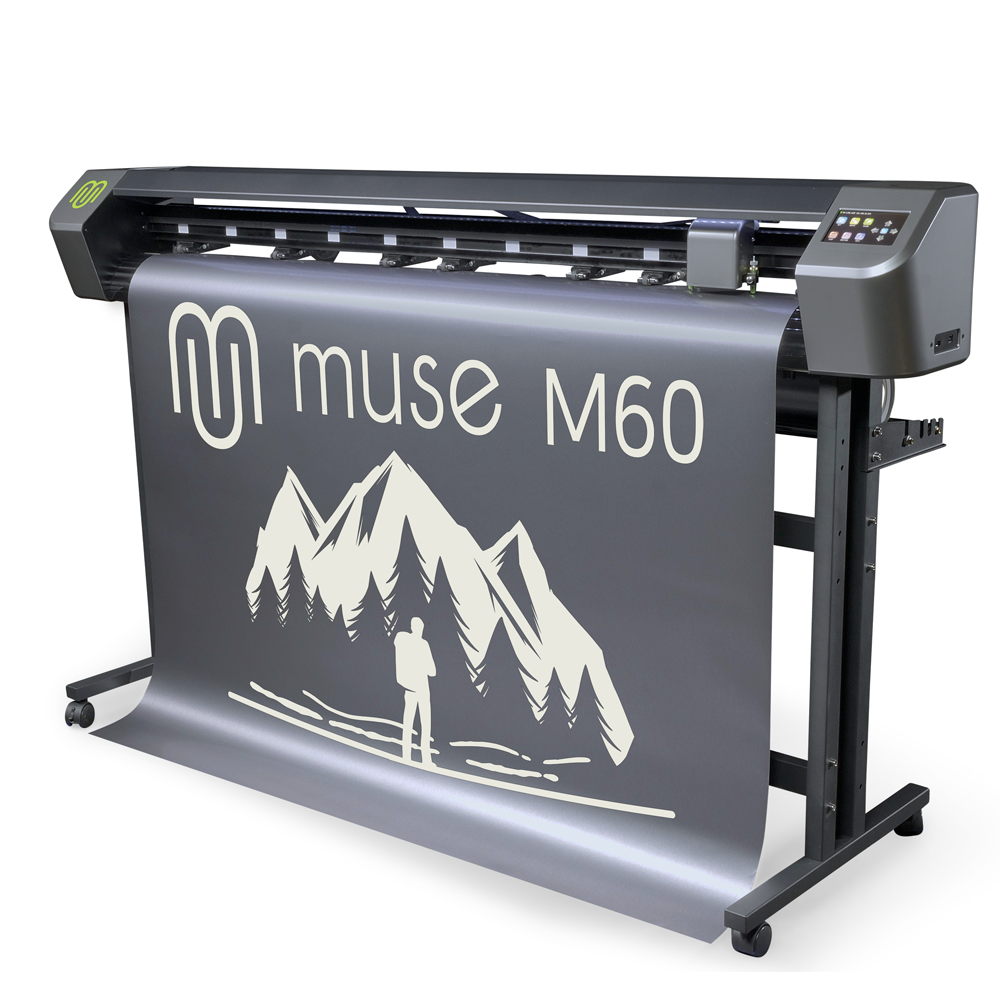

The MUSE M60 disrupts the vinyl cutter world with ground-breaking features and an appealing user experience that surpasses name brand cutters costing twice as much. It incorporates thoughtful touches like programmable LED platen lighting, camera-based automatic registration mark sensing, and a dual-head carriage that supports cutting and engraving. Its 60-inch cutting width and 59-inch contour-cut width make it a great companion to a large-format digital printer. The unique tool carriage accommodates two tools for seamless transitions from pen plotting to vinyl cutting or scribe engraving. It's a thoroughly modern solution for all kinds of vinyl signs and graphics.  Disruption never looked so good!

MUSE Features

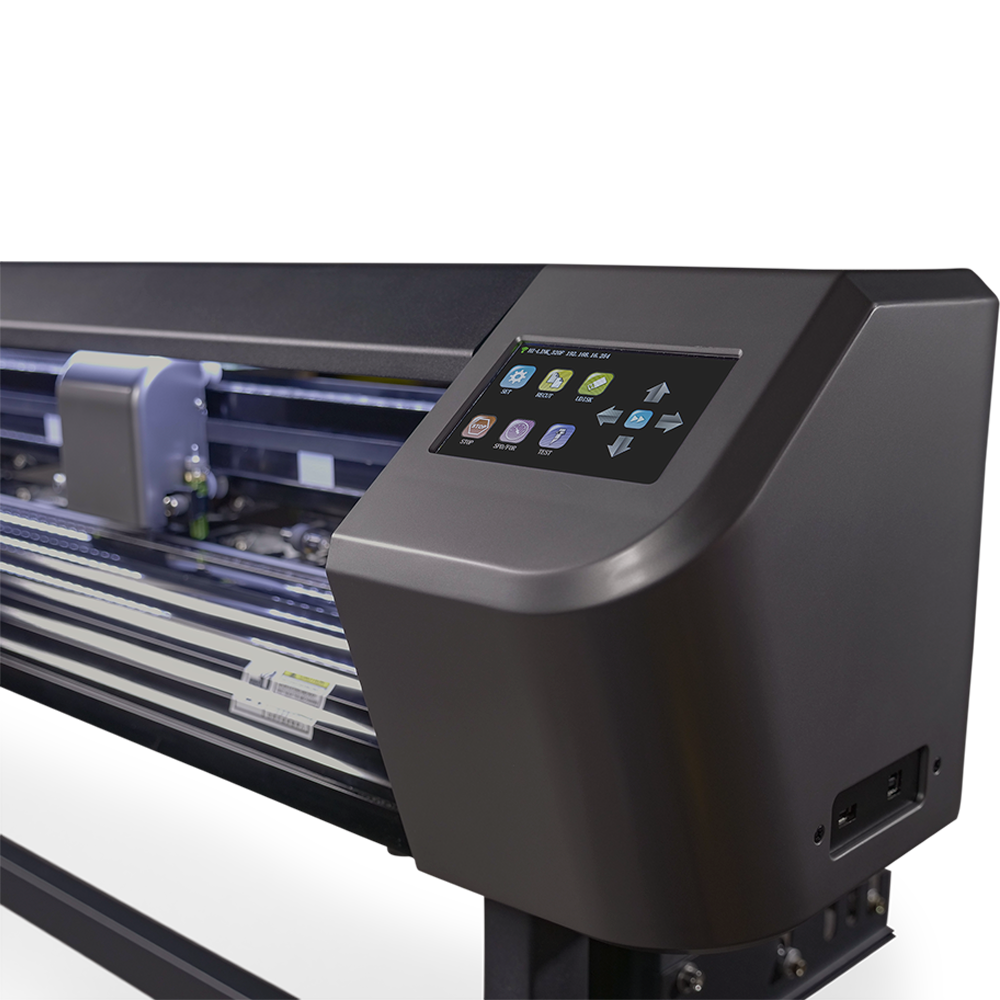

  • Large High Tech Touch Screen: The MUSE M60 features an appealing, LCD user touch screen interface that combines smart menus with ease of use. The menu includes powerful functions like automatic contour cutting, array cutting, camera settings, wi-fi connectivity, and programmable presets.

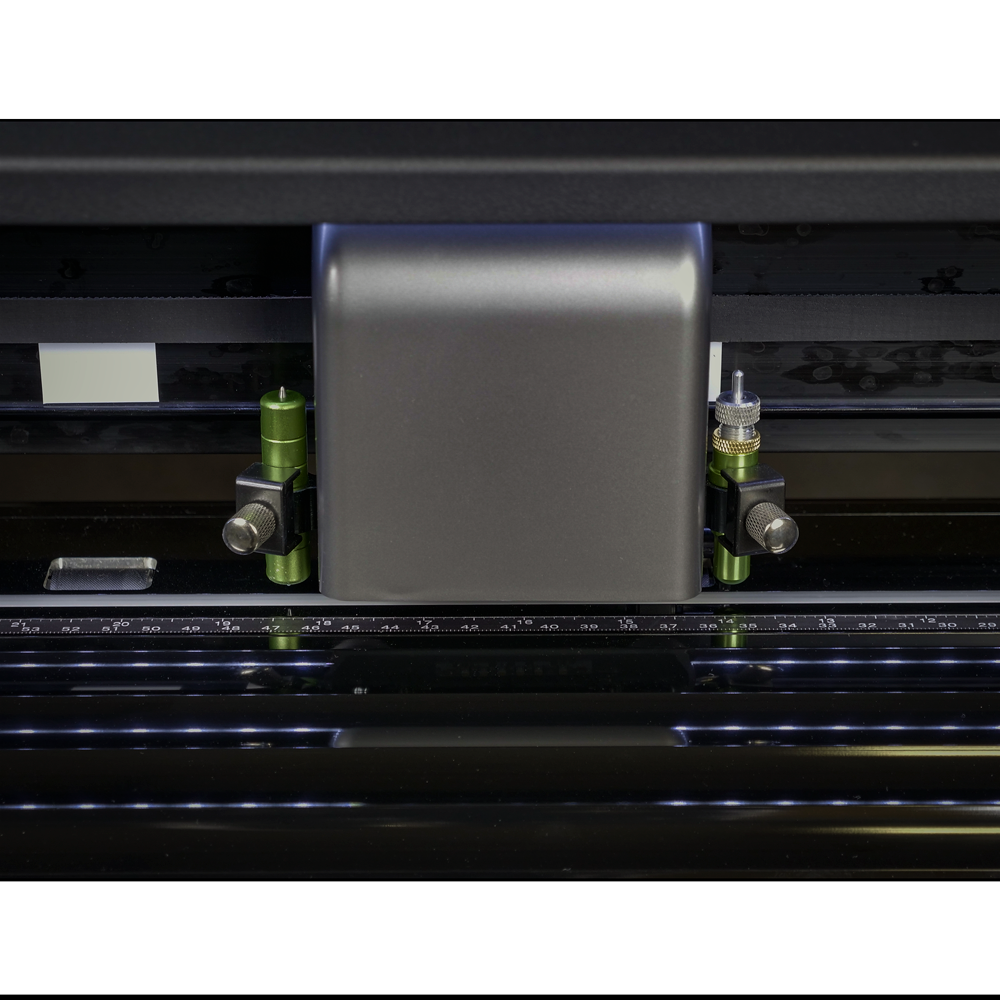

  • Dual tool carriage supports two blade-holders, two plotting pens, or any combination of plotter blades, plotting pens, or cutting, plotting,  and scribe engraving
  • Amazing Cutting Force: The maximum cutting force of 2,000 grams is more than enough to power through your thickest, densest self-adhesive films. Supported applications include cutting sand-blast to resist film and diamond-grade, prismatic reflective film.
  • Camera-based Contour-Cutting: The M60 incorporates an advanced camera that scans printed registration marks and integrates them into the LCD to show the camera's progress as marks are scanned. The LCD menu and camera interface supports precise calibration of the camera and scanning mechanism.
  • The programmable LED platen lighting illuminates the work area and supports more consistent performance when scanning printed registration marks in various lighting conditions.
  • Optional scribe engraving tools: The dual-function cutting head supports switching from cutting adhesive-backed film to scribe engraving thin hard stock surfaces including acrylic sheeting.
  • Wifi, Udisc Options for Remote Cutting: The M60 is equipped for remote cutting with a USB port that accommodates processing plotter files from a thumb drive, and a wi-fi option that supports sending jobs wirelessly over your home or office network. You're no longer tethered to your PC.

Vinyl Express LXi Expert 22 provides all the tools needed to interface with your vinyl cutter. It includes design features such as an interactive design central tool manager that makes the most of your hardware, auto-trace vectorization, in-lines, outlines, drop shadows, distortions, transparent fills, and much more.

Vinyl Express LXi professional sign-making software has been developed with over 35 years of experience, providing a wide range of features for high-quality vinyl cutting, T-shirt transfers, and other vector graphics. Push the design envelope and save time and money with the amazing features of LXi software.

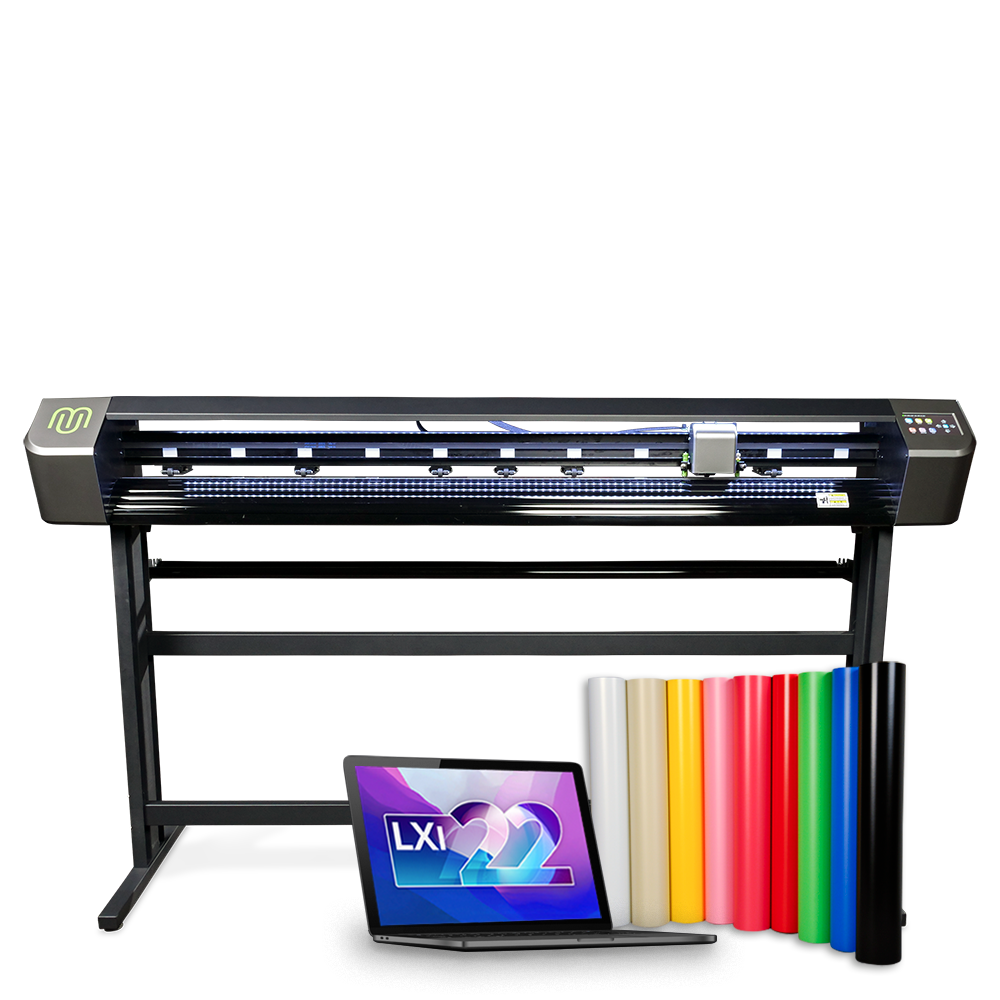

Content:

  • Vinyl Express Muse M60 Vinyl Cutter with stand
  • Vinyl Express LXI Expert 22
  • EnduraGLOSS 24” x 5-yard - Orange*
  • EnduraGLOSS 24” x 5-yard - Tomato Red*
  • EnduraGLOSS 24” x 5-yard - Daffodil Yellow*
  • EnduraGLOSS 24” x 5-yard - Cranberry*
  • EnduraGLOSS 24” x 5-yard - Kelly Green*
  • EnduraGLOSS Color Chart
  • 4” x 11-yard Sample roll of EnduraMASK 160 Medium-High Tack Application Tape*
  • SIGNWarehouse Weeding Tool
  • Oracal Grey Squeegee
  • One year of Complementary Gold Support

*Sample Rolls could vary depending on stock.

MUSE M60 Specifications:

  • Maximum Media width: 64.9 inches (1650 mm)
  • Maximum Cutting width: 60 inches (1540 mm)
  • Maximum Contour Cut width: 59 inches (1500 mm)
  • Tracking: Up to 180 inches ♦
  • Maximum Cutting Force: 2,000g
  • Maximum Cutting Speed: 24 ips (600 mm/s)
  • Maximum Carriage Speed: 27 isp (700 mm/s)
  • Drive Method: Micro-Stepper Motor
  • Number of Heads: 2
  • Contour Cut: Yes, Camera, Automatic activation
  • Memory: 128 mb
  • Cutting Precision: +/- 0.01 mm
  • Repeat Precision: 0.082 mm
  • Dimensions (assembled): 72” (W) X 43” (H) X 26” (D)
  • Box Dimensions: 76” (W) X 14” (H) X 15” (D) (1920*360*388 mm)
  • Shipping Weight: 70 lbs. (32 kg)
  • Floor Stand: Yes
  • Interface: USB Flash/Wifi/USB Cable
  • Power Supply/ V/Hz: 110/50
  • Power: <100W
  • Working Environment: 41°-95°F (+5° - +35°C)
  • What’s in the Box: Warranty Card, blade, blade-holder, 3 plotter blades, creasing tool, plotting pen, 12" by 19" sticky cutting mat, hex keys for stand assembly, USB cable, power cable

LXI 22 Hardware Requirements:

  • Windows PC with at least 4 GB of RAM (8GB of RAM is recommended)
  • Screen resolution of 1125 x 854 with 16-bit color or higher
  • 1GB of free hard drive space, and 4GB of working disc space
  • Compatible OS - Windows 7, 8, 10, 11

♦ Optimal tracking performance requires pre-feeding the appropriate length of vinyl on long graphics.  Pulling vinyl against the weight of the roll creates drag that may damage the drive motor and/or interfere with tracking performance.

Applications:

  • Custom vehicle graphics and fleet graphics
  • Window Tint for vehicle and residential
  • Commercial signs and banners
  • Decals for decorating drinkware (mugs & tumblers), laptops, lockers, etc
  • Cutting heat transfer vinyl for league jerseys, custom fashion, and branded commercial apparel
  • Contour-cutting of desktop and wide-format digitally printed vinyl graphics
  • Architectural graphics: etched glass interior window displays, removable wall graphics, removable floor graphics
  • Cutting of stencil film and paint mask for wood signs and related sign and hobby applications
