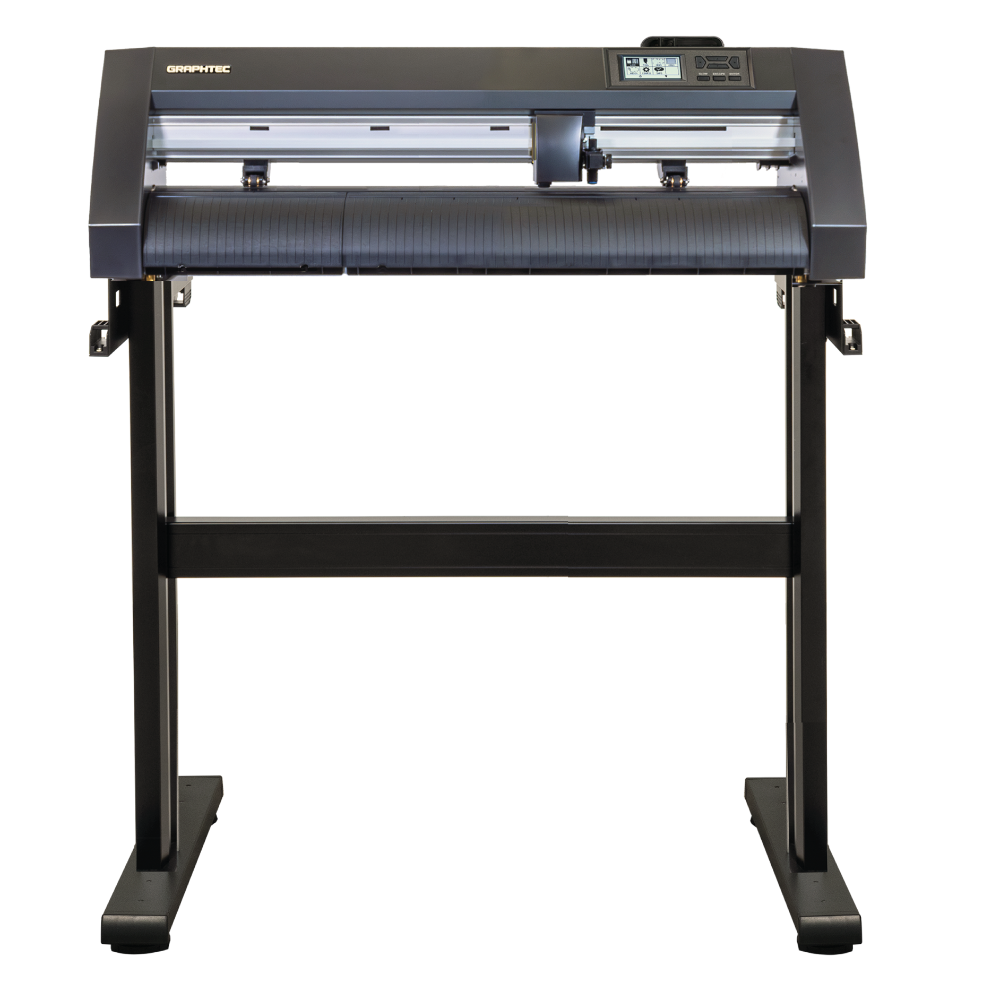

Graphtec CE8000-60 - 24 Inch Vinyl Cutter & Stand
Your kit
- Graphtec CE8000-60 - 24 Inch Vinyl Cutter & Stand · 24 inch $1,995.00
No add-ons yet. Choose from the kit groups to build yours.
Choose the required options marked * before adding to cart.
Each item is added to your cart as its own line, so quantities can be adjusted there.
- Ships by freight · Freight charge added at checkout
- 110% Price Match Guarantee on vinyl cutters
- Talk to an equipment specialist 903-462-7700 · Mon–Fri 7 am–7 pm CST
- Returns & warranty
Complete your set
Add what you need. Prices show what each item adds. Groups marked * must be chosen before checkout.
Cutter Accessories · choose any None
Software · choose one None
Cutter Consumables · choose any None
Other Accessories · choose any None
Supplies · choose any None
The Graphtec CE8000 Series Vinyl Cutter is a high-speed professional level vinyl cutter, ideal for end users looking to raise their production level with more efficiency for a wide variety of applications. The Graphtec CE8000 is now equipped with ARMS 9.0 (Advanced Registration Mark System) ideal for multiple print and cut applications. The CE8000 Series also has enhanced rigidity, feeding and cutting capabilities including an innovative control panel, a redesigned blade holder and mount, an intuitive and streamlined menu structure and new push roller design.
Features:
- ARMS 9.0 provides unparalleled accuracy
- New touch screen with keypad
- New wireless LAN module
- Improved tool holder design
- Magnetic storage compartment
- Intuitive menu structure
- Data link barcode system (Compatible Software Required)
- Easy firmware updating
- Hold down force control
- Email notification for job completion and error notifications
- Expanded contour cutting area
- USB TYPE-B cable now is included in the accessories bag.

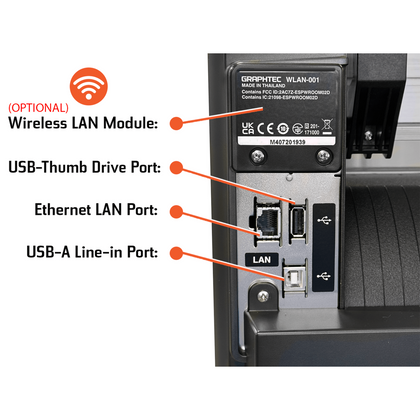

Port Connections:
- USB 2.0 Type-A (Thumb Drive Port)
- USB 2.0 Type-B (Cable Port)
- Ethernet Port: (10 BASE-T/100 BASE-TX) - Wireless LAN Module is now an OPTIONAL ACCESSORY
Applications:
- Signs & Banners,
- Custom Fleet & Vehicle Graphics
- Garment Decoration & HTV Application
- Contour Cutting Printed Graphics & Decals
- Sandblast Stencils & Rhinestone Stencil Templates
| Graphtec CE8000-60 Specifications | |
| Configuration | Grit-rolling Plotter Driven by a Digital Servo Motor - 32bit CPU + Buffer Memory 2MB |
| Max Cutting Width | 24-in x 164-ft |
| Guaranteed Tracking | 23-in x 79-in |
| Mountable Media Width | 2-in to 30-in |
| Max. Cutting Speed | 35-in/s in all directions |
| Max. Cutting Force | 450gf |
| Number of Push Rollers | 2 Rollers |
| Specifiable Speeds (cm/s) | 1-10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 64 |
| Max. Media Weight | 20 lbs. |
| Min. Character Size | 5mm (0.197-in) |
| Barcode/Data Link | YES |
| Repeatable Accuracy | 0.1 mm or less/in unit of 2m (Designated film and cut conditions) |
| Interface | USB 2.0 (Full Speed) | Wireless LAN IEEE802.1 1b/g/n |
| Programmable Resolution | GP-GL Mode: 0.1 / 0.05 / 0.025 /0.01 mm | HP-GL *3: 0.025mm |
| Mechanical Resolution | 0.005 mm |
| Resident Command Sets | GP-GL/HP-GL *3 (Control Panel Switching, Auto Switching) |
| Condition Settings | Dual Configuration - 2 User Settings with 8 Separate Condition Settings per User |
| LCD Display | Touch Panel (240-dot x 128-dot) |
| Dimensions | 35.5-in x 23-in x 42.4-in |
| Weight | 46.3 lbs |
| Shipping Dimensions | 42-in x 18-in x 15 in - MACHINE ONLY | 36-in x 13-in x 7-in STAND ONLY |
| Shipping Weights | 37 lbs - MACHINE ONLY | 23 lbs - STAND ONLY |
| Compatible Media | Mono-vinyl chloride media, fluorescent media, and reflective media up to 0.25 mm thick (Excluding high-intensity reflective film) |
| Software | Cutting Master 5 - Plugin | Adobe Illustrator - Mac/Windows | CorelDraw - Windows Graphtec Studio 2 | Max OS Software Windows Driver | AutoCas / Vector Drawing | Software Requiring a Driver |
| Warranty | 2 Years Parts & Labor with Online Product Registration |
Overview
The Graphtec CE8000 Series Vinyl Cutter is a high-speed professional level vinyl cutter, ideal for end users looking to raise their production level with more efficiency for a wide variety of applications. The Graphtec CE8000 is now equipped with ARMS 9.0 (Advanced Registration Mark System) ideal for multiple print and cut applications. The CE8000 Series also has enhanced rigidity, feeding and cutting capabilities including an innovative control panel, a redesigned blade holder and mount, an intuitive and streamlined menu structure and new push roller design.
Features:
- ARMS 9.0 provides unparalleled accuracy
- New touch screen with keypad
- New wireless LAN module
- Improved tool holder design
- Magnetic storage compartment
- Intuitive menu structure
- Data link barcode system (Compatible Software Required)
- Easy firmware updating
- Hold down force control
- Email notification for job completion and error notifications
- Expanded contour cutting area
- USB TYPE-B cable now is included in the accessories bag.
Port Connections:
- USB 2.0 Type-A (Thumb Drive Port)
- USB 2.0 Type-B (Cable Port)
- Ethernet Port: (10 BASE-T/100 BASE-TX) - Wireless LAN Module is now an OPTIONAL ACCESSORY
Applications
Applications:
- Signs & Banners,
- Custom Fleet & Vehicle Graphics
- Garment Decoration & HTV Application
- Contour Cutting Printed Graphics & Decals
- Sandblast Stencils & Rhinestone Stencil Templates
Specifications
| Graphtec CE8000-60 Specifications | |
| Configuration | Grit-rolling Plotter Driven by a Digital Servo Motor - 32bit CPU + Buffer Memory 2MB |
| Max Cutting Width | 24-in x 164-ft |
| Guaranteed Tracking | 23-in x 79-in |
| Mountable Media Width | 2-in to 30-in |
| Max. Cutting Speed | 35-in/s in all directions |
| Max. Cutting Force | 450gf |
| Number of Push Rollers | 2 Rollers |
| Specifiable Speeds (cm/s) | 1-10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 64 |
| Max. Media Weight | 20 lbs. |
| Min. Character Size | 5mm (0.197-in) |
| Barcode/Data Link | YES |
| Repeatable Accuracy | 0.1 mm or less/in unit of 2m (Designated film and cut conditions) |
| Interface | USB 2.0 (Full Speed) | Wireless LAN IEEE802.1 1b/g/n |
| Programmable Resolution | GP-GL Mode: 0.1 / 0.05 / 0.025 /0.01 mm | HP-GL *3: 0.025mm |
| Mechanical Resolution | 0.005 mm |
| Resident Command Sets | GP-GL/HP-GL *3 (Control Panel Switching, Auto Switching) |
| Condition Settings | Dual Configuration - 2 User Settings with 8 Separate Condition Settings per User |
| LCD Display | Touch Panel (240-dot x 128-dot) |
| Dimensions | 35.5-in x 23-in x 42.4-in |
| Weight | 46.3 lbs |
| Shipping Dimensions | 42-in x 18-in x 15 in - MACHINE ONLY | 36-in x 13-in x 7-in STAND ONLY |
| Shipping Weights | 37 lbs - MACHINE ONLY | 23 lbs - STAND ONLY |
| Compatible Media | Mono-vinyl chloride media, fluorescent media, and reflective media up to 0.25 mm thick (Excluding high-intensity reflective film) |
| Software | Cutting Master 5 - Plugin | Adobe Illustrator - Mac/Windows | CorelDraw - Windows Graphtec Studio 2 | Max OS Software Windows Driver | AutoCas / Vector Drawing | Software Requiring a Driver |
| Warranty | 2 Years Parts & Labor with Online Product Registration |
