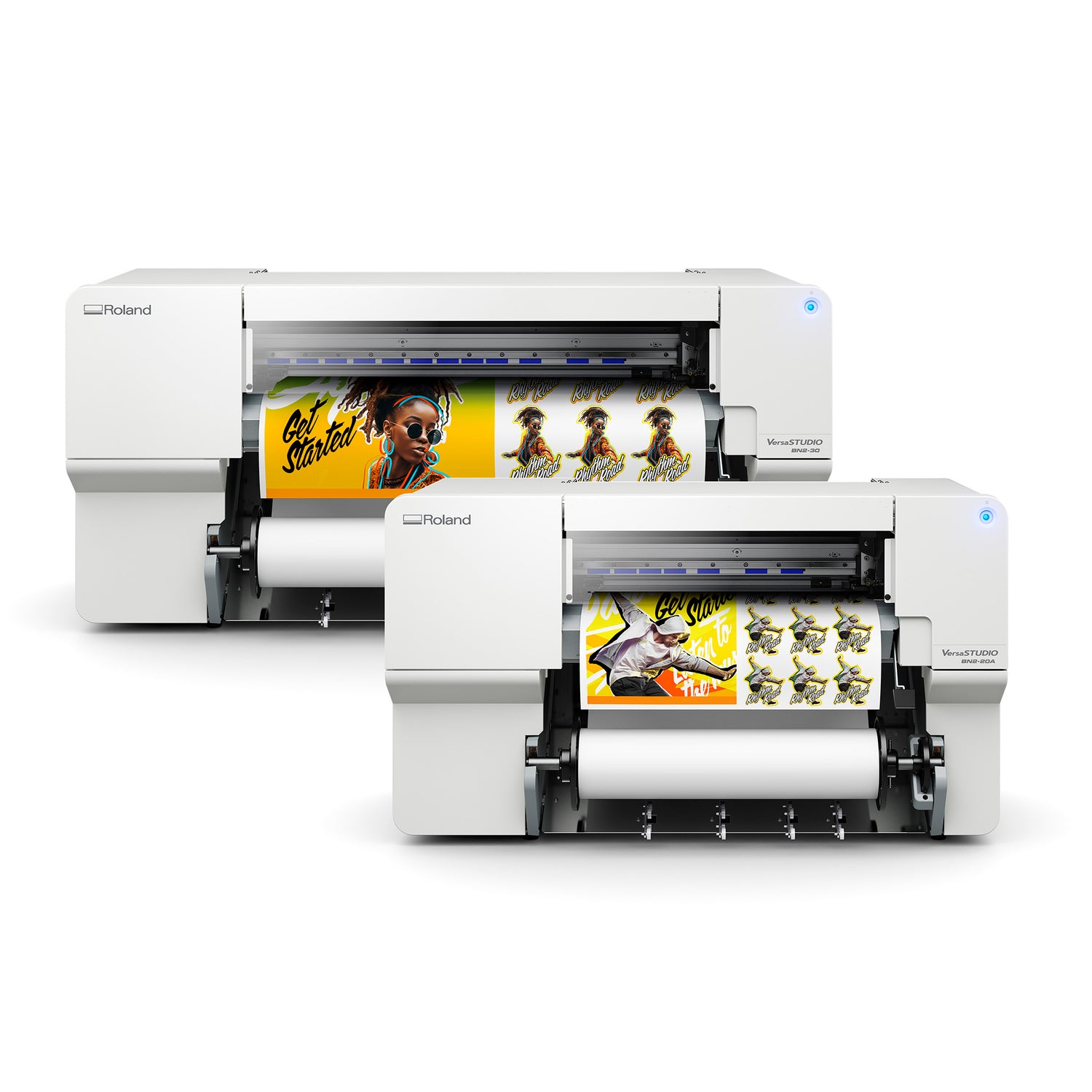

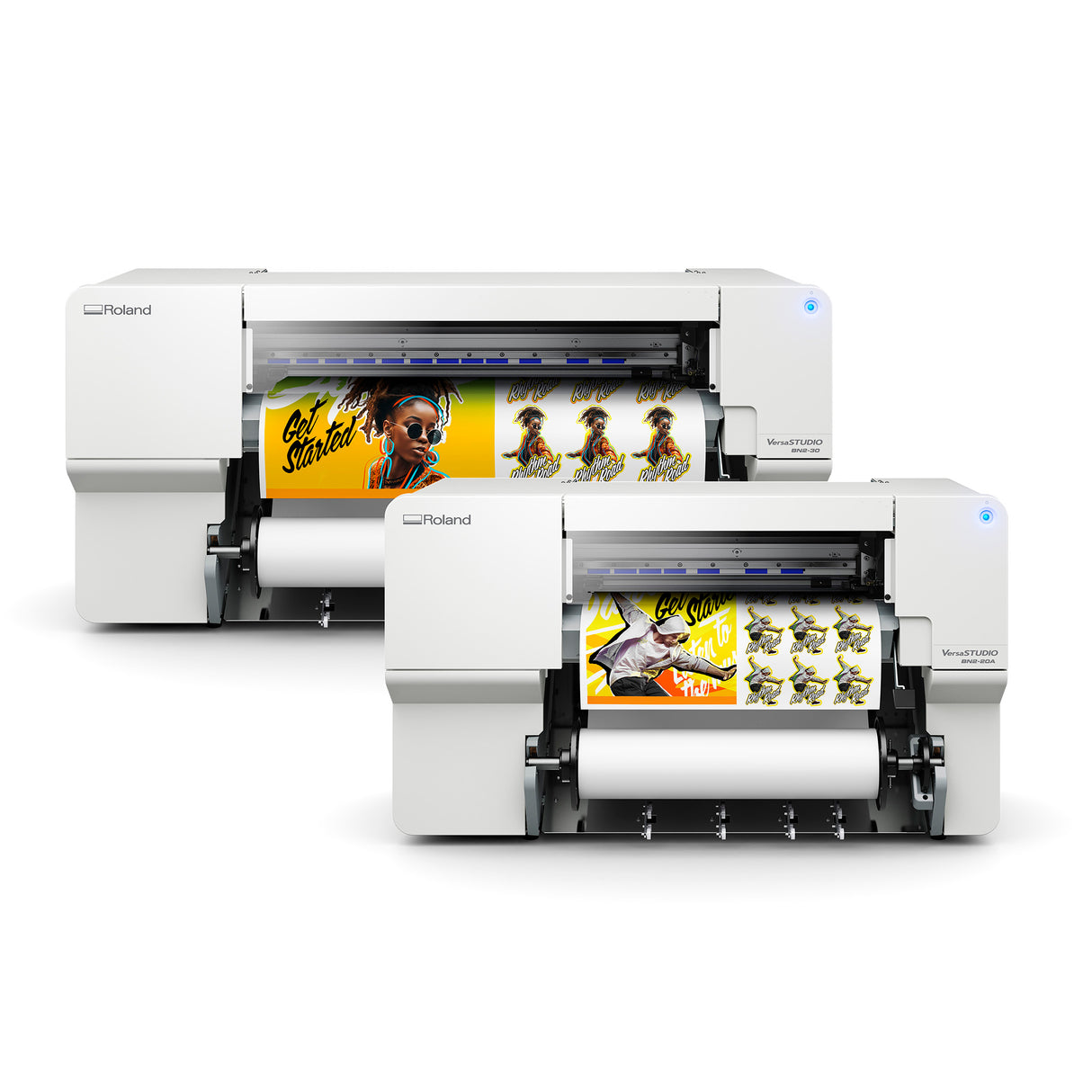

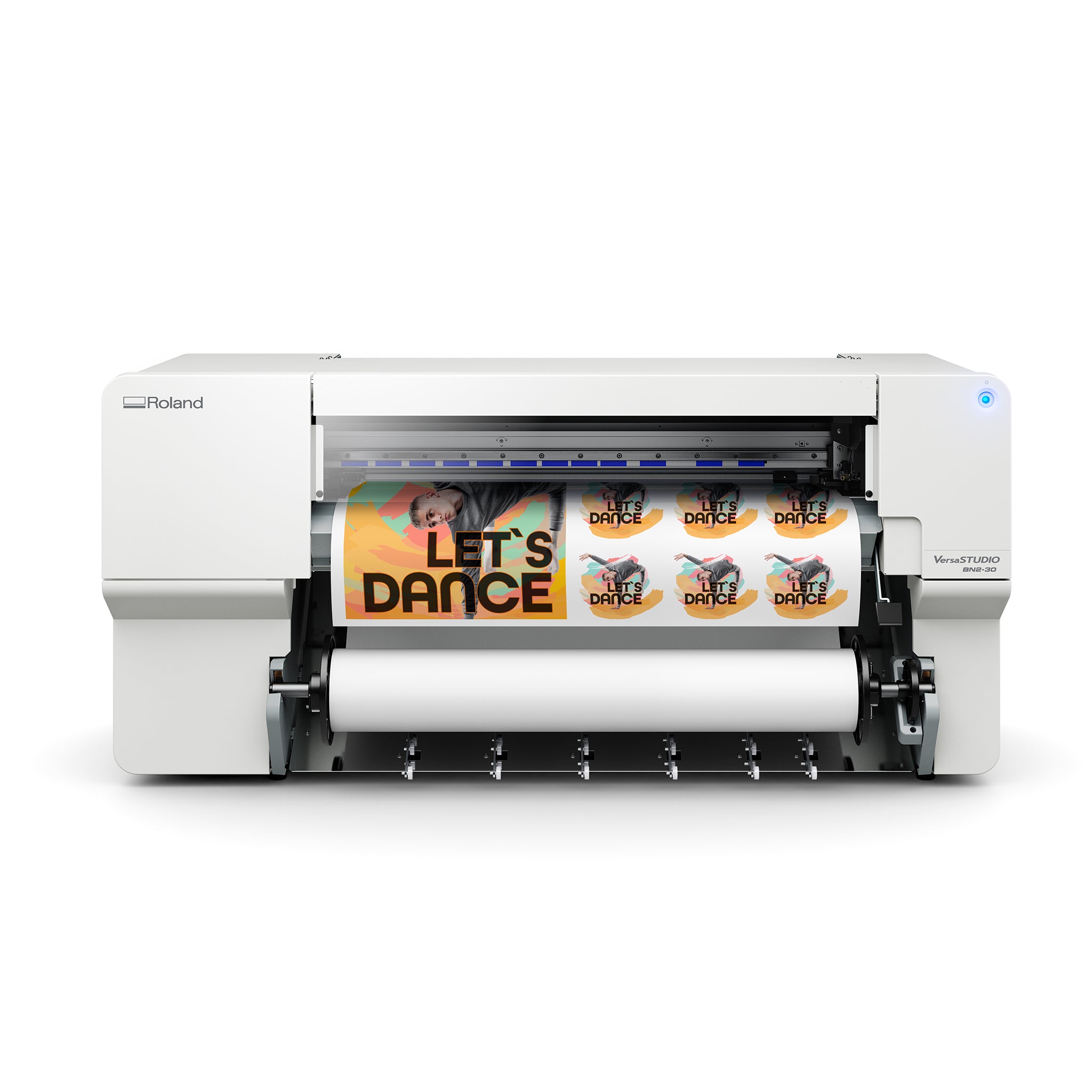

Roland VersaSTUDIO BN2-30 Eco-Solvent Printer & Cutter

Retail price:

SW Wholesale Price:

Sale price:

No customer reviews Write a review

Sku:

Call Now Buy Online

Special Offer!

SignWarehouse PRO

Become one of our PRO members and get $329.85 back on this purchase and more!

Affirm

Pay as low as $/month or 0% APR by selecting Affirm at checkout

Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

* When purchasing this product before the displayed date, your account will be issued a partial credit each month until the total amount has been issued.

Overview

Specs

Applications

Video

The Roland VersaSTUDIO BN2-30 is a next-generation desktop printer/cutter designed to deliver professional-quality results with greater speed, efficiency, and ease of use. With a compact footprint and expanded 30-inch media width, it offers four times the print speed of previous models, enabling users to produce vibrant graphics, detailed decals, heat transfers, posters, and signage—all from a single device that prints and contour-cuts in one streamlined workflow.

Equipped with high-definition print heads, eco-solvent inks, and support for CMYK or CMYK plus White configurations, the BN2-30 combines outstanding color and durability with simplified operation. It comes with FlexiDESIGNER VersaSTUDIO Edition and VersaWorks 6 RIP software, along with front-access media handling, automatic sheet cutting, and compatibility with the Roland DG Connect app. Whether you're just starting out, or looking to scale up, the BN2-30 offers a compact, reliable, and professional solution for creating high-impact graphics.

Product Features:

  • Professional quality printing and cutting functionality allows for a wide range of applications
  • 30 inch media width flow
  • Compact, integrated print & cut workflow
  • Faster print speeds for optimum productivity
  • Features a 5-color CMYK+White eco-solvent ink system
  • Professional quality piezo print head, outdoor-durable inks
  • Print speeds 4X Faster than previous BN-20
  • 1440 x 1440 dpi
  • Perf-cut functionality
  • True rich color standard & VersaWorks 7 RIP support
  • Built-in liquid waste system
  • Roland DG connect compatibility
  • Auto-cleaning and maintenance alerts
  • Easy to use – even for those with no prior printing experience
  • Compact size is ideal for print environments with limited space
  • Feature-filled, intuitive design and output software included

Roland DG Warranty Registration

BN2-20 Setup & Training Videos

Roland BN2-30 Specifications



Specifications

Printing method

Piezo ink-jet method

Media Width

150 to 762 mm (5.91 to 30 in.)

Media Thickness

Maximum 1.0 mm (39.3 mil) with liner, for printing

Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting

Roll outer diameter

Maximum 165 mm (6.49 in.)

Roll weight

Maximum 12 kg (26.4 lb.)

Core diameter

76.2 mm (3 in.) or 50.8 mm (2 in.)

Printing/cutting width

Maximum 736 mm (28.97 in.)

Ink Type

220-ml cartridge

Ink Colors

Four-color (cyan, magenta, yellow, black) or

Five-color (cyan, magenta, yellow, black, white)

Printing resolution

Maximum 1,440 dpi

Cutting speed

10 to 150 mm/s (0.39 to 5.9 in/s)

Blade force

30 to 300 gf

Blade Type

Roland CAMM-1 series blade

Blade Offset

0.000 to 1.500 mm (0.0 to 59 mil)

Software resolution

0.025 mm/step (0.98 mil/step)

Media heating system

Print heater: 30 to 40 °C (86 to 104 °F)

Dryer: 30 to 45 °C (86 to 113 °F)

Connectivity

Ethernet (100BASE-TX/1000BASE-T, automatic switching)

Power-saving function

Automatic sleep feature

Rated input

100-240 V AC, 50/60 Hz, 2.9 A

Power consumption

Approx. 260 W (during operation)

Approx. 27 W (in sleep mode)

Acoustic noise level

65 dB (A) or less (during operation)

48 dB (A) or less (during standby)

Dimensions (W x D x H)

1,323 mm × 617 mm × 622 mm (52.1 in. × 24.3 in. × 24.5 in.)

Weight

74 kg (164 lb.)

Environment (Operation)

20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation)

Environment (Non-op)

5 to 40 °C (41 to 104 °F), humidity: 20 to 80 % RH (no condensation)

Included items

Power cord, media holders, replacement blade for separating knife, User’s Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.



Applications:

  • Heat transfer apparel
  • Customized tote bags
  • Die-cut custom labels & decals
  • Signs, displays, and posters
  • Window graphics
  • Art & wall decor
