$3,000 Instant Rebate & Includes FREE MUTOH VerteLith RIP bundled with
FlexiDESIGNER MUTOH Edition 21 ($2199 value). Plus, FREE 2nd Year Extended Limited Warranty ($3,125 value). Offer expires on December 31st!

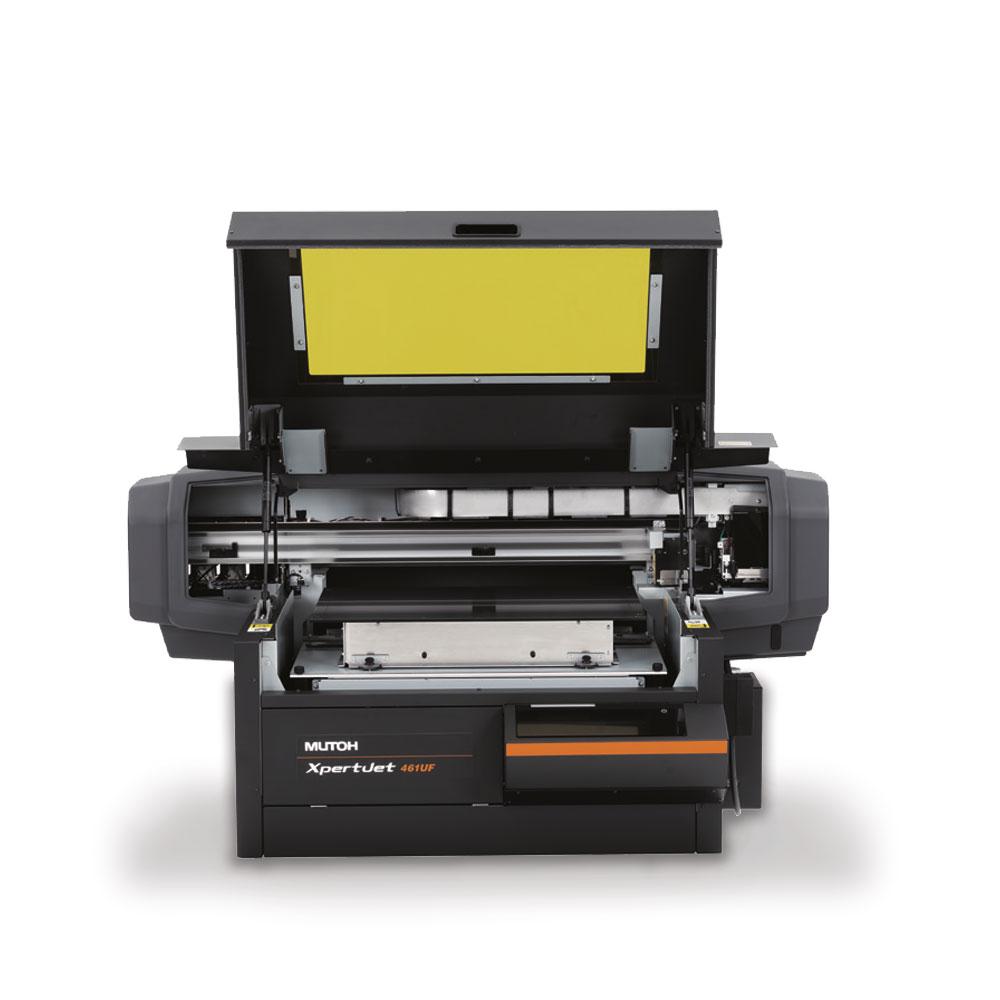

The XpertJet 461UF, compact UV-LED desktop flatbed printer offers many new features, including a new sleek modern design, larger printable surface area, a larger window for safe viewing, an updated touchscreen panel, an improved LED lamp, optional vacuum table providing the ability for increased printing depth and more. These enhancements along with the improved ease of use and easier maintenance will increase both productivity and profitability.
The Mutoh XPJ-461UF allows for finer texture layers which instantly adds value to any print. And the XpertJet 461UF introduces MUTOH's newest innovation, “Local Dimming Control Technology”. This patent-pending breakthrough enables the precise placement of gloss, matte and semi-gloss varnish on one image in a single print pass. The result is unparalleled versatility and efficiency. The Mutoh XPJ-461UF is a great addition to your arsenal and will definitely add profits to your business!
Features:
- 19 x 13-inch print area
- New UV/LED Local Dimming Technology
- Supports production of ADA signage, including braille
- Energy-efficient UV-LED ink
- CMYK + White and Varnish
- Intelligent Interweave 'wave printing' virtually eliminates banding
- Print directly on a variety of substrates up to 5.91 inches thick
- Small footprint, tabletop printer with removable bed
- Optional vacuum table
- User-friendly touch panel
- One-year on-site limited warranty
Links to Online Resources:
MUTOH XpertJet 461UF Specifications:
- Print Method - On-demand piezo drive system
- Print Head Height - Three-level adjustment of low (1.5mm), mid (2.5mm), and high (4mm)
- Maximum Print Area - 13" x 19" inch maximum print area
- Maximum Media Thickness - up to 2.76 in (with standard table) | up to 5.9 in (w/o standard table) up to 2.76 in (with optional vacuum table)
- Max Media Weight - up to 11.02 lbs. (w/standard table) | up to 17.64 lbs. (w/o standard table) up to 8.82 lbs. (with optional vacuum table)
- Height Adjustment - PG handle (handle 0.059 in / round)
- Print Resolution - 1440 / 1080 / 720 dpi (Total 3 modes)
- Ink Types - UV-LED Ink (UH21 ink / US 11 ink)
- Color Range - 4 colors (C, M, Y, K) | 6 colors (C, M, Y, K, White, Varnish)
- Cartridge Size - 220ml ink cartridge (CMYK, White, Varnish)
- Number of Ink Slots - 6
- Interface - Ethernet (10BASE-T, 100BASE-TX)
- Vacuum Table - Optional
- RIP Software - SAi FlexiSIGN & PRINT MUTOH Edition
- Power Requirements - AC 100-120V± 10%, 50/60Hz ± 1Hz
- Operation Noise Levels - Standby: 51dB or less | Printing with standard table: 63dB or less. Printing with optional vacuum table: 70dB or less
- Acceptable Operating Conditions - Temperature: 68-89.6 °F | Humidity: 40-60%RH (non condensing)
- Power Consumption - Sleep Mode: 20W or less | Ready to Print: 40W or less | Operation: 195W or less
- Dimensions - 46.77 in x 38.27 in x 23.50 in (cover closed) | weight: 209.44 lbs | 46.77 in x 38.27 in x 39.80 in (front cover opened) | 46.77x 40.35x 23.50 in (PG handle cover opened)
- Weight - 209 lbs (94.8 kg)
- Warranty - One Year limited on-site warranty
Applications:
- Packaging prototypes
- Cell phone & tablet covers
- Plaques
- Awards
- ADA signage
- Directional signage and more
