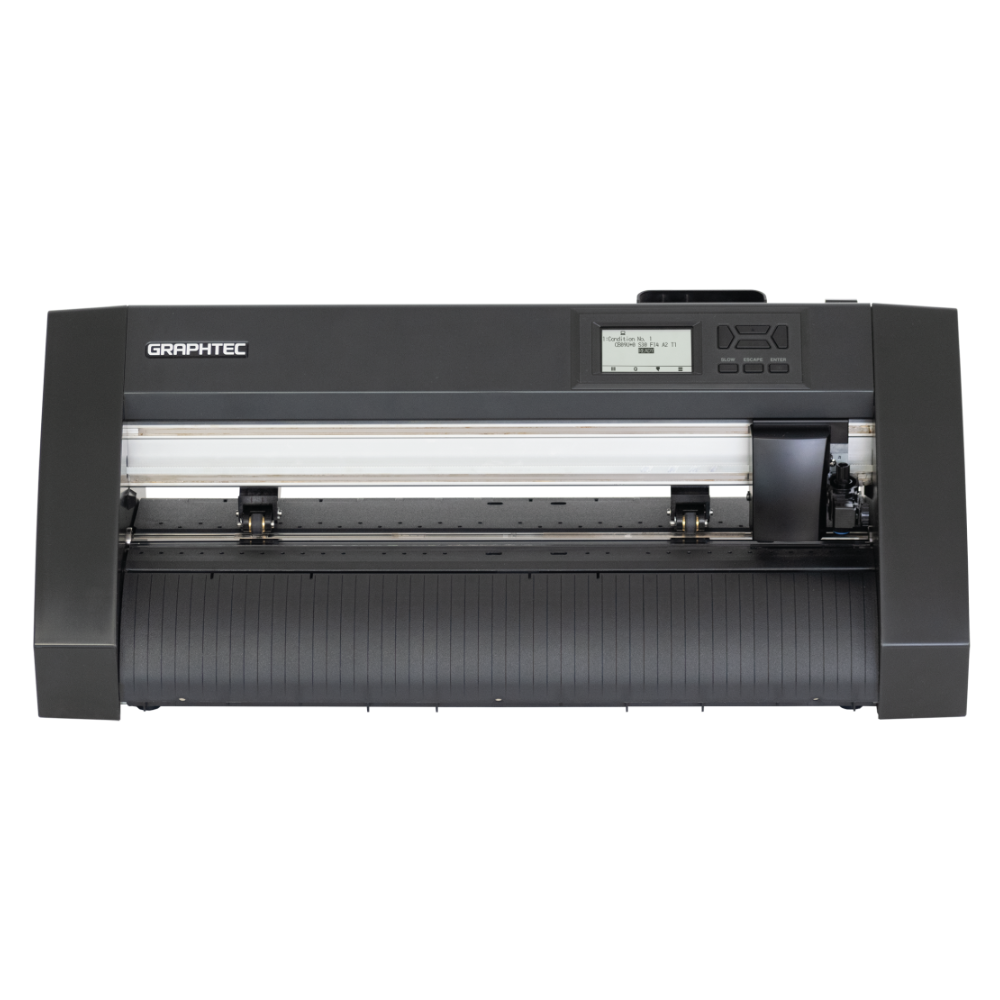

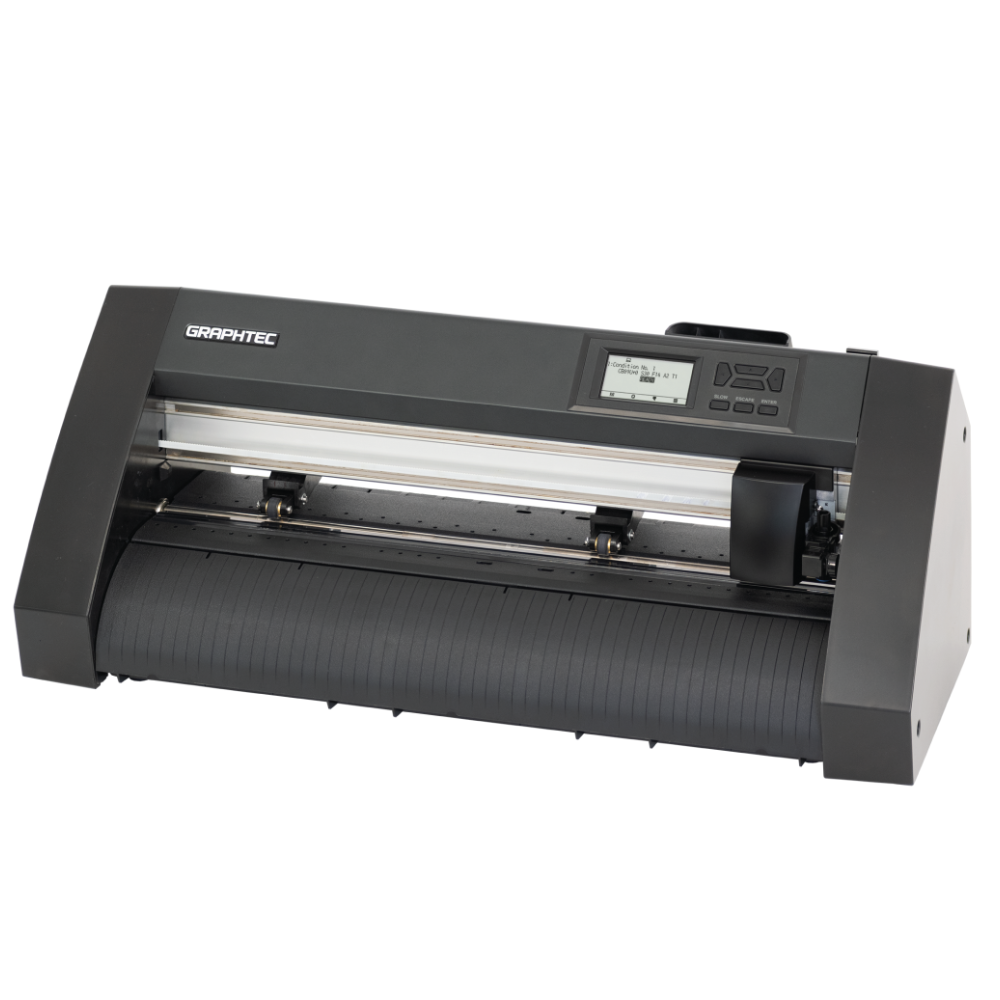

Graphtec CE8000-40 - 15 Inch Desktop Vinyl Cutter
Couldn't load pickup availability
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Special Offer!
Graphtec CE8000-40 - 15 Inch Desktop Vinyl Cutter
Sign in to see price110% Price Match Guarantee on Vinyl Cutters! Found a lower price? We’ll beat it, and then some. Call us at 903-462-7700 for more details. Terms & exclusions apply.
The Graphtec CE8000 Series Vinyl Cutter is a high-speed professional level vinyl cutter, ideal for end users looking to raise their production level with more efficiency for a wide variety of applications. The Graphtec CE8000 is now equipped with ARMS 9.0 (Advanced Registration Mark System) ideal for multiple print and cut applications. The CE8000 Series also has enhanced rigidity, feeding and cutting capabilities including an innovative control panel, a redesigned bladeholder and mount, an intuitive and streamlined menu structure and new push roller design.
Features:
- ARMS 9.0 provides unparalleled accuracy

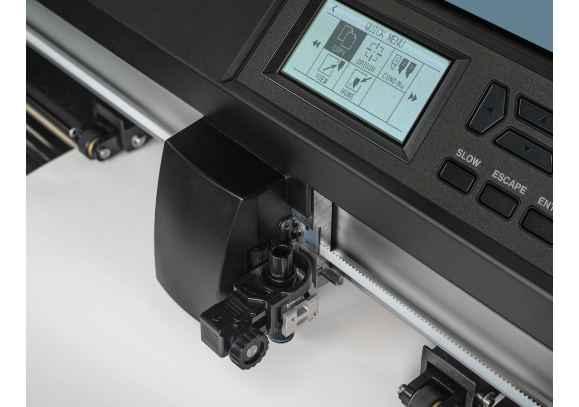

- New touch screen with keypad

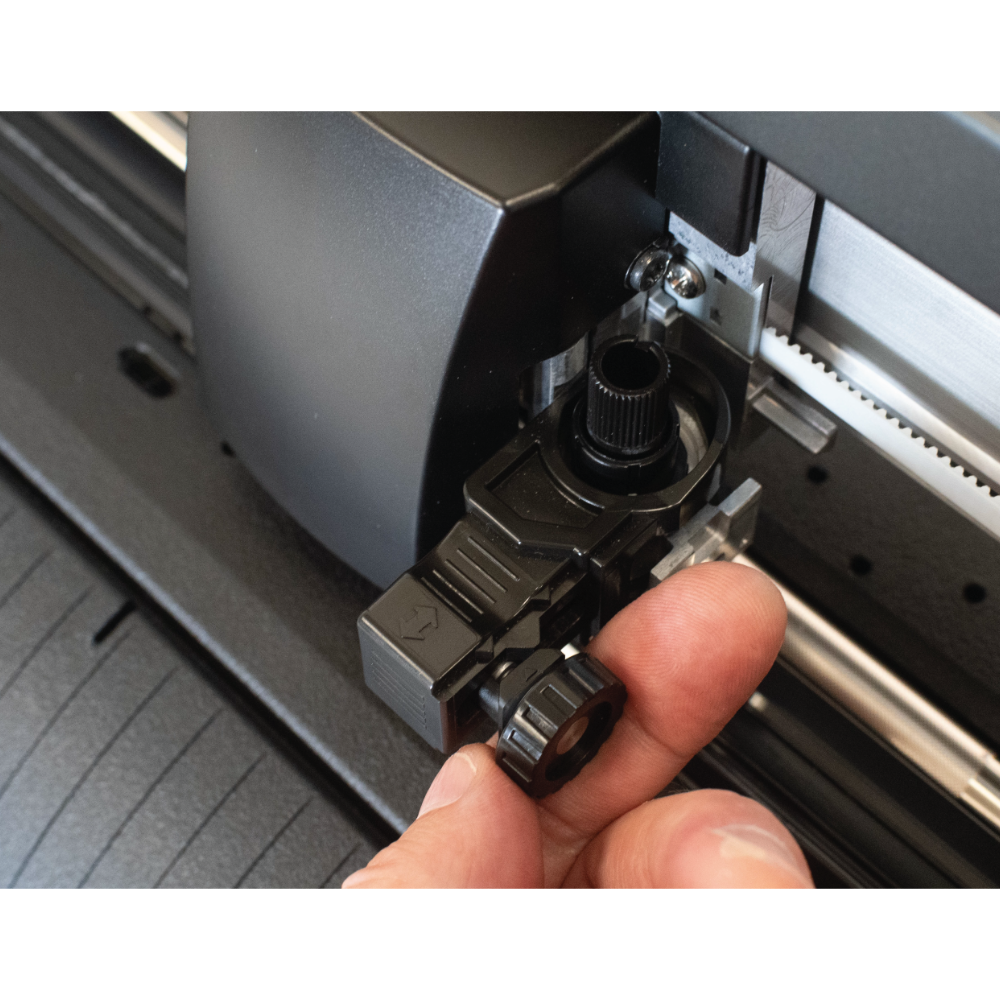

- Improved tool holder design
- Magnetic storage compartment
- Intuitive menu structure

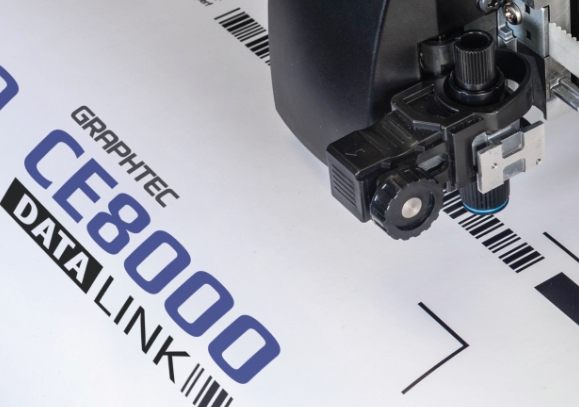

- Data link barcode system (Compatible Software Required)
- Easy firmware updating
- Hold down force control
- Email notification for job completion and error notifications
- Expanded contour cutting area
- USB TYPE-B cable now is included in the accessories bag.
- Port Connections:
- USB 2.0 Type-A (Thumb Drive Port)
- USB 2.0 Type-B (Cable Port)
- Ethernet Port: (10 BASE-T/100 BASE-TX)
- Wireless LAN Module is now an optional accessory
Applications:
- Signs & Craft Projects
- Custom Fleet & Vehicle Graphics
- Garment Decoration & HTV Application
- Contour Cutting Printed Graphics & Decals
- Sandblast Stencils & Rhinestone Stencil Templates
| Graphtec CE8000-40 - 15 Inch Vinyl Cutter | ||
| Configuration | Grit-rolling Plotter Driven by a Digital Servo Motor · 32-bit CPU · 2MB Buffer Memory | |
| Maximum Cutting Width | 15" × 164' | |
| Guaranteed Tracking | 14" × 79' *¹ | |
| Mountable Media Width | 2" to 19" | |
| Maximum Cutting Speed | 24"/s in all directions | |
| Maximum Cutting Force | 4.41N (450gf) | |
| Number of Push Rollers | 2 Rollers | |
| Specifiable Speeds (cm/s) | 1 - 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 64 | |
| Maximum Media Weight | 11 lbs | |
| Minimum Character Size | 5 mm (0.197") alphanumeric Helvetica medium (Font *1) | |
| Barcode / Data Link | YES | |
| Repeatable Accuracy | 0.1 mm or less / in unit of 2 m (Designated film and cut conditions) | |
| Interface | USB 2.0 (Full Speed) · Wireless LAN IEEE 802.11b/g/n · Ethernet 10 BASE-T / 100 BASE-TX *5 | |
| Programmable Resolution | GP-GL™ mode: 0.1 / 0.05 / 0.025 / 0.01 mm · HP-GL: 0.025 mm | |
| Mechanical Resolution | 0.005 mm (5 μm) | |
| Resident Command Sets | GP-GL / HP-GL *3 (Control panel switching, Auto switching) | |
| Condition Settings | Dual Configuration – 2 User Settings with 8 Separate Condition Settings per User | |
| LCD Display | Touch Panel Screen (240-dot × 128-dot) | |
| External Dimensions (W × D × H) | 26.65" × 17.76" × 10.5" | |
| Weight (Approx.) | 24.25 lbs (11 kg) | |
| Compatible Media | Mono-vinyl chloride media, fluorescent media, and reflective media up to 0.25 mm thick (excluding high-intensity reflective film) | |
| Software | Cutting Master 5 Plugin (Adobe Illustrator – Mac/Win, CorelDRAW – Win) | |
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
Overview
110% Price Match Guarantee on Vinyl Cutters! Found a lower price? We’ll beat it, and then some. Call us at 903-462-7700 for more details. Terms & exclusions apply.
The Graphtec CE8000 Series Vinyl Cutter is a high-speed professional level vinyl cutter, ideal for end users looking to raise their production level with more efficiency for a wide variety of applications. The Graphtec CE8000 is now equipped with ARMS 9.0 (Advanced Registration Mark System) ideal for multiple print and cut applications. The CE8000 Series also has enhanced rigidity, feeding and cutting capabilities including an innovative control panel, a redesigned bladeholder and mount, an intuitive and streamlined menu structure and new push roller design.
Features:
- ARMS 9.0 provides unparalleled accuracy
- New touch screen with keypad
- Improved tool holder design
- Magnetic storage compartment
- Intuitive menu structure
- Data link barcode system (Compatible Software Required)
- Easy firmware updating
- Hold down force control
- Email notification for job completion and error notifications
- Expanded contour cutting area
- USB TYPE-B cable now is included in the accessories bag.
- Port Connections:
- USB 2.0 Type-A (Thumb Drive Port)
- USB 2.0 Type-B (Cable Port)
- Ethernet Port: (10 BASE-T/100 BASE-TX)
- Wireless LAN Module is now an optional accessory
Applications
Applications:
- Signs & Craft Projects
- Custom Fleet & Vehicle Graphics
- Garment Decoration & HTV Application
- Contour Cutting Printed Graphics & Decals
- Sandblast Stencils & Rhinestone Stencil Templates
Specifications
| Graphtec CE8000-40 - 15 Inch Vinyl Cutter | ||
| Configuration | Grit-rolling Plotter Driven by a Digital Servo Motor · 32-bit CPU · 2MB Buffer Memory | |
| Maximum Cutting Width | 15" × 164' | |
| Guaranteed Tracking | 14" × 79' *¹ | |
| Mountable Media Width | 2" to 19" | |
| Maximum Cutting Speed | 24"/s in all directions | |
| Maximum Cutting Force | 4.41N (450gf) | |
| Number of Push Rollers | 2 Rollers | |
| Specifiable Speeds (cm/s) | 1 - 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 64 | |
| Maximum Media Weight | 11 lbs | |
| Minimum Character Size | 5 mm (0.197") alphanumeric Helvetica medium (Font *1) | |
| Barcode / Data Link | YES | |
| Repeatable Accuracy | 0.1 mm or less / in unit of 2 m (Designated film and cut conditions) | |
| Interface | USB 2.0 (Full Speed) · Wireless LAN IEEE 802.11b/g/n · Ethernet 10 BASE-T / 100 BASE-TX *5 | |
| Programmable Resolution | GP-GL™ mode: 0.1 / 0.05 / 0.025 / 0.01 mm · HP-GL: 0.025 mm | |
| Mechanical Resolution | 0.005 mm (5 μm) | |
| Resident Command Sets | GP-GL / HP-GL *3 (Control panel switching, Auto switching) | |
| Condition Settings | Dual Configuration – 2 User Settings with 8 Separate Condition Settings per User | |
| LCD Display | Touch Panel Screen (240-dot × 128-dot) | |
| External Dimensions (W × D × H) | 26.65" × 17.76" × 10.5" | |
| Weight (Approx.) | 24.25 lbs (11 kg) | |
| Compatible Media | Mono-vinyl chloride media, fluorescent media, and reflective media up to 0.25 mm thick (excluding high-intensity reflective film) | |
| Software | Cutting Master 5 Plugin (Adobe Illustrator – Mac/Win, CorelDRAW – Win) | |
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
