Mimaki CJV150-160 Series - Pro Package

No customer reviews Write a review

Sku:

Retail price:

SW Wholesale Price:

SignWarehouse Pro Icon

Sale price:

Get $1,184.55 back with SignWarehouse PRO

Call Now Buy Online
Add to Wishlist

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Campaign rebates:
When purchasing this product between the displayed dates, you will be issued a partial rebate amount to your account each month until the total amount has been issued.

Overview

Specs

Applications

Professional installation and training required. Contact Our Sales Department For More Information: (903)-462-7700

Mimaki CJV150 Series high-speed cut-and-print devices deliver an amazing array of applications in a light production environment. The CJ150 Series is a highly versatile printer and cutter that can employ eco-solvent or dye sublimation inks to complete a variety of different application requirements. Eco-solvent inks come in a variety of colors including silver, white, light black and orange while dye sublimation inks come in six colors including light blue and light magenta. Plus, advanced printing technologies combined with precision cutting capabilities enables delivery of complete campaigns that include signs, posters, banners, labels, decals and even T-shirt transfers.

The CJV150-160 is a 64-inch printer with the ability to print eco-solvent or dye-sublimation, and economical 2-liter bulk ink systems are available for those long jobs. The PRO Bundle includes three of our versatile vinyls, PrismJET 203 Glossy Vinyl, PrismJET 201 Matte Vinyl, and PrismJET 230 Ultra Glossy Wrap Vinyl. That’s not all that we have to offer with this bundle, we have added in a roll of our PrismJET 231 Glossy Ultra-Calendered Overlaminate to add durability and life to your vinyl decals.

All of these wonderful add ons wouldn’t be complete without the inclusion of our 65” EnduraLAM Cold Laminator. The EnduraLAM3 combines rugged construction with advanced job controls for high volume production. Your prints need protection. You need a heavy-weight on your side. EnduraLAM3 delivers a knock-out blow to abrasion and detergents, giving your prints professional protection. EnduraLAM3 laminators have improved silicon-coated rollers for improved handling of self-adhesive overlaminate films. Media loading is easy and a foot pedal supports hands-free start & stop job control.

Not only is this bundled with products to get you up and running with your CJV150 unit. We have bundled in 1 year of Mimaki Parts and Phone Support to ensure you have help when you need it and an Onsite Printer Installation and Training is added to this bundle as well.

*Super Solvent Ink is for commercial and industrial use only and requires ventilation. It cannot be used in a home or office.

Features:

  • Available in 32 inch, 43 inch, 54 inch, and 64 inch sizes
  • Print speeds up to 605 Sq. Ft/Hr
  • Choice of eco-solvent ink or dye-sublimation ink sets
  • Eco-solvent: 8 color options including silver, white, orange and light black inks
  • Dye-sublimation: 6 color options including light blue and light magenta inks

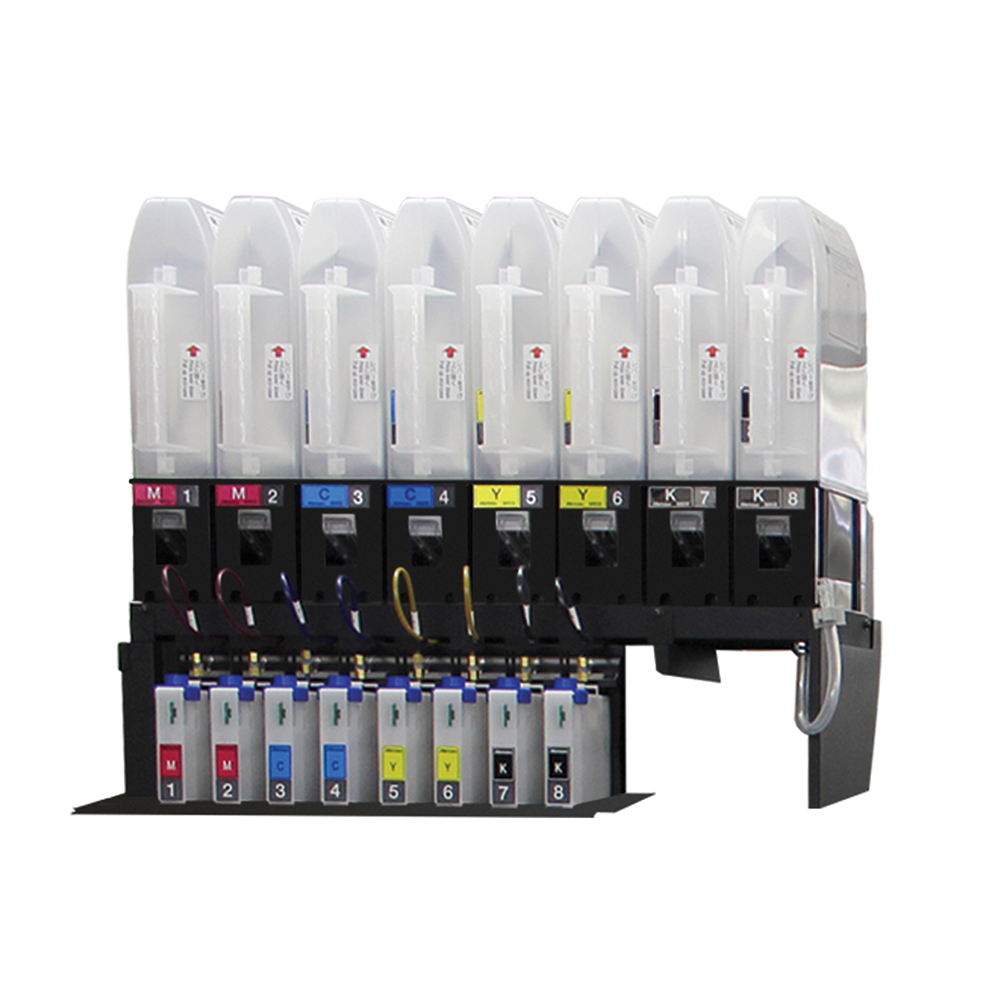

  • Optional economical 2-liter bulk ink system for long running jobs
  • Even ink drying with three-way intelligent heater
  • Incorporates Mimaki’s proprietary technologies to optimize use of standard and specialty colors
  • RIP software RasterLink6 included
  • Maximum print area: 63.4 inches
  • Maximum media width: 63.8 inches

Mimaki CJV150-160 Series - Basics Starter Package Contents:

  • Mimaki CJV150-160 Hybrid Print and Cutter
  • Ink Starter Kit - Customers Choice
  • RasterLink RIP Software
  • Flexi Software
  • 1 Year Mimaki Parts & Phone Support
  • One Site Installation & Training
  • 65-inch EnduraLAM 3 Cold Laminator
  • 54-inch Roll of PrismJET 203 Glossy Vinyl
  • 54-inch Roll of PrismJET 201 Matte Vinyl
  • 54-inch Roll of PrismJET 230 Ultra Glossy Wrap Vinyl
  • 54-inch Roll of PrismJET 231 Glossy Ultra-Calendered Overlaminate Film


Mimaki CJV150-160 Plus Specifications

Print MethodOne On-demand Piezo Head
Maximum Resolution1440 dpi
Maximum Print Speed604.9 SqFt/Hr (4-Color Mode)
Printing Width63.4 in (1,610 mm)
Media WidthMaximum 63.8 in (1,620 mm)
Media ThicknessMaximum 0.04 in (1 mm)
Media Roll WeightMaximum 88.2 lbs (40.0 kg)
Ink typeMimaki - SS21, ES3, Sb53, Sb54
Color configurationCyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange, White, Silver. Dye-Sublimation ONLY Deep Black
Cutting Speed30cm/sec
Cutting ForceMaximum 450
Blade TypesEccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen
ConnectivityUSB 2.0 Hi-speed (Ethernet 100 BASE-T for E-mail notification function)
Power SupplyCJV150-75: Single-phase (AC 100–120V / AC 220–240V)
Power Consumption100V:1.44 kVA × 1 or less / 200V: 1.92 kVA × 1 or less
Dimensions109 in x 28 in x 55 in (276.9 mm x 71.1 mm x 139.7 mm)
Weight370 lbs. (168 kg)
Shipping Dimensions115 in x 30 in x 41 in
Shipping Weight507 lbs
Shipping Crate/PalletShipped in crate on top of pallet
Environment: operating ♠Temperature: 68° – 86° F (20-30° C)
 Humidity: 35–65 % RH (Non condensing)
Bundled softwareRIP software RasterLink6 included
WarrantyOne Year Trouble-free Warranty
SupportOne year complimentary Gold Support

EnduraLAM3 Specifications:

  • Maximum Media Width | 63 Inches (140 cm)
  • Maximum Laminating Speed | 19.6 feet/min
  • Roller Diameter | 4.72 Inches (120mm)
  • Roller Maximum Height | 1.38 Inches (35mm)
  • Roller Lifting Method | Manual, Hand Crank
  • Voltage | 220V/110C AC 50Hz
  • Power | Laminator: 120W | Motor: 90 - 120W
  • Dimensions | 80 x 24 x 49 in (204 x 61 x 125cm)

PrismJET 203 Specifications:

  • Color | White
  • Finish | Gloss
  • Roll Size | 54-inch x 50-yds
  • Thickness | 3-mil, blended polymeric PVC film

PrismJET 201 Specifications:

  • Color | White
  • Finish | Matte
  • Roll Size | 54-inch x 50-yds
  • Thickness | 3-mil, blended polymeric PVC film

PrismJET 230 Specifications:

  • Color | White
  • Finish | Gloss
  • Roll Size | 54-inch x 50-yds
  • Thickness | 2.4-mil, Permanent Air-Egress Acrylic Adhesive

PrismJET 231 Specifications:

  • Color | Clear
  • Finish | Gloss
  • Roll Size | 54-inch x 50-yds
  • Thickness | 2.4-mil, high performance PVC laminating film



The application’s are endless with the CJV150 series printer|cutters, from banners to vinyl decals to HTV prints for garment decoration. Depending on the type of business set up you have or are wanting to get started with you can rest assured that Mimaki CJV150 units can fit all of your needs with this affordable bundle.

Common Applications:

  • Banners
  • Decals
  • Window Graphics
  • Car Wraps/Graphics
  • HTV Transfers
  • Art Reproduction

PrismJET 203 Applications:

  • Indoor and outdoor graphics and signage
  • Conforms well to flat surfaces and simple curves
  • Building Signs
  • Window Signage
  • Exterior Signage
  • POP Retail Graphics
  • Decals
  • Nameplates

PrismJET 201 Applications:

  • Indoor and outdoor graphics and signage
  • Conforms well to flat surfaces and simple curves
  • Building Signs
  • Window Signage
  • Exterior Signage
  • POP Retail Graphics
  • Decals
  • Nameplates

PrismJET 230 Applications:

  • Ideal for long-term vehicle and fleet graphics
  • Medium to long-term general signage
  • Wraps requiring limited conformability
  • Print and cut vehicle and graphics

PrismJET 231 Applications:

  • Intended for vehicle wraps applied to flat surfaces and simple curves
  • UV extension rating of up to 5 years
  • Ideal for long-term vehicle and fleet graphics
  • Medium to long-term general signage
  • Wraps requiring limited conformability
  • Print and cut vehicle and graphics

EnduraLam3 Applications:

  • Cold laminating of digitally printed films.
  • Mounting of pressure sensitive adhesive films to rigid substrates.
  • Transfer Tape Application.
