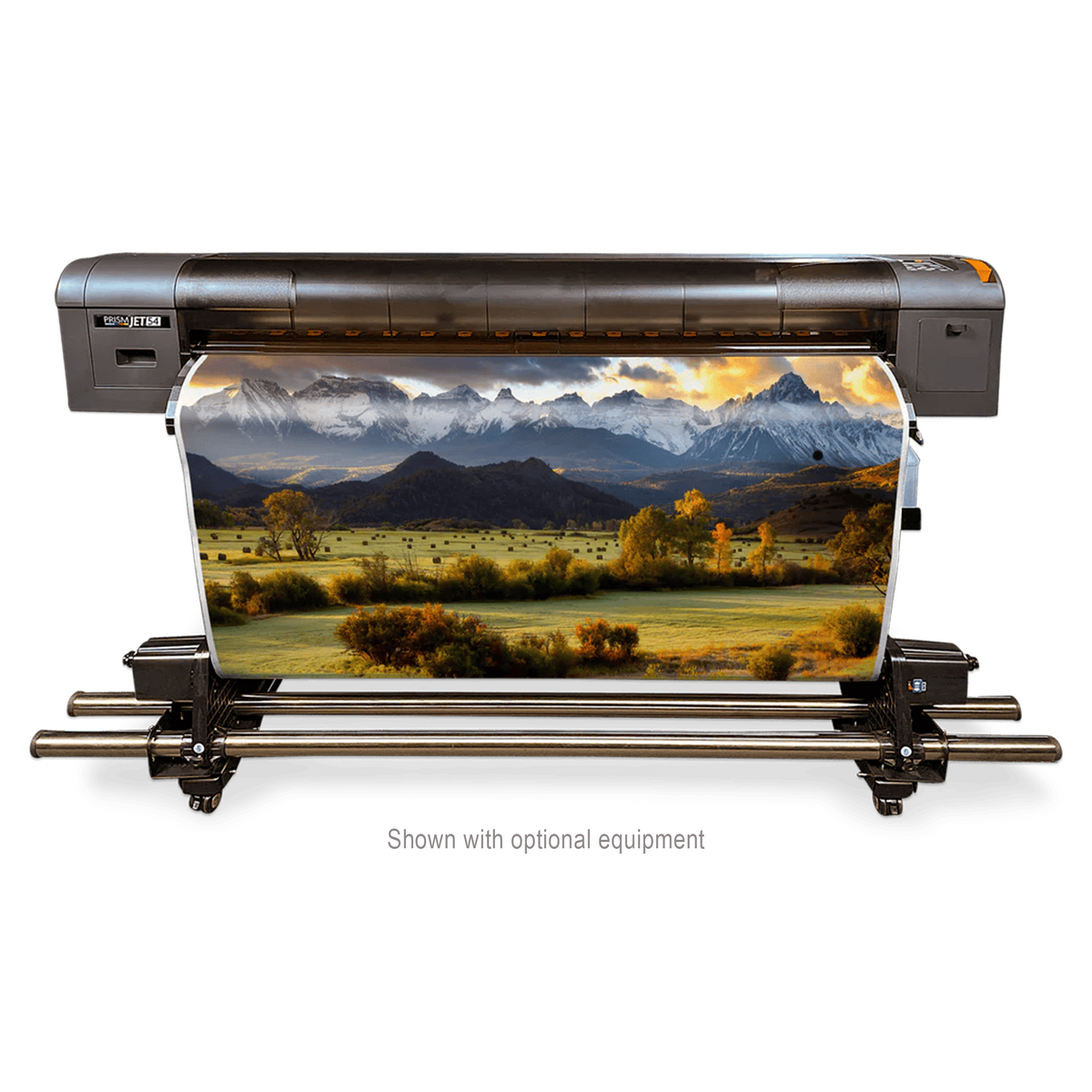

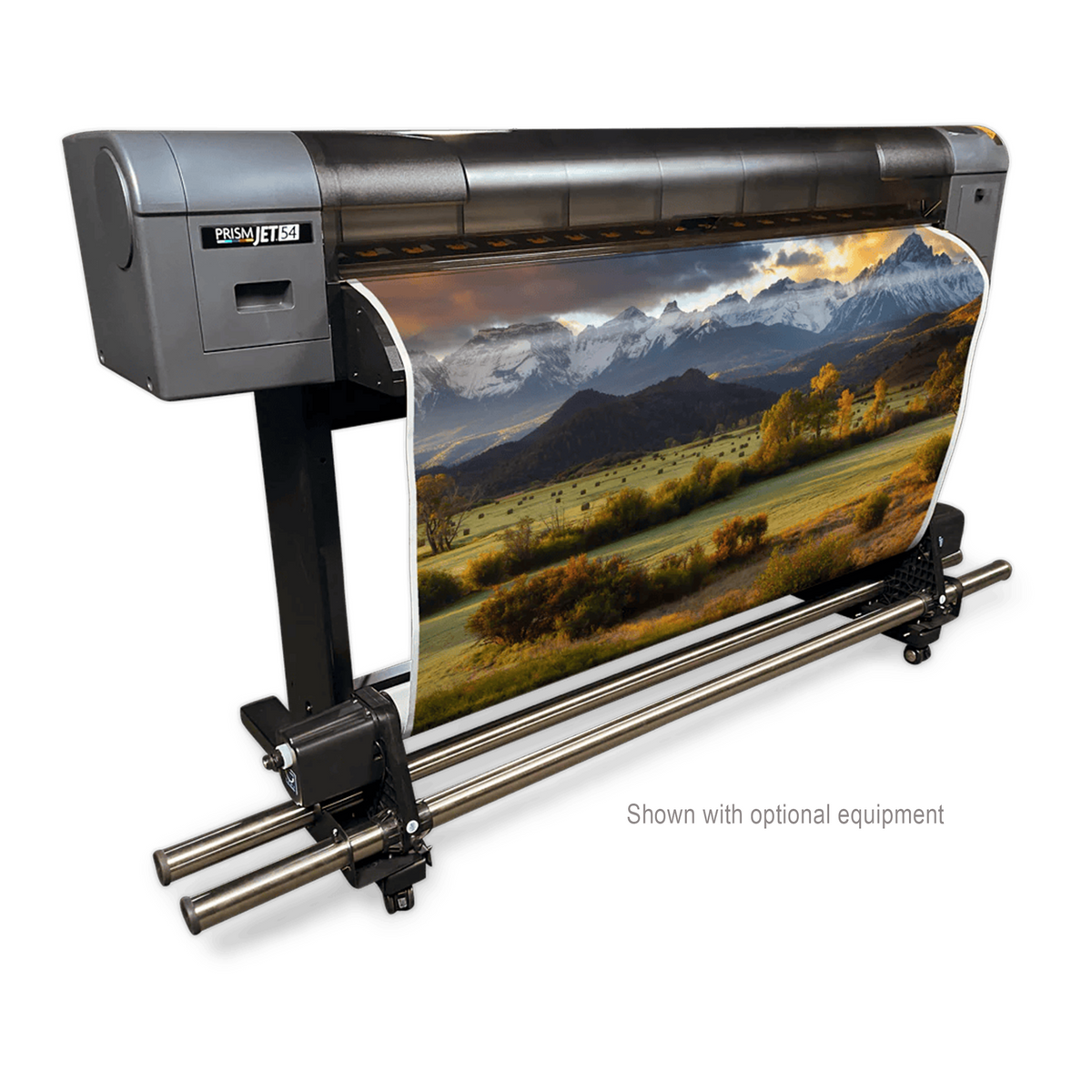

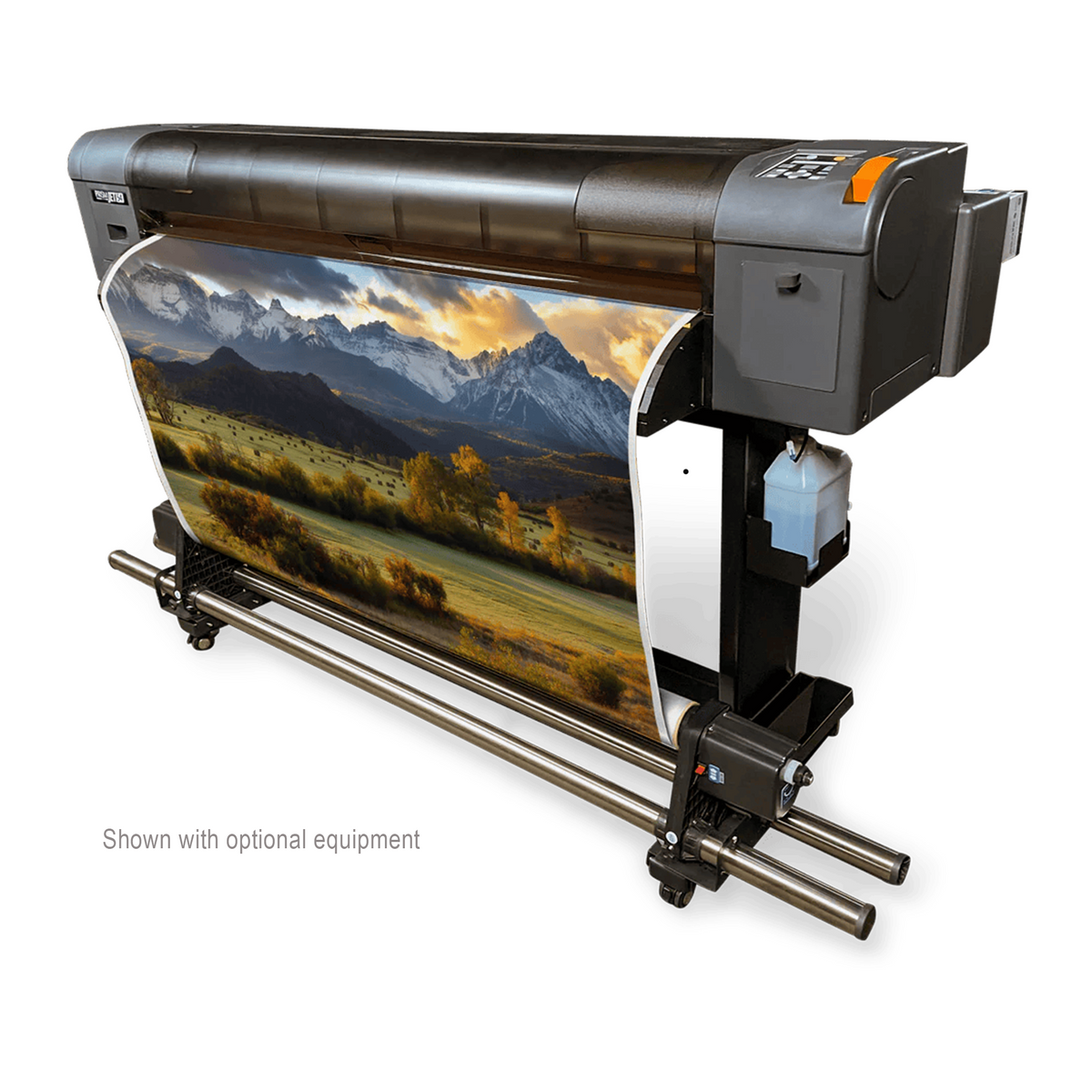

PrismJET 54 Gen2 Large Format Eco-Solvent Printer & Stand
Your kit
- PrismJET 54 Gen2 Large Format Eco-Solvent Printer & Stand $9,995.00
No add-ons yet. Choose from the kit groups to build yours.
Choose the required options marked * before adding to cart.
Each item is added to your cart as its own line, so quantities can be adjusted there.
- Ships by freight · $995 freight charge added at checkout
- Talk to an equipment specialist 903-462-7700 · Mon–Fri 7 am–7 pm CST
- Returns & warranty
Add what you need. Prices show what each item adds. Groups marked * must be chosen before checkout.
Warranty · choose one · required Select an option
Ink & Media · choose any · required Select an option
Accessories · choose any None
RIP Software · choose one None
Productivity Boosters · choose any None
Training · choose any None
Other Accessories · choose any None
Your kit · PrismJET 54 Gen2 Large Format Eco-Solvent Printer & S...
The second generation PrismJET 54-inch ecosolvent printer is smarter, faster, and simpler. The PrismJET 54 incorporates advances in print head technology and precise Japanese engineering. The new piezo print head has more and larger nozzles for faster throughput. The Second gen is 12% faster than our best-selling VJ54 and has brilliant new features that make it easier to use and maintain. What hasn't changed is the combination of outstanding print quality, high production, and rock-solid reliability. Engineered and built in Japan. Exclusively from SIGNWarehouse.
Key Features:
- New TruePoint print head achieves high productivity and high image quality
- New advanced print head supports automatic bypassing of clogged nozzles for trouble-free printing
- The larger print head has 11% more nozzles, higher nozzle resolution
- 12% faster print speeds than PrismJET VJ54
- The built-in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
- DropMaster2 firmware precisely controls dot size and maintains print quality
- FeedMaster automates media feed adjustments to maintain precise high-resolution print production.
- The New Barcode media tracker feature helps monitor media roll status.
- Three head height settings accommodate a wider range of media thickness
- End-user-replaceable wiper, new access door for easier maintenance.
PrismJET 54 Gen2 Wide Format Color Printer: One printer. Limitless applications.
Here are just a few of the ways you can make money with a PrismJET 54 eco-solvent printer.
- Car Wraps, fleet motor sports & marine graphics
- Indoor & outdoor banners
- Commercial and residential wall and floor graphics
- Industrial labels, peel & stick decals,
- Exhibition graphics and retail backlit signage
- Garment decoration; vivid graphics on dark shirts.
Content:
- PrismJET 54 Gen2 Large-format Printer
- 25 ft ethernet cable
- 10 ft Power cord
PrismJET 54 Gen2 Specifications:
- Print Technology: Single TruePoint variable drop-on demand piezo print head
- Nozzle Configuration: 1600 (400 nozzles x 4 lines)
- Maximum Resolution: 1200 dpi
- Head Heights: Low: 1.5mm / Middle: 2mm / High: 2.5mm
- Production print speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi
- Banner Mode print speed: 313 sf/hr in Banner4 mode (300 x 600 dpi)
- Max. Media Width: 54 inches (1371mm)
- Max. Print Width: 53.58 inches (1361mm)
- Max. Media Roll Weight: 44 lbs (19.9kg)
- Max. Media Roll Diameter: 6" / 2" (3" optional)
- Media Drying System: Individually controlled pre-heater, fixer & dryer (30 - 50 °C)
- Media take-up system: Optional motorized
- Media Sheet-off function: One-touch control panel cross-cut function

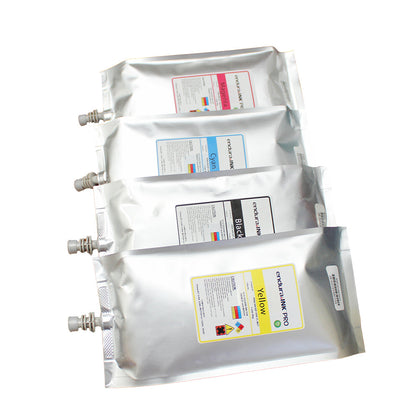

- Ink Type: Endura Ink PRO eco-solvent ink
- Ink Volume: 220 ml & 1000 ml / 1000 ml
- Ink Colors: CMYK
- UV durability—without lamination: 3 years outdoor
- Data Interface: Ethernet (10BASE-T、100BASE-TX)
- During Printing < 500 W
- In Stand-by: 45 W
- Warming Up ≤ 1550 W
- Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz
- Power Consumption-Operation: AC100V〜120V/AC200V〜240V, T.B.D W or below
- Power Consumption - Sleep Mode: AC100V〜120V/AC200V〜240V, T.B.D W or below
- Operating Temperature: 71 - 86°F (22°C - 30 °C) with Δt: max. 2 °C/h
- Operating Humidity Range: 40% - 60 % (no condensation) with ΔRH: max. 5% RH/h
- External Dimensions: 75.43"W x 26.97"D x 47.95"H (1916 x 685 x 1218 mm)
- Weight: 181.44 lbs (82.3 kg)
Overview
The second generation PrismJET 54-inch ecosolvent printer is smarter, faster, and simpler. The PrismJET 54 incorporates advances in print head technology and precise Japanese engineering. The new piezo print head has more and larger nozzles for faster throughput. The Second gen is 12% faster than our best-selling VJ54 and has brilliant new features that make it easier to use and maintain. What hasn't changed is the combination of outstanding print quality, high production, and rock-solid reliability. Engineered and built in Japan. Exclusively from SIGNWarehouse.
Key Features:
- New TruePoint print head achieves high productivity and high image quality
- New advanced print head supports automatic bypassing of clogged nozzles for trouble-free printing
- The larger print head has 11% more nozzles, higher nozzle resolution
- 12% faster print speeds than PrismJET VJ54
- The built-in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
- DropMaster2 firmware precisely controls dot size and maintains print quality
- FeedMaster automates media feed adjustments to maintain precise high-resolution print production.
- The New Barcode media tracker feature helps monitor media roll status.
- Three head height settings accommodate a wider range of media thickness
- End-user-replaceable wiper, new access door for easier maintenance.
Applications
PrismJET 54 Gen2 Wide Format Color Printer: One printer. Limitless applications.
Here are just a few of the ways you can make money with a PrismJET 54 eco-solvent printer.
- Car Wraps, fleet motor sports & marine graphics
- Indoor & outdoor banners
- Commercial and residential wall and floor graphics
- Industrial labels, peel & stick decals,
- Exhibition graphics and retail backlit signage
- Garment decoration; vivid graphics on dark shirts.
Videos
Specifications
Content:
- PrismJET 54 Gen2 Large-format Printer
- 25 ft ethernet cable
- 10 ft Power cord
PrismJET 54 Gen2 Specifications:
- Print Technology: Single TruePoint variable drop-on demand piezo print head
- Nozzle Configuration: 1600 (400 nozzles x 4 lines)
- Maximum Resolution: 1200 dpi
- Head Heights: Low: 1.5mm / Middle: 2mm / High: 2.5mm
- Production print speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi
- Banner Mode print speed: 313 sf/hr in Banner4 mode (300 x 600 dpi)
- Max. Media Width: 54 inches (1371mm)
- Max. Print Width: 53.58 inches (1361mm)
- Max. Media Roll Weight: 44 lbs (19.9kg)
- Max. Media Roll Diameter: 6" / 2" (3" optional)
- Media Drying System: Individually controlled pre-heater, fixer & dryer (30 - 50 °C)
- Media take-up system: Optional motorized
- Media Sheet-off function: One-touch control panel cross-cut function
- Ink Type: Endura Ink PRO eco-solvent ink
- Ink Volume: 220 ml & 1000 ml / 1000 ml
- Ink Colors: CMYK
- UV durability—without lamination: 3 years outdoor
- Data Interface: Ethernet (10BASE-T、100BASE-TX)
- During Printing < 500 W
- In Stand-by: 45 W
- Warming Up ≤ 1550 W
- Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz
- Power Consumption-Operation: AC100V〜120V/AC200V〜240V, T.B.D W or below
- Power Consumption - Sleep Mode: AC100V〜120V/AC200V〜240V, T.B.D W or below
- Operating Temperature: 71 - 86°F (22°C - 30 °C) with Δt: max. 2 °C/h
- Operating Humidity Range: 40% - 60 % (no condensation) with ΔRH: max. 5% RH/h
- External Dimensions: 75.43"W x 26.97"D x 47.95"H (1916 x 685 x 1218 mm)
- Weight: 181.44 lbs (82.3 kg)
