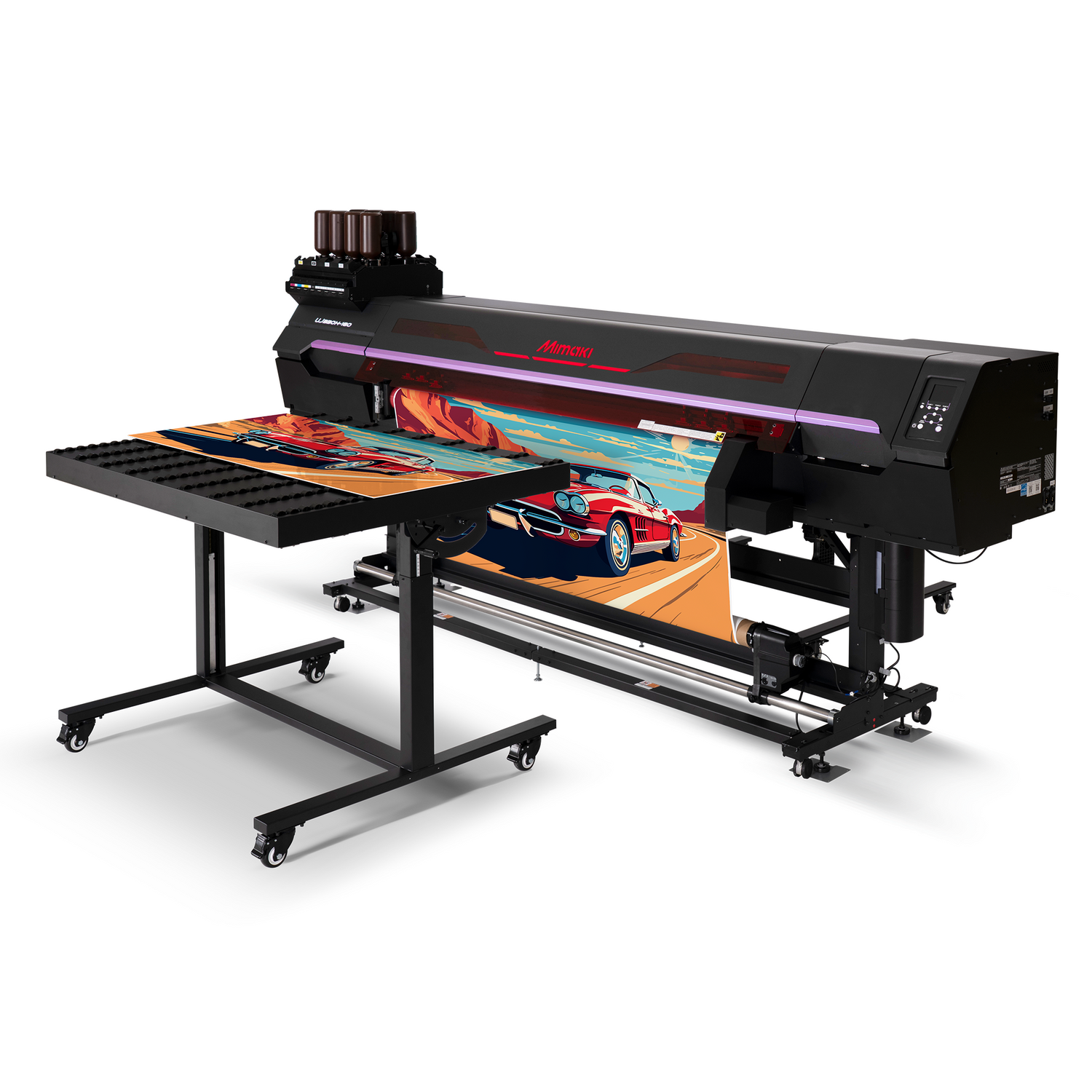

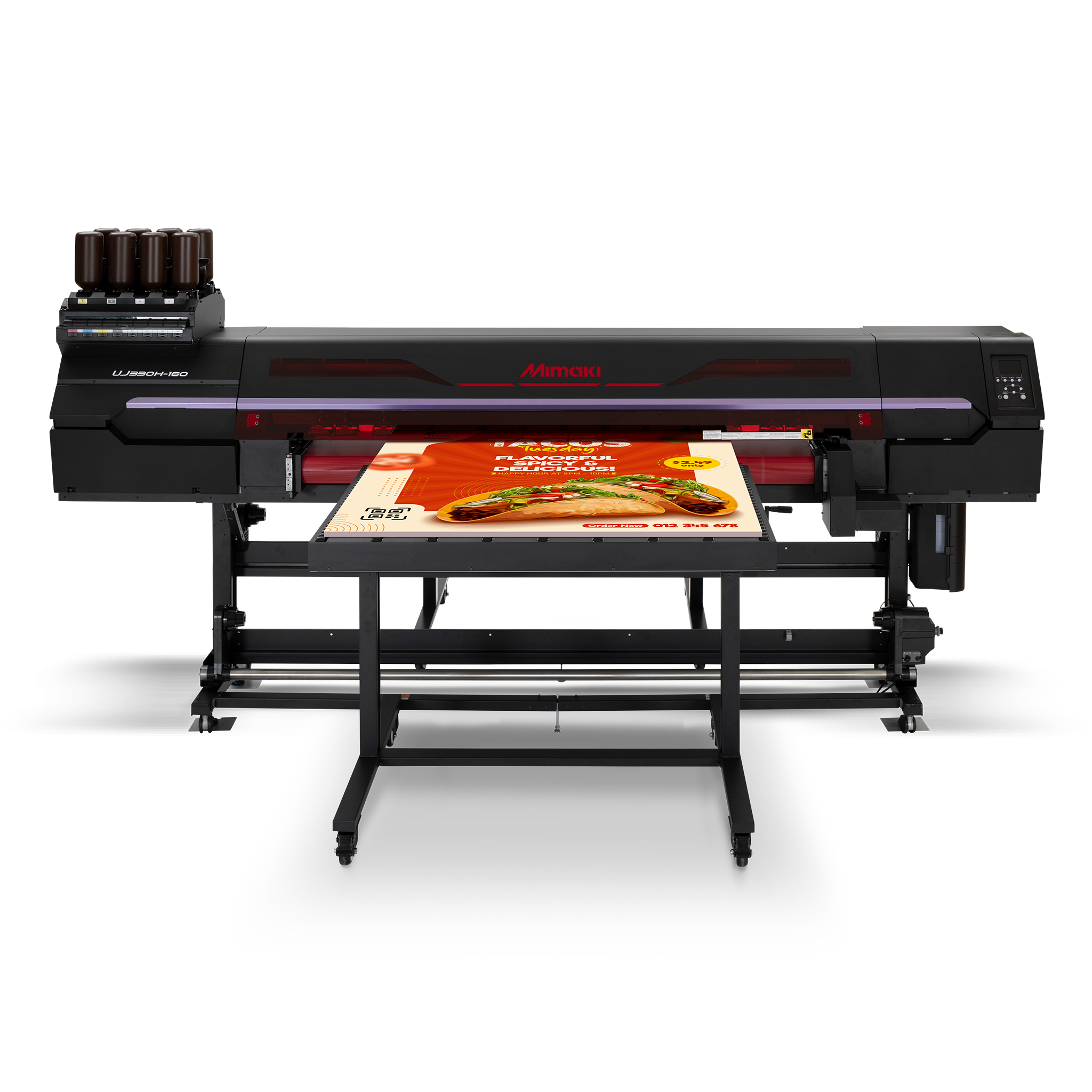

Mimaki UJ330H-160 Hybrid UV Inkjet Printer
Couldn't load pickup availability
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Special Offer!
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Mimaki UJ330H-160 Hybrid UV Inkjet Printer
Sign in to see priceThe Mimaki UJ330H-160 is a hybrid UV inkjet printer that supports direct printing on both roll media and rigid board materials in one machine. It is designed as the “Next Standard” for graphic production sites, combining high image quality, high productivity, and flexible material handling while reducing space requirements and equipment investment.
It enables quick switching between roll and rigid output, improving production efficiency and allowing businesses to handle various applications using a single device.
Key Features:
- Hybrid UV printer for roll and rigid media in one system
- Newly developed belt transport system for stable media handling
- Supports thin films and fabrics with improved transport stability
- High image quality with practical productivity of 114.0 sqm/h* (depending on ink set)
- Equipped with high-density print heads for smooth solids and fine gradations
- Supports white ink, clear ink, and up to five-layer printing for value-added effects.
- Next-generation UV ink designed to be SVHC-free and CMR-free for improved safety and reduced odor.
Core Technologies:
- Nozzle Check Unit (NCU)
- Nozzle Recovery System (NRZ)
- Mimaki Bulk Ink System (MBIS)
- Uninterrupted Ink Supply System (UISS)
- Mimaki Circulation Technology (MCT)
- Mimaki Fine Diffusion (MFD)
- Waveform Control (WFC)
- Mimaki Advanced Pass System (MAPS)
Applications:
- Indoor signage
- Retail interior decor
- Floor graphics
- Soft signage
- Window graphics
- Vehicle graphics and wraps
- Outdoor signboard
- Display panels and POP materials
| UJ330H-160 Product Specifications | ||
|---|---|---|
| Print head | 2 heads (staggered) 4 print bars per head | |
| Print resolution | Y: 600, 1200 dpi X: 600, 900, 1200, 1800 dpi | |
| Print Speed (4 Color Mode) | 236.8 sqft/hr (22.0 sqm/hr) max | |
| Maximum print width | Rigid | 4 ft x 11 ft |
| Roll | 64 in | |
| Media Thickness | Up to 2 in (50 mm) | |
| Media Weight | Rigid | up to 55 lbs (25 kg) |
| Roll | up to 99 lbs (45 kg) | |
| Ink Type/Color | ELS-170 & ELS-175 – CMYK / CMYK +Cl +WW / CMYK +Lm +Lc +WW LUS-210 – CCMMYYKK / CCMMYK +WW | |
| Ink Package Size | 1 L Bottle | |
| Interface | Ethernet 1000BASE-T / USB 2.0 Hi-Speed | |
| Power Supply | AC (100–120V / 200–240V ±10%) ×2, 50/60Hz ±1Hz | |
| Power Consumption | Maximum – 1600W Average during operation – 800W Sleep mode – 4.5W or less | |
| Operational Environment | Temperature | 68–86°F (20–30°C) |
| Humidity | 35–65% | |
| Recommended | 68–77°F (20–25°C) | |
| Dust Level | General office level | |
| Dimensions (WXDXH) | 126.9 × 30.9 × 55.9 in / 3,225 × 785 × 1,420 mm (without tables) 126.9 × 104.9 × 55.9 in / 3,225 × 2,664 × 1,420 mm (with 1 set) 126.9 × 185.5 × 55.9 in / 3,225 × 4,712 × 1,420 mm (with 2 sets) | |
| Weight | 849 lbs (386 kg) | |
| Options | Ionizer unit 160 (A107256/OPT-J0545) – requires connector (A107729/OPT01024) | |
| Certifications | CB, CE, FCC Class A, KC, RCM, EAC, UKCA, EnergyStar, RoHS | |
Overview
The Mimaki UJ330H-160 is a hybrid UV inkjet printer that supports direct printing on both roll media and rigid board materials in one machine. It is designed as the “Next Standard” for graphic production sites, combining high image quality, high productivity, and flexible material handling while reducing space requirements and equipment investment.
It enables quick switching between roll and rigid output, improving production efficiency and allowing businesses to handle various applications using a single device.
Key Features:
- Hybrid UV printer for roll and rigid media in one system
- Newly developed belt transport system for stable media handling
- Supports thin films and fabrics with improved transport stability
- High image quality with practical productivity of 114.0 sqm/h* (depending on ink set)
- Equipped with high-density print heads for smooth solids and fine gradations
- Supports white ink, clear ink, and up to five-layer printing for value-added effects.
- Next-generation UV ink designed to be SVHC-free and CMR-free for improved safety and reduced odor.
Core Technologies:
- Nozzle Check Unit (NCU)
- Nozzle Recovery System (NRZ)
- Mimaki Bulk Ink System (MBIS)
- Uninterrupted Ink Supply System (UISS)
- Mimaki Circulation Technology (MCT)
- Mimaki Fine Diffusion (MFD)
- Waveform Control (WFC)
- Mimaki Advanced Pass System (MAPS)
Applications
Applications:
- Indoor signage
- Retail interior decor
- Floor graphics
- Soft signage
- Window graphics
- Vehicle graphics and wraps
- Outdoor signboard
- Display panels and POP materials
Specifications
| UJ330H-160 Product Specifications | ||
|---|---|---|
| Print head | 2 heads (staggered) 4 print bars per head | |
| Print resolution | Y: 600, 1200 dpi X: 600, 900, 1200, 1800 dpi | |
| Print Speed (4 Color Mode) | 236.8 sqft/hr (22.0 sqm/hr) max | |
| Maximum print width | Rigid | 4 ft x 11 ft |
| Roll | 64 in | |
| Media Thickness | Up to 2 in (50 mm) | |
| Media Weight | Rigid | up to 55 lbs (25 kg) |
| Roll | up to 99 lbs (45 kg) | |
| Ink Type/Color | ELS-170 & ELS-175 – CMYK / CMYK +Cl +WW / CMYK +Lm +Lc +WW LUS-210 – CCMMYYKK / CCMMYK +WW | |
| Ink Package Size | 1 L Bottle | |
| Interface | Ethernet 1000BASE-T / USB 2.0 Hi-Speed | |
| Power Supply | AC (100–120V / 200–240V ±10%) ×2, 50/60Hz ±1Hz | |
| Power Consumption | Maximum – 1600W Average during operation – 800W Sleep mode – 4.5W or less | |
| Operational Environment | Temperature | 68–86°F (20–30°C) |
| Humidity | 35–65% | |
| Recommended | 68–77°F (20–25°C) | |
| Dust Level | General office level | |
| Dimensions (WXDXH) | 126.9 × 30.9 × 55.9 in / 3,225 × 785 × 1,420 mm (without tables) 126.9 × 104.9 × 55.9 in / 3,225 × 2,664 × 1,420 mm (with 1 set) 126.9 × 185.5 × 55.9 in / 3,225 × 4,712 × 1,420 mm (with 2 sets) | |
| Weight | 849 lbs (386 kg) | |
| Options | Ionizer unit 160 (A107256/OPT-J0545) – requires connector (A107729/OPT01024) | |
| Certifications | CB, CE, FCC Class A, KC, RCM, EAC, UKCA, EnergyStar, RoHS | |
