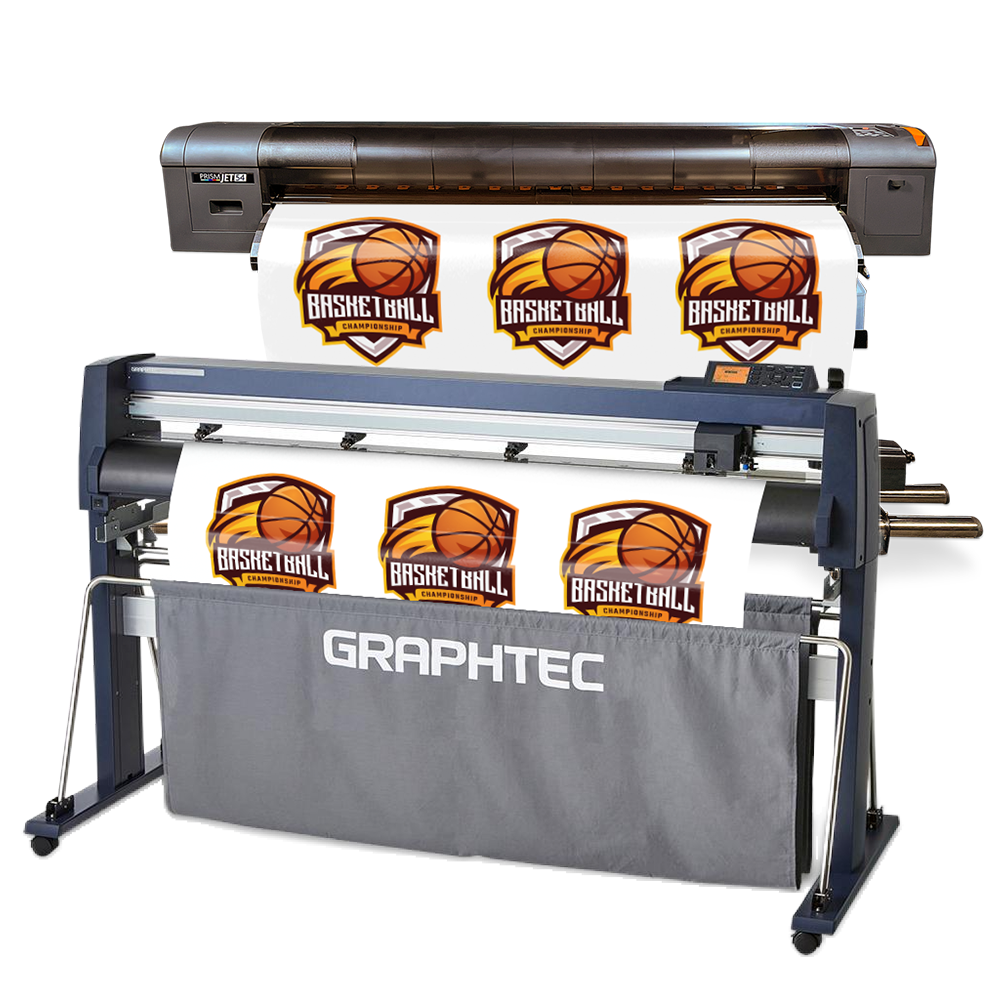

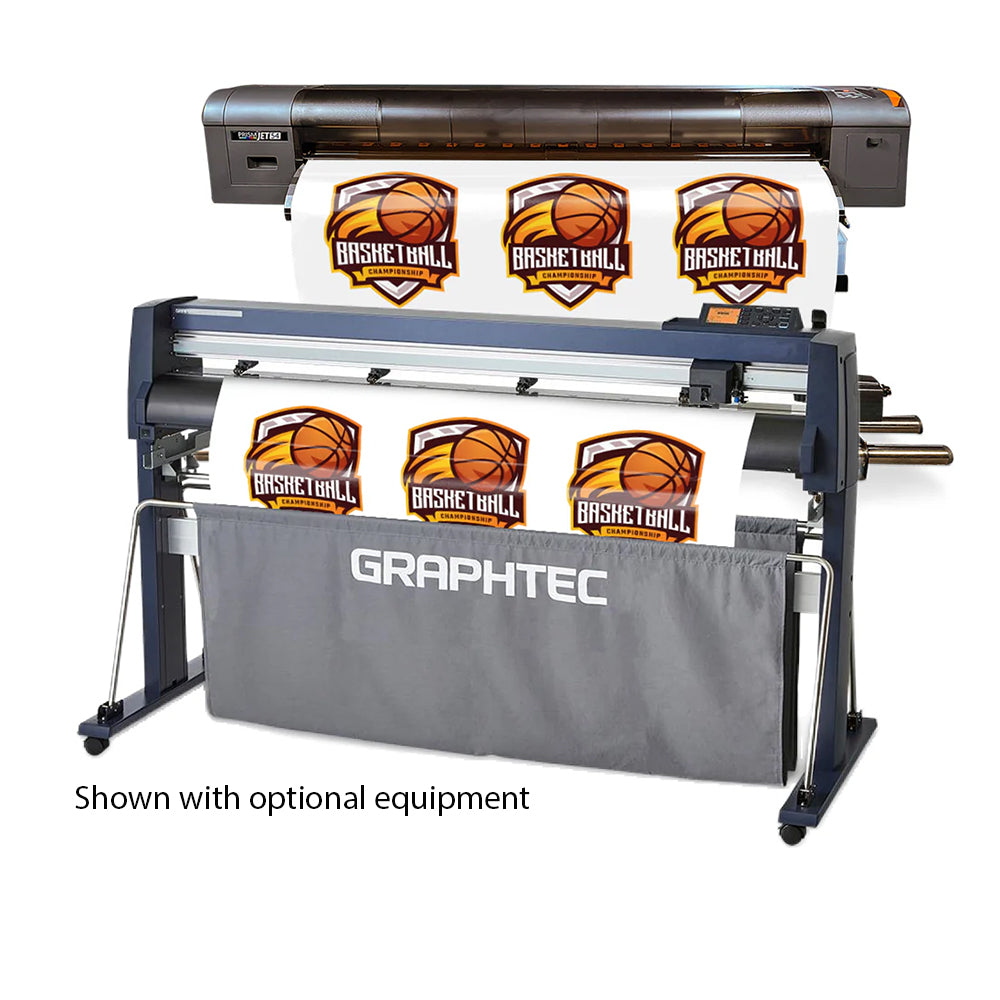

PrismJET 54 Gen2 Print & Cut Special with Graphtec FC9000-140 Vinyl Cutter

No customer reviews Write a review

Sku:

Retail price:

SW Wholesale Price:

SignWarehouse Pro Icon

Sale price:

Get $412.50 back with SignWarehouse PRO

Call Now Buy Online
Add to Wishlist

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Campaign rebates:
When purchasing this product between the displayed dates, you will be issued a partial rebate amount to your account each month until the total amount has been issued.

Overview

Specs

Applications

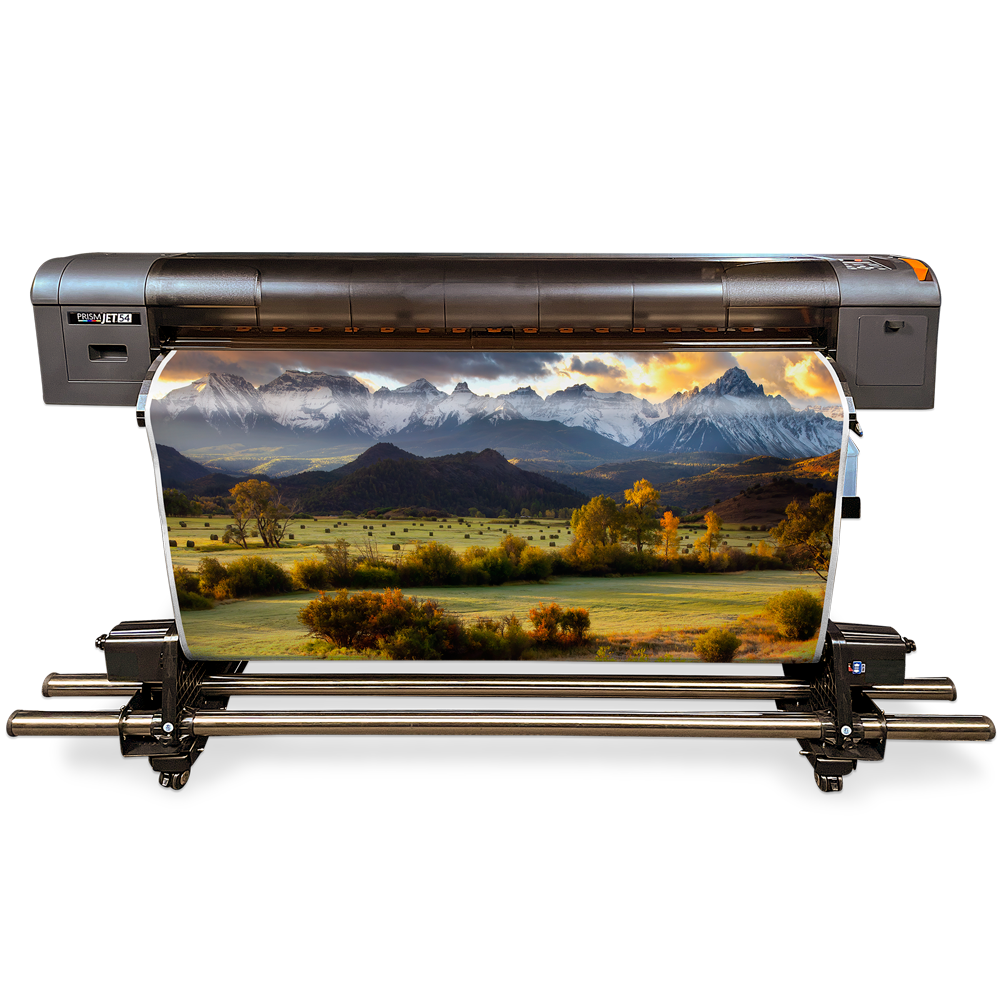

The PrismJET 54 Gen 2 builds on the class-leading features in the newest iteration of our best-selling printer. The advanced TruePoint piezo print head and wave print firmware make printing stunning graphics easier than ever. To get the most out of your PrismJET 54, you’ll want to bundle it with an advanced contour-cutting large format vinyl cutter. There’s no better value in a large-format print and cut system than the PrismJET 54 paired with a MUSE M60 vinyl cutter.

Features:

  • New TruePoint print head achieves high productivity and high image quality
  • New advanced print head supports the automatic bypassing of clogged nozzles for trouble-free printing
  • The larger print head has 11% more nozzles, a higher nozzle resolution
  • 12% faster print speeds than PrismJET VJ54
  • The built-in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
  • DropMaster2 firmware precisely controls dot size and maintains print quality
  • FeedMaster automates media feed adjustments to maintain precise high-resolution print production.
  • The New Barcode media tracker feature helps monitor media roll status.
  • Three head height settings accommodate a wider range of media thickness
  • End-user-replaceable wiper, new access door for easier maintenance.

Content:

  • PrismJET 54 Gen2 Large-format Printer
  • Graphtec FC9000-140 Vinyl Cutter
  • 25 ft ethernet cable
  • 10FT Power cord
  • One year depot warranty
  • One year of Complimentary Gold Support*

PrismJET 54 Gen2 Specifications:

  • Print Technology: Single TruePoint variable drop-on demand piezo print head
  • Nozzle Configuration: 1600 (400 nozzles x 4 lines)
  • Maximum Resolution: 1200 dpi
  • Head Heights: Low: 1.5mm / Middle: 2mm / High: 2.5mm
  • Production print speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi
  • Banner Mode print speed: 313 sf/hr in Banner4 mode (300 x 600 dpi)
  • Max. Media Width: 54 inches (1371mm)
  • Max. Print Width: 53.58 inches (1361mm)
  • Max. Media Roll Weight: 44 lbs (19.9kg)
  • Max. Media Roll Diameter: 6" / 2" (3" optional)
  • Media Drying System: Individually controlled pre-heater, fixer & dryer (30 - 50 °C)
  • Media take-up system: Optional motorized
  • Media Sheet-off function: One-touch control panel cross-cut function
  • Ink Type: Endura Ink PRO eco-solvent ink
  • Ink Volume: 220 ml & 1000 ml  / 1000 ml
  • Ink Colors: CMYK
  • UV durability—without lamination: 3 years outdoor
  • Data Interface: Ethernet (10BASE-T、100BASE-TX)
  • During Printing < 500 W
  • In Stand-by: 45 W
  • Warming Up ≤ 1550 W
  • Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz
  • Power Consumption-Operation: AC100V〜120V/AC200V〜240V, T.B.D W or below
  • Power Consumption - Sleep Mode: AC100V〜120V/AC200V〜240V, T.B.D W or below
  • Operating Temperature: 71 - 86°F (22°C - 30 °C) with Δt: max. 2 °C/h
  • Operating Humidity Range: 40% - 60 % (no condensation) with ΔRH: max. 5% RH/h
  • External Dimensions: 75.43"W x 26.97"D x 47.95"H (1916 x 685 x 1218 mm)
  • Weight: 181.44 lbs (82.3 kg)

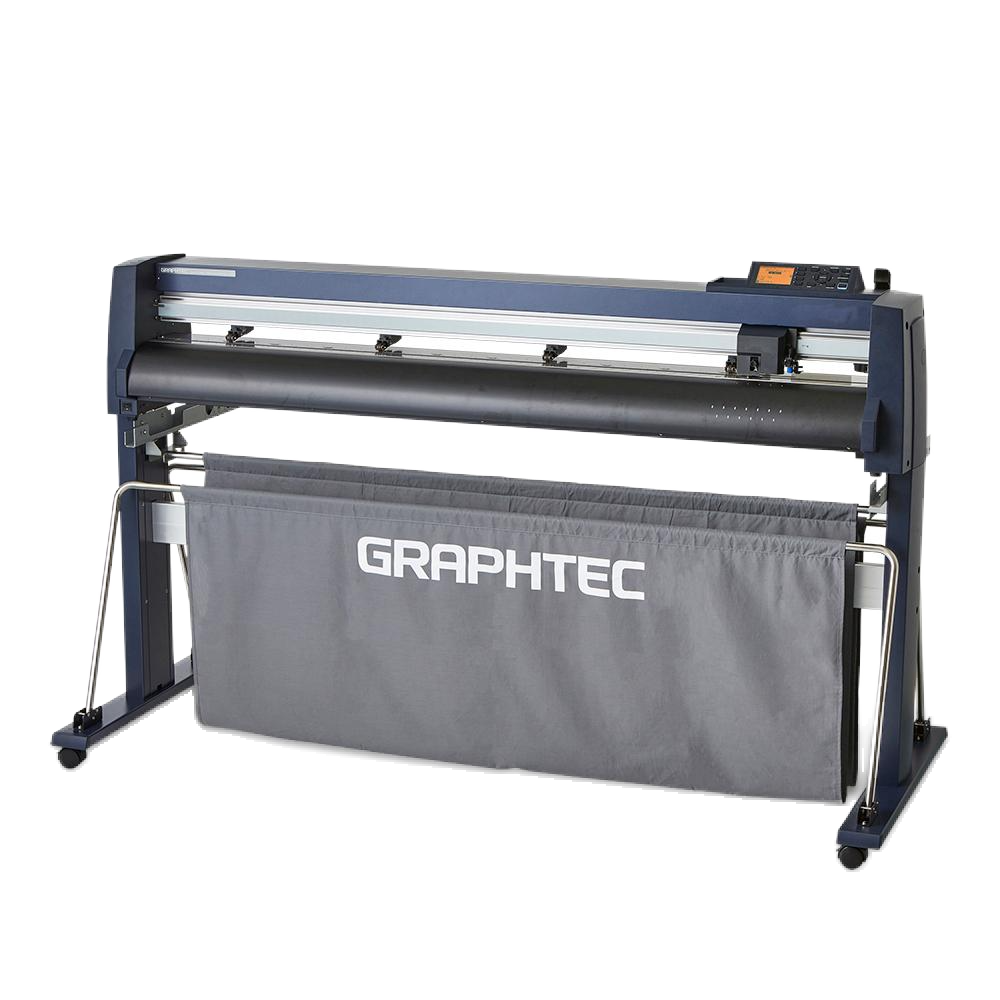

Graphtec FC9000-140 Specifications:

  • Drive method: Digital servo drive
  • Max. cutting speed: 58.5 inches per second (45 degree direction) 41.3 (axis direction)
  • Cutting force: Max. 600 gf in 48 steps
  • Max Cutting Width (WxL): 54in x 164ft 1372mm x 50m
  • Max Media Width: Min. 1.96 in | Max. 60.20 in | Max. cross cut width: 54 in
  • Number of push rollers: 4 rollers
  • Tools: Cutting Blade, Plotting Pen, Pouncing Pool
  • Buffer memory: 2 MB
  • Display: Graphic-type LCD (3.7-inch, backlight)
  • Power source: 100 V to 240 V AC, 50 / 60 Hz
  • Power consumption: AC100-240 V, 50/60 Hz

*Ink and RIP software not included.

PrismJET 54 Gen2 Wide Format Color Printer: One printer. Limitless applications.


Here are some of the ways you can make money with a PrismJET 54 print & cut starter bundle.

  • Car Wraps, fleet motor sports & marine graphics
  • Commercial and residential wall and floor graphics
  • Commercial window displays & P.O.P. graphics
  • Industrial labels, peel & stick decals
  • Garment decoration; vivid graphics on dark shirts.
  • Indoor & outdoor banners
  • Exhibition graphics and retail backlit signage
  • Outdoor-durable posters
