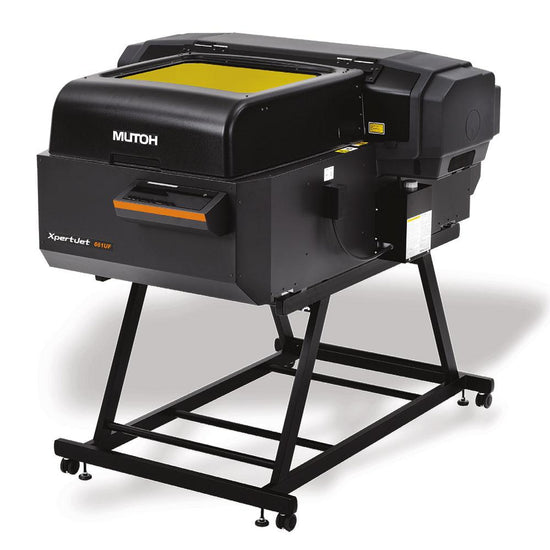

MUTOH XpertJet 661UF Tabletop Flatbed UV-LED Printer

SKU:

Retail Price:

SW Wholesale Price:

SignWarehouse Pro Icon

MUTOH XpertJet 661UF Tabletop Flatbed UV-LED Printer

Sku:

Retail Price:

SW Wholesale Price:

SignWarehouse Pro Icon

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Overview

Specs

Applications

The XpertJet 661UF UV-LED tabletop flatbed printer offers many new features, including a new sleek modern design, larger printable surface area, a larger window for safe viewing, an updated touch­screen panel, an improved LED lamp, optional vacuum table providing the ability for increased printing depth and more. These enhancements along with the improved ease of use and easier maintenance will increase both productivity and profitability.

The Mutoh XPJ-661UF allows for finer texture layers which instantly adds value to any print. And the XpertJet 661UF introduces MUTOH's newest innovation, “Local Dimming Control Technology”. This patent-pending breakthrough enables the precise placement of gloss, matte and semi-gloss varnish on one image in a single print pass. The result is unparalleled versatility and efficiency. The Mutoh XPJ-661UF is a great addition to your arsenal and will definitely add profits to your business!

Features:

  • 19 x 23.4-inch print area
  • New UV/LED Local Dimming Technology
  • Supports production of ADA signage, including braille
  • Energy-efficient UV-LED ink
  • CMYK + White and Varnish
  • Intelligent Interweave 'wave printing' virtually eliminates banding
  • Print directly on a variety of substrates up to 5.91 inches thick
  • Optional Rotary Attachment for printing on cylindrical objects
  • User-friendly touch panel
  • One-year on-site limited warranty



MUTOH XpertJet 661UF Specifications:

Print Method - On-demand piezo drive system

Maximum print area - 19.02 in x 23.39 in

Maximum media thickness - 5.9 in

Max media weight - 13.3 lbs

Height Adjustment - Automatic

Print Resolution - 1440 / 1080 / 720 dpi (Total 3 modes)

Ink Types - UV-LED Ink (UH21 ink / US 11 ink)

color range - 4 colors (C, M, Y, K) | 6 colors (C, M, Y, K, White, Varnish)

cartridge size - 220ml ink cartridge (CMYK, White, Varnish)

Number of ink slots - 6

Interface - Ethernet (10BASE-T, 100BASE-TX)

Rotary Unit - Optional

Floor Stand - Included | Working height, 48.11 in.

RIP software - SAi FlexiSIGN & PRINT MUTOH Edition

Power requirements - AC 100-120V± 10%, 50/60Hz ± 1Hz

Operation Noise Levels - Standby: 49dB or less | Printing with standard table: 63dB or less

Acceptable Operating Conditions - Temperature: 68-89.6 °F | Humidity: 40-60%RH (non condensing)

Power Consumption - Sleep Mode: 20W or less | Ready to Print: 40W or less | Operation: 195W or less

Dimensions - 46.77 in x 64.06 in x 23.78 in (cover closed) | 46.77 in x 64.06 in x 47.01 in (front cover opened)

Weight - 287 lbs (130 kg)

Warranty - One Year limited on-site warranty



Links to Online Resources:

Bottles & tumblers, Packaging prototypes, cell phone covers, plaques, awards, ADA signage, directional signage, and more.
