Mutoh XpertJet 661UF Pro UV-LED Flatbed Printer
Drop Shipped — This product will be shipped directly from the manufacturer. Please allow an additional 3 to 5 days for shipping. This item cannot be canceled, exchanged, or returned.
- Ships by freight, direct from the manufacturer · $995 freight charge added at checkout
- Talk to an equipment specialist 903-462-7700 · Mon–Fri 7 am–7 pm CST
- Returns & warranty
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Complete your set
Mutoh UV/Eco Maintenance Cleaner - 500ml Bottle
Available in 1 color
From $42.34Unit price /Unavailable
Mutoh XpertJet 661UF Pro UV-LED Flatbed Printer

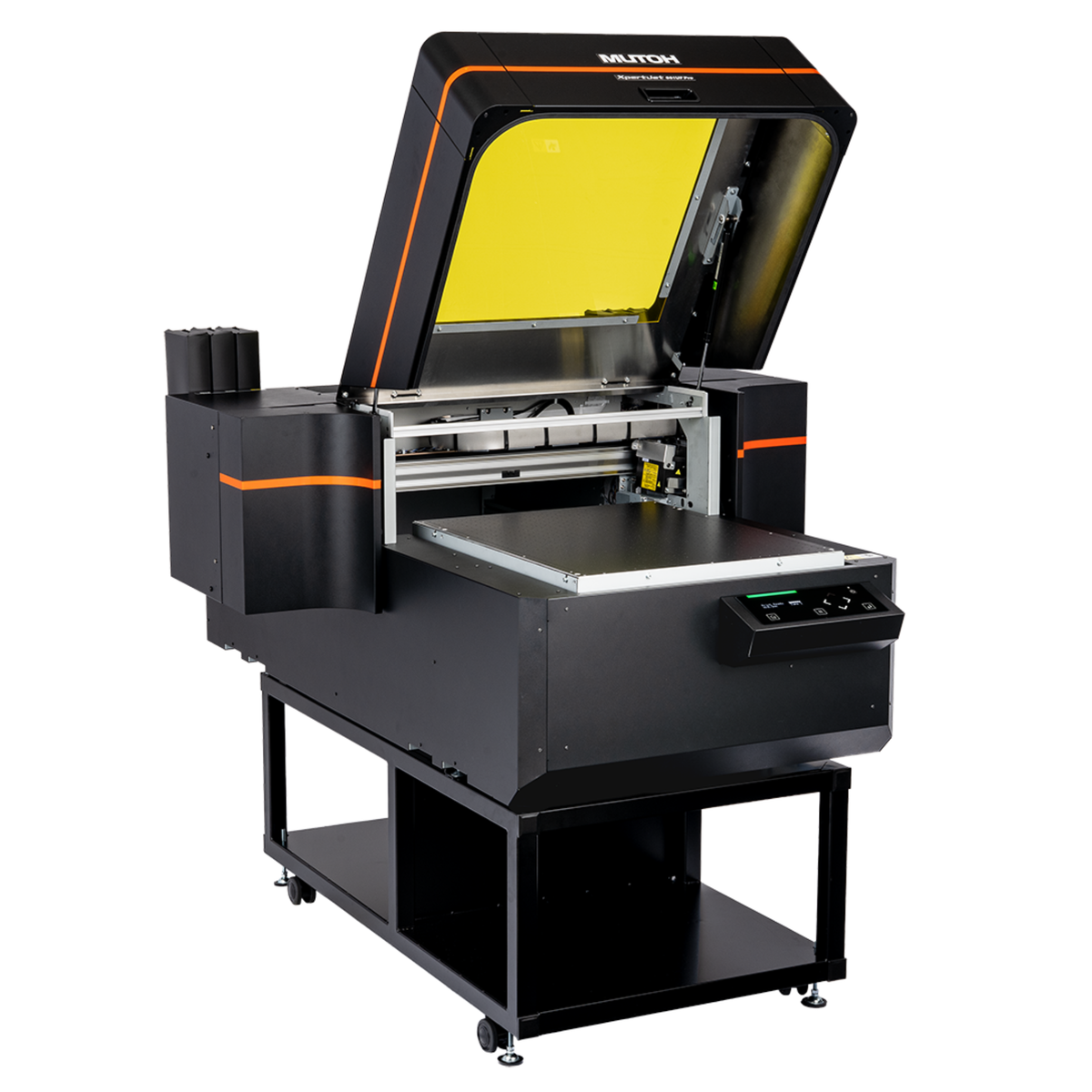

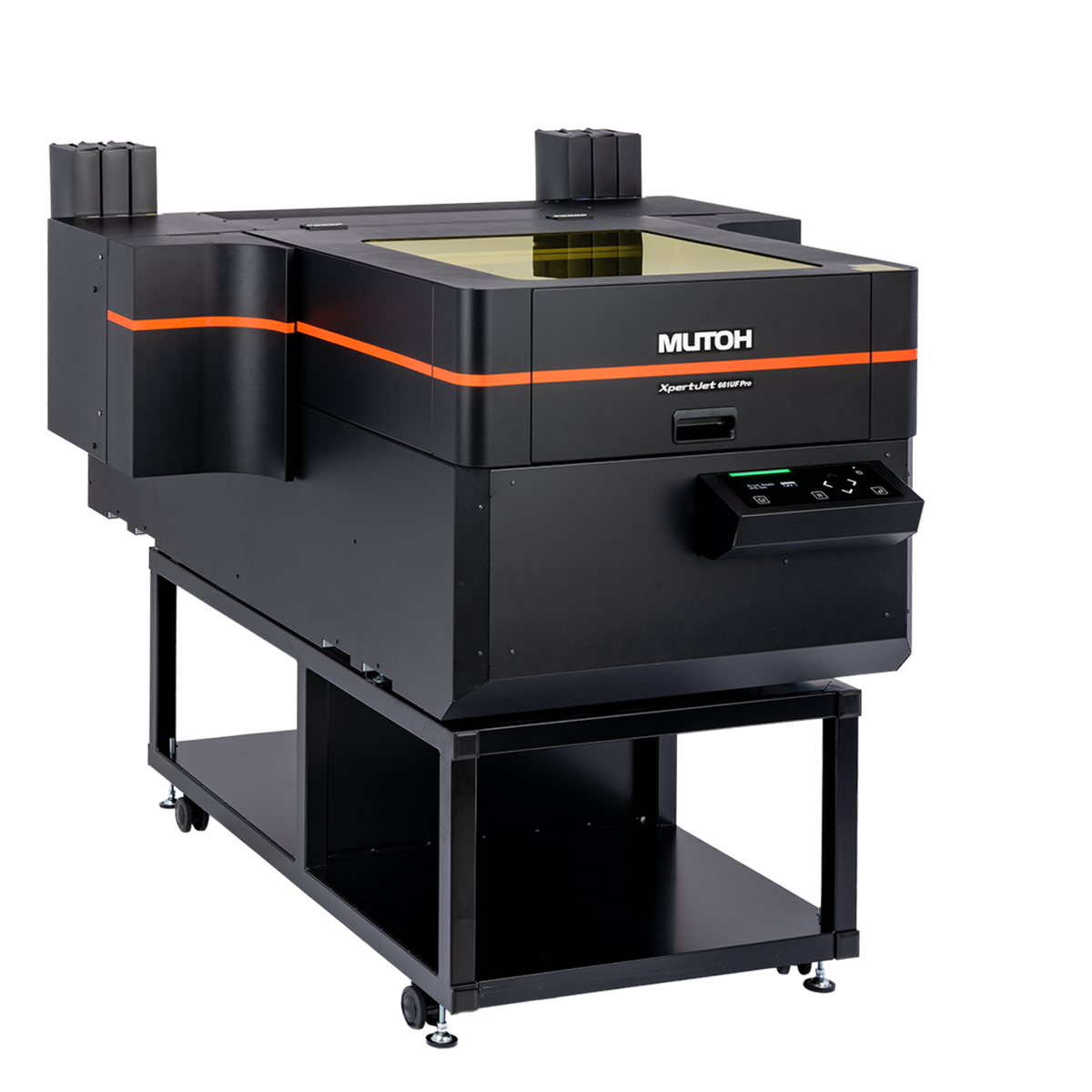

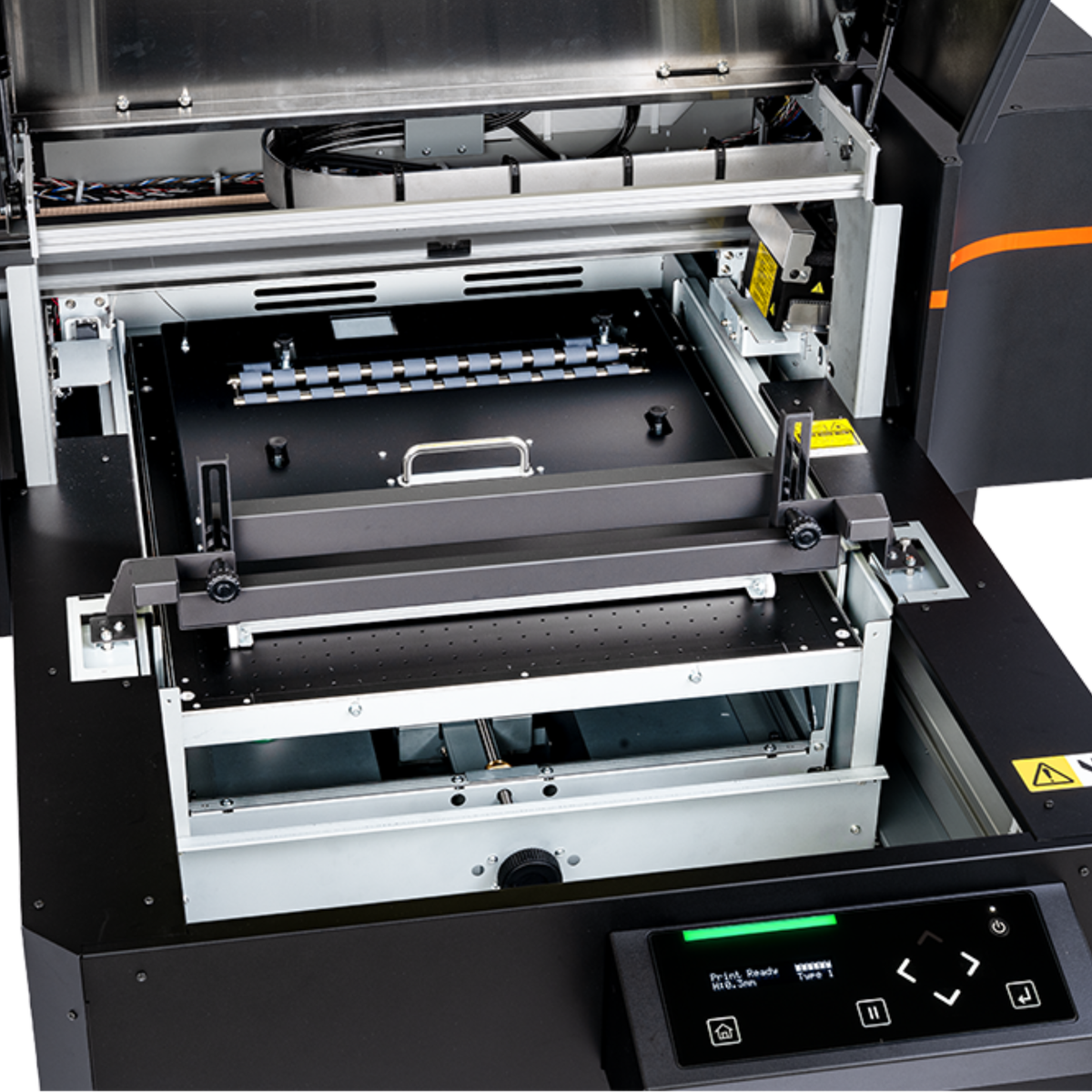

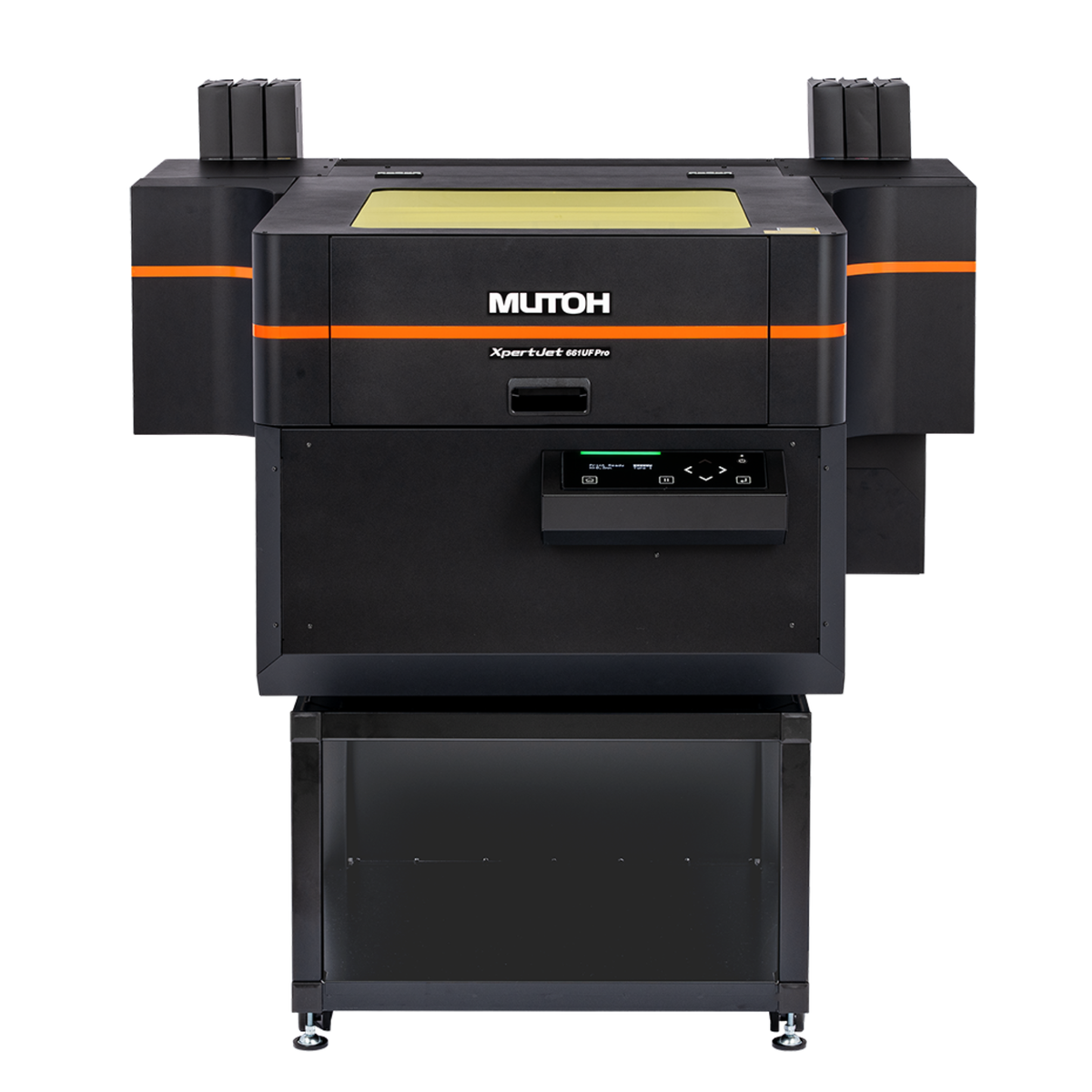

The MUTOH XpertJet 661UF Pro is the newest version of MUTOH’s class-leading tabletop UV LED flatbed printers. The 661UF Pro comes equipped with MUTOH’s latest AccuFine HD Pro piezo-electric print head, a highly rigid chassis, and a large UV-LED lamp, delivering improvements in core performance, including print quality, productivity, durability, and ease of maintenance. It achieves high-definition printing with round dots and supports media up to 19 by 24 inches, and thicknesses up to 6 inches. Print speeds have increased by approximately 2.1 times those of the conventional model. The printer also supports raised printing applications, such as Braille and textures, meeting a wide range of printing needs.
Features:
The new 661UF Pro’s upgrades list includes…
- 6-color (CMYK + White + Varnish) UV-LED flatbed that builds on the proven
- reliability of the XpertJet 661UF.
- New AccuFine HD Pro printhead optimizes ink droplet shape for finer lines,
- smoother gradients and reduced graininess.
- Up to 2x faster print speeds than the previous model.
- Larger 4" UV-LED lamp: ink cures instantly on the substrate surface, with no
- dry time.
- 19.02" × 24.02" print area and 6.02" media height fit larger projects, including
- standard yard signs.
- Cost-effective from one-offs to production runs, and well-suited to
- personalization.
Target Markets:
- Trophy & Award Dealers
- Sign Shops & ADA Signage
- Yard & Real Estate Signs
- Printers / Schools & Universities
- Packaging Prototyping
- Promotional Product Suppliers
- Marking, Identification &
- Personalization
Bundled Software:
MUTOH’s bundled VerteLITH RIP software supports tiling, step & repeat, and bleed processing, giving you maximum control over layout and print accuracy. VerteLITH was built from the ground up for smart management of UV-LED printing with excellent support for white and varnish effects, including Braille and textured signage. The package includes a complimentary one-year subscription to SAi Flexi Design MUTOH Edition - a combined value of $1,600.
Applications:
- Bottles & tumblers
- Packaging prototypes
- Cell phone & tablet covers
- Plaques
- Awards
- ADA signage
- Directional signage and more
| MUTOH XpertJet 661UF Pro Product Specifications | |
|---|---|
| PRINTHEAD | |
| Printing Method | Drop-on-demand Micro Piezo Inkjet Technology |
| Printhead | 1 |
| Max Print Resolution | 1200 × 1200 dpi |
| Max Print Size | 19.02" × 24.02" |
| Max Media Thickness | 6.02" |
| Media Size | 19.41" × 24.41" or less |
| Dimensions (W × D × H) | 48.43" × 65.2" × 24.88" With stand: 48.43" × 65.2" × 43.58" |
| RIP Software | MUTOH’s Genuine VerteLith™ RIP software |
| INK | |
| Type | UV-LED Ink (Hard ink: UH21 / Soft ink: US11) |
| Ink Set | 6-Color (CMYKWhVa) *Ink set varies by region |
| Volume | 220 mL (cartridge) / 800 mL (bag) (Wh: 500 mL) |
| No. of Slots | 6 |
| AUXILIARY | |
| Interface | Gigabit-Ethernet (1000BASE-T) |
| Power Requirements | AC 100–120 V ±10%, 50/60 Hz ±1 Hz |
| Printable Environment | Temperature: 68–89.6 °F Humidity: 40–60% RH (non-condensing) Recommended temperature: 71.6–86 °F |
Overview
The MUTOH XpertJet 661UF Pro is the newest version of MUTOH’s class-leading tabletop UV LED flatbed printers. The 661UF Pro comes equipped with MUTOH’s latest AccuFine HD Pro piezo-electric print head, a highly rigid chassis, and a large UV-LED lamp, delivering improvements in core performance, including print quality, productivity, durability, and ease of maintenance. It achieves high-definition printing with round dots and supports media up to 19 by 24 inches, and thicknesses up to 6 inches. Print speeds have increased by approximately 2.1 times those of the conventional model. The printer also supports raised printing applications, such as Braille and textures, meeting a wide range of printing needs.
Features:
The new 661UF Pro’s upgrades list includes…
- 6-color (CMYK + White + Varnish) UV-LED flatbed that builds on the proven
- reliability of the XpertJet 661UF.
- New AccuFine HD Pro printhead optimizes ink droplet shape for finer lines,
- smoother gradients and reduced graininess.
- Up to 2x faster print speeds than the previous model.
- Larger 4" UV-LED lamp: ink cures instantly on the substrate surface, with no
- dry time.
- 19.02" × 24.02" print area and 6.02" media height fit larger projects, including
- standard yard signs.
- Cost-effective from one-offs to production runs, and well-suited to
- personalization.
Target Markets:
- Trophy & Award Dealers
- Sign Shops & ADA Signage
- Yard & Real Estate Signs
- Printers / Schools & Universities
- Packaging Prototyping
- Promotional Product Suppliers
- Marking, Identification &
- Personalization
Bundled Software:
MUTOH’s bundled VerteLITH RIP software supports tiling, step & repeat, and bleed processing, giving you maximum control over layout and print accuracy. VerteLITH was built from the ground up for smart management of UV-LED printing with excellent support for white and varnish effects, including Braille and textured signage. The package includes a complimentary one-year subscription to SAi Flexi Design MUTOH Edition - a combined value of $1,600.
Applications
Applications:
- Bottles & tumblers
- Packaging prototypes
- Cell phone & tablet covers
- Plaques
- Awards
- ADA signage
- Directional signage and more
Specifications
| MUTOH XpertJet 661UF Pro Product Specifications | |
|---|---|
| PRINTHEAD | |
| Printing Method | Drop-on-demand Micro Piezo Inkjet Technology |
| Printhead | 1 |
| Max Print Resolution | 1200 × 1200 dpi |
| Max Print Size | 19.02" × 24.02" |
| Max Media Thickness | 6.02" |
| Media Size | 19.41" × 24.41" or less |
| Dimensions (W × D × H) | 48.43" × 65.2" × 24.88" With stand: 48.43" × 65.2" × 43.58" |
| RIP Software | MUTOH’s Genuine VerteLith™ RIP software |
| INK | |
| Type | UV-LED Ink (Hard ink: UH21 / Soft ink: US11) |
| Ink Set | 6-Color (CMYKWhVa) *Ink set varies by region |
| Volume | 220 mL (cartridge) / 800 mL (bag) (Wh: 500 mL) |
| No. of Slots | 6 |
| AUXILIARY | |
| Interface | Gigabit-Ethernet (1000BASE-T) |
| Power Requirements | AC 100–120 V ±10%, 50/60 Hz ±1 Hz |
| Printable Environment | Temperature: 68–89.6 °F Humidity: 40–60% RH (non-condensing) Recommended temperature: 71.6–86 °F |
