Includes Q64 Vinyl Cutter, EnduraLAM3 laminator & FLEXI Complete | Order today!

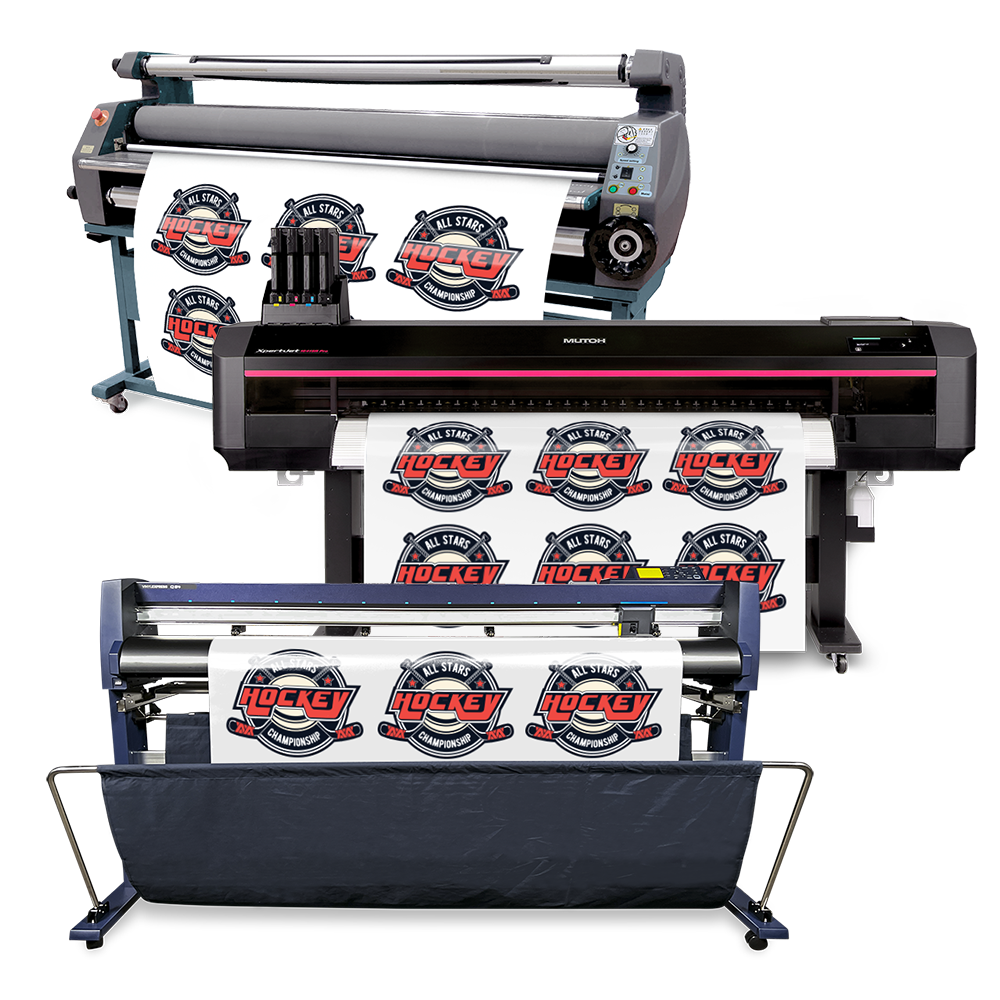

The Mutoh XpertJET 1641SR Pro Platinum III Package starts with everything you need to get started. It includes the XpertJET 1641SR Pro 64-inch eco-solvent inkjet printer, Vinyl Express Q Series Gen 3 64-inch vinyl cutter with stand & media basket, 65-inch EnduraLAM 3 cold laminator, Flexi Complete Vinyl Sign Design Software, free starter ink kit w/cleaning cartridges, one year of complimentary Gold SignWarehouse Support, and On-Site Training.♦

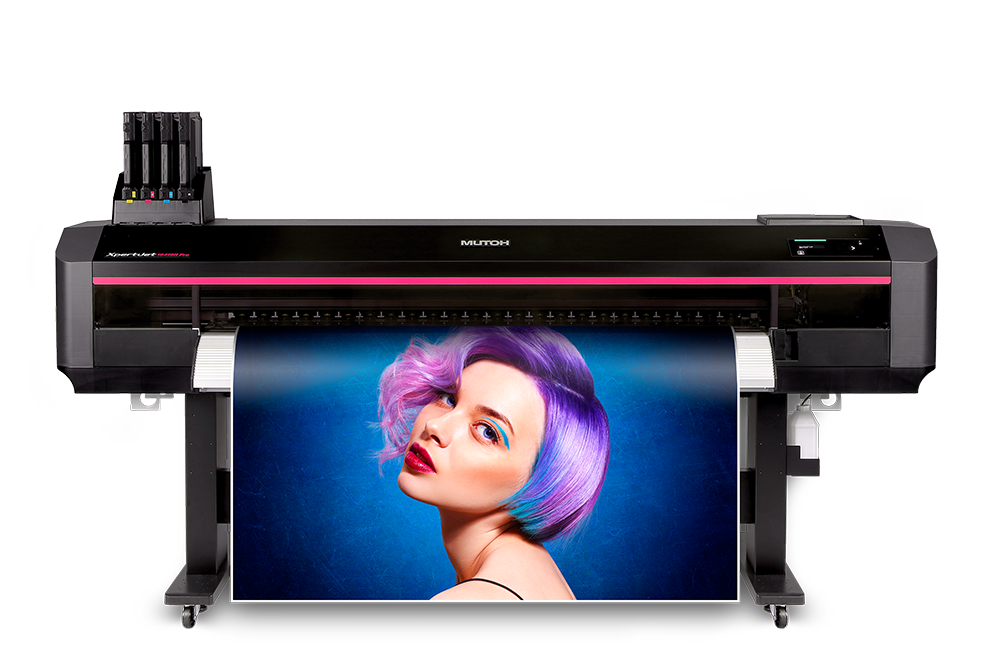

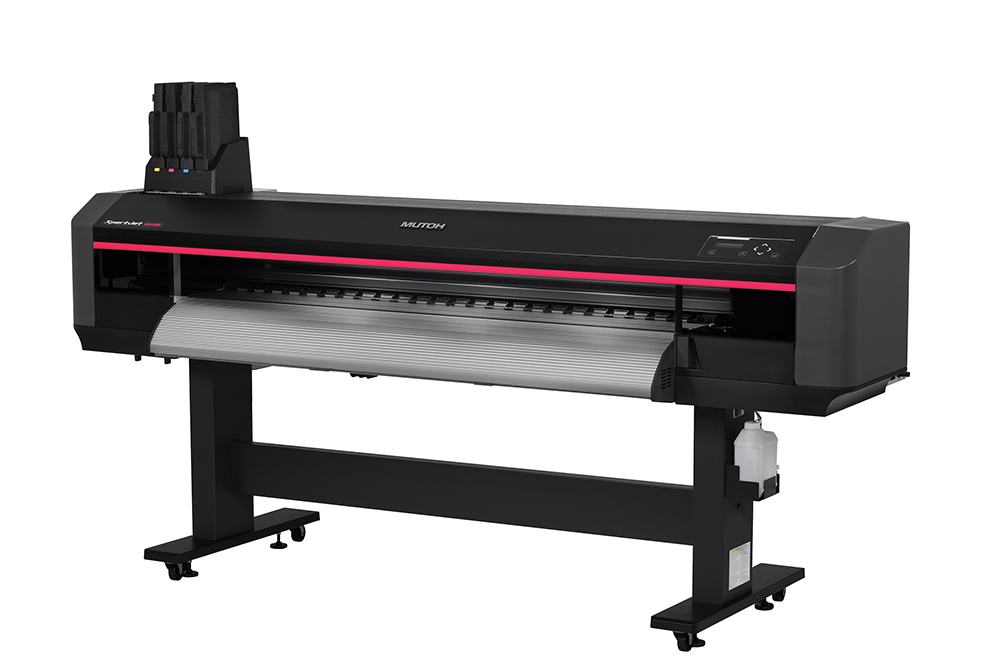

The XpertJet 1641SR PRO is the second generation of MUTOH's advanced XpertJet line of large format eco-solvent printers. The XpertJet 1641SR PRO is distinguished by a new print head and technological advancements designed to make it easier than ever to generate award-winning signage day after day.
The MUTOH XpertJet 1641SR Pro 64” Eco-Solvent single head, 4-color (CMYK) printer, builds upon MUTOH’s made in Japan reputation and delivers superior print quality and outstanding speeds at an affordable price. This printer features MUTOH's new AccuFine Print Head, which achieves best-in-class dot placement accuracy and an increased nozzle row length for 35% faster print speeds. The XPJ-1641SR Pro is paired with MUTOH’s GREENGUARD Gold certified MS41 Eco-Solvent ink, suitable for use in sensitive environments such as hospitals, child care facilities, and more, all while providing users a larger color gamut, outstanding durability, and improved dot gain.
FEATURES:
- New Accufine print head increases productivity and improves the accuracy of dot placement by 20%
- Dropmaster 2 Technology for dot gain optimization
- New screen-print mode further enhances MUTOH's patented Intelligent Interweave technology reducing banding and enhancing quality and productivity
- Nozzle Area Select uses blocks of active nozzles to temporarily print if clogged nozzles fail to recover.
- Feed Master sensor allows for automatic feed adjustments
- Media Tracker allows you to print a barcode prior to removing media and when media is loaded again, recognize the amount remaining.
- Uses MUTOH's new MS-41 Eco-Solvent Ink for a wider color gamut and improved dot gain.
- Automatic Bi-Directional Alignments
- User-friendly touch panel
- Internal LED Lighting
- 66lb (30kg) media take-up system included
- On-site limited warranty
♦ On-site training charge not included in price. Call for details. Gold support for XpertJet customers is currently provided by phone, live chat, email, and remote desktop support.
Contents:
- MUTOH XPertJet 1641SR Pro - 64” printer
- Vinyl Express Q Series Gen 3 64-inch Vinyl cutter, stand, and media basket
- EnduraLAM 3 wide format 65-inch cold laminator
- FLEXI Complete software
- MS41 4-Color ink Starter Kit
- On-Site Warranty on XPertJet 1641SR
- One year of Complimentary Gold Support
MUTOH XpertJet 1641SR Pro Specifications:
- Print Method: On-demand piezo drive system
- Print head height: Four-level adjustment of1.5mm, 2.0, 2.5mm, 4.0mm
- Number of print heads: 1
- Max media width: 64 inch (min 20 inches)
- Max media thickness: In Low head height, 0.3mm, In Mid. 1.3mm, High 2.8mm
- Media roll capacity: ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less
- Compatible media core sizes: 2 or 3 inches
- Maximum print width: 63.6 inches
- Maximum Resolution: 1440 dpi
- Ink Type: MUTOH MS41 GreenGuard certified eco-solvent ink
- Color Range: 4 process colors (CMYK)
- Cartridge Size: 300ml/1,000 ml (one liter) ink bags
- Media Take-up system: Standard
- Interface: Ethernet (10BASE-T, 100BASE-TX)
- RIP software: VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21
- Recommended Operating Conditions: Temperature: 68-89.6°F | Humidity: 40-60%RH (non condensing) Rec. environment: Temperature: 71.6-86°F
- Power Requirement: AC 100-120V± 10%, 50/60Hz ± 1Hz
- Power Consumption: Main: Operation status 77W or less | Standby: 52W or less
- Dimensions (WxDxH): Printer including stand: 108.26”x35.23”x56.22” cover closed
- Shipping weight: Body: 313lb | Stand: 70.54lb
- Support Options: One year Warranty, One-year Complimentary Gold level SW Customer Care Support

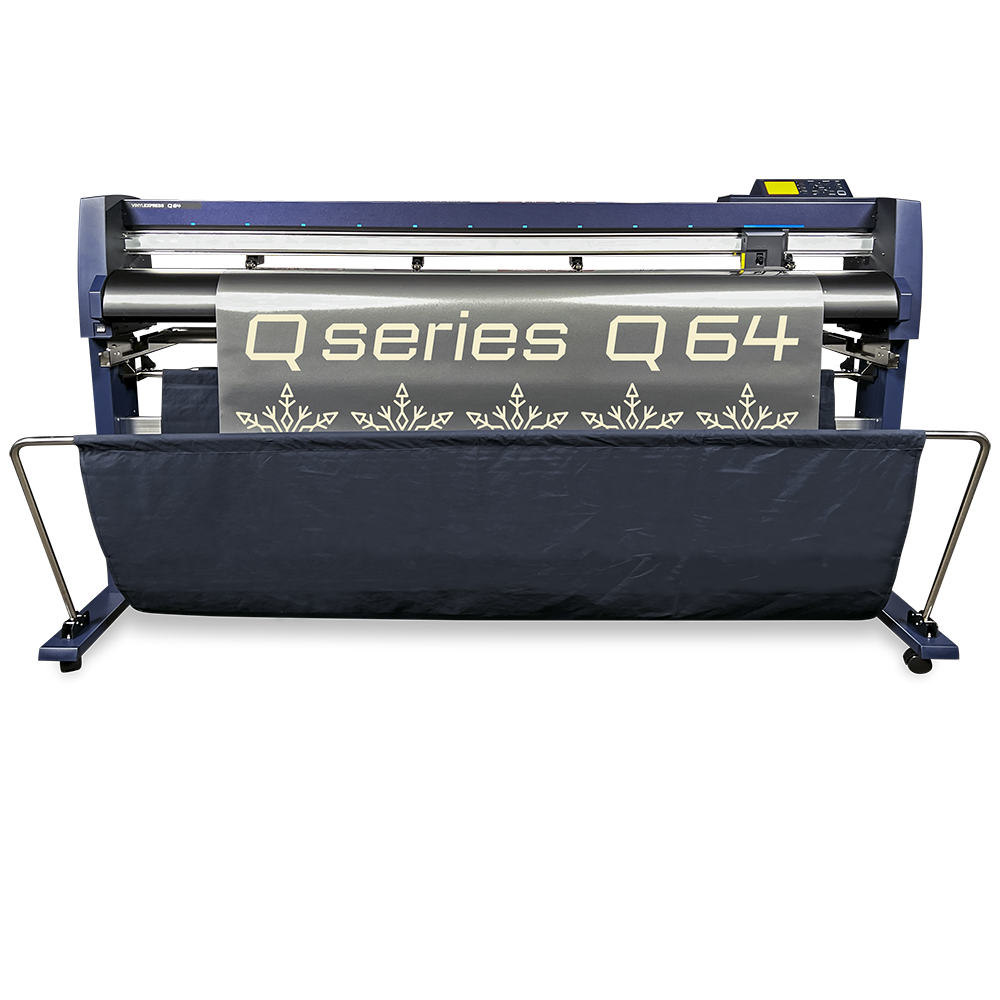

Vinyl Express Q64 Gen 3 Specifications:
- Digital Servo motor
- Max Cutting Speed: 55 inches per second
- Max Cutting Force: 500 grams
- Max Media width: 72.83 inches
- Max Cutting width: 64 inches
- Number of Push Rollers: 4 Rollers
- Tools: Cutting Blade, Plotting Pen, or Pouncing Tool
- Cross-Cutting
- Perforation Cutting
- Buffer Memory: 2 MB
- Display: Graphic type LCD (3.7-inch, backlight)
- Power Source: 100 V to 240 V AC, 50/60 Hz
- Two-year warranty
A computer with a USB-A Port is required to operate this cutter.

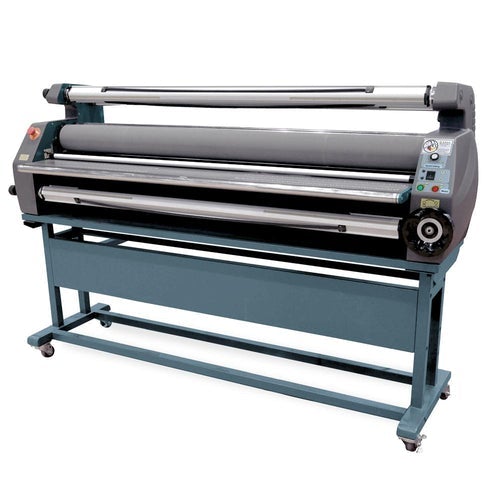

EnduraLAM 3 65-inch Cold Laminator Specifications:
- Maximum Media Width - 63 Inches (160 cm)
- Maximum Laminating Speed - 19.6 feet/min
- Roller Diameter - 4072 Inches (120mm)
- Roller Maximum Height - 1.38 Inches (35mm)
- Roller Lifting Method - Manual, Hand Crank
- Voltage - 220V/110C AC 50Hz
- Power - Laminator: 120W | Motor: 90 - 120W
- Dimensions (Length, Width, Height) - 80 x 24 x 49 in (204 x 61 x 125cm)
- Weight - 485 lbs. (220 kg)
Applications:
- Outdoor-durable Signs
- Decals
- Banners
- Wall and Floor Graphics
- Fleet & Custom Vehicle Graphics
- Full & Partial Vehicle Wraps
- Industrial Labeling
- And so much more...
