MUTOH ValueJet 1628MH - $16,499 Instant Rebate + Free (2-year) Extended Warranty

No customer reviews Write a review


Retail price:

SW Wholesale Price:

SignWarehouse Pro Icon

Sale price:

Get $1,004.88 back with SignWarehouse PRO

Call Now Buy Online
Add to Wishlist

Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Campaign rebates:
When purchasing this product between the displayed dates, you will be issued a partial rebate amount to your account each month until the total amount has been issued.




Get a $16,499 Instant Rebate! Also  Includes FREE MUTOH VerteLith RIP bundled with FlexiDESIGNER MUTOH Edition 21 ($2,199 value) and FREE 2nd year On-Site Extended Limited Warranty ($4,545 value) through December 31th!

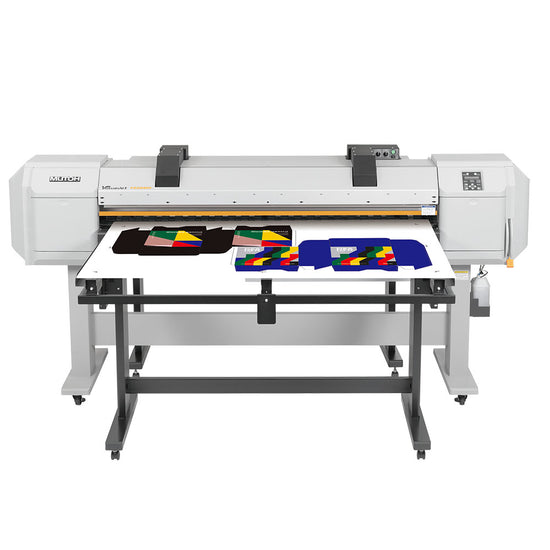

The MUTOH ValueJet 1628MH Large Format Printer is a hybrid printer designed to produce high quality graphics for packaging prototypes, signage, POP displays, specialty printing, and more. Powered by MUTOH’s new genuine VerteLith™ RIP software, bundled with FlexiDESIGNER MUTOH Edition 21 the VJ-1628MH is optimized for producing smooth gradients and vivid colors. The VJ-1628MH also supports up to 8 colors in two ink configurations (CMYKx2, CMYKWhWh) for a wide color gamut to produce true-to-life skin tones, and the MP31 inks provide a natural, vibrant finish to projects.


  • Flexibility to print on roll/rigid materials
  • Transport roller system
  • Blower heater to speed drying time
  • Automatic media height
  • New built-in circulation system for white & magenta inks assures color consistency and prevents clogging
  • Custom roller selection function allows each pressure roller to be set independently
  • Enhanced print quality, supporting up to 8 colors with CMYKx2 and CMYKWhWh
  • Wide color gamut and improved color stability
  • Solvent-based ink with outstanding adhesion and color properties giving a natural, vibrant finish to projects
  • VerteLith, bundled with FlexiDESIGNER MUTOH Edition 21

Mutoh ValueJET 1628MH Product Data Sheet


  • Print Method: On-demand Micro Piezo Inkjet Technology
  • Nozzles: 180 nozzles x 8 rows
  • Maximum Resolution: 1440x1440dpi (16 pass)
  • Print Modes: 1440/1080/720/360dpi (total 6 modes)
  • Number of print heads: 1
  • Ink type: MP31 multi-purpose
  • Color configuration: CMYKx2 and CMYKWhWh
  • Compatible Ink Cartridges: 500ml
  • Maximum Media width: 64 inches
  • Maximum print width: 63.6 inches
  • Maximum media weight: 66lbs
  • Maximum media roll diameter 5.9 inch dia / 2 inch & 3 inch cores
  • Media Take-up system Standard 66lb take-up system
  • Interface Gigabit-Ethernet (1000BASE-T )
  • Power supply AC 100-120V± 10%, 50/60Hz ± 1Hz
  • Power consumption Main: Operation status 2300W or less | Standby: 65W or less
  • Operating temperature Temperature: 68-89.6°F
  • Operating humidity range Humidity: 40-60%RH
  • Dimensions Printer including stand: 106.2”x35.7”x51.26”
  • Weight Body: 369.3lb | Stand: 72.8lb
  • RIP software options: VerteLith, bundled with FlexiDESIGNER MUTOH Edition 21
  • Warranty: One Year Warranty, parts & labor
  • Support: One year complimentary Gold Support


  • Packing/Prototyping
  • Stickers
  • Pop Displays
  • Vehicle Wraps
  • Indoor/Outdoor Signage
  • Banners
  • Thromoforming Prints
