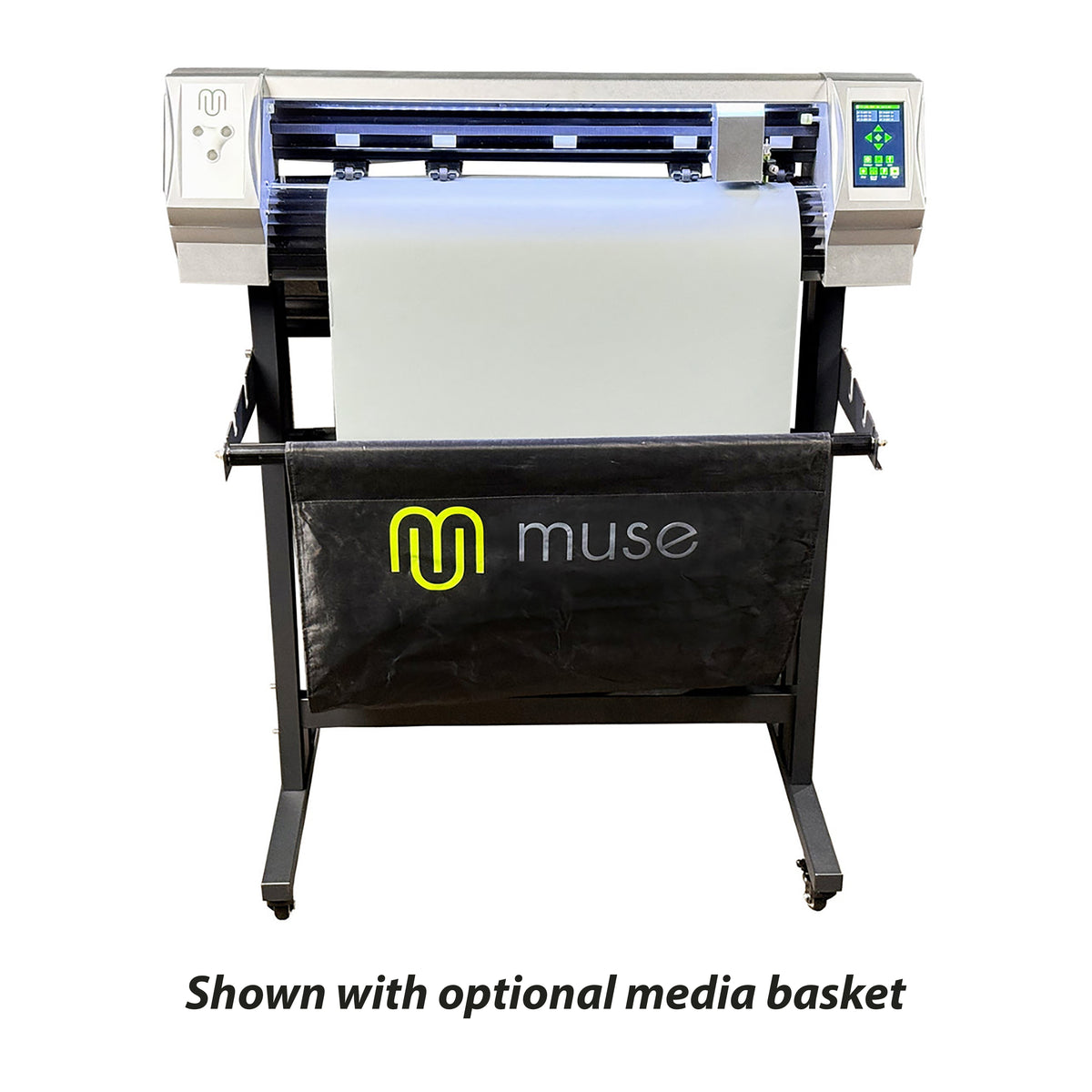

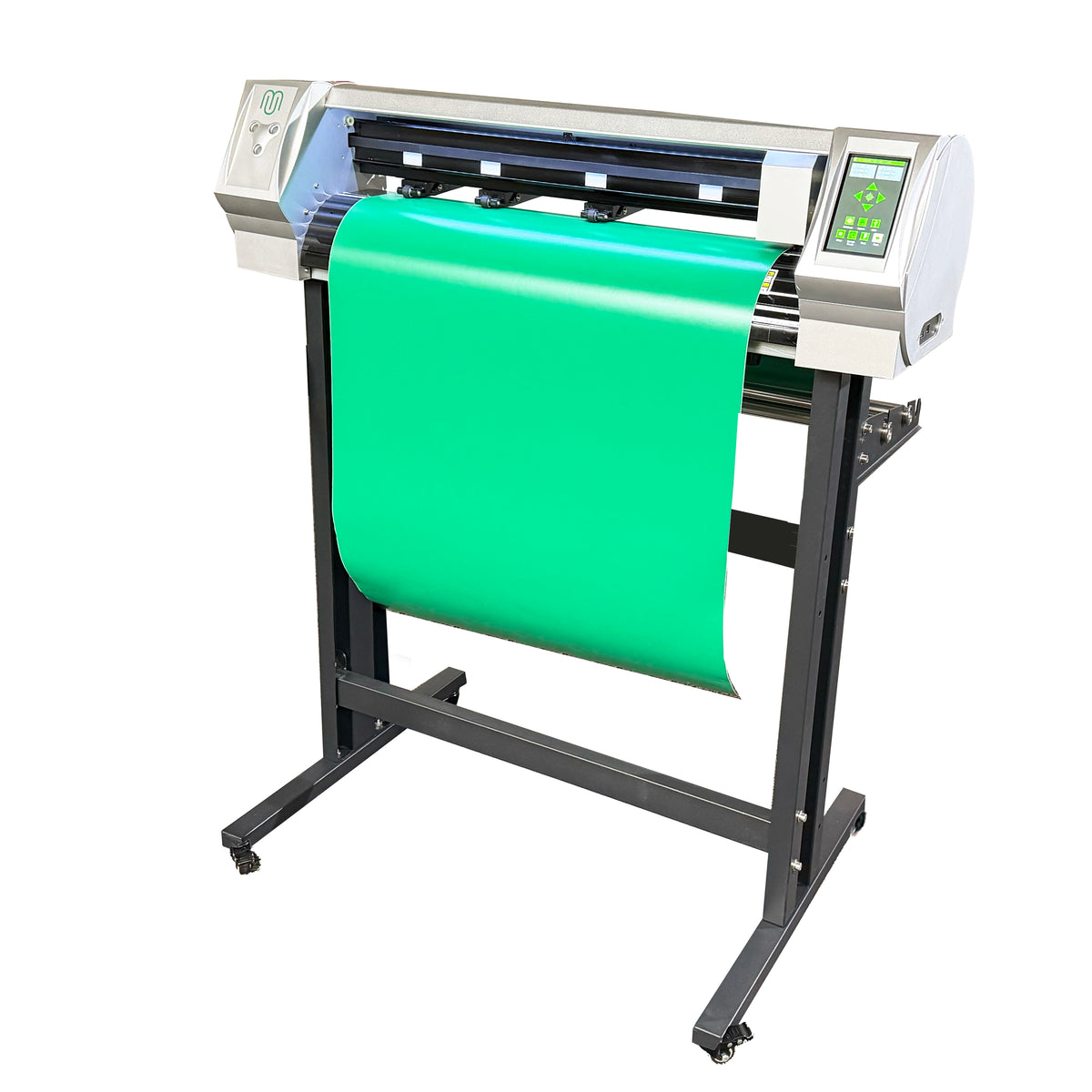

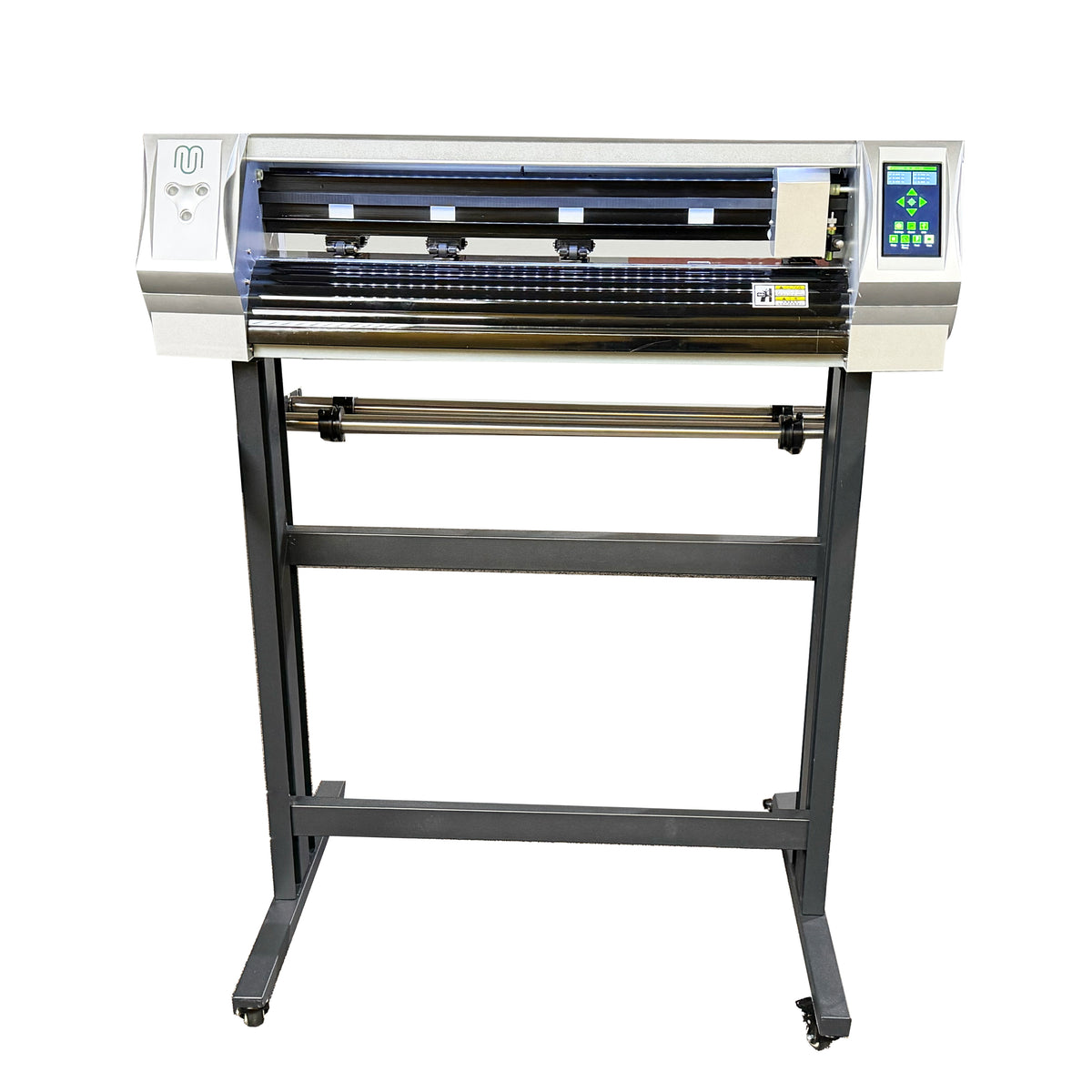

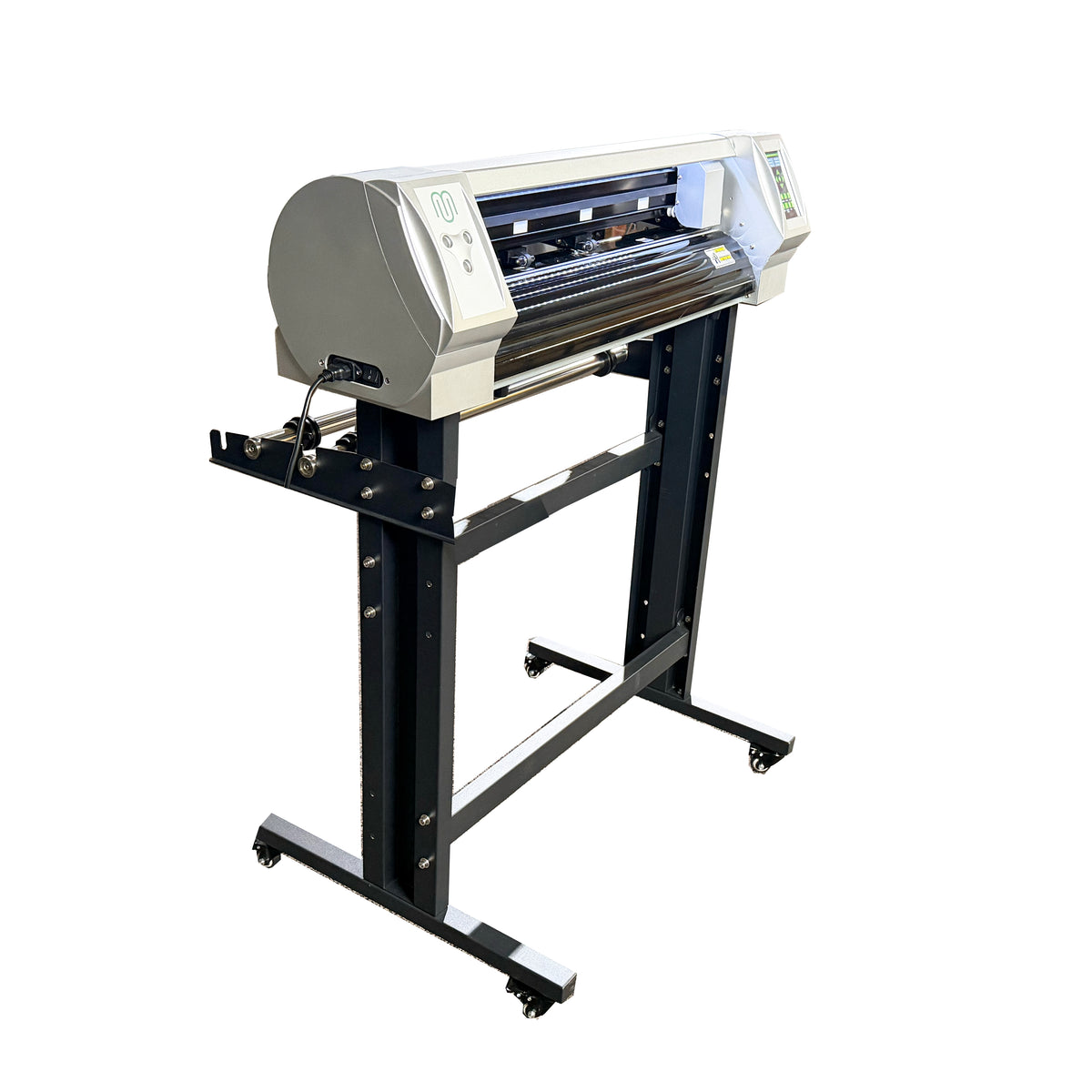

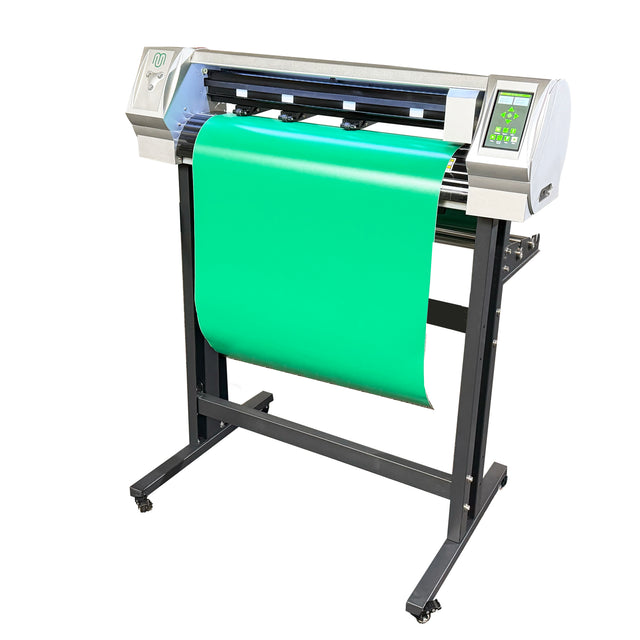

Muse Servo Series 24-Inch Vinyl Cutter
Your kit
- Muse Servo Series 24-Inch Vinyl Cutter · 24 inch $1,299.00
No add-ons yet. Choose from the kit groups to build yours.
Choose the required options marked * before adding to cart.
Each item is added to your cart as its own line, so quantities can be adjusted there.
- Ships by freight · Freight charge added at checkout
- 110% Price Match Guarantee on vinyl cutters
- Talk to an equipment specialist 903-462-7700 · Mon–Fri 7 am–7 pm CST
- Returns & warranty
Add what you need. Prices show what each item adds. Groups marked * must be chosen before checkout.

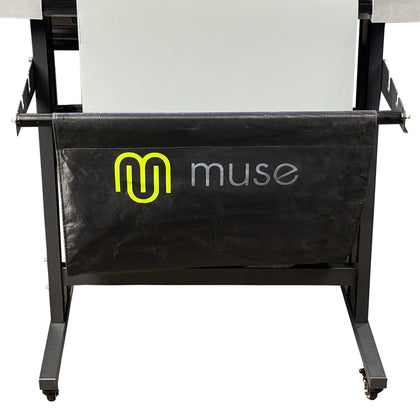

Muse SERVO Accessories · choose any None
Software · choose one None
Cutter Consumables · choose any None
Other Accessories · choose any None
Supplies · choose any None
Your kit · Muse Servo Series 24-Inch Vinyl Cutter
The MUSE Servo 24-Inch vinyl cutters are the ultimate expression of professional vinyl cutting precision in the contemporary user experience found only in the MUSE series. The feature-rich 5 inch diagonal, backlit touch-screen LCD control panel delights as much as the precise, quiet digital servo motor. The MUSE Servo offers the engaging UX of the MUSE M series including interactive camera-based contour-cutting, wifi connectivity, and the ability to store a custom library of vinyl-cutting presets.
The Servo series expands the MUSE performance envelope to include whisper-quiet operation, superior tracking, precise cutting of small detailed graphics, and enhanced alignment accuracy on complex print and cut workflows.
Features:
- Whisper-quiet TrueDigital servo drive motors
- TrueTrack performance up to 25 feet
- Precise cutting of graphics as small as 1/4
- Large High Tech Touch Screen: The MUSE Servo Series features an appealing, 5 inch diagonal backlit LCD user touch screen interface that combines smart menus with ease of use.
- Extensive job control menu includes programmable presets, language options, wifi connectivity, LED platen lighting, camera calibration, and more
- Interactive, automatic, camera-based contour-cutting
- Support for segmented registration marks for accurate contour-cutting of long, complex jobs
- The programmable LED platen lighting illuminates the work area and supports more consistent performance scanning printed registration marks in various lighting conditions.
- Optional scribe engraving tools: The dual -function cutting head supports switching from cutting adhesive-backed film to scribe engraving thin hard stock surfaces including acrylic sheeting.
- Wi-fi, U-disc Options for Remote Cutting: The Muse Servo Series is equipped for remote cutting with a USB port that accommodates processing plotter files from a thumb drive, and a wi-fi option that supports sending jobs wirelessly over your home or office network. You're no longer tethered to your PC.
Applications:
- Custom vehicle graphics and fleet graphics
- Commercial signs and banners
- Decals for decorating drinkware (mugs & tumblers), laptops, lockers, etc
- Cutting heat transfer vinyl for league jerseys, custom fashion, and branded commercial apparel
- Contour-cutting of desktop and wide-format digitally printed vinyl graphics
- Reflective municipal and highway signage
- Sandblast resist stencils for HDU signage and monuments
- Architectural graphics: etched glass interior window displays, removable wall graphics, removable floor graphics
- Cutting of stencil film and paint mask for wood signs and related sign and hobby applications
| MUSE Servo Series Specifications | ||
|---|---|---|
| MS24 | MS60 | |
| Max media width | 28.3 inches (720mm) | 64.9 inches (1650mm) |
| Max cutting width | 24 inches (610mm) | 60.6 inches (1540mm) |
| Max contour cutting width | 22.4 inches (570mm) | 59 inches (1500mm) |
| Indicate dimensions | 37.6 × 11 × 10 inches (955 × 280 × 255mm) | 74.2 × 11 × 10 inches (1885 × 280 × 255mm) |
| Packing size | 39.4 × 14.2 × 15.3 inches (1000 × 360 × 388mm) | 75.6 × 14.2 × 15.3 inches (1920 × 360 × 388mm) |
| Packing Gross weight | 39.7 lbs (18kg) | 99.2 lbs (45kg) |
| Maximum cutting force | 800g | |
| Maximum cutting speed | 37.79 ips (960 mm/s) | |
| Maximum carriage speed | 37.79 ips (960 mm/s) | |
| Drive method | Servo motor | |
| Contour Cut | Yes, Camera, Automatic activation | |
| Memory | 128mb | |
| Cutting precision | +/- 0.01mm | |
| Repeat precision | 0.082 mm | |
| Floor Stand | Yes | |
| Interface | USB Flash / Wi-Fi / USB cable | |
| Power supply, V/Hz | 220/50 | |
| Power | < 100W | |
| Working environment | 41° – 95° F (+5°C – +35°C) | |
| What's in the box | • Adhesive cutting mat • Three blades (30°, 45°, & 60°) • USB cable • Power cable • Blade holder • Plotting pen • Hardware for stand assembly | |
Overview
The MUSE Servo 24-Inch vinyl cutters are the ultimate expression of professional vinyl cutting precision in the contemporary user experience found only in the MUSE series. The feature-rich 5 inch diagonal, backlit touch-screen LCD control panel delights as much as the precise, quiet digital servo motor. The MUSE Servo offers the engaging UX of the MUSE M series including interactive camera-based contour-cutting, wifi connectivity, and the ability to store a custom library of vinyl-cutting presets.
The Servo series expands the MUSE performance envelope to include whisper-quiet operation, superior tracking, precise cutting of small detailed graphics, and enhanced alignment accuracy on complex print and cut workflows.
Features:
- Whisper-quiet TrueDigital servo drive motors
- TrueTrack performance up to 25 feet
- Precise cutting of graphics as small as 1/4
- Large High Tech Touch Screen: The MUSE Servo Series features an appealing, 5 inch diagonal backlit LCD user touch screen interface that combines smart menus with ease of use.
- Extensive job control menu includes programmable presets, language options, wifi connectivity, LED platen lighting, camera calibration, and more
- Interactive, automatic, camera-based contour-cutting
- Support for segmented registration marks for accurate contour-cutting of long, complex jobs
- The programmable LED platen lighting illuminates the work area and supports more consistent performance scanning printed registration marks in various lighting conditions.
- Optional scribe engraving tools: The dual -function cutting head supports switching from cutting adhesive-backed film to scribe engraving thin hard stock surfaces including acrylic sheeting.
- Wi-fi, U-disc Options for Remote Cutting: The Muse Servo Series is equipped for remote cutting with a USB port that accommodates processing plotter files from a thumb drive, and a wi-fi option that supports sending jobs wirelessly over your home or office network. You're no longer tethered to your PC.
Applications
Applications:
- Custom vehicle graphics and fleet graphics
- Commercial signs and banners
- Decals for decorating drinkware (mugs & tumblers), laptops, lockers, etc
- Cutting heat transfer vinyl for league jerseys, custom fashion, and branded commercial apparel
- Contour-cutting of desktop and wide-format digitally printed vinyl graphics
- Reflective municipal and highway signage
- Sandblast resist stencils for HDU signage and monuments
- Architectural graphics: etched glass interior window displays, removable wall graphics, removable floor graphics
- Cutting of stencil film and paint mask for wood signs and related sign and hobby applications
Specifications
| MUSE Servo Series Specifications | ||
|---|---|---|
| MS24 | MS60 | |
| Max media width | 28.3 inches (720mm) | 64.9 inches (1650mm) |
| Max cutting width | 24 inches (610mm) | 60.6 inches (1540mm) |
| Max contour cutting width | 22.4 inches (570mm) | 59 inches (1500mm) |
| Indicate dimensions | 37.6 × 11 × 10 inches (955 × 280 × 255mm) | 74.2 × 11 × 10 inches (1885 × 280 × 255mm) |
| Packing size | 39.4 × 14.2 × 15.3 inches (1000 × 360 × 388mm) | 75.6 × 14.2 × 15.3 inches (1920 × 360 × 388mm) |
| Packing Gross weight | 39.7 lbs (18kg) | 99.2 lbs (45kg) |
| Maximum cutting force | 800g | |
| Maximum cutting speed | 37.79 ips (960 mm/s) | |
| Maximum carriage speed | 37.79 ips (960 mm/s) | |
| Drive method | Servo motor | |
| Contour Cut | Yes, Camera, Automatic activation | |
| Memory | 128mb | |
| Cutting precision | +/- 0.01mm | |
| Repeat precision | 0.082 mm | |
| Floor Stand | Yes | |
| Interface | USB Flash / Wi-Fi / USB cable | |
| Power supply, V/Hz | 220/50 | |
| Power | < 100W | |
| Working environment | 41° – 95° F (+5°C – +35°C) | |
| What's in the box | • Adhesive cutting mat • Three blades (30°, 45°, & 60°) • USB cable • Power cable • Blade holder • Plotting pen • Hardware for stand assembly | |
