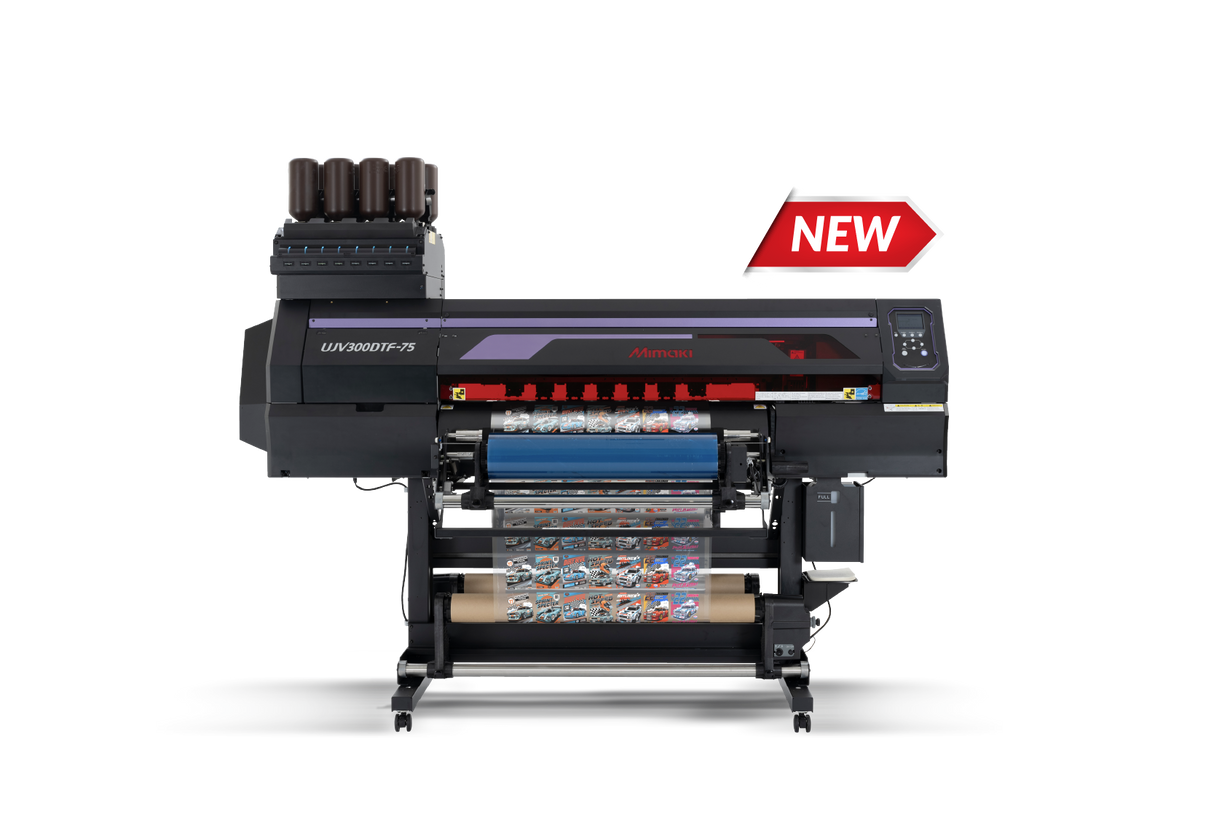

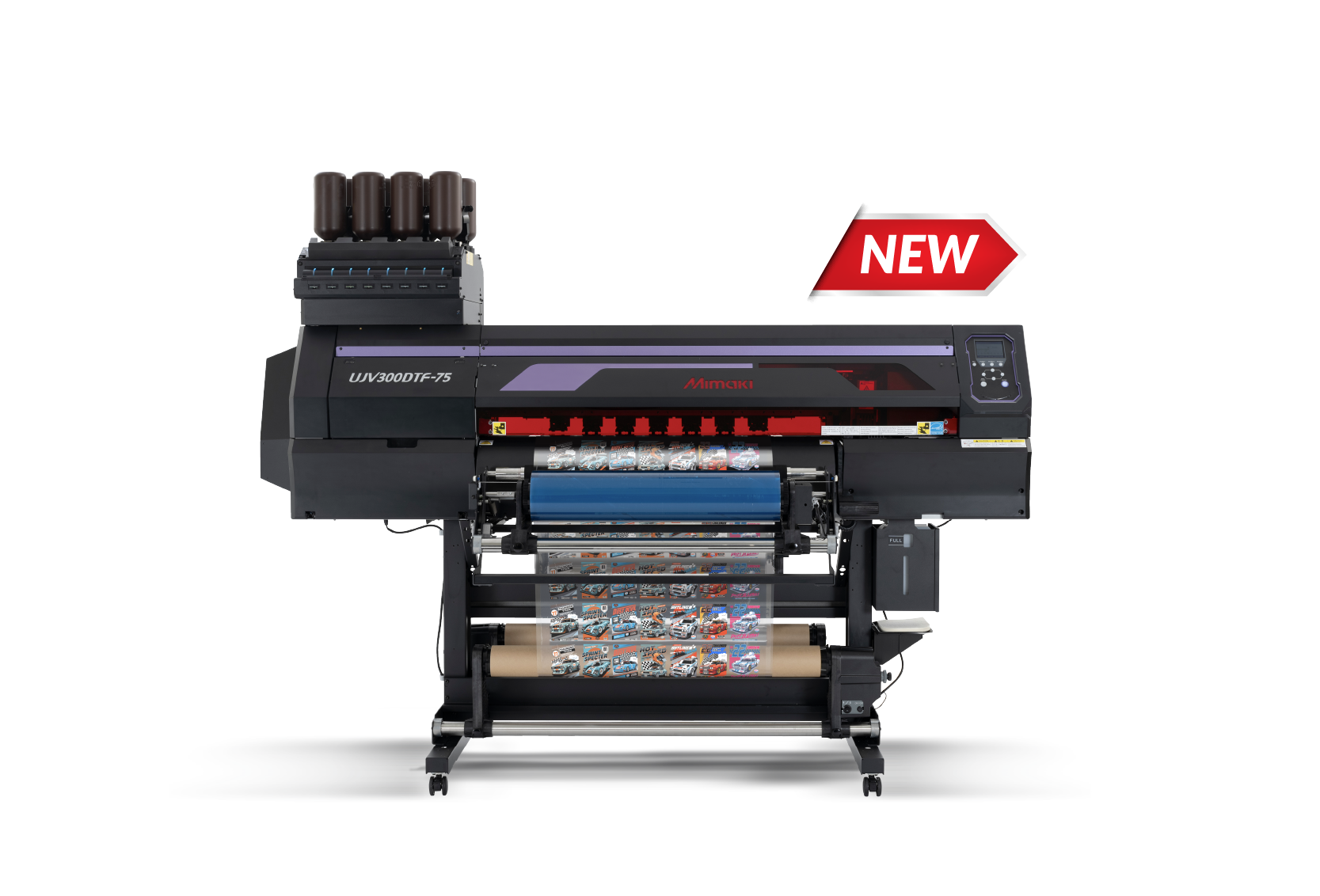

Mimaki UJV300DTF-75 UV Direct-to-Film Printer
Sign in to see priceThe UJV300DTF-75 UV Direct-to-Film Printer is Mimaki's first UV-DTF (UV curable – Direct To Film) printer. UV-DTF is a decoration method in which a design printed on a special film is transferred to the target material. It can easily decorate the surface of materials with uneven or curved surfaces, which has been difficult with conventional UV printing.
UV-DTF's exclusive film consists of two parts: a glued film and a transfer sheet. UV-DTF eliminates the need for weeding (removal of margins) manually and allows confirmation of printed content before transfer, which significantly improves production efficiency and waste rates.
The UJV300DTF-75 is a UV-DTF printer that can be used with confidence, inheriting the high image quality and stable functions of our UCJV300 series UV inkjet printers, which continue to gain a high reputation in the market.
Features:
- Less graininess and beautiful gradation. Accurate printing of small characters and fine lines
- Support functions to minimize trouble. Automatic nozzle check [NCU] and nozzle recovery functions [NRS] reduce equipment downtime
- Ink circulation function [MCT] keeps white ink density constant and prevents nozzle clogging
- Media jam sensor prevents collision between the head and the film to prevent malfunctions due to operation errors
- New UV-DTF specialized pinch roller supports stable film feeding
- Easy media set
- Rear Take-Up System
Applications:
- Sign & Display
- Labels & Decals
- Industrial Print
- Building Material
- Cylindrical Print
Specifications:
- Print head: On-demand piezo head
- Print resolution: 300dpi, 600dpi, 900dpi, 1200dpi
- Ink type/color: UV curable flexible ink ELS-170 (C, M, Y, K); UV curable hard ink ELH-100 (White, Clear)
- Ink capacity: 1L bottle
- Ink circulation system: Available only for white ink
- Max. print width: 640 mm (25.2 in)
- Media max. width: 650 mm (25.6 in)
- Max. roll diameter: φ250 mm (9.8 in) or less
- Max. roll weight: 45 kg (99.2 lb) or less
- Interface: USB 2.0 / Ethernet 1000 BASE-T
- Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE (EMC, Low Voltage, Machinery Directive, RoHS), CB, REACH, Energy Star, RCM, KC
- Power supply: Single-phase AC100–120V / 200–240V ±10%, 50/60Hz ±1Hz
- Power consumption: AC100V: 1.44kW or less; AC200V: 1.92kW or less
- Operating environment: 20–30°C (68–86°F), 35–65% RH (non-condensing)
- Dimensions (W×D×H): 2,090 × 930 × 1,475 mm (82.3 × 36.6 × 58.1 in)
- Weight: 180 kg (396.8 lb
Overview
The UJV300DTF-75 UV Direct-to-Film Printer is Mimaki's first UV-DTF (UV curable – Direct To Film) printer. UV-DTF is a decoration method in which a design printed on a special film is transferred to the target material. It can easily decorate the surface of materials with uneven or curved surfaces, which has been difficult with conventional UV printing.
UV-DTF's exclusive film consists of two parts: a glued film and a transfer sheet. UV-DTF eliminates the need for weeding (removal of margins) manually and allows confirmation of printed content before transfer, which significantly improves production efficiency and waste rates.
The UJV300DTF-75 is a UV-DTF printer that can be used with confidence, inheriting the high image quality and stable functions of our UCJV300 series UV inkjet printers, which continue to gain a high reputation in the market.
Features:
- Less graininess and beautiful gradation. Accurate printing of small characters and fine lines
- Support functions to minimize trouble. Automatic nozzle check [NCU] and nozzle recovery functions [NRS] reduce equipment downtime
- Ink circulation function [MCT] keeps white ink density constant and prevents nozzle clogging
- Media jam sensor prevents collision between the head and the film to prevent malfunctions due to operation errors
- New UV-DTF specialized pinch roller supports stable film feeding
- Easy media set
- Rear Take-Up System
Applications
Applications:
- Sign & Display
- Labels & Decals
- Industrial Print
- Building Material
- Cylindrical Print
Specifications
Specifications:
- Print head: On-demand piezo head
- Print resolution: 300dpi, 600dpi, 900dpi, 1200dpi
- Ink type/color: UV curable flexible ink ELS-170 (C, M, Y, K); UV curable hard ink ELH-100 (White, Clear)
- Ink capacity: 1L bottle
- Ink circulation system: Available only for white ink
- Max. print width: 640 mm (25.2 in)
- Media max. width: 650 mm (25.6 in)
- Max. roll diameter: φ250 mm (9.8 in) or less
- Max. roll weight: 45 kg (99.2 lb) or less
- Interface: USB 2.0 / Ethernet 1000 BASE-T
- Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE (EMC, Low Voltage, Machinery Directive, RoHS), CB, REACH, Energy Star, RCM, KC
- Power supply: Single-phase AC100–120V / 200–240V ±10%, 50/60Hz ±1Hz
- Power consumption: AC100V: 1.44kW or less; AC200V: 1.92kW or less
- Operating environment: 20–30°C (68–86°F), 35–65% RH (non-condensing)
- Dimensions (W×D×H): 2,090 × 930 × 1,475 mm (82.3 × 36.6 × 58.1 in)
- Weight: 180 kg (396.8 lb
