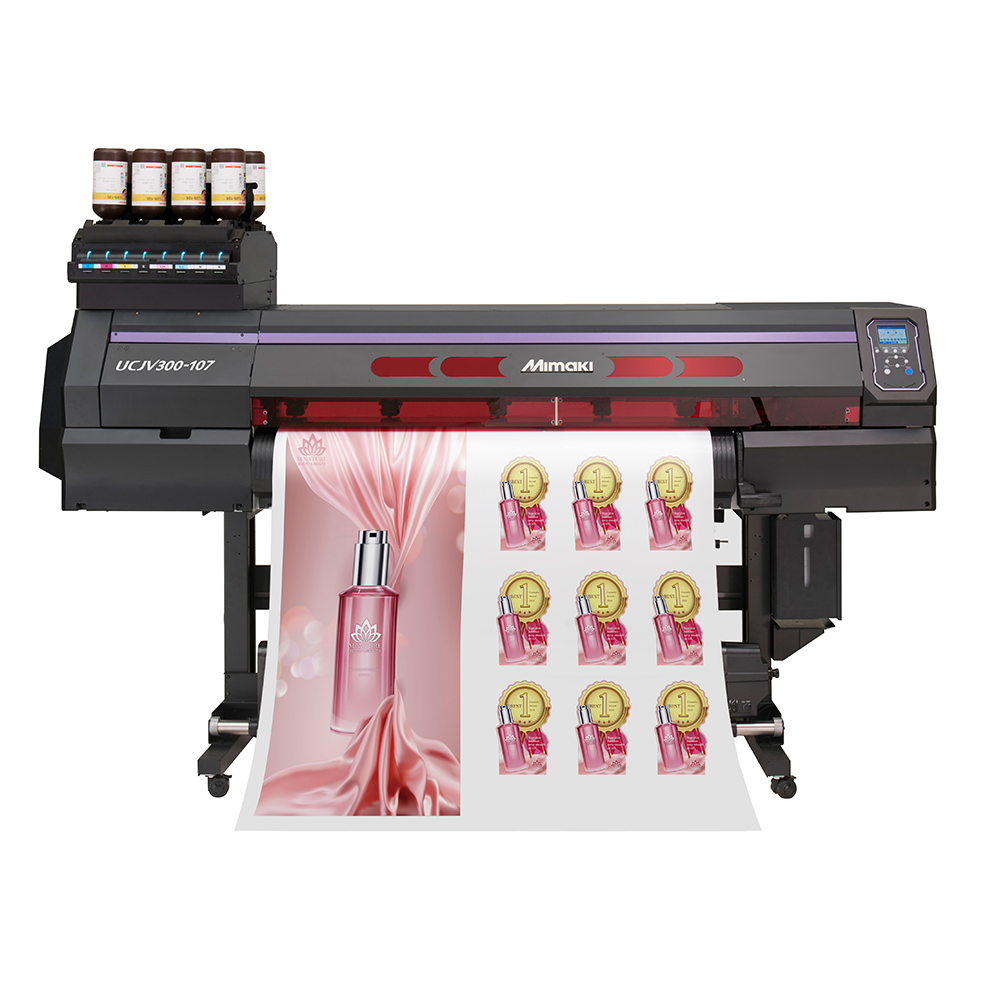

Mimaki UCJV300-107 Series - 42 Inch UV-LED Printer

No customer reviews Write a review

Sku:

Retail price:

SW Wholesale Price:

SignWarehouse Pro Icon

Sale price:

Get $566.85 back with SignWarehouse PRO

Call Now Buy Online
Add to Wishlist

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Campaign rebates:
When purchasing this product between the displayed dates, you will be issued a partial rebate amount to your account each month until the total amount has been issued.

Overview

Specs

Applications

Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700

The UCJV300 Series offers unparalleled flexibility and benefits to businesses of all types. The Mimaki UCJV300 print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images. Graphics are instantly cured, so you can efficiently create applications that will meet (and exceed) your customers’ needs.

Features:

  • Available in 32 in, 42 in, 54 in, and 64 in sizes
  • Print speeds up to 277.7 SqFt/Hr
  • 2 in-line on-demand piezo printheads
  • Print and cut capability in one unit
  • Highest media versatility with unparalleled scratch resistance
  • Ability to pre-cut before printing to prevent film separation
  • Instantly cured prints for shorter turnarounds and additional cost savings
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • RIP software RasterLink6 Plus with ID cut function included
  • Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
  • The Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
  • USB/Ethernet connectivity
  • Maximum print area: 42.9 inches
  • Maximum media width: 43.3 inches

Mimaki UCJV300 Series Specifications Sheet

Mimaki UCJV300 Series Brochure

Mimaki UCJV300-107 Specifications
Print HeadTwo In-line On-demand Piezo Heads
Maximum Print Resolution1200 dpi
Maximum Print Speed (4 Color Mode)183 SqFt/Hr (17 m2/h)
Maximum Print Area42.9 in (1090 mm)
Maximum Media Width43.3 in (1100 mm)
Maximum Media Thickness0.04 in (1 mm)
Maximum Media Weight88.2 lbs (40 kg)
Ink typeLUS-170, LUS-200
Cutting Speed16.5 in sec (42.0 cm/sec)
Maximum Cut Pressure450
Blade TypesEccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen
InterfaceEthernet 1000BASE-T, USB2.0 Hi-speed
Power SupplySingle phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Power ConsumptionAC100V: 1.44kW or less x2 / AC200V: 1.92kW or less x2
Operational EnvironmentTemperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)
Dimensions93.7 in x 30.6 in x 58.1 in (2,380 mm x 776mm x 1,475 mm)
Weight354.9 lbs (161 kg)
Shipping Dimensions105 in x 30 in x 41 in
Shipping Weight485 lbs
Shipping Crate/PalletShipping in a crate on a pallet
CertificationsVCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL / CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM
Bundled softwareRIP software RasterLink6 Plus with ID cut function included
WarrantyOne Year Trouble-free Warranty
SupportOne year complimentary Gold Support

Applications:

  • Posters & Paper
  • PET Film
  • Stickers & labels
  • Interior/exterior signage
  • Pop-ups & much more
