Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The JFX200-2513EX + CJV330-130 Printer Package includes two powerful solutions designed for professional, high-quality printing:
JFX200-2513EX: A large-format flatbed UV inkjet printer equipped with an Ionizer Kit. This model offers exceptional productivity and high-value-added printing while remaining accessible as an entry-level option. The integrated Ionizer helps eliminate static on media surfaces, minimizing print issues and improving output consistency.

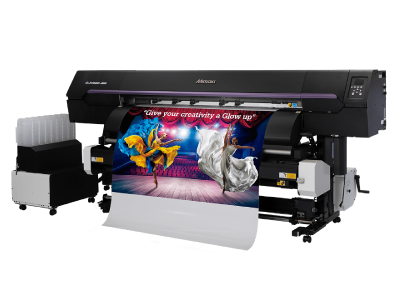

CJV330-130: A next-generation printer/cutter developed from the ground up with an all-new chassis. It’s engineered to deliver outstanding image quality and enhanced productivity, making it ideal for high-demand environments. It includes XY Slitter which improves post-processing efficiency and supports labor-saving and work-saving.
Together, these two systems provide a versatile and efficient solution for a wide range of printing needs—from signage and displays to labels and custom graphics.
Features:
- Landscape-oriented table can print on one 4’ x 8’ board or a variety of pre-cut pieces, and onto objects up to 2” thick
- Printing speeds can produce the equivalent of eight 4’ x 8’ boards per hour
- High-quality print resolution of up to 1,200 dpi
- Variable Dot Technology and Mimaki Advanced Pass System (MAPS) for smooth gradients and solids
- Dual-zoned vacuum table holds media flat
- User-adjustable layout pins for flexible media placement
- Nozzle Recovery System minimizes downtime
- UV inks supplied in high-capacity 1 liter bottles; multiple ink formulations supported
- Ionizer Kit included for improved print stability
- Mimaki Intelligent Heaters (MIH) for optimal media handling
- Mimaki Remote Access enables remote printer monitoring and management
- USB/Ethernet connectivity for flexible integration
- Includes integrated XY Slitter and V-shaped cut function available for advanced finishing (from CJV330-130)
- Uninterrupted Ink Supply System (UISS) and Mimaki Bulk Ink System (MBIS) for long production runs
- In-machine lighting and new conveyance mechanism enhances ease-of-use and precision
- Supports multiple media roll handling (as featured on roll-based units like the CJV330-130)
Important: Mimaki printers are designed to use a single ink type at a time (e.g., eco-solvent, dye-sublimation, UV). Once an ink type has been installed, switching to another requires complete system flushing and cleaning. Always consult your user manual and follow Mimaki’s official procedures. Improper ink changes may damage the printer and void your warranty.
JFX200-2513EX Compatible Inks:
- LH-100
- LUS-120
- LUS-150
- LUS-350
- PR-200
CJV330 Compatible Inks:
- SS21
*Super Solvent Ink is for commercial and industrial use only and requires ventilation. It cannot be used in a home or office.
Mimaki JFX200-2513EX Specifications Sheet
Mimaki JFX200-2513EX Specifications:
CJV330 Series Specifications | |
Printhead | On-demand Piezo head (2 staggered print heads) |
Maximum Resolution | 1200 dpi |
Maximum Print Speed | 1076.4 SqFt/Hr (100.00 m2/h) |
Maximum Print Width | CJV330-130: 53.5 in (1360 mm) CJV330-160: 63.4 in (1610 mm) |
Maximum Media Width | CJV330-130: 53.9 in (1370 mm) CJV330-160: 63.8 in (1620 mm) |
Ink Type/Color | Eco-Solvent ink - SS21 (C,M,Y,K,Lc,Lm,Lk,Or,W) |
Ink Package Size | 2L Ink Pack |
Media Thickness | 0.04 in (1.0 mm) |
Cut Speed/Acceleration | Speed: Max.300 mm/s Acceleration: Max. 0.5G |
Cut Pressure | 10~450gf |
Cutter Response Times | 10 times /sec |
Repetition Accuracy | ±0.2 mm (Excluding expansion and contraction of film due to temperature) |
Rolled Media Weight | One Roll: Maximum 99.2 lbs (45 kg) or less Three Rolls: Maximum Total 198.4 lbs (90 kg) or less |
Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA |
Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-Speed |
Power Supply | Main unit: (Single phase AC100-120/200-240V±10%, 50/60Hz±1Hz) 2 |
Power Consumption | Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode) |
Operational Environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General of ce level |
Dimensions | CJV330-130: 115 in x 47.8 in x 51.4 in (2,920 mm x 1,215 mm x 1,305 mm) CJV330-160: 124.8 in x 47.8 in x 51.4 in (3,170 mm x 1,215 mm x 1,305 mm) |
Weight | CJV330-130: 800.3 lbs CJV330-130's Slitter: 196 lbs CJV330-160: 822.3 lbs CJV330-160's Slitter: 201 lbs |
Shipping Dimensions | CJV330-130: 130 in x 44 in x 37 in CJV330-130's Slitter: 80 in x 13 in x 29 in CJV330-160: 140 in x 44 in x 37 in CJV330-160's Slitter: 90 in x 13 in x 29 in |
Shipping Weight | CJV330-130: 814 lbs CJV330-130's Slitter: 196 lbs CJV330-160: 831 lbs CJV330-160's Slitter: 201 lbs |
Shipping Crate/Pallet | CJV330-130: Single crate on top of a pallet CJV330-130 w/ Slitter: Two crates of separate pallets CJV330-160: Single crate on top of a pallet CJV330-160 w/ Slitter: Two crates of separate pallets |
Warranty | One Year Trouble-free Warranty |
Support | One year complimentary Gold Support |
Applications:
- Print on a variety of substrates, including plastics, metals, wood, leather, glass, and laminates
- 2.5D support and ADA capable
- Quickly create high-quality specialty items
- Personalized items
- Awards and promotional products
- Component pieces and more
The application’s are endless with the CJV330 series printer/cutters, from banners to vinyl decals to HTV prints for garment decoration. Depending on the type of business set up you have or are wanting to get started with you can rest assured that Mimaki CJV330 units can fit all of your needs with this affordable bundle.
Common Applications:
- Banners
- Decals
- Window Graphics
- Car Wraps/Graphics
- HTV Transfers
Art Reproduction
