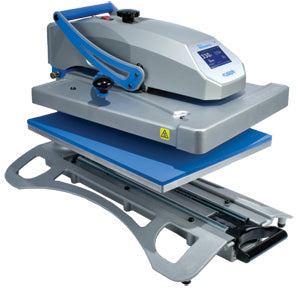

The Hotronix® Fusion IQ® heat press is in a class of its own - it's the world's first dual-motion heat press equipped with touch screen technology and unlimited programmable settings to enhance the user experience. The curved cantilever design of the Hotronix® Fusion IQ® heat press allows for full Threadability™ on the lower platen. This exclusive Hotronix® Fusion IQ® feature allows you to increase production up to 40%. Simply position, then rotate to decorate any area on the garment even on the sides and back. It's also the only heat press in the industry with a patented dual function feature to perform as a swing or draw motion to accommodate user and workspace requirements and provides a heat-free work space. The Hotronix IQ Touch Screen Technology, the Fusion's user interface, enables you to program an unlimited number of application settings. Additional features also include a production cycle counter, auto on/off settings, and eight optional language settings.
Features:
- Dual function - swing or draw motion
- Easy to operate
- EZ-On Platen design
- Threadability™ makes it easy to load garments onto the lower platen and print front, back, and sides
- Heat-free layout space
- Live digital time, temperature, and pressure readout
- Touch screen technology lets you easily set time, temperature, and pressure
- Unlimited preset programs
- Energy-saving 4 hour sleep mode
- Production cycle counter
- Available in eight languages
- 3/4 in thick non-stick coated upper platen
- Easy-to-install interchangeable platens
- Set to F° or C°
- Temperature range 32°F – 430°F
- UL/ULC/CE/RoHS compliant
- Electrical Options:
120 v; 15 amps; 1800 w
240 v; 15 amps; 3500 w
- Must have designated circuit breaker
- Cast-aluminum frame.
- Premium warranty includes: Lifetime Warranty on Heating Element, 5 year warranty on Framework, 2 year warranty on circuit board, and 1 year warranty parts/labor
CONTENTS:
- (1) Hotronix® Fusion IQ® Heat Press - 16 in x 20 in
SPECIFICATIONS
- UL/ULC/CE/RoHS Compliant
- Available in 120 v; 15 amps; 1800 w or 240 v; 15 amps; 3500 w
- Optional interchangeable platens available
- Must have designated circuit breaker
- Premium warranty includes: Lifetime Warranty on Heating Element, 5 year warranty on Framework, 2 year warranty on circuit board, and 1 year warranty parts/labor
- Actual Dimensions: 32 in x 18 in x 20 in
- Shipping Dimensions: 37 in x 25 in x 24 in
- Actual Weight: 137 lbs.
- Shipping Weight: 150 lbs.
Applications:
- Heat transfer vinyl
- Printable heat transfer vinyl
- Dye sublimation
- Two Step Laser Transfer Paper
