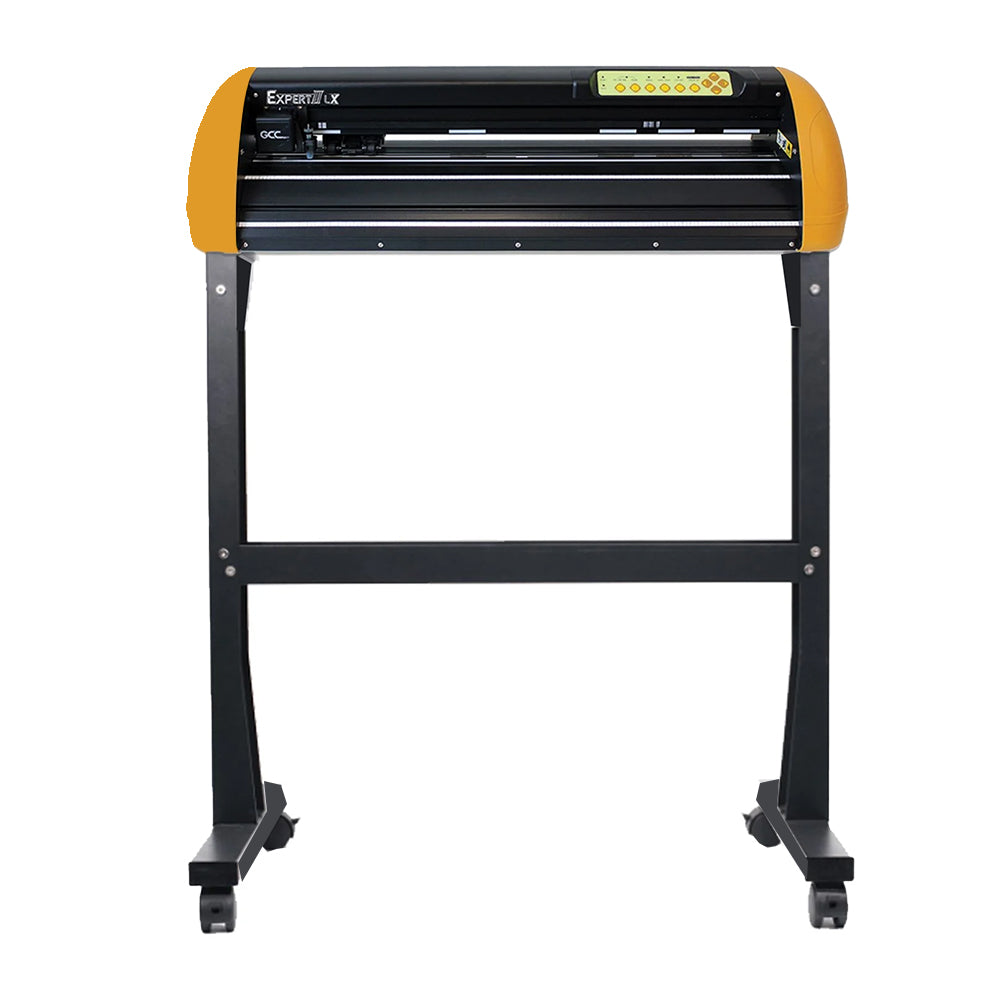

Optional Stand with Roller Holder for GCC Puma IV & Expert II 24" - Black
From $239.95Unit price /Unavailable
Add what you need. Prices show what each item adds. Groups marked * must be chosen before checkout.
Cutter Accessories · choose any None
Software · choose one None
Cutter Consumables · choose any None
Other Accessories · choose any None
Supplies · choose any None
Your kit · GCC Expert II-LX - 24 Inch Vinyl Cutter

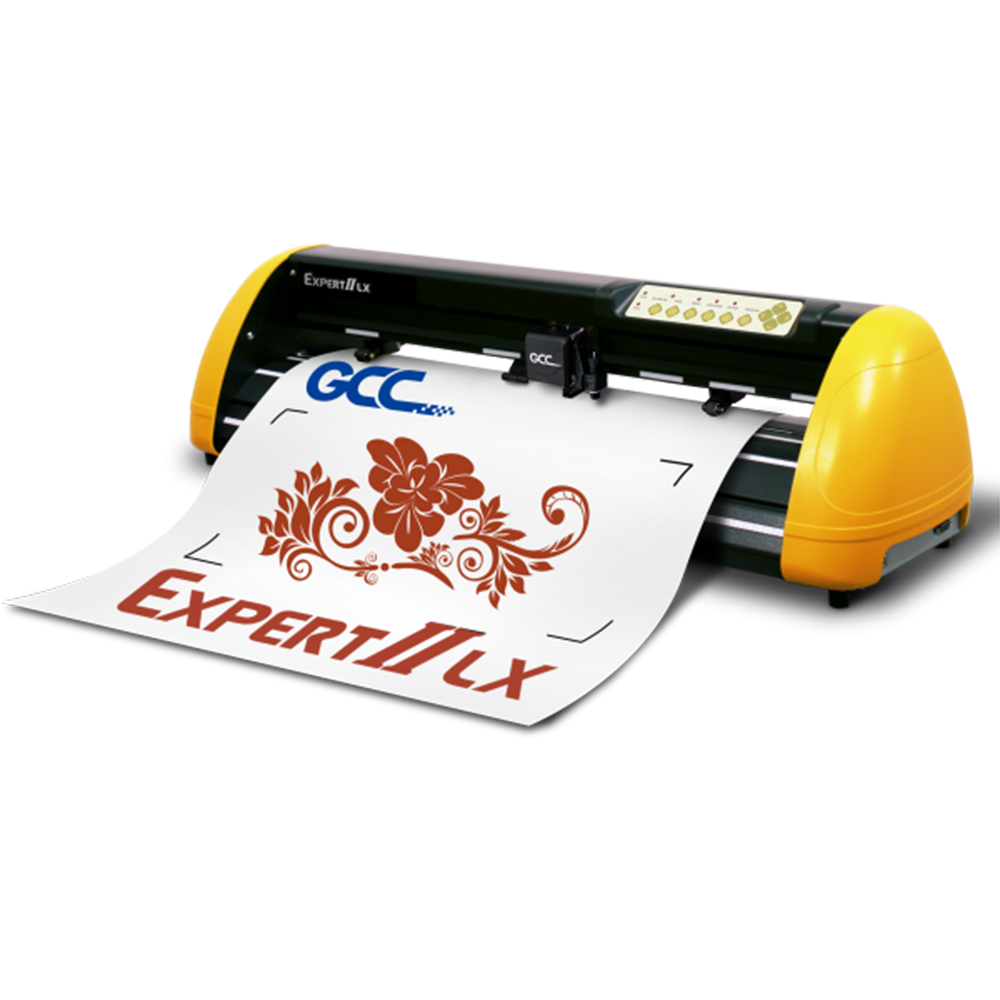

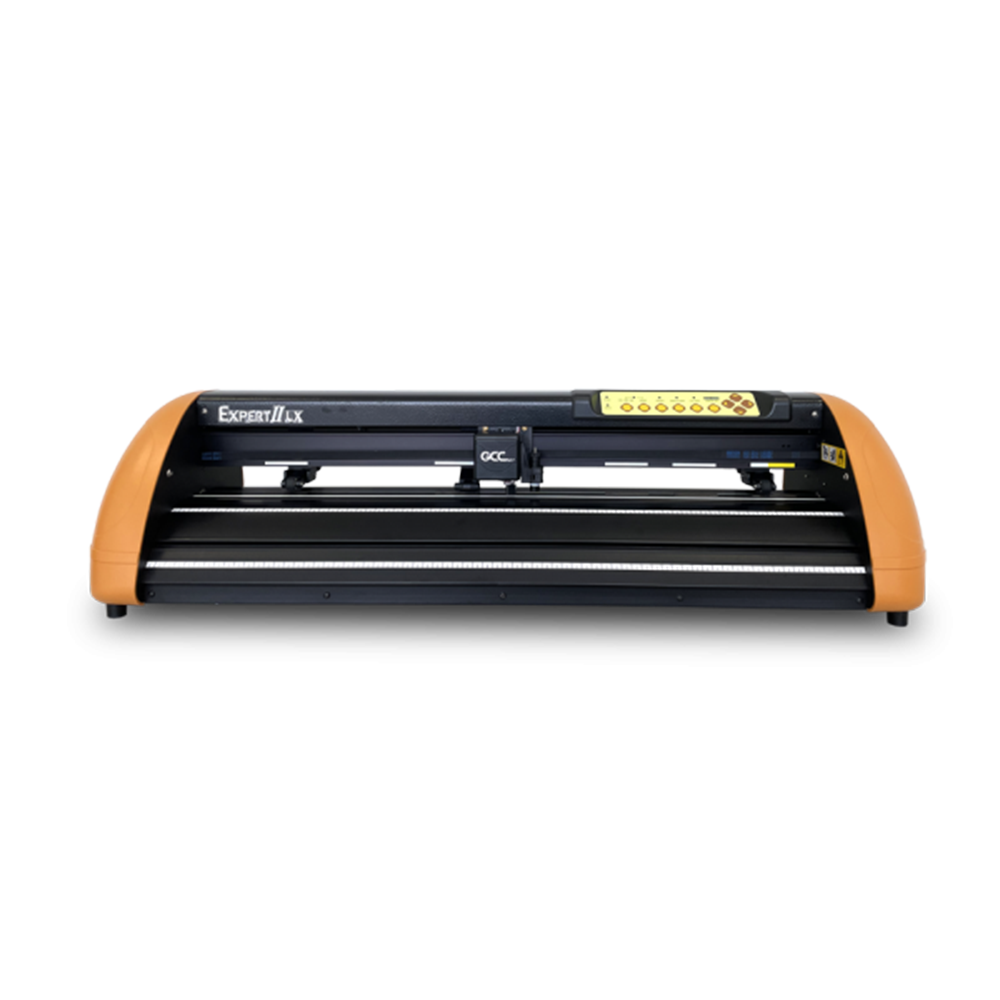

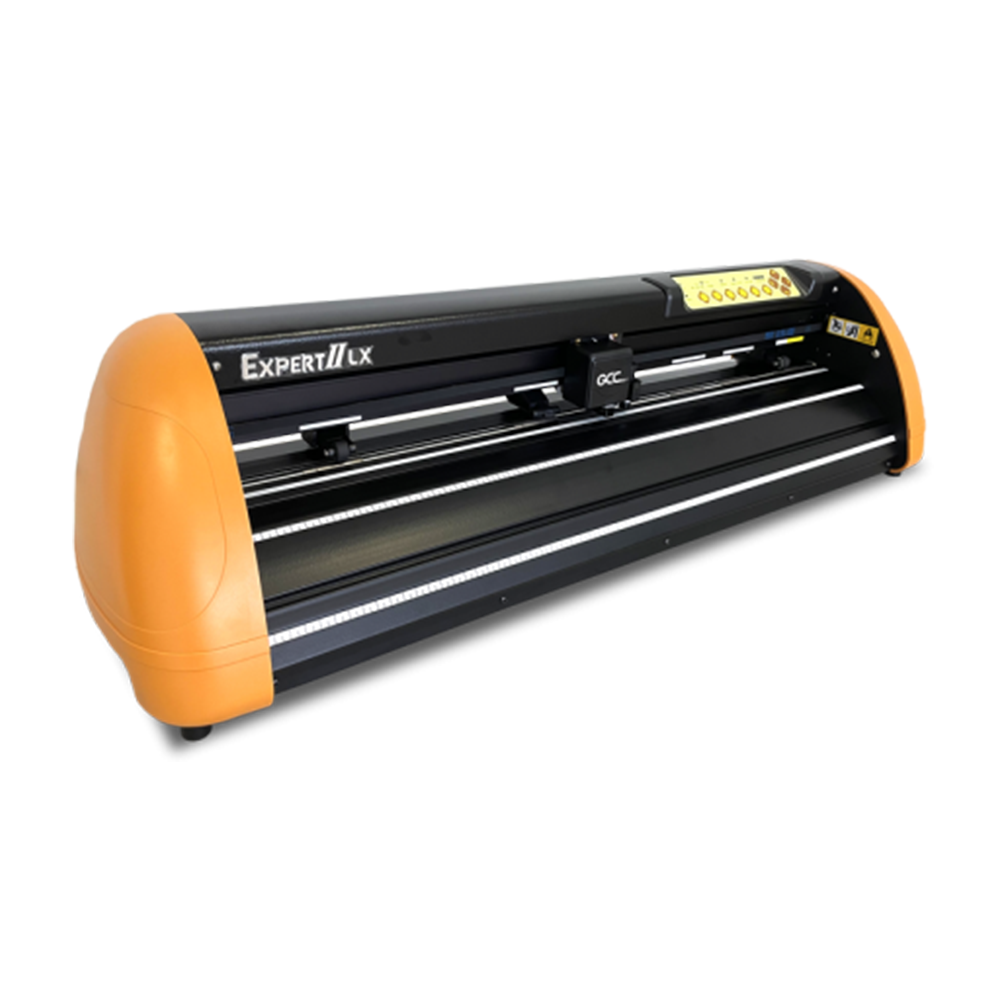

GCC Expert II has a family of superior quality vinyl cutters which provide sign makers with optimum speed, solid reliability and affordable pricing that is unmatched. See why GCC Expert II LX edition vinyl cutters are a popular choice for businesses of all sorts. The Expert II LX model features an Advance Contour Cutting System and guarantees precise contour cutting by detecting registration marks. The Expert II also has an easy to use interface and dual port connectivity. This hard-working 24 inch vinyl cutter is available with a stand or with the additional option of a stand and media basket.
Features:
- Available in 24 inch

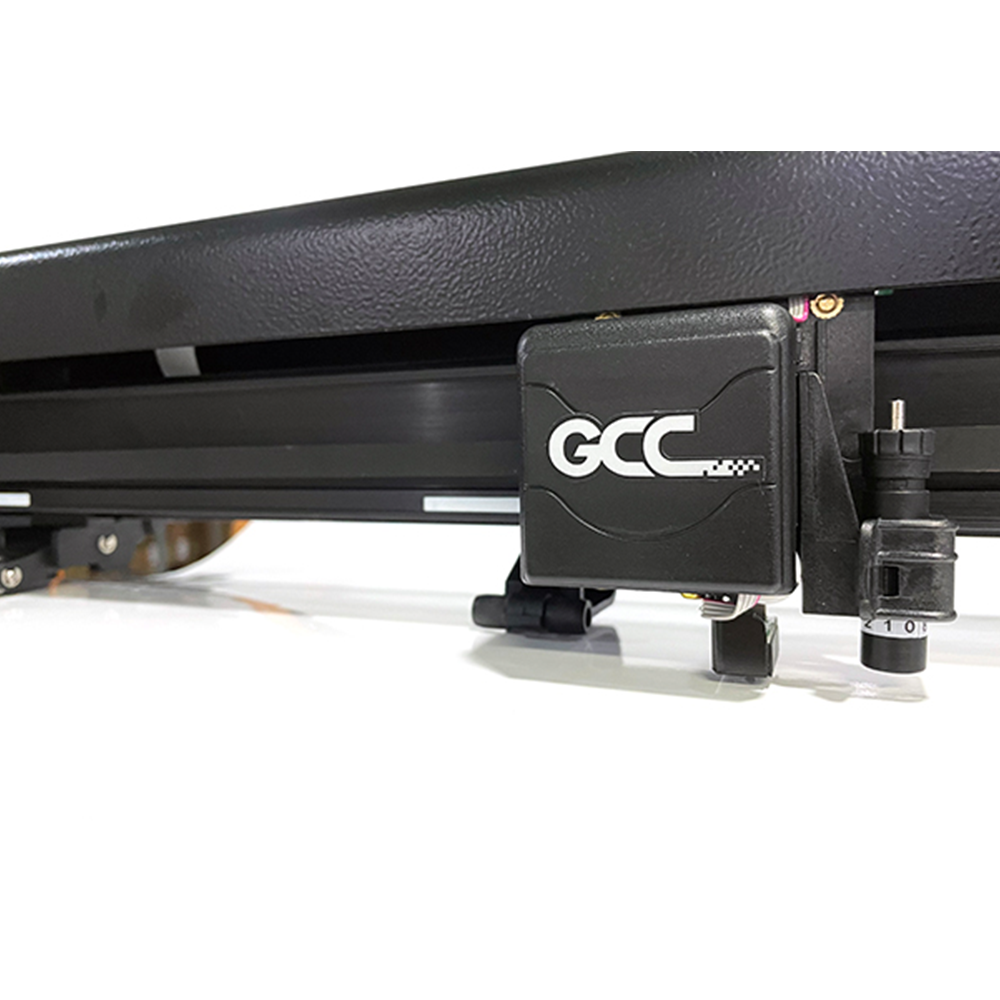

- Advance Contour Cutting System - AAS II with the LX Models

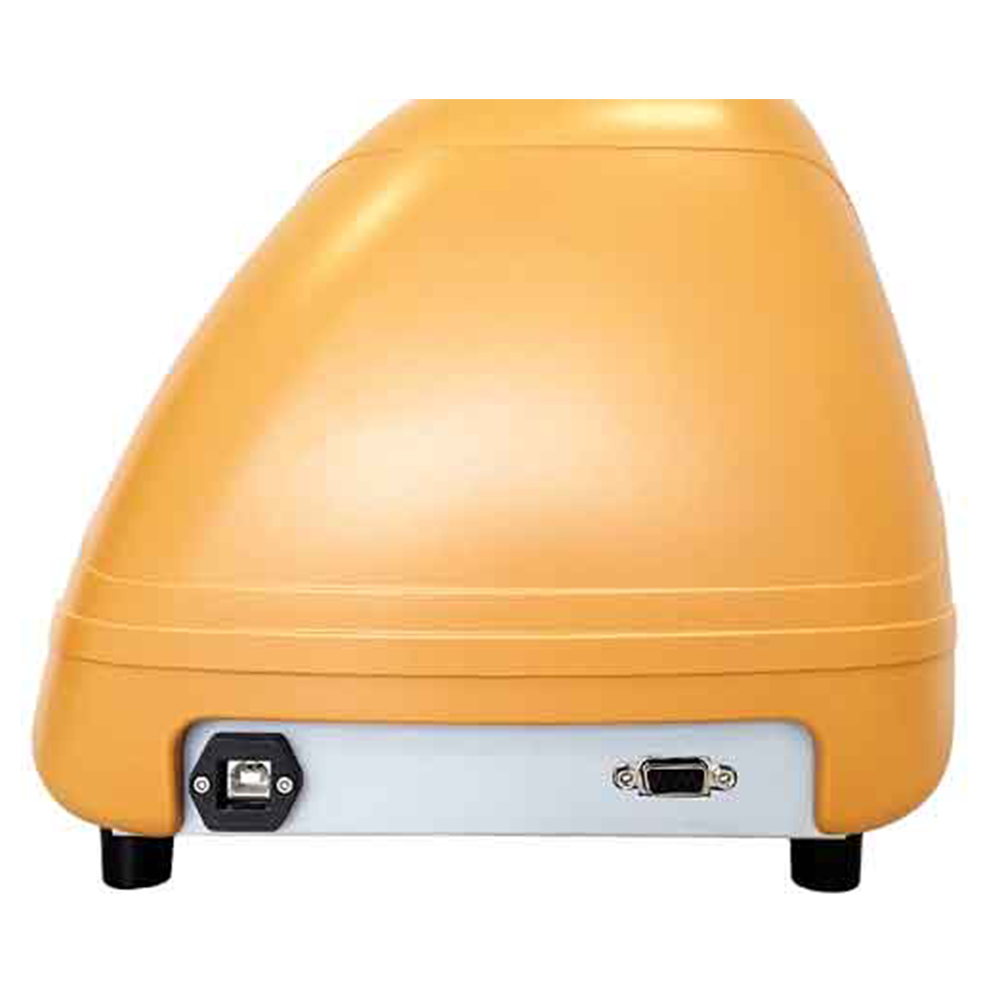

- Dual-port Connectivity
- User-friendly Interface
- Cutting Force: 350 grams
- Cutting Speed: 27.8 ips
- Tracking ability: 3 meters (9.84 feet)
- Compatible with Windows 7 and up | MAC OS X 10.6 and up
Applications:
- HTV design for t-shirt transfers
- Other HTV applications
- Decals
- POP signage
- Window lettering
- Card stock projects
- Craft and hobby applications
Specifications:
| GCC Expert II-24LX Specifications | |
| Max. Cutting Width | 23.6 in (600 mm) |
| Max. Media Width | 28.3 in (719 mm) |
| Media Thickness | 0.8 mm |
| Max. Cutting Force | 350 g |
| Max. Cutting Speed | 705 mm/sec (27.8 ips at 45° direction) |
| Mechanical Resolution | 0.012 mm (0.00047 in) |
| Software Resolution | 0.025 mm (0.00098 in) |
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater |
| Repeatability | ±0.1 |
| Tracking | 3M |
| Memory Buffer | 1 MB / 500KB(when using AAS) |
| Type of Command | HPGL, HPGL/2 |
| Configurable Origin | Yes |
| Repat | Yes |
| Copy | Yes |
| Control Panel | 6 LEDs / 10 Keys |
| Diameter of Blade | 2.5 mm |
| Dimensions | 9.1 in x 34.6 in x 10 in |
| Weight | 24.3 lbs (11 kg) |
| Shipping Dimensions | |
| Shipping Weight | |
| Stand | Purchased Separately |
| Automatic-Aligning System (AAS II) | Available on Expert II LX Models |
| Power Supply | 100-240 VAC, 50 / 60 Hz (auto switching) |
| Power Consumption | Max. 65 W |
| Operation Environment | Temperature: 15° C~30° C / 60°F~86° F | Tangential mode: 25% - 75% |
| Warranty | One Year Trouble-free Warranty |
