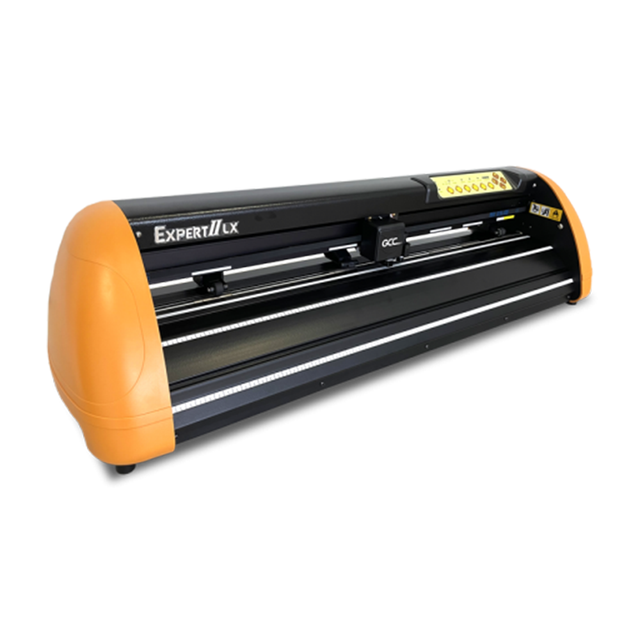

GCC Expert II LX - 24 Inch Vinyl Cutter

No customer reviews Write a review

Sku:

Retail price:

SW Wholesale Price:

SignWarehouse Pro Icon

Sale price:

Get $17.25 back with SignWarehouse PRO

Call Now Buy Online
Add to Wishlist

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Campaign rebates:
When purchasing this product between the displayed dates, you will be issued a partial rebate amount to your account each month until the total amount has been issued.

Overview

Specs

Applications

Video

GCC Expert II has a family of superior quality vinyl cutters which provide sign makers with optimum speed, solid reliability and affordable pricing that is unmatched. See why GCC Expert II LX edition vinyl cutters are a popular choice for businesses of all sorts. The Expert II LX model features an Advance Contour Cutting System and guarantees precise contour cutting by detecting registration marks. The Expert II also has an easy to use interface and dual port connectivity. This hard-working 24 inch vinyl cutter is available with a stand or with the additional option of a stand and media basket.

Features:

  • Available in 24 inch
  • Advance Contour Cutting System - AAS II with the LX Models
  • Dual-port Connectivity
  • User-friendly Interface
  • Cutting Force: 350 grams
  • Cutting Speed: 27.8 ips
  • Tracking ability: 3 meters (9.84 feet)
  • Compatible with Windows 7 and up | MAC OS X 10.6 and up

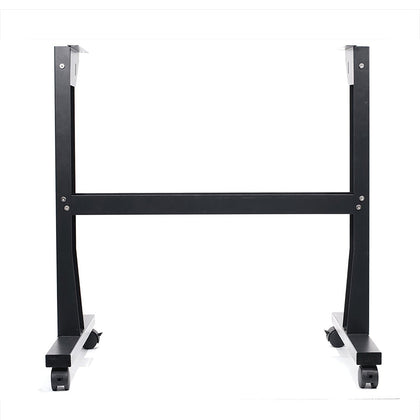

  • Available with stand or with stand and media basket

Specifications:

GCC Expert II-24LX Specifications
Max. Cutting Width23.6 in (600 mm)
Max. Media Width28.3 in (719 mm)
Media Thickness0.8 mm
Max. Cutting Force350 g
Max. Cutting Speed705 mm/sec (27.8 ips at 45° direction)
Mechanical Resolution0.012 mm (0.00047 in)
Software Resolution0.025 mm (0.00098 in)
Distance Accuracy±0.254 mm or ±0.1% of move, whichever is greater
Repeatability±0.1
Tracking3M
Memory Buffer1 MB / 500KB(when using AAS)
Type of CommandHPGL, HPGL/2
Configurable OriginYes
RepatYes
CopyYes
Control Panel6 LEDs / 10 Keys
Diameter of Blade2.5 mm
Dimensions9.1 in x 34.6 in x 10 in
Weight24.3 lbs (11 kg)
Shipping Dimensions
Shipping Weight
StandStand or Stand and Media Basket
Automatic-Aligning System (AAS II)Available on Expert II LX Models
Power Supply100-240 VAC, 50 / 60 Hz (auto switching)
Power ConsumptionMax. 65 W
Operation EnvironmentTemperature: 15° C~30° C / 60°F~86° F | Tangential mode: 25% - 75%
WarrantyOne Year Trouble-free Warranty
SupportOne year complimentary Gold Support

Applications:

  • HTV design for t-shirt transfers
  • Other HTV applications
  • Decals
  • POP signage
  • Window lettering
  • Card stock projects
  • Craft and hobby applications
