Mutoh ValueCut 2 24-inch Vinyl Cutter
Sign in to see price110% Price Match Guarantee on Vinyl Cutters! Found a lower price? We’ll beat it, and then some. Call us at 903-462-7700 for more details. Terms & exclusions apply.

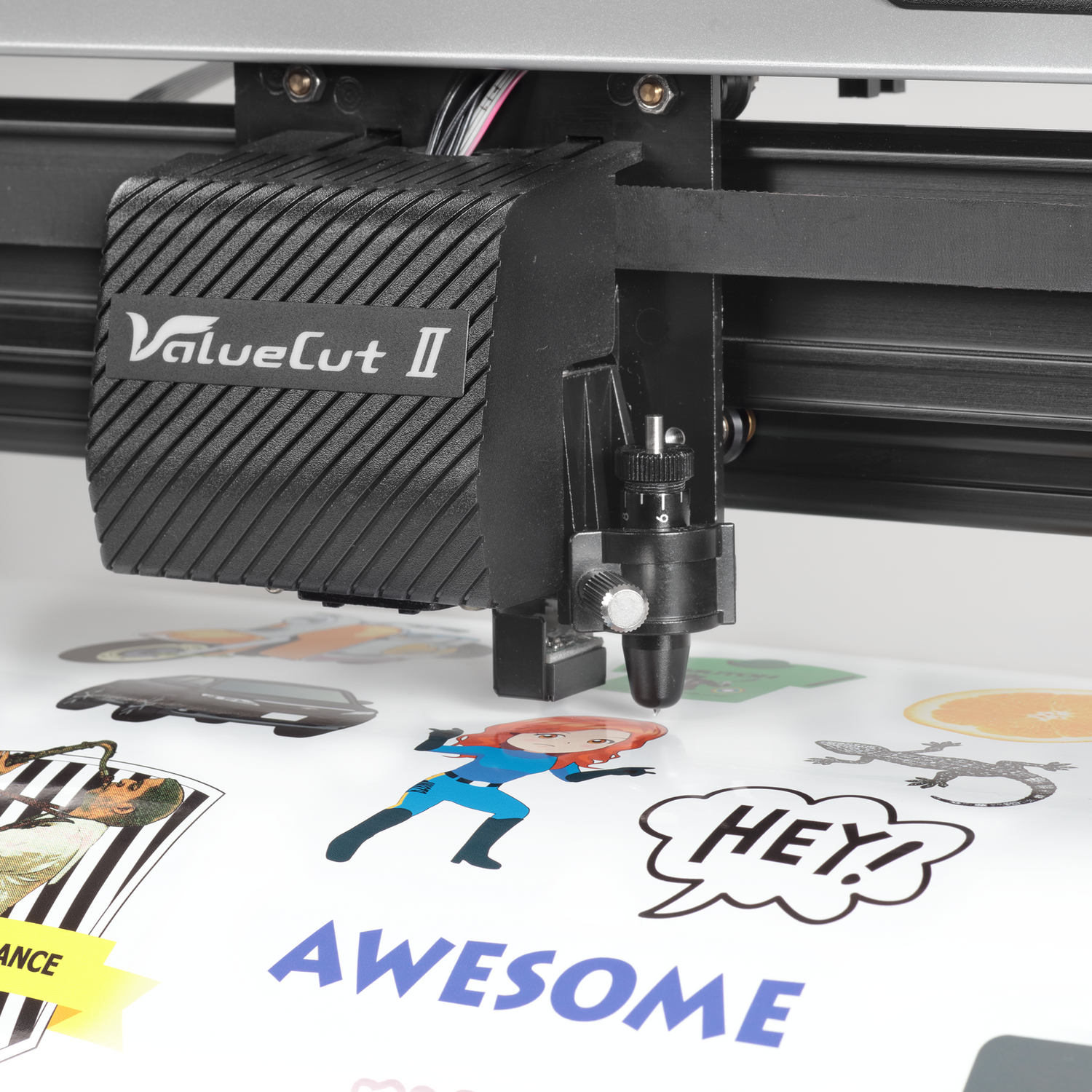

The ValueCut 2 line of cutting plotters are ideal for home, office and professional users providing the finest cutting quality with unsurpassed tracking capabilities.
Choose from one of three models to suit your needs, VC2-600 (24” cut width), VC2-1300 (52” cut width) or VC2-1800 (72” cut width). All models come standard with a roll support system for easy handling and perfect tracking and multi-segment registration for long run cut job accuracy.
The VC2-1300 and VC2-1800 models also come with a floor stand and media catch basket, which are both options on the VC2-600 model. For price, performance, quality and service the ValueCut 2 is the smart choice for cutting plotters.
Key Features:
- 24″, 52″ and 72″ cutting plotters
- Offers USB, Ethernet, and serial port connections
- Media Sensor Disablement to cut transparent media
- Intuitive job recognition and alignment of contour and cut data
- Multi-segment registration capability for accurate long run cut jobs
- Catch basket included on VC-1300 and VC-1800models (optional on VC-600)
- Flexi Starter software
- Includes cutting holder, spare cutter blade, oil ball point pen, media cutter, and cutter pad.
- Two year limited warranty
Standard Accessories:
- Cutting Holder
- Spare Cutter Blade
- Oil Ball Point Pen
- SAi Flexi starter CD-ROM included
- Media Basket (Exclude VC-600)
- Media Cutter
- Cutter Pad x 1
- Roll media mount system
- Stickers
- Window Decals
- Photos
- Flyers
- Labels
- Long Run
|
ValueCut2 Series Product Specifications |
||||
|
Model Number |
VC2-600 |
VC2-1300 |
VC2-1800 |
|
|
Operation Method |
Roller type |
|||
|
Max.Media Loading Width |
30.3" (770 mm) |
62.7" (1594 mm) |
78.3" (1990 mm) |
|
|
Max.Cutting Width |
24" (610 mm) |
52" (1320 mm) |
72" (1830 mm) |
|
|
Min.Media Loading Width |
1.97" (50 mm) |
11.8" (300 mm) |
||
|
Max. Cutting length |
164 ft / 50 m *1 |
|||
|
Number of Pinch Rollers |
3 |
4 |
6 |
|
|
Acceptable Material Thickness |
0.03” (0.8mm) |
|||
|
Driver Motor |
DC Servo Control |
|||
|
Cutting Force |
5 ~ 600g (5g/Step) |
|||
|
Max. Cutting Speed |
60.2" (1530 mm) / sec (diagonal direction) |
|||
|
Acceleration |
4.2 G |
|||
|
Offset |
0 ~ 1.0 mm (0.025mm/step) |
|||
|
Memory Buffer |
32MB/16MB (when using AAS II) |
|||
|
Interface |
Ethernet, USB 2.0 (Full Speed), Serial(RS-232C) |
|||
|
Type of Command |
HP-GL, HP-GL/2 *2 |
|||
|
Mechanical Resolution |
0.006 mm |
|||
|
Software Resolution |
0.025 mm |
|||
|
Distance Accuracy |
±0.254 mm or ±0.1% of move, whichever is greater *3 |
|||
|
Repeatability |
±0.1 mm *3 |
|||
|
Control panel |
LCD (20 digits x 2 lines), 14 Keys |
|||
|
Number of attachable Pen |
1 |
|||
|
Available Tool |
Cutter, Oil Ball Point Pen |
|||
|
Operation |
Temperature |
59°F ~ 86°F (15°C ~ 30°C) |
||
|
Humidity |
25% ~ 75% |
|||
|
Power Supply |
AC 100~240V, 50/60Hz (auto switching) |
|||
|
Power Consumption |
Max. 110W |
|||
|
Dimension (WxDxH) *4 |
37.4" x 19.1" x 16.2" |
69.8" x 25.6" x 43.7" |
85.4" x 29.7" x 44.4" |
|
|
Shipping Weight |
68.3 lbs / 31 kg |
168.6 lbs / 76.5 kg |
209.4 lbs / 95 kg |
|
|
Stand and Media Basket |
Optional |
Standard |
||
|
Warranty |
2 Year Limited Warranty |
|||
|
*1 This does not assure the accuracy. *2 HP-GL,HP-GL/2 are trademarks of Hewlett-Packard Company. *3 Effective only when operated with the cutting condition and the media certified by MUTOH. *4 Exclude basket dimension |
||||
Overview
110% Price Match Guarantee on Vinyl Cutters! Found a lower price? We’ll beat it, and then some. Call us at 903-462-7700 for more details. Terms & exclusions apply.
The ValueCut 2 line of cutting plotters are ideal for home, office and professional users providing the finest cutting quality with unsurpassed tracking capabilities.
Choose from one of three models to suit your needs, VC2-600 (24” cut width), VC2-1300 (52” cut width) or VC2-1800 (72” cut width). All models come standard with a roll support system for easy handling and perfect tracking and multi-segment registration for long run cut job accuracy.
The VC2-1300 and VC2-1800 models also come with a floor stand and media catch basket, which are both options on the VC2-600 model. For price, performance, quality and service the ValueCut 2 is the smart choice for cutting plotters.
Key Features:
- 24″, 52″ and 72″ cutting plotters
- Offers USB, Ethernet, and serial port connections
- Media Sensor Disablement to cut transparent media
- Intuitive job recognition and alignment of contour and cut data
- Multi-segment registration capability for accurate long run cut jobs
- Catch basket included on VC-1300 and VC-1800models (optional on VC-600)
- Flexi Starter software
- Includes cutting holder, spare cutter blade, oil ball point pen, media cutter, and cutter pad.
- Two year limited warranty
Standard Accessories:
- Cutting Holder
- Spare Cutter Blade
- Oil Ball Point Pen
- SAi Flexi starter CD-ROM included
- Media Basket (Exclude VC-600)
- Media Cutter
- Cutter Pad x 1
- Roll media mount system
Applications
- Stickers
- Window Decals
- Photos
- Flyers
- Labels
- Long Run
Specifications
|
ValueCut2 Series Product Specifications |
||||
|
Model Number |
VC2-600 |
VC2-1300 |
VC2-1800 |
|
|
Operation Method |
Roller type |
|||
|
Max.Media Loading Width |
30.3" (770 mm) |
62.7" (1594 mm) |
78.3" (1990 mm) |
|
|
Max.Cutting Width |
24" (610 mm) |
52" (1320 mm) |
72" (1830 mm) |
|
|
Min.Media Loading Width |
1.97" (50 mm) |
11.8" (300 mm) |
||
|
Max. Cutting length |
164 ft / 50 m *1 |
|||
|
Number of Pinch Rollers |
3 |
4 |
6 |
|
|
Acceptable Material Thickness |
0.03” (0.8mm) |
|||
|
Driver Motor |
DC Servo Control |
|||
|
Cutting Force |
5 ~ 600g (5g/Step) |
|||
|
Max. Cutting Speed |
60.2" (1530 mm) / sec (diagonal direction) |
|||
|
Acceleration |
4.2 G |
|||
|
Offset |
0 ~ 1.0 mm (0.025mm/step) |
|||
|
Memory Buffer |
32MB/16MB (when using AAS II) |
|||
|
Interface |
Ethernet, USB 2.0 (Full Speed), Serial(RS-232C) |
|||
|
Type of Command |
HP-GL, HP-GL/2 *2 |
|||
|
Mechanical Resolution |
0.006 mm |
|||
|
Software Resolution |
0.025 mm |
|||
|
Distance Accuracy |
±0.254 mm or ±0.1% of move, whichever is greater *3 |
|||
|
Repeatability |
±0.1 mm *3 |
|||
|
Control panel |
LCD (20 digits x 2 lines), 14 Keys |
|||
|
Number of attachable Pen |
1 |
|||
|
Available Tool |
Cutter, Oil Ball Point Pen |
|||
|
Operation |
Temperature |
59°F ~ 86°F (15°C ~ 30°C) |
||
|
Humidity |
25% ~ 75% |
|||
|
Power Supply |
AC 100~240V, 50/60Hz (auto switching) |
|||
|
Power Consumption |
Max. 110W |
|||
|
Dimension (WxDxH) *4 |
37.4" x 19.1" x 16.2" |
69.8" x 25.6" x 43.7" |
85.4" x 29.7" x 44.4" |
|
|
Shipping Weight |
68.3 lbs / 31 kg |
168.6 lbs / 76.5 kg |
209.4 lbs / 95 kg |
|
|
Stand and Media Basket |
Optional |
Standard |
||
|
Warranty |
2 Year Limited Warranty |
|||
|
*1 This does not assure the accuracy. *2 HP-GL,HP-GL/2 are trademarks of Hewlett-Packard Company. *3 Effective only when operated with the cutting condition and the media certified by MUTOH. *4 Exclude basket dimension |
||||
