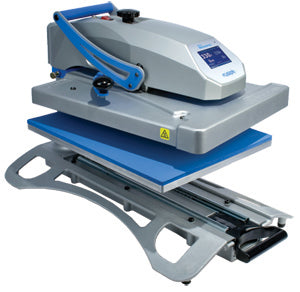

Hotronix Fusion IQ Heat Press Machine
Couldn't load pickup availability
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Special Offer!
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Hotronix Fusion IQ Heat Press Machine
Sign in to see priceThe Hotronix® Fusion IQ® heat press is in a class of its own - it's the world's first dual-motion heat press equipped with touch screen technology and unlimited programmable settings to enhance the user experience. The curved cantilever design of the Hotronix® Fusion IQ® heat press allows for full Threadability™ on the lower platen. This exclusive Hotronix® Fusion IQ® feature allows you to increase production up to 40%. Simply position, then rotate to decorate any area on the garment even on the sides and back. It's also the only heat press in the industry with a patented dual function feature to perform as a swing or draw motion to accommodate user and workspace requirements and provides a heat-free work space. The Hotronix IQ Touch Screen Technology, the Fusion's user interface, enables you to program an unlimited number of application settings. Additional features also include a production cycle counter, auto on/off settings, and eight optional language settings.
Features:
- Dual function - swing or draw motion
- Easy to operate
- EZ-On Platen design
- Threadability™ makes it easy to load garments onto the lower platen and print front, back, and sides
- Heat-free layout space
- Live digital time, temperature, and pressure readout
- Touch screen technology lets you easily set time, temperature, and pressure
- Unlimited preset programs
- Energy-saving 4 hour sleep mode
- Production cycle counter
- Available in eight languages
- 3/4 in thick non-stick coated upper platen
- Easy-to-install interchangeable platens
- Set to F° or C°
- Temperature range 32°F – 430°F
- UL/ULC/CE/RoHS compliant
- Electrical Options:
120 v; 15 amps; 1800 w
240 v; 15 amps; 3500 w
- Must have designated circuit breaker
- Cast-aluminum frame.
- Premium warranty includes: Lifetime Warranty on Heating Element, 5 year warranty on Framework, 2 year warranty on circuit board, and 1 year warranty parts/labor
Applications:
- Heat transfer vinyl
- Printable heat transfer vinyl
- Dye sublimation
- Two Step Laser Transfer Paper
CONTENTS:
- (1) Hotronix® Fusion IQ® Heat Press - 16 in x 20 in
SPECIFICATIONS
- UL/ULC/CE/RoHS Compliant
- Available in 120 v; 15 amps; 1800 w or 240 v; 15 amps; 3500 w
- Optional interchangeable platens available
- Must have designated circuit breaker
- Premium warranty includes: Lifetime Warranty on Heating Element, 5 year warranty on Framework, 2 year warranty on circuit board, and 1 year warranty parts/labor
- Actual Dimensions: 32 in x 18 in x 20 in
- Shipping Dimensions: 37 in x 25 in x 24 in
- Actual Weight: 137 lbs.
- Shipping Weight: 150 lbs.
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
Overview
The Hotronix® Fusion IQ® heat press is in a class of its own - it's the world's first dual-motion heat press equipped with touch screen technology and unlimited programmable settings to enhance the user experience. The curved cantilever design of the Hotronix® Fusion IQ® heat press allows for full Threadability™ on the lower platen. This exclusive Hotronix® Fusion IQ® feature allows you to increase production up to 40%. Simply position, then rotate to decorate any area on the garment even on the sides and back. It's also the only heat press in the industry with a patented dual function feature to perform as a swing or draw motion to accommodate user and workspace requirements and provides a heat-free work space. The Hotronix IQ Touch Screen Technology, the Fusion's user interface, enables you to program an unlimited number of application settings. Additional features also include a production cycle counter, auto on/off settings, and eight optional language settings.
Features:
- Dual function - swing or draw motion
- Easy to operate
- EZ-On Platen design
- Threadability™ makes it easy to load garments onto the lower platen and print front, back, and sides
- Heat-free layout space
- Live digital time, temperature, and pressure readout
- Touch screen technology lets you easily set time, temperature, and pressure
- Unlimited preset programs
- Energy-saving 4 hour sleep mode
- Production cycle counter
- Available in eight languages
- 3/4 in thick non-stick coated upper platen
- Easy-to-install interchangeable platens
- Set to F° or C°
- Temperature range 32°F – 430°F
- UL/ULC/CE/RoHS compliant
- Electrical Options:
120 v; 15 amps; 1800 w
240 v; 15 amps; 3500 w
- Must have designated circuit breaker
- Cast-aluminum frame.
- Premium warranty includes: Lifetime Warranty on Heating Element, 5 year warranty on Framework, 2 year warranty on circuit board, and 1 year warranty parts/labor
Applications
Applications:
- Heat transfer vinyl
- Printable heat transfer vinyl
- Dye sublimation
- Two Step Laser Transfer Paper
Specifications
CONTENTS:
- (1) Hotronix® Fusion IQ® Heat Press - 16 in x 20 in
SPECIFICATIONS
- UL/ULC/CE/RoHS Compliant
- Available in 120 v; 15 amps; 1800 w or 240 v; 15 amps; 3500 w
- Optional interchangeable platens available
- Must have designated circuit breaker
- Premium warranty includes: Lifetime Warranty on Heating Element, 5 year warranty on Framework, 2 year warranty on circuit board, and 1 year warranty parts/labor
- Actual Dimensions: 32 in x 18 in x 20 in
- Shipping Dimensions: 37 in x 25 in x 24 in
- Actual Weight: 137 lbs.
- Shipping Weight: 150 lbs.
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
