EnduraPRESS CS16 Clamshell Heat Press - 16 in x 20 in

Sku:

Retail Price:

SW Wholesale Price:

SignWarehouse Pro Icon
Pro Rebate:

Receive $14.45 back in your account with

SignWarehouse Pro

Note:
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Overview

Specs

Applications

Video

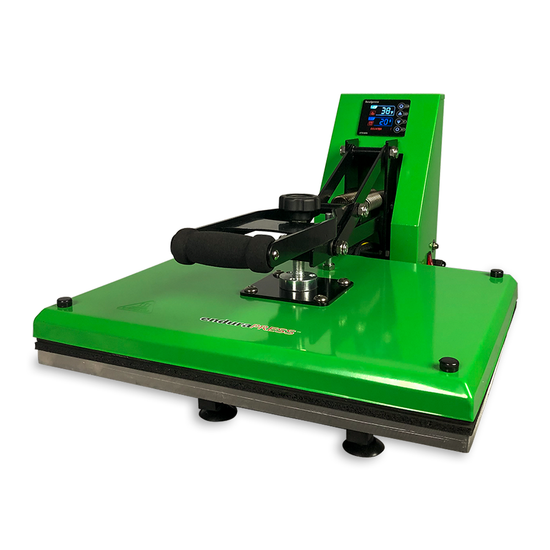

The EnduraPRESS CS16 clamshell heat press is the full-grown version of our popular EnduraPRESS CS clamshell model line. The 16 in x 20 in platen supports pressing larger transfers with 20 inch heat transfer vinyl. The EnduraPRESS CS16 offers superior performance at an unbeatable value, and features a simple clamshell design that is suitable for most HTV applications. Clamshell heat presses are especially useful for tight work areas since they use less space than swing arm designs.

The EnduraPRESS CS16 features a 16 inch x 20 inch heating element with a temperature range of up to 480°F. It also features a digital touch-screen LCD control panel which makes it easy to customize controls for a variety of applications. The LCD control panel gives you quick and easy access to cycle time, Celsius to Fahrenheit conversion, a programmable alarm, and temperature display calibration, all accessible in seconds. The EnduraPRESS CS16 clamshell design provides excellent pressure and accurate temperature controls allowing for stress free application of products. The CS16 is easy to setup, dependable, and easy to use. See for yourself why the EnduraPRESS CS16 is one of our top selling products.

Features:

  • Space saving clamshell design
  • 16 inches deep x 20 inches wide heating element
  • Ideal for 20 inch heat transfer vinyl
  • Temperature range up to 480°F
  • Easy to use and read digital touch screen LCD panel
  • Celsius to Fahrenheit conversion
  • Programmable alarm
  • Temperature display calibration
  • Ergonomic bottom handle for easy opening
  • High quality durable construction
  • Accurate temperature controls
  • Maximum Pressure: 1,000 lbs of force or 8.3PSI
  • One Year Warranty

Applications:

  • Heat transfer vinyl
  • Printable heat transfer vinyl
  • Dye sublimation
  • Clamshell designs are especially good for shirts, scarves, tote bags, etc. where relatively thin, flat items are decorated
  • Not recommended for self-weeding laser transfer papers or for thick items like mouse pads, ceramic tiles, etc.

    For a more in-depth review of the EnduraPRESS CS16 clamshell heat press please read the following blog article: EnduraPRESS CS Series 16 x 20 Clamshell Series Heat Press

    READ the User Guide for the EnduraPRESS CS16 Clamshell Heat Press.



      CONTENTS:

      • (1) EnduraPRESS CS16 - 16 in x 20 in Clamshell Heat Press Machine

      SPECIFICATIONS:

      • 16 inches deep x 20 inches wide heating element
      • Temperature range: 0-480°F
      • Heating speed to 392°F (200°C): 13 minutes
      • Temperature display accuracy: Within 5°F
      • Maximum Pressure: 1,000 lbs of force or 8.3 PSI
      • Voltage: 110V/60Hz; Power: 1.4kW
      • Shipping weight: 72 lbs
      • Shipping dimensions: 30 in x 24 in x 23 in
      • One year basic warranty

      Applications:

      • Heat transfer vinyl
      • Printable heat transfer vinyl
      • Dye sublimation
      • Clamshell designs are especially good for shirts, scarves, tote bags, etc. where relatively thin, flat items are decorated
      • Not recommended for self-weeding laser transfer papers or for thick items like mouse pads, ceramic tiles, etc.
