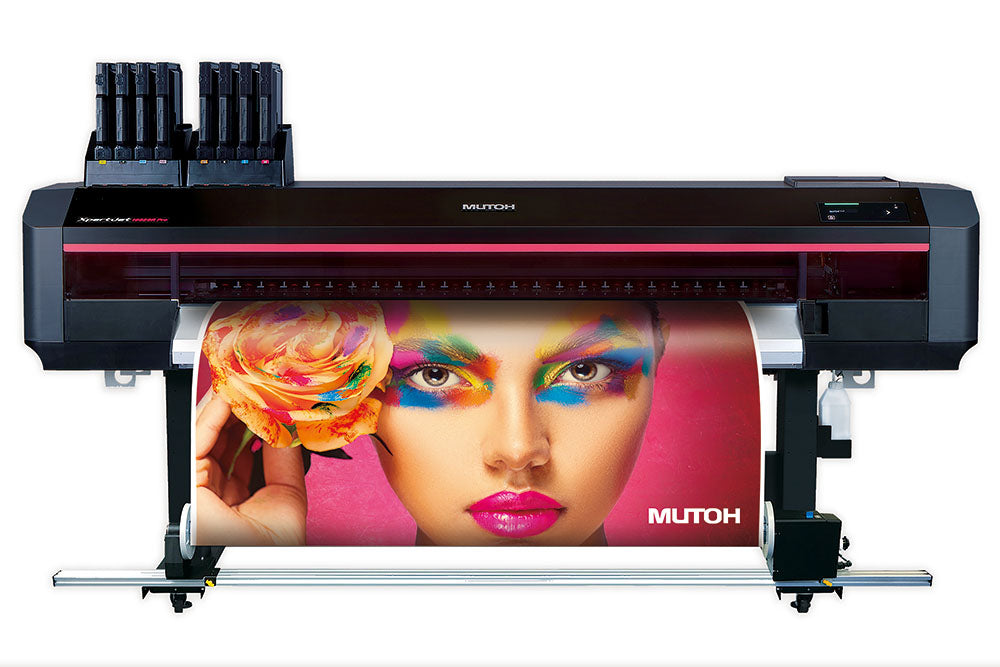

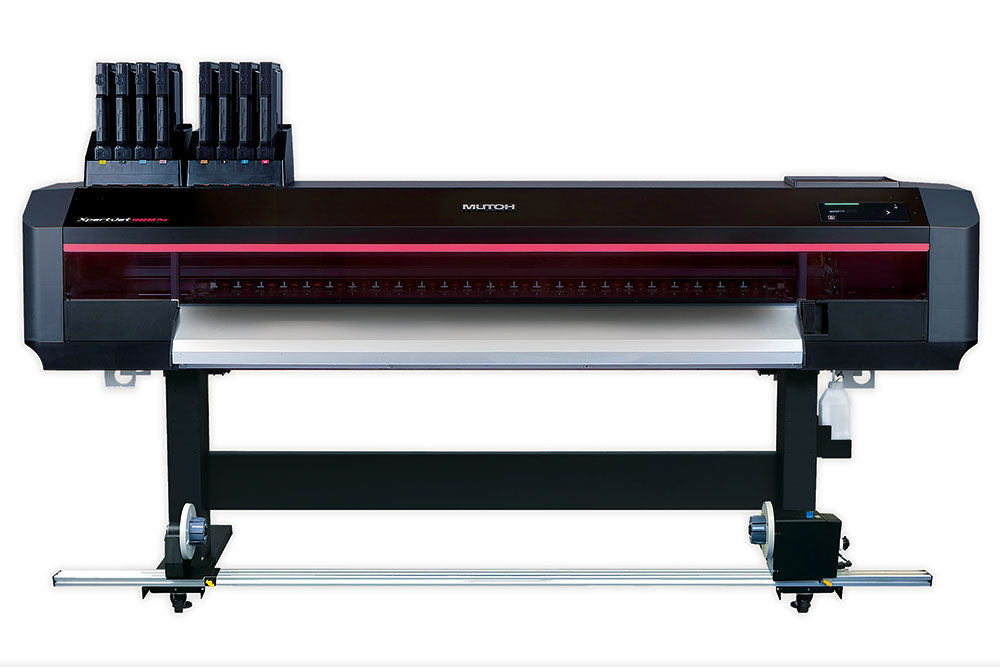

Mutoh XpertJet1682SR Pro Large Format Eco-Solvent Printer
Couldn't load pickup availability
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Special Offer!
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Mutoh XpertJet1682SR Pro Large Format Eco-Solvent Printer
Sign in to see priceThe MUTOH XpertJet 1682SR Pro is the second generation of Mutoh's advanced XpertJet line of large format eco-solvent printers built for professionals. The XPJ-1682SR Pro makes its mark with several new features and upgrades to improve your printing experience and make it easier than ever to produce stunning signage and more.Â
With staggered, dual AccuFine HD printheads, it's capable of producing smooth gradations and high-quality prints at ultra-fast speeds, and thanks to the optional 8-color (CMYKLcLmLkOr) ink configuration, even printing at reduced resolutions will still deliver beautiful, high-quality graphics. It includes features such as Dropmaster 2, Feed Master, Automatic Nozzle Checking Unit option with Nozzle Area Select for continuous printing, i-screen print effects to mitigate banding, and Media Tracker just to name a few. The XpertJet 1682SR Pro is powered by Mutoh's VerteLithâ„¢ Genuine RIP Software, bundled with FlexiDesigner MUTOH Edition 21 for the ultimate balance of speed and quality.
Features:
- High-precision aluminum rail system
- Front access ink holders and LED operation panel
- New AccuFine HD printheads
- Built-in sensors for operator driven automatic bi-directional and page feed alignments
- Improved front dryer system
- Updated media flanges and media feeding mechanism
- Internal LED lighting
- Includes the MUTOH Status Monitor (MSM) companion software
Applications:
- Commercial signs and banners
- Wall and floor graphics
- Architectural graphics
- Custom vehicle graphics and fleet graphics
- Interior/exterior signage and much more
Specifications:
- Print Method: Drop on-demand piezo drive system
- Number of Nozzles: 1600
- Maximum Resolution: 1200 x 1200 dpi
- Print Modes: 1200/900/600/300 dpi print modes
- Number of print heads: 2 (staggered)
- Ink Type: MS41 eco-solvent ink
- Color Configuration: CMYK and CMYKLcLmLkOr
- Compatible Ink Cartridges: 1 liter ink bags (300 ml bag for Orange)
- Max Media Width 64 inch
- Maximum Print Width 63.58 inches
- Maximum Media Weight: 66 lbs.
- Maximum Media Roll Diameter: 5.9 inch diameter / 2 inch & 3 inch cores
- Media Take-up System: VJ16/19-TUP30 66lb take-up system (other options included)
- Interface: Gigabit-Ethernet (1000BASE-T)
- Power Supply: AC 100-120V± 10%, 50/60Hz ± 1Hz
- Power Consumption: Main: Operation status 1100W or less | Standby: 30W or less
- Operating Temperature: 68-89.6°F
- Operating Humidity Range: Humidity: 40-60%RH
- Dimensions: Printer including stand: 109.05 in. x 35.23 in x 56.22 in
- Weight: Body: 310lb | Stand: 70.54lb
- RIP Software Options: VerteLithâ„¢, bundled with FlexiDESIGNER MUTOH Edition 21
- Warranty: One year warranty - parts & labor
- Support: One year complimentary Gold level SW Customer Care Support
- Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
Overview
The MUTOH XpertJet 1682SR Pro is the second generation of Mutoh's advanced XpertJet line of large format eco-solvent printers built for professionals. The XPJ-1682SR Pro makes its mark with several new features and upgrades to improve your printing experience and make it easier than ever to produce stunning signage and more.Â
With staggered, dual AccuFine HD printheads, it's capable of producing smooth gradations and high-quality prints at ultra-fast speeds, and thanks to the optional 8-color (CMYKLcLmLkOr) ink configuration, even printing at reduced resolutions will still deliver beautiful, high-quality graphics. It includes features such as Dropmaster 2, Feed Master, Automatic Nozzle Checking Unit option with Nozzle Area Select for continuous printing, i-screen print effects to mitigate banding, and Media Tracker just to name a few. The XpertJet 1682SR Pro is powered by Mutoh's VerteLithâ„¢ Genuine RIP Software, bundled with FlexiDesigner MUTOH Edition 21 for the ultimate balance of speed and quality.
Features:
- High-precision aluminum rail system
- Front access ink holders and LED operation panel
- New AccuFine HD printheads
- Built-in sensors for operator driven automatic bi-directional and page feed alignments
- Improved front dryer system
- Updated media flanges and media feeding mechanism
- Internal LED lighting
- Includes the MUTOH Status Monitor (MSM) companion software
Applications
Applications:
- Commercial signs and banners
- Wall and floor graphics
- Architectural graphics
- Custom vehicle graphics and fleet graphics
- Interior/exterior signage and much more
Videos
Specifications
Specifications:
- Print Method: Drop on-demand piezo drive system
- Number of Nozzles: 1600
- Maximum Resolution: 1200 x 1200 dpi
- Print Modes: 1200/900/600/300 dpi print modes
- Number of print heads: 2 (staggered)
- Ink Type: MS41 eco-solvent ink
- Color Configuration: CMYK and CMYKLcLmLkOr
- Compatible Ink Cartridges: 1 liter ink bags (300 ml bag for Orange)
- Max Media Width 64 inch
- Maximum Print Width 63.58 inches
- Maximum Media Weight: 66 lbs.
- Maximum Media Roll Diameter: 5.9 inch diameter / 2 inch & 3 inch cores
- Media Take-up System: VJ16/19-TUP30 66lb take-up system (other options included)
- Interface: Gigabit-Ethernet (1000BASE-T)
- Power Supply: AC 100-120V± 10%, 50/60Hz ± 1Hz
- Power Consumption: Main: Operation status 1100W or less | Standby: 30W or less
- Operating Temperature: 68-89.6°F
- Operating Humidity Range: Humidity: 40-60%RH
- Dimensions: Printer including stand: 109.05 in. x 35.23 in x 56.22 in
- Weight: Body: 310lb | Stand: 70.54lb
- RIP Software Options: VerteLithâ„¢, bundled with FlexiDESIGNER MUTOH Edition 21
- Warranty: One year warranty - parts & labor
- Support: One year complimentary Gold level SW Customer Care Support
- Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
