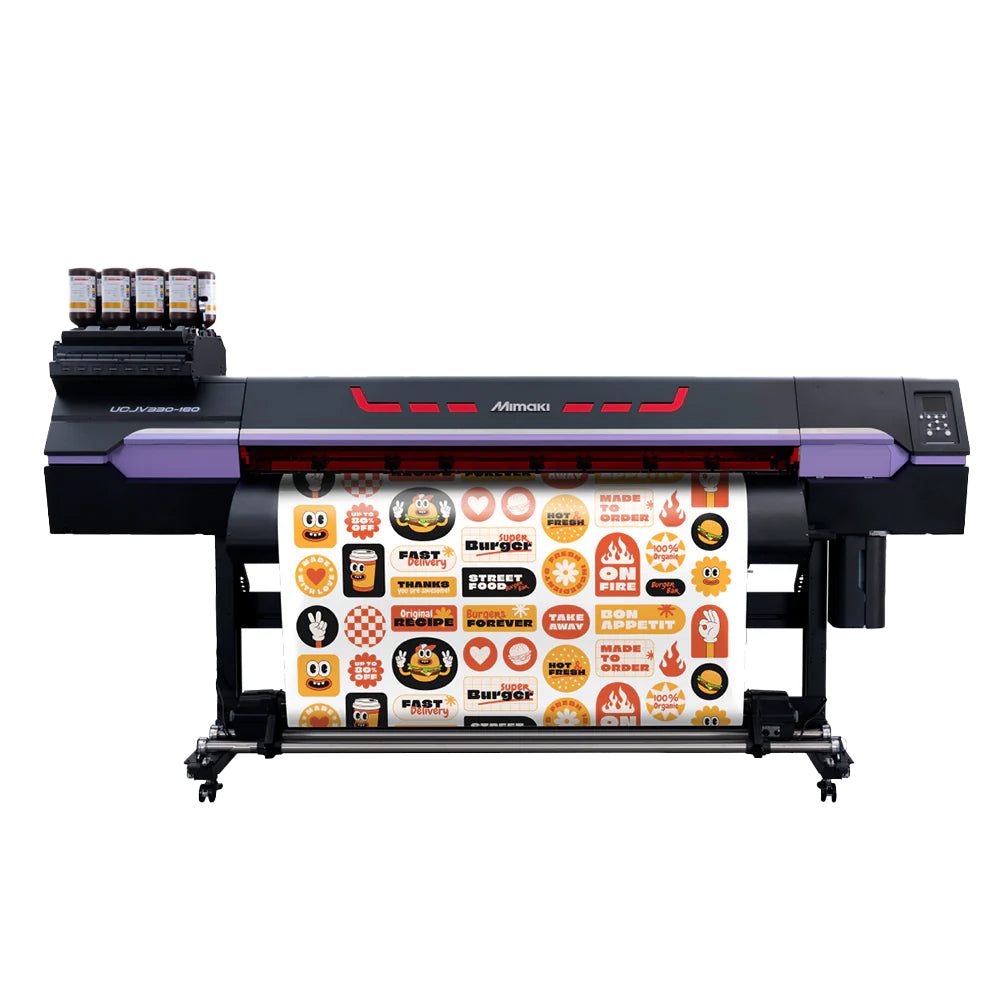

Mimaki UCJV330-160 Series - 64 Inch UV-LED Printer
Sign in to see priceProfessional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The new UCJV330 Series integrated printer/cutter offers extremely versatile UV-LED roll-to-roll inkjet printing with significantly improved productivity and image quality for sign graphics applications. The Mimaki UCJV330 Series enables users to provide their customers with impressive turnaround times and produce more jobs with increased efficiency. In addition, the high speeds achievable with this technology do not compromise the image quality. This is thanks to Mimaki’s newly developed patent-pending ink ejection technology that reduces color irregularities in high density areas even in high-speed output mode.
Features:
- Available in 54 or 64 inch size
- 2 in-line on-demand piezo printheads
- Significantly improved image quality and productivity
- Mimaki’s UV printing technology achieves high image quality even at high speeds
- Clear ink that expands the design potential makes it possible to produce high value-added printed deliverables
- Furthermore, 2.5D print and watermark print functions have been added
- Support for up to 5-layer printing expands the range of applications and the added value of deliverables
- New ink technology was created to allow more stretchability for UV-printed vehicle wraps with the added benefit of not having to wait for outgassing before lamination
- UV-curable ink that does not require drying time after printing, and a post-print cut function
- Instantly cured prints for shorter turnarounds and additional cost savings
- “PICT” supports customers in improving the efficiency of their printing operations and production management by enabling them to remotely manage performance of their printers from a PC or mobile device
- Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
- The Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
- USB/Ethernet connectivity
- Maximum print area: 63.4 inches
- Maximum media width: 63.8 inches
Important: Mimaki printers are designed to use a single ink type at a time (e.g., eco-solvent, dye-sublimation, UV). Once an ink type has been installed, switching to another requires complete system flushing and cleaning. Always consult your user manual and follow Mimaki’s official procedures. Improper ink changes may damage the printer and void your warranty.
UCJV330-160 Series Compatible Inks:
- LUS-170
- LUS-200
Mimaki UCJV330 Series Specifications Sheet
Mimaki UCJV330 Series Brochure
Applications:
- Wall and floor graphics
- Architectural graphics
- Posters & Paper
- PET Film
- Stickers & labels
- Interior/exterior signage
Pop-ups & much more
| Mimaki UCJV330-160 Specifications | |
| Print Head | Two In-line On-demand Piezo Heads |
| Maximum Print Resolution | 1800 dpi |
| Maximum Print Area | 63.4 in (1610 mm) |
| Maximum Media Width | 63.8 in (1620 mm) |
| Maximum Media Thickness | 0.04 in (1 mm) |
| Maximum Media Weight | 99.2 lbs. (45 kg) |
| Ink type | LUS-170, LUS-200 |
| Interface | Ethernet 1000 BASE-T (recommended), USB2.0 Hi-Speed |
| Power Supply | Single phase AC100-120V±10% /12A or Single phase AC200-240V±10% /6A 50/60Hz±1Hz |
| Power Consumption | Max. 1,440W or less x1 / 800W (Continuous operation) / 4.5W or less (Sleep mode) |
| Operational Environment | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions | 113.8 in x 31.5 in x 58.3 in (2,890 mm x 800 mm x 1,480 mm) |
| Weight | 500.4 lbs. (227 kg) |
| Shipping Dimensions | TBD |
| Shipping Weight | TBD |
| Shipping Crate/Pallet | Shipped in a crate on a pallet |
| Safety Standard | IEC 62368-1 Standard ETL CB, CE (EMC Directive, Low Voltage Directive, Machinery Directive, RoHS Directive) REACH, VCCI class A, FCC class A KC, RCM, UKCA, EnergyStar |
| Warranty | One Year Trouble-free Warranty |
| Support | One year complimentary Gold Support |
| Support | One year complimentary Gold Support |
Overview
Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The new UCJV330 Series integrated printer/cutter offers extremely versatile UV-LED roll-to-roll inkjet printing with significantly improved productivity and image quality for sign graphics applications. The Mimaki UCJV330 Series enables users to provide their customers with impressive turnaround times and produce more jobs with increased efficiency. In addition, the high speeds achievable with this technology do not compromise the image quality. This is thanks to Mimaki’s newly developed patent-pending ink ejection technology that reduces color irregularities in high density areas even in high-speed output mode.
Features:
- Available in 54 or 64 inch size
- 2 in-line on-demand piezo printheads
- Significantly improved image quality and productivity
- Mimaki’s UV printing technology achieves high image quality even at high speeds
- Clear ink that expands the design potential makes it possible to produce high value-added printed deliverables
- Furthermore, 2.5D print and watermark print functions have been added
- Support for up to 5-layer printing expands the range of applications and the added value of deliverables
- New ink technology was created to allow more stretchability for UV-printed vehicle wraps with the added benefit of not having to wait for outgassing before lamination
- UV-curable ink that does not require drying time after printing, and a post-print cut function
- Instantly cured prints for shorter turnarounds and additional cost savings
- “PICT” supports customers in improving the efficiency of their printing operations and production management by enabling them to remotely manage performance of their printers from a PC or mobile device
- Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
- The Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
- USB/Ethernet connectivity
- Maximum print area: 63.4 inches
- Maximum media width: 63.8 inches
Important: Mimaki printers are designed to use a single ink type at a time (e.g., eco-solvent, dye-sublimation, UV). Once an ink type has been installed, switching to another requires complete system flushing and cleaning. Always consult your user manual and follow Mimaki’s official procedures. Improper ink changes may damage the printer and void your warranty.
UCJV330-160 Series Compatible Inks:
- LUS-170
- LUS-200
Mimaki UCJV330 Series Specifications Sheet
Mimaki UCJV330 Series Brochure
Applications
Applications:
- Wall and floor graphics
- Architectural graphics
- Posters & Paper
- PET Film
- Stickers & labels
- Interior/exterior signage
Pop-ups & much more
Videos
Specifications
| Mimaki UCJV330-160 Specifications | |
| Print Head | Two In-line On-demand Piezo Heads |
| Maximum Print Resolution | 1800 dpi |
| Maximum Print Area | 63.4 in (1610 mm) |
| Maximum Media Width | 63.8 in (1620 mm) |
| Maximum Media Thickness | 0.04 in (1 mm) |
| Maximum Media Weight | 99.2 lbs. (45 kg) |
| Ink type | LUS-170, LUS-200 |
| Interface | Ethernet 1000 BASE-T (recommended), USB2.0 Hi-Speed |
| Power Supply | Single phase AC100-120V±10% /12A or Single phase AC200-240V±10% /6A 50/60Hz±1Hz |
| Power Consumption | Max. 1,440W or less x1 / 800W (Continuous operation) / 4.5W or less (Sleep mode) |
| Operational Environment | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions | 113.8 in x 31.5 in x 58.3 in (2,890 mm x 800 mm x 1,480 mm) |
| Weight | 500.4 lbs. (227 kg) |
| Shipping Dimensions | TBD |
| Shipping Weight | TBD |
| Shipping Crate/Pallet | Shipped in a crate on a pallet |
| Safety Standard | IEC 62368-1 Standard ETL CB, CE (EMC Directive, Low Voltage Directive, Machinery Directive, RoHS Directive) REACH, VCCI class A, FCC class A KC, RCM, UKCA, EnergyStar |
| Warranty | One Year Trouble-free Warranty |
| Support | One year complimentary Gold Support |
| Support | One year complimentary Gold Support |
