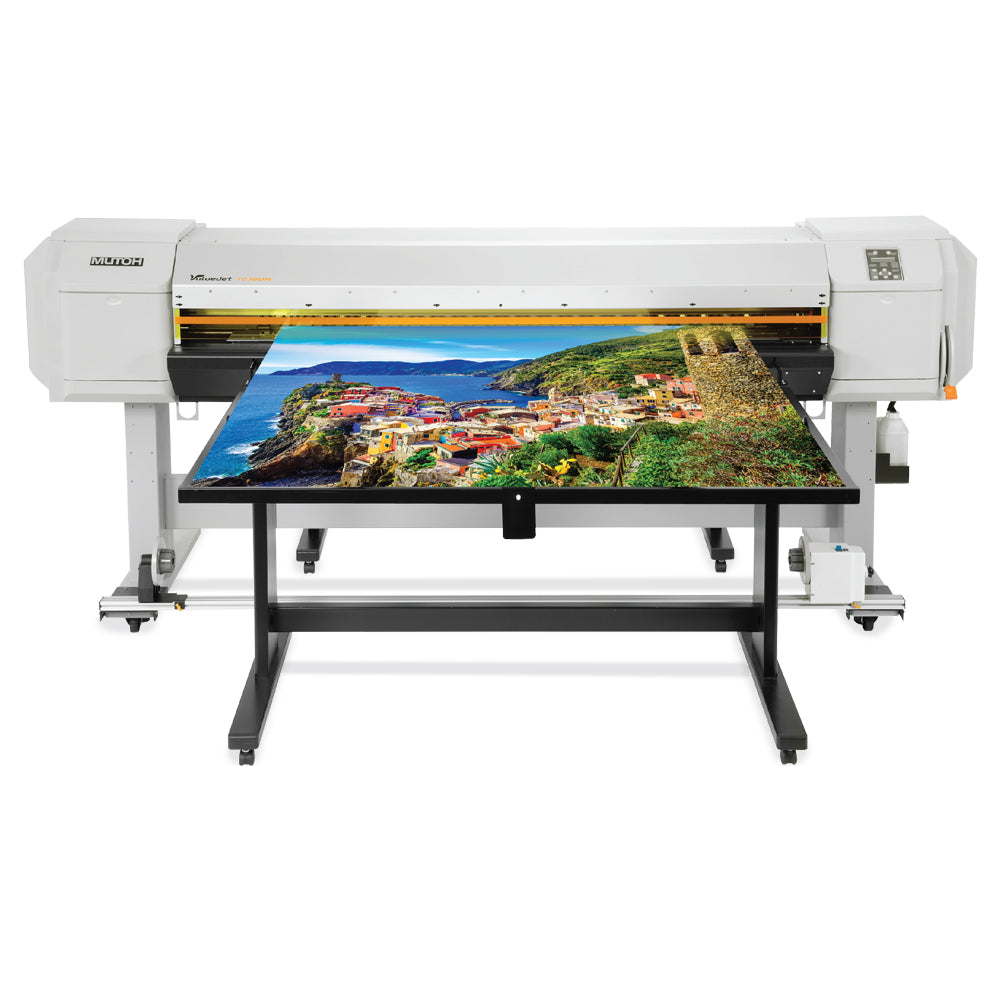

Mutoh ValueJET 1638UH Mark II 64" Large Format Color Printer
Couldn't load pickup availability
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Special Offer!
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Mutoh ValueJET 1638UH Mark II 64" Large Format Color Printer
Sign in to see priceMutoh's ValueJET 1638UH Mark II 64 inch dual head UV-LED hybrid printer provides real production-based UV-LED performance at an affordable price.
Its staggered dual print head design provides high print speeds and the dual UV lamps, on both sides of the print heads, provide exceptional cure times allowing for higher production capacity. Because it's a hybrid, it not only gives you the ability to print on rigid substrates, it also gives you the flexibility to print on roll media as well. Print on material up to a half-inch thick and save valuable floor space with its dual function and multiple application design. The CMYK plus white and varnish ink options are ideal for printing packaging prototypes, POP displays, and indoor Signage.
Key Features:
- Dual UV Lamps for higher speed printing
- Staggered dual print heads for maximum productivity
- The hybrid design supports printing on a roll and rigid media
- Includes rigid front and rear tables
- Available with rigid or flexible UV inks
- MUTOH Intelligent Interweave 'wave' printing eliminates banding, produces excellent speed and quality
- Drop-on-demand, variable dot piezo print head
- Up to 1440 x 1440 dpi resolution for outstanding print quality
- MUTOH Genuine VerteLITH RIP bundled with FlexiDesigner software.
- 1-Yr on-site warranty
Applications:
- Indoor & Outdoor Signs
- Large format commercial signage
- Wall floor and building wraps
- Trade Show Displays
- Posters and more
Specifications:
| ValueJey 1638UH Mark II Specifications | ||
| Printing systems | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print head height | Automatic | |
| Print head | 2 (staggered set-up) | |
| Max print resolution | 1440x1440dpi (16 pass) | |
| Print modes | 1440/1080/720/360dpi 6 modes+ | |
| Mechanical Resolution | 0.012 mm (0.00047 in) | |
| Media width | 64" | |
| Media capacity | ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less Rigid media max 33lbs or less | |
| Max media thickness | .50 in | |
| Max printable width | 63.6 in | |
| Height adjustment | Automatic | |
| UV lamp | UV LED 2 pcs | |
| RIP software | VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21 | |
| Ink | Type | UV-LED Ink (flexible US11 or rigid type UH21) |
| Ink Set | 4 colors (C, M, Y, K), 5 colors (C, M, Y, K, Wh/Va), 6 colors (C, M, Y, K, Wh,Va) | |
| Volume | 220ml (CMYK, Wh, Va) 500ml (White) 800ml (CMYK, Va)* *500/800ml ink bags require optional adapter | |
| No. of slots | 8 | |
| Interface | Gigabit-Ethernet (1000BASE-T ) | |
| Power Requirements | AC 100-120V± 10%, 50/60Hz ± 1Hz | |
| Printable Environment | Temperature: 68-89.6°F | Humidity: 40-60%RH (non condensing) Rec. environment: Temperature: 71.6-86°F | |
| Power Consumption | Main: Operation status 77W or less | Standby: 52W or less | |
| Dimensions (WxDxH) | Printer including stand: 117.4”x32.2”x49.6” Printer w/media feed table: 117.4”x107”x49.6” | |
| Weight | Body: 352.7lb | Stand: 81.57lb | |
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
Overview
Mutoh's ValueJET 1638UH Mark II 64 inch dual head UV-LED hybrid printer provides real production-based UV-LED performance at an affordable price.
Its staggered dual print head design provides high print speeds and the dual UV lamps, on both sides of the print heads, provide exceptional cure times allowing for higher production capacity. Because it's a hybrid, it not only gives you the ability to print on rigid substrates, it also gives you the flexibility to print on roll media as well. Print on material up to a half-inch thick and save valuable floor space with its dual function and multiple application design. The CMYK plus white and varnish ink options are ideal for printing packaging prototypes, POP displays, and indoor Signage.
Key Features:
- Dual UV Lamps for higher speed printing
- Staggered dual print heads for maximum productivity
- The hybrid design supports printing on a roll and rigid media
- Includes rigid front and rear tables
- Available with rigid or flexible UV inks
- MUTOH Intelligent Interweave 'wave' printing eliminates banding, produces excellent speed and quality
- Drop-on-demand, variable dot piezo print head
- Up to 1440 x 1440 dpi resolution for outstanding print quality
- MUTOH Genuine VerteLITH RIP bundled with FlexiDesigner software.
- 1-Yr on-site warranty
Applications
Applications:
- Indoor & Outdoor Signs
- Large format commercial signage
- Wall floor and building wraps
- Trade Show Displays
- Posters and more
Specifications
Specifications:
| ValueJey 1638UH Mark II Specifications | ||
| Printing systems | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print head height | Automatic | |
| Print head | 2 (staggered set-up) | |
| Max print resolution | 1440x1440dpi (16 pass) | |
| Print modes | 1440/1080/720/360dpi 6 modes+ | |
| Mechanical Resolution | 0.012 mm (0.00047 in) | |
| Media width | 64" | |
| Media capacity | ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less Rigid media max 33lbs or less | |
| Max media thickness | .50 in | |
| Max printable width | 63.6 in | |
| Height adjustment | Automatic | |
| UV lamp | UV LED 2 pcs | |
| RIP software | VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21 | |
| Ink | Type | UV-LED Ink (flexible US11 or rigid type UH21) |
| Ink Set | 4 colors (C, M, Y, K), 5 colors (C, M, Y, K, Wh/Va), 6 colors (C, M, Y, K, Wh,Va) | |
| Volume | 220ml (CMYK, Wh, Va) 500ml (White) 800ml (CMYK, Va)* *500/800ml ink bags require optional adapter | |
| No. of slots | 8 | |
| Interface | Gigabit-Ethernet (1000BASE-T ) | |
| Power Requirements | AC 100-120V± 10%, 50/60Hz ± 1Hz | |
| Printable Environment | Temperature: 68-89.6°F | Humidity: 40-60%RH (non condensing) Rec. environment: Temperature: 71.6-86°F | |
| Power Consumption | Main: Operation status 77W or less | Standby: 52W or less | |
| Dimensions (WxDxH) | Printer including stand: 117.4”x32.2”x49.6” Printer w/media feed table: 117.4”x107”x49.6” | |
| Weight | Body: 352.7lb | Stand: 81.57lb | |
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
