SWF KE Dual-Series Embroidery Machine

SKU: EM-SWF-KE-UH1504D-45

Special Order Policy

Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

Save Big Join Pro!

Special Offer!

Save Big Join Pro!

SignWarehouse PRO

Become one of our PRO members and get $2,680.00 back on this purchase and more! Learn how

Affirm

Pay as low as $/month or 0% APR by selecting Affirm at checkout

Overview

Introducing the all-new KE Dual series embroidery machine from SWF. Say hello to innovation and goodbye to frustration. SWF has raised the bar for embroidery once again by adding tons of new features. The SWF KE Dual Series isn’t just a multi-head embroidery machine—it’s the ultimate solution for your embroidery business. With its revolutionary Dual Function Technology, it allows you to split a multi-head machine into two independent units, boosting efficiency and versatility like never before. Available in 4, 6, 8, and 12-head options, the KE Dual Series is designed to fit your business’s unique needs.

Where the KE Dual truly shines is in hat embroidery. Its slim cylinder arm and innovative design make embroidering hats faster, easier, and better than ever. Whether you’re handling large orders or custom designs, this machine delivers unmatched performance.

Dual Function technology, featured in the KE Dual Series, allows you to split a multi-head machine into two separate machines with the press of a button. For example, a 6-head KE Dual machine can operate as a traditional 6-head or as two 3-head machines, running different jobs simultaneously. This flexibility gives you unmatched versatility and efficiency, whether you’re tackling high-volume jobs or smaller, mixed orders.

Features:

  • Operates as a traditional tubular machine or as a dual function embroidery machine
  • Embroider two different items and patterns at the same time
  • 20-25% More Production
  • Unmatched Versatility
  • Dual Function
  • Max 1,000 RPM
  • Superior memory holds up to 40 million stitches
  • 15.4 Inch Digital Touchscreen ControlPanel
  • Upper thread holding system prevents a thread fall out from the needle when machine stops
  • Semi-automatic Oiling Systems
  • Durable Commercial-grade Components
  • SWNS Network system - LAN / Wi-Fi
  • Available in 4, 6, 8 and 12-head options

SWF KE Series Product Info

Applications

Applications:

  • T-shirts and sweatshirts
  • Aprons
  • Corporate logo shirts
  • Caps and hats
  • Sports apparel
  • Jackets
  • Tote bags and so much more
Videos
Specifications

Specifications:

  • 20-25% More Production
  • Unmatched Versatility
  • Dual Function
  • Max 1,000 RPM
  • Superior memory holds up to 40 million stitches
  • 15.4 Inch Digital Touchscreen ControlPanel
  • Semi-automatic Oiling Systems
  • Durable Commercial-grade Components
  • Available in 4, 6, 8 and 12-head options

Brand & Model

SWF/KE-UH1504D-45

Number of Heads

4, 6, 8, or 12 Heads

Number of Needles

15 Needles

Cap Sewing Field

360 x 75 mm / 14.17 x 2.95 inch

Power

110v

Operation Box

LCD Full Color Touchscreen Panel

Design Input

USB

Design Memory

4 Million Stitches

Max Speed

1000 SPM

Flat Sewing Field

400 x 450 mm / 15.74 x 17.71 inch

Included Accessories:

Quick Change Cap Frame Set

  • Cap Frames - 2pcs per head
  • Cap Frame Drivers - 4pcs
  • Cap Frame Holder - 1pc

Tubular Round Frame (2 Pcs Per Head)

  • TRF 12 - 4.25"
  • TRF 15 - 5.4"
  • TRF 18 - 6.6"

Tubular Square Frame (2 Pcs per Head)

  • TSF- 30cmx30cm - 12.3" x 12.3"
  • TSF- 32cmx44cm - 12.5" x 17.1"

Additional Options:

  • Delivery & Installation
  • Limited Warranty
  • Payment Options

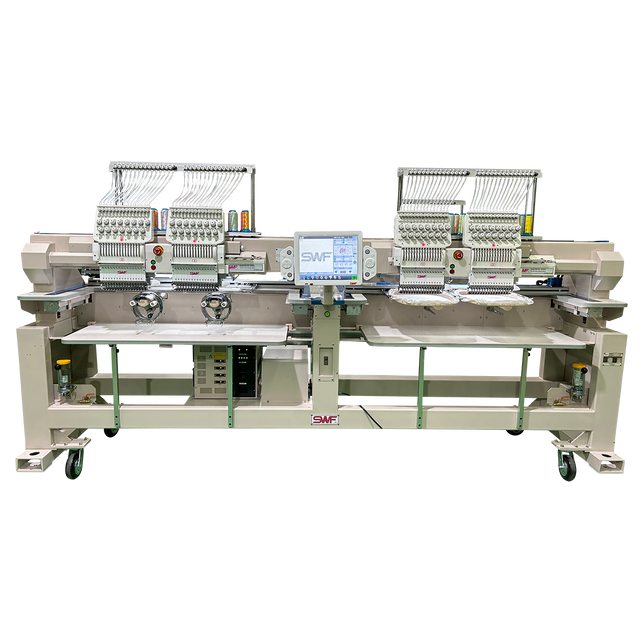

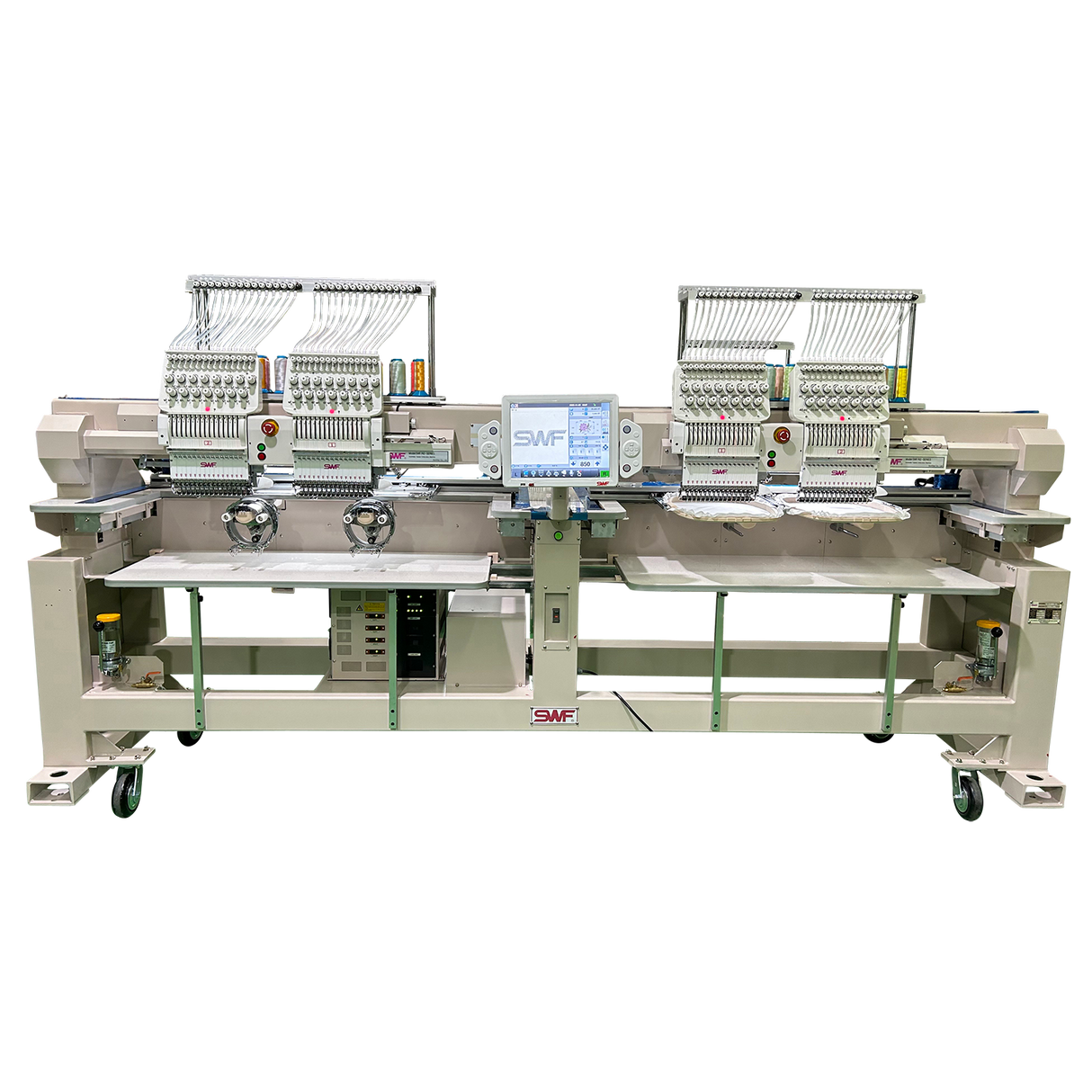

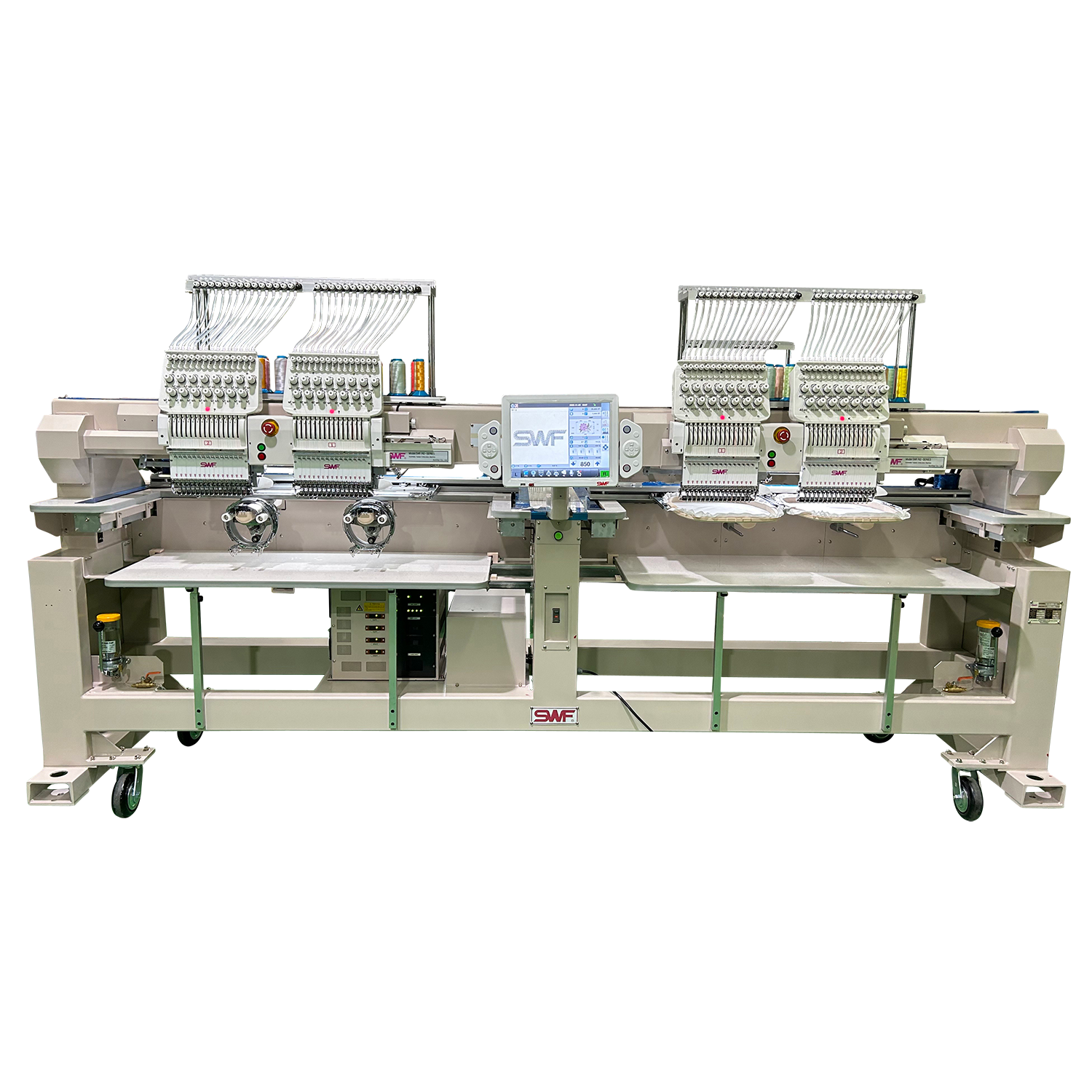

SWF KE Dual-Series Embroidery Machine - 4 Head
