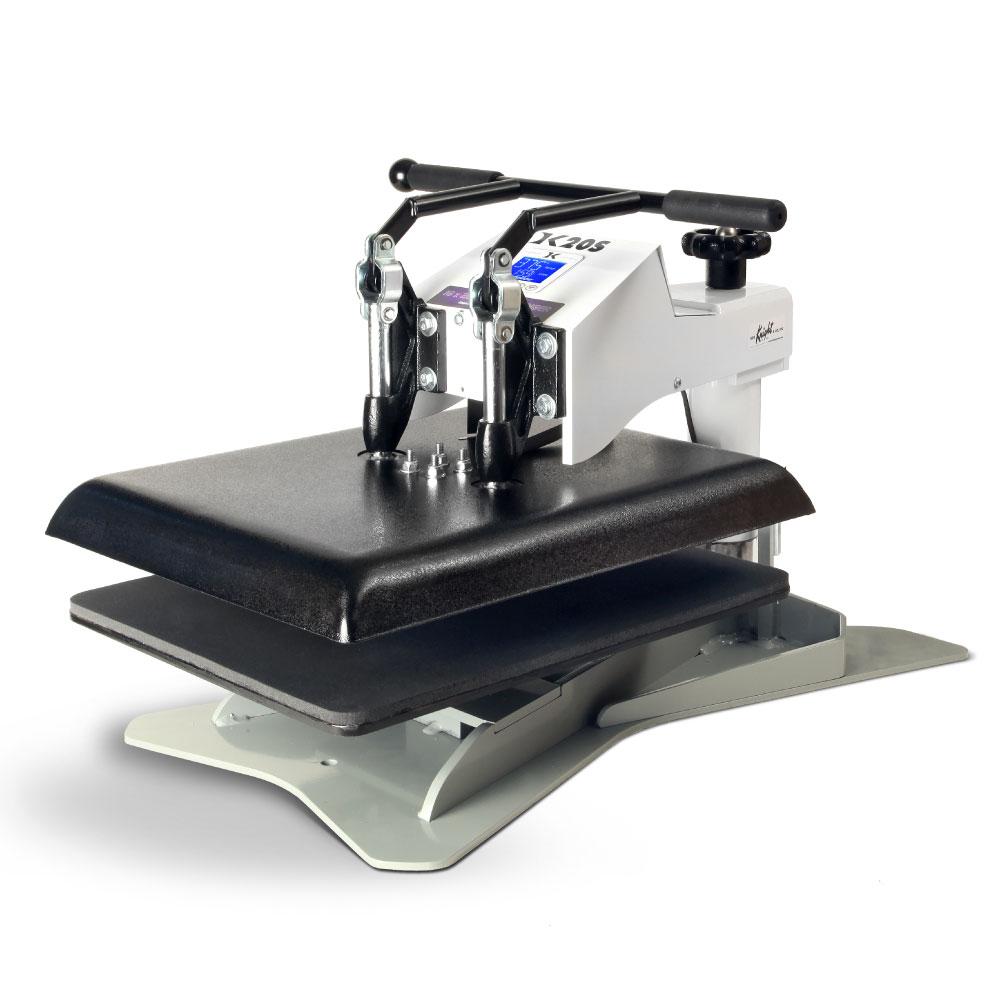

Geo Knight DK20S Swing Away Heat Press Machine - 16 in x 20 in
Couldn't load pickup availability
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Special Offer!
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Geo Knight DK20S Swing Away Heat Press Machine - 16 in x 20 in
Sign in to see priceThe Geo Knight DK20S is a 16x20 swing-away heat press machine. The DK20S combines a heavy-duty solid steel industrial grade pressing framework with accurate and easy-to-use electronics to provide the operator with the best possible features and equipment needed for today's various heat transfer applications.
The DK20S is a top seller for a 16 in x 20 in machine, and is well known in the industry as the top-end robust workhorse of all swing-away heat presses. There is also a jumbo-sized 20x25 heat platen version of this press, the DK25S. The DK20S heat press is also available in an air-operated automatic version, the DK20SP.
- All-Thread™ table loading design
- Fully digital temperature control 32°-600°F range
- Automatic digital timer & dual pre-press timer
- Digital Pressure Bar Graph
- 70 Programmable presets
- Solid steel welded framework
- Shirts can dress or load around the table right-side up
- SuperCoil-Microwinding™ heater technology
- Accommodates materials up to 2" thick
- Temperature readout accuracy +-2°F - can show °C or °F
- User selectable end-of-cycle alarms
- Records number of pressing cycles done
- Teflon-coated 3/4" thick heat platen
- Lifetime warranty on heat platen
- 3-year warranty on control
- 1-year warranty on the entire press
Applications:
- Heat transfer vinyl
- Printable heat transfer vinyl
- Dye sublimation
- Two Step Laser Transfer Paper
- Swing Away design can be used for almost all substrates even thicker items such as tiles and mouse pads.
- Swing Away design provides complete overhead access to laying out your design on the substrate
CONTENTS:
- (1) George Knight DK20S Swing Away Heat Press - 16 in x 20 in
SPECIFICATIONS:
- Weight: 200 Lbs
- Electrical: 1800W / 15A / 120V
- Dimensions: 40""D x 18""W x 16""H
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
Overview
The Geo Knight DK20S is a 16x20 swing-away heat press machine. The DK20S combines a heavy-duty solid steel industrial grade pressing framework with accurate and easy-to-use electronics to provide the operator with the best possible features and equipment needed for today's various heat transfer applications.
The DK20S is a top seller for a 16 in x 20 in machine, and is well known in the industry as the top-end robust workhorse of all swing-away heat presses. There is also a jumbo-sized 20x25 heat platen version of this press, the DK25S. The DK20S heat press is also available in an air-operated automatic version, the DK20SP.
- All-Thread™ table loading design
- Fully digital temperature control 32°-600°F range
- Automatic digital timer & dual pre-press timer
- Digital Pressure Bar Graph
- 70 Programmable presets
- Solid steel welded framework
- Shirts can dress or load around the table right-side up
- SuperCoil-Microwinding™ heater technology
- Accommodates materials up to 2" thick
- Temperature readout accuracy +-2°F - can show °C or °F
- User selectable end-of-cycle alarms
- Records number of pressing cycles done
- Teflon-coated 3/4" thick heat platen
- Lifetime warranty on heat platen
- 3-year warranty on control
- 1-year warranty on the entire press
Applications
Applications:
- Heat transfer vinyl
- Printable heat transfer vinyl
- Dye sublimation
- Two Step Laser Transfer Paper
- Swing Away design can be used for almost all substrates even thicker items such as tiles and mouse pads.
- Swing Away design provides complete overhead access to laying out your design on the substrate
Specifications
CONTENTS:
- (1) George Knight DK20S Swing Away Heat Press - 16 in x 20 in
SPECIFICATIONS:
- Weight: 200 Lbs
- Electrical: 1800W / 15A / 120V
- Dimensions: 40""D x 18""W x 16""H
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
