If you're encountering the “Cannot Open Port” error in your LXi 22 Production Manager software while you're using your GCC cutter, this typically indicates that the software cannot communicate with your vinyl cutter.

This issue is often related to the physical connection or how the cutter is configured within the software. Follow the steps below to troubleshoot and resolve the problem.

Step 1: Check the Physical USB Connection

Start by confirming the physical connection between your vinyl cutter and your computer:

1. Ensure the USB cable is securely connected at both ends.

2. Try unplugging and reconnecting the cable.

3. If possible, use a different USB port on your computer.

4. Consider testing with another USB cable if you suspect the one you're using may be faulty.

A weak or unstable connection is often the simplest explanation for this error.

Step 2: Verify Setup in LXi 22 Production Manager

Once you’ve confirmed your hardware connection is secure, the next step is to verify that the cutter is properly set up within the software.

Confirm the Cutter Appears in Production Manager

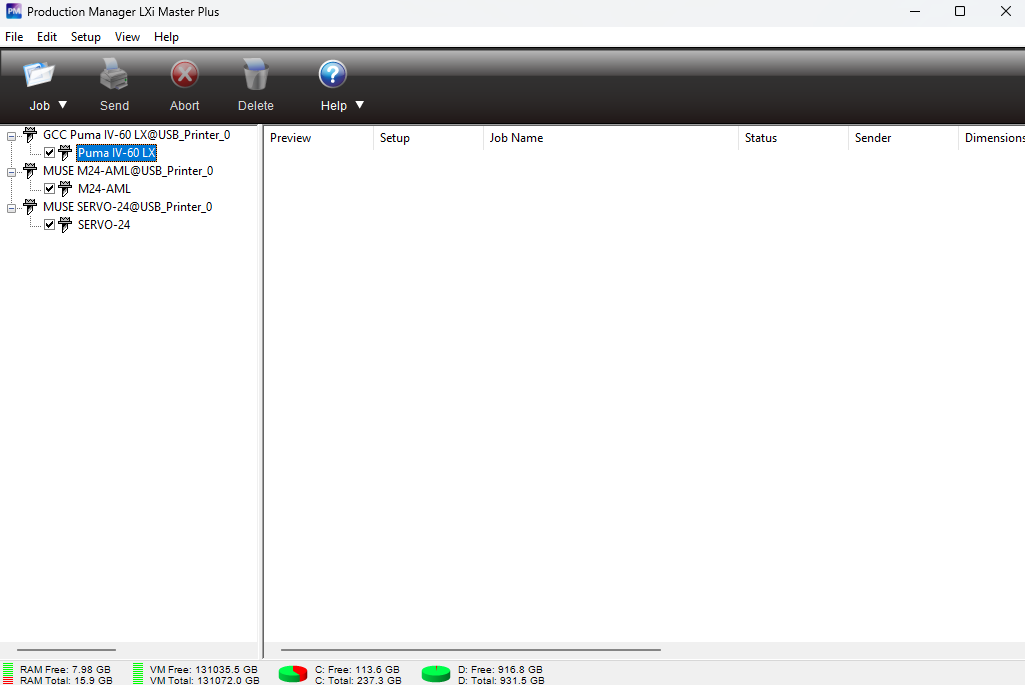

Open Production Manager and check that your cutter is listed in the left-hand pane and looks similar to this:






Re-add the Cutter if Necessary

To reconfigure your device:

1. Go to Setup > Add Setup from the top menu.

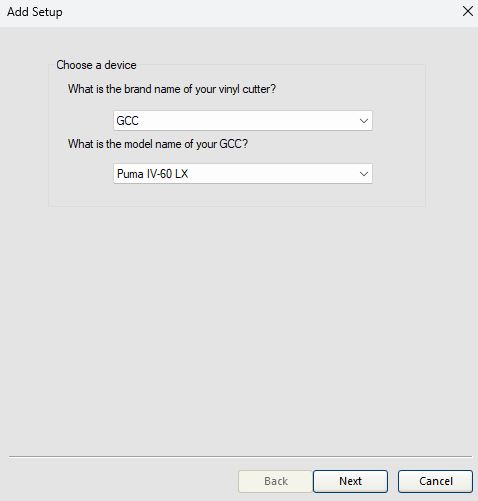

2. Select the brand and model of your vinyl cutter from the dropdown menus.

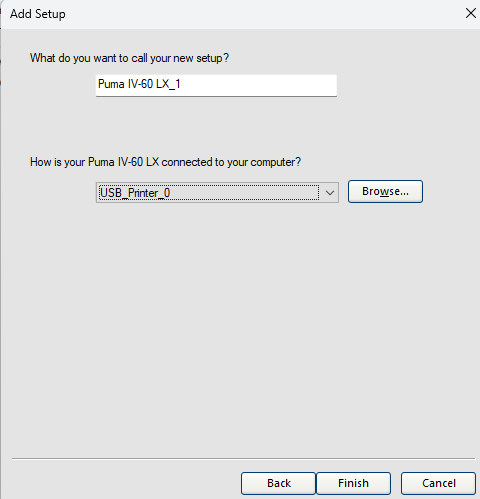

3. Assign a name to the setup and choose the correct connection port (commonly listed as USB_Printer_0).


4. Click Finish to save your setup.

Ensure that only one setup is assigned to the cutter to avoid communication conflicts.

Step 3: Additional Considerations

1. After re-adding the cutter, restart Production Manager to apply changes.

2. Ensure that all necessary drivers are installed and up to date for your cutter model.

Conclusion

The “Cannot Open Port” error in LXi is usually caused by either a faulty or loose USB connection or a misconfiguration within Production Manager. By checking your cables and verifying your setup, you can often resolve the issue quickly.
