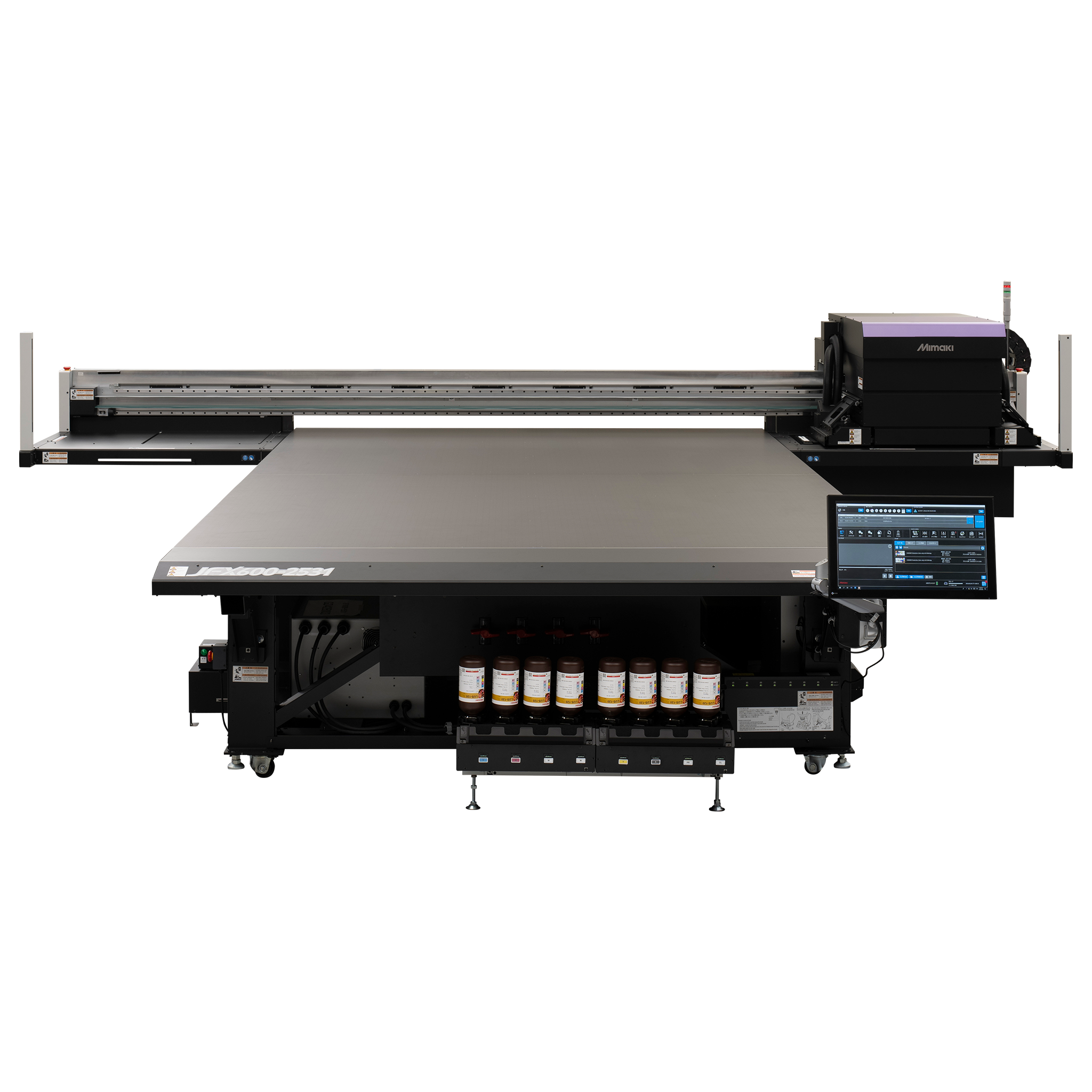

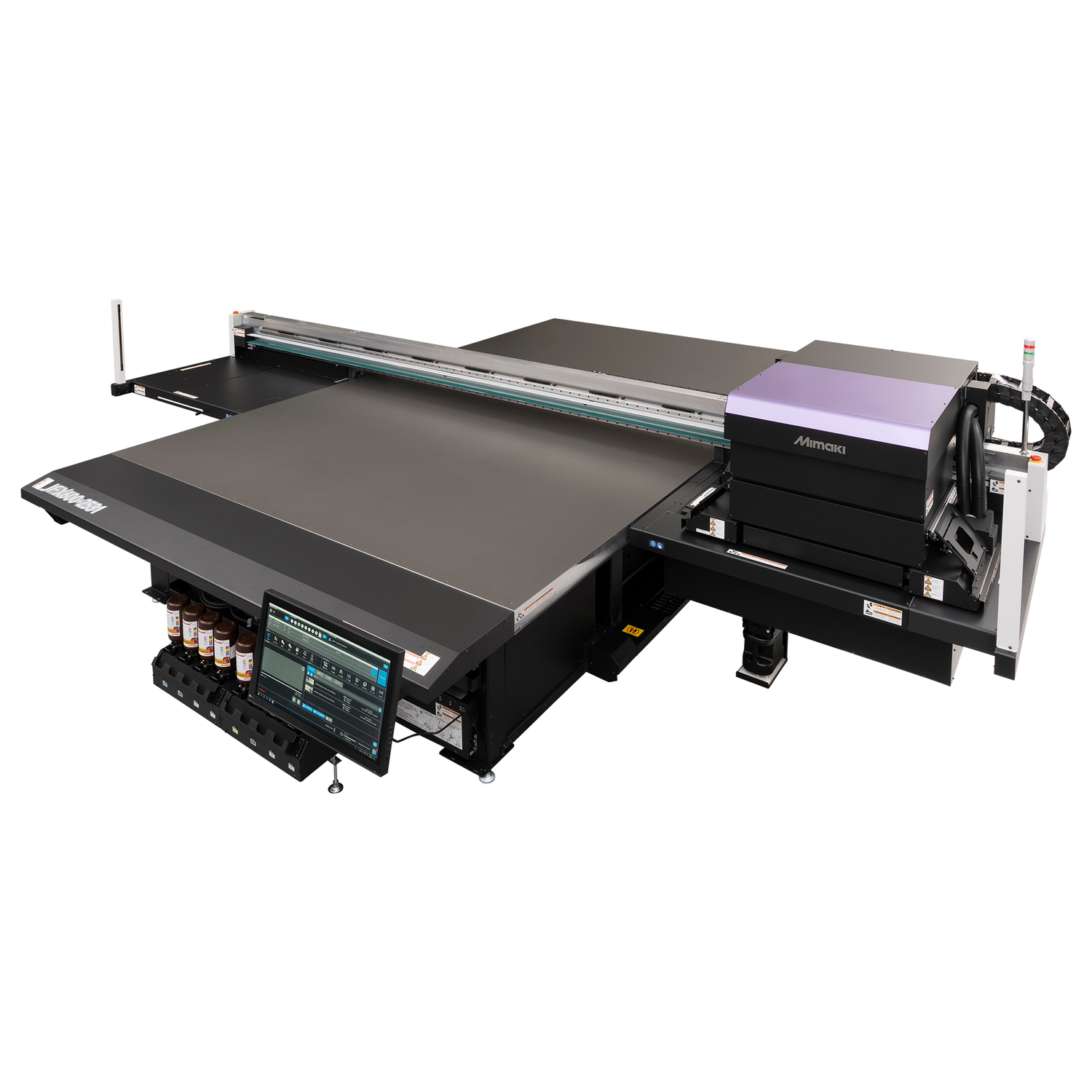

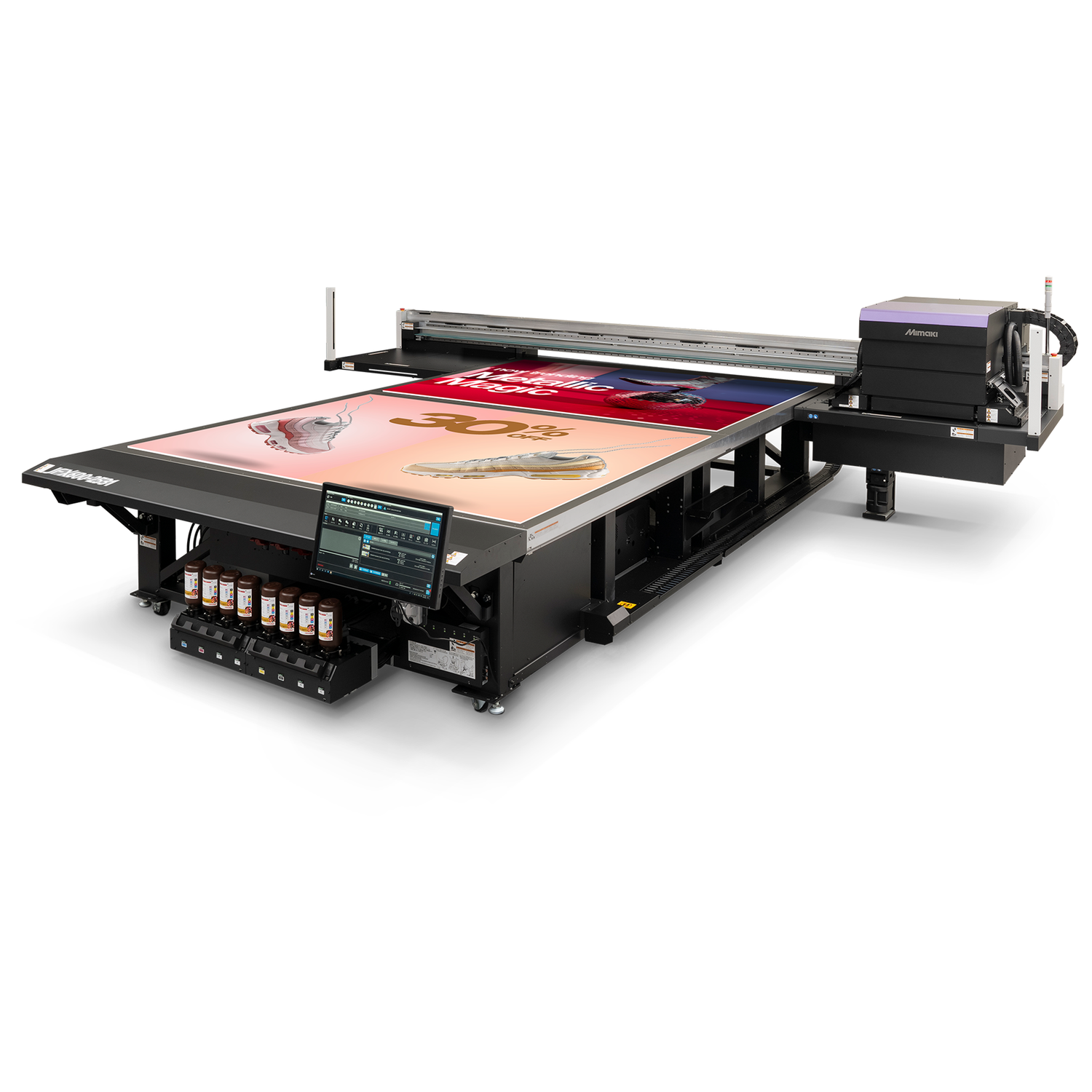

Mimaki JFX600-2531 UV-LED Flatbed Printer
Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The JFX600-2531 wide format flatbed printer delivers high-speed production with full-board printing in under 60 seconds. With its quick registration system, semi-automated maintenance, and extra-large 8' x 10' print area, it is ideal for high-volume packaging and POP shops, as well as specialized architectural printing and interior design applications.
Features:
- 16 print heads
- Print speeds up to 2,152 ft²/hr (faster than 1 board / minute)
- Easy navigation with on-board touch screen control (MPC)
- Industry-leading core technologies
- Production workflow ready with IoT support
- Eco-friendly GREENGUARD Gold certified UV-LED inks
- PICT remote monitoring
- Extra-large full-bleed 8' x 10' print area, up to 2.36" thick
- Nine selectable vacuum zones
- Toggle-print continuous print functionality
Core Technologies:
- Waveform Control Technology
- Variable Dot Technology
- MAPS (Mimaki Advanced Pass System)
- NRS (Nozzle Recovery System)
- Mimaki Bulk Ink System
- MCT (Mimaki Circulation Technology)
- Mimaki Fine Diffusion
Compatible Inks:
- LH-100
- LUS-120
- LUS-150
- LUS-211
- PR-200
Applications:
- Signage & displays
- Retail/POS graphics
- Industrial printing
- Packaging prototypes
- Interior décor panels
- Glass, metal, wood, and acrylic printing
| Mimaki JFX600-2531 Product Specifications | ||
| Head | On-demand Piezo head 16 printheads (4×4 lines in a staggered layout) | |
| Print Resolution | 600, 1,200 dpi | |
| Ink | Type | Flexible UV curable ink : LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) *1 |
| Flexible UV curable ink : LUS-150 (C, M, Y, K, Lc, Lm, W) *1 | ||
| Flexible UV curable ink : LUS-211 (C, M, Y, K, W, Cl) *1 *2 | ||
| Hard UV curable ink : LH-100 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| Primer: PR-200 *3 | ||
| Ink Supply system | Supplied from 1-liter bottles for each color | |
| Ink circulation system *4 | White ink circulation using Mimaki Circulation Technology (MCT) | |
| Maximum diagram dimensions (W×D) | 2,500×3,100 mm (98.4×122.0") | |
| Media | Dimensions (W×D) | Up to 2,500×3,100 mm (98.4×122.0") |
| Height | Max. 60 mm | |
| Weight | Less than 50 kg/m2 (10.2 lb./ft2), non concentrated load | |
| Media absorption | Blower adsorption type + foot switch | |
| Number of absorption area partitions | 9 partitions (X-axis direction) | |
| Curing device | LED-UV system | |
| Interface | Ethernet 10GBASE-T | |
| Safety standard | UL 775 ETL / CE Marking (EMC, Machinery directive, and RoHS) / REACH / RCM / KC / UKCA | |
| Power supply | (Single phase, AC200-240V±10%, 50/60Hz±1Hz, 24 A) ×3 | |
| Power consumption | INLET1 to 3 | Each INLET: Less than 4.8 kVA | |
| Installation environment | Temperature | 20 – 30 °C (68 – 86 °F) |
| Relative humidity | 35 - 65％Rh (Non condensing) | |
| Accuracy maintained temperature | 20 – 25 °C (68 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (± 18 °F/h) | |
| Dust | Similar to standard office environments | |
| Assembled Dimensions (W×D×H) | Approx. 5,400×5,600×1,700 mm (212.6×220.5×66.9") or less | |
| Weight | Approx. 1,500 kg (3,306.9 lbs.) or less | |
*1 Stretchability of each stretchable ink may vary depending on materials, please test on actual materials in advance.
| ||
Overview
Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The JFX600-2531 wide format flatbed printer delivers high-speed production with full-board printing in under 60 seconds. With its quick registration system, semi-automated maintenance, and extra-large 8' x 10' print area, it is ideal for high-volume packaging and POP shops, as well as specialized architectural printing and interior design applications.
Features:
- 16 print heads
- Print speeds up to 2,152 ft²/hr (faster than 1 board / minute)
- Easy navigation with on-board touch screen control (MPC)
- Industry-leading core technologies
- Production workflow ready with IoT support
- Eco-friendly GREENGUARD Gold certified UV-LED inks
- PICT remote monitoring
- Extra-large full-bleed 8' x 10' print area, up to 2.36" thick
- Nine selectable vacuum zones
- Toggle-print continuous print functionality
Core Technologies:
- Waveform Control Technology
- Variable Dot Technology
- MAPS (Mimaki Advanced Pass System)
- NRS (Nozzle Recovery System)
- Mimaki Bulk Ink System
- MCT (Mimaki Circulation Technology)
- Mimaki Fine Diffusion
Compatible Inks:
- LH-100
- LUS-120
- LUS-150
- LUS-211
- PR-200
Applications
Applications:
- Signage & displays
- Retail/POS graphics
- Industrial printing
- Packaging prototypes
- Interior décor panels
- Glass, metal, wood, and acrylic printing
Videos
Specifications
| Mimaki JFX600-2531 Product Specifications | ||
| Head | On-demand Piezo head 16 printheads (4×4 lines in a staggered layout) | |
| Print Resolution | 600, 1,200 dpi | |
| Ink | Type | Flexible UV curable ink : LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) *1 |
| Flexible UV curable ink : LUS-150 (C, M, Y, K, Lc, Lm, W) *1 | ||
| Flexible UV curable ink : LUS-211 (C, M, Y, K, W, Cl) *1 *2 | ||
| Hard UV curable ink : LH-100 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| Primer: PR-200 *3 | ||
| Ink Supply system | Supplied from 1-liter bottles for each color | |
| Ink circulation system *4 | White ink circulation using Mimaki Circulation Technology (MCT) | |
| Maximum diagram dimensions (W×D) | 2,500×3,100 mm (98.4×122.0") | |
| Media | Dimensions (W×D) | Up to 2,500×3,100 mm (98.4×122.0") |
| Height | Max. 60 mm | |
| Weight | Less than 50 kg/m2 (10.2 lb./ft2), non concentrated load | |
| Media absorption | Blower adsorption type + foot switch | |
| Number of absorption area partitions | 9 partitions (X-axis direction) | |
| Curing device | LED-UV system | |
| Interface | Ethernet 10GBASE-T | |
| Safety standard | UL 775 ETL / CE Marking (EMC, Machinery directive, and RoHS) / REACH / RCM / KC / UKCA | |
| Power supply | (Single phase, AC200-240V±10%, 50/60Hz±1Hz, 24 A) ×3 | |
| Power consumption | INLET1 to 3 | Each INLET: Less than 4.8 kVA | |
| Installation environment | Temperature | 20 – 30 °C (68 – 86 °F) |
| Relative humidity | 35 - 65％Rh (Non condensing) | |
| Accuracy maintained temperature | 20 – 25 °C (68 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (± 18 °F/h) | |
| Dust | Similar to standard office environments | |
| Assembled Dimensions (W×D×H) | Approx. 5,400×5,600×1,700 mm (212.6×220.5×66.9") or less | |
| Weight | Approx. 1,500 kg (3,306.9 lbs.) or less | |
*1 Stretchability of each stretchable ink may vary depending on materials, please test on actual materials in advance.
| ||
