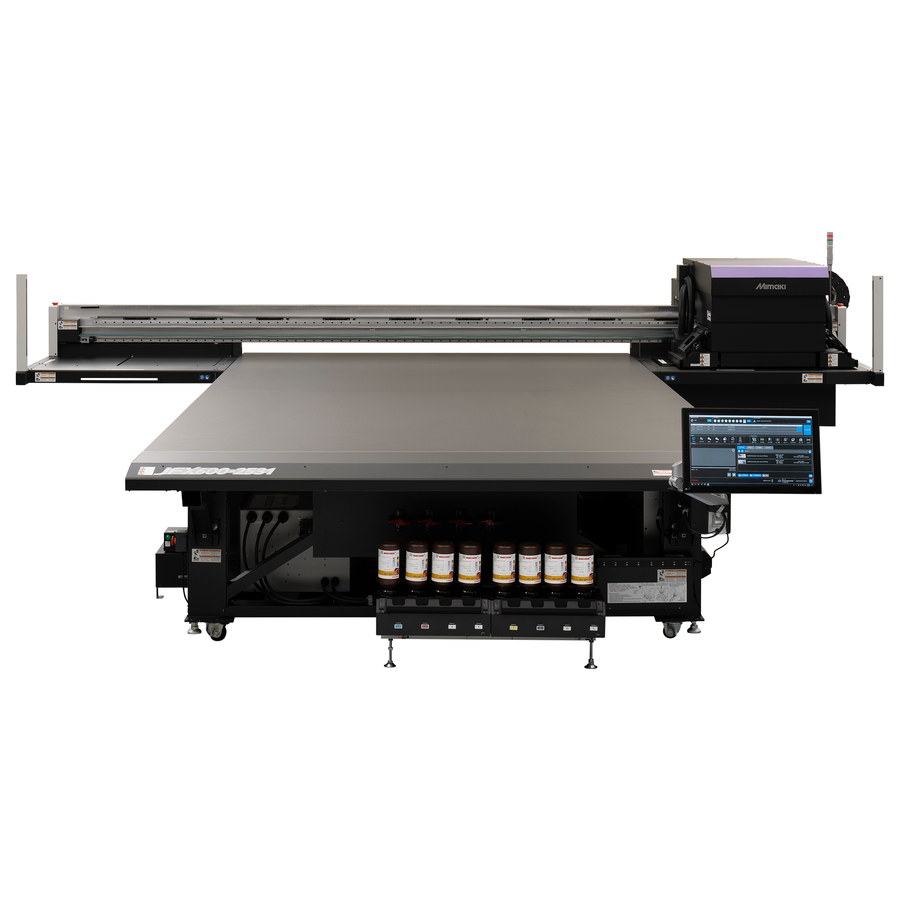

Mimaki JFX600-2531 UV-LED Flatbed Printer
- Ships by freight, direct from the manufacturer · $2495 freight charge added at checkout
- Talk to an equipment specialist 903-462-7700 · Mon–Fri 7 am–7 pm CST
- Returns & warranty
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Special Offer!
Mimaki JFX600-2531 UV-LED Flatbed Printer
Will it fit?
What your electrician and your floor need to know before delivery day.
Single phase, 200–240V ±10%, 24A each. Under 4.8 kVA per inlet.
212.6" x 220.5" x 66.9" assembled, plus clearance to load boards from both ends.
Approx. 1,500 kg. Confirm the slab with your building.
35–65% RH non-condensing. Hold 68–77°F for rated accuracy. Office-grade dust levels.
Which JFX600 fits your floor?
Same 16-head engine, same inks. The difference is bed size, vacuum control and footprint.

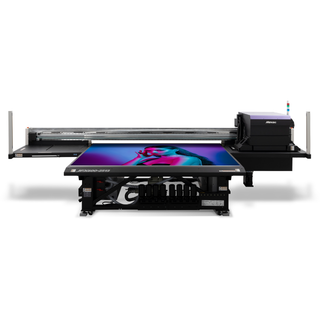

| Specification |  JFX600-2513
$185,000.00 SKU PRN-MK-JFX600-2513 |  JFX600-2531
$200,000.00 SKU PRN-MK-JFX600-2531-111 |
|---|---|---|
| Print area | 8' x 4' full bleed · 98.4" x 51.2" | 8' x 10' full bleed · 98.4" x 122.0" |
| Vacuum zones | 2 partitions (X-axis) | 9 partitions (X-axis) |
| Toggle printing | — | Yes — load one half while the other prints |
| Footprint | 208.7" x 112.2" x 66.9" | 212.6" x 220.5" x 66.9" |
| Weight | 2,645 lbs (1,200 kg) | 3,307 lbs (1,500 kg) |
| Best for | Standard 4' x 8' board work in a normal shop bay | Oversize architectural panels and non-stop production |
| View the JFX600-2513 | You are here |
Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The JFX600-2531 wide format flatbed printer delivers high-speed production with full-board printing in under 60 seconds. With its quick registration system, semi-automated maintenance, and extra-large 8' x 10' print area, it is ideal for high-volume packaging and POP shops, as well as specialized architectural printing and interior design applications.
Features:
- 16 print heads
- Print speeds up to 2,152 ft²/hr (faster than 1 board / minute)
- Easy navigation with on-board touch screen control (MPC)
- Industry-leading core technologies
- Production workflow ready with IoT support
- Eco-friendly GREENGUARD Gold certified UV-LED inks
- PICT remote monitoring
- Extra-large full-bleed 8' x 10' print area, up to 2.36" thick
- Nine selectable vacuum zones
- Toggle-print continuous print functionality
Core Technologies:
- Waveform Control Technology
- Variable Dot Technology
- MAPS (Mimaki Advanced Pass System)
- NRS (Nozzle Recovery System)
- Mimaki Bulk Ink System
- MCT (Mimaki Circulation Technology)
- Mimaki Fine Diffusion
Compatible Inks:
- LH-100
- LUS-120
- LUS-150
- LUS-211
- PR-200
Applications:
- Signage & displays
- Retail/POS graphics
- Industrial printing
- Packaging prototypes
- Interior décor panels
- Glass, metal, wood, and acrylic printing
| Mimaki JFX600-2531 Product Specifications | ||
| Head | On-demand Piezo head 16 printheads (4×4 lines in a staggered layout) | |
| Print Resolution | 600, 1,200 dpi | |
| Ink | Type | Flexible UV curable ink : LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) *1 |
| Flexible UV curable ink : LUS-150 (C, M, Y, K, Lc, Lm, W) *1 | ||
| Flexible UV curable ink : LUS-211 (C, M, Y, K, W, Cl) *1 *2 | ||
| Hard UV curable ink : LH-100 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| Primer: PR-200 *3 | ||
| Ink Supply system | Supplied from 1-liter bottles for each color | |
| Ink circulation system *4 | White ink circulation using Mimaki Circulation Technology (MCT) | |
| Maximum diagram dimensions (W×D) | 2,500×3,100 mm (98.4×122.0") | |
| Media | Dimensions (W×D) | Up to 2,500×3,100 mm (98.4×122.0") |
| Height | Max. 60 mm | |
| Weight | Less than 50 kg/m2 (10.2 lb./ft2), non concentrated load | |
| Media absorption | Blower adsorption type + foot switch | |
| Number of absorption area partitions | 9 partitions (X-axis direction) | |
| Curing device | LED-UV system | |
| Interface | Ethernet 10GBASE-T | |
| Safety standard | UL 775 ETL / CE Marking (EMC, Machinery directive, and RoHS) / REACH / RCM / KC / UKCA | |
| Power supply | (Single phase, AC200-240V±10%, 50/60Hz±1Hz, 24 A) ×3 | |
| Power consumption | INLET1 to 3 | Each INLET: Less than 4.8 kVA | |
| Installation environment | Temperature | 20 – 30 °C (68 – 86 °F) |
| Relative humidity | 35 - 65％Rh (Non condensing) | |
| Accuracy maintained temperature | 20 – 25 °C (68 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (± 18 °F/h) | |
| Dust | Similar to standard office environments | |
| Assembled Dimensions (W×D×H) | Approx. 5,400×5,600×1,700 mm (212.6×220.5×66.9") or less | |
| Weight | Approx. 1,500 kg (3,306.9 lbs.) or less | |
*1 Stretchability of each stretchable ink may vary depending on materials, please test on actual materials in advance.
| ||
Overview
Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The JFX600-2531 wide format flatbed printer delivers high-speed production with full-board printing in under 60 seconds. With its quick registration system, semi-automated maintenance, and extra-large 8' x 10' print area, it is ideal for high-volume packaging and POP shops, as well as specialized architectural printing and interior design applications.
Features:
- 16 print heads
- Print speeds up to 2,152 ft²/hr (faster than 1 board / minute)
- Easy navigation with on-board touch screen control (MPC)
- Industry-leading core technologies
- Production workflow ready with IoT support
- Eco-friendly GREENGUARD Gold certified UV-LED inks
- PICT remote monitoring
- Extra-large full-bleed 8' x 10' print area, up to 2.36" thick
- Nine selectable vacuum zones
- Toggle-print continuous print functionality
Core Technologies:
- Waveform Control Technology
- Variable Dot Technology
- MAPS (Mimaki Advanced Pass System)
- NRS (Nozzle Recovery System)
- Mimaki Bulk Ink System
- MCT (Mimaki Circulation Technology)
- Mimaki Fine Diffusion
Compatible Inks:
- LH-100
- LUS-120
- LUS-150
- LUS-211
- PR-200
Applications
Applications:
- Signage & displays
- Retail/POS graphics
- Industrial printing
- Packaging prototypes
- Interior décor panels
- Glass, metal, wood, and acrylic printing
Videos
Specifications
| Mimaki JFX600-2531 Product Specifications | ||
| Head | On-demand Piezo head 16 printheads (4×4 lines in a staggered layout) | |
| Print Resolution | 600, 1,200 dpi | |
| Ink | Type | Flexible UV curable ink : LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) *1 |
| Flexible UV curable ink : LUS-150 (C, M, Y, K, Lc, Lm, W) *1 | ||
| Flexible UV curable ink : LUS-211 (C, M, Y, K, W, Cl) *1 *2 | ||
| Hard UV curable ink : LH-100 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| Primer: PR-200 *3 | ||
| Ink Supply system | Supplied from 1-liter bottles for each color | |
| Ink circulation system *4 | White ink circulation using Mimaki Circulation Technology (MCT) | |
| Maximum diagram dimensions (W×D) | 2,500×3,100 mm (98.4×122.0") | |
| Media | Dimensions (W×D) | Up to 2,500×3,100 mm (98.4×122.0") |
| Height | Max. 60 mm | |
| Weight | Less than 50 kg/m2 (10.2 lb./ft2), non concentrated load | |
| Media absorption | Blower adsorption type + foot switch | |
| Number of absorption area partitions | 9 partitions (X-axis direction) | |
| Curing device | LED-UV system | |
| Interface | Ethernet 10GBASE-T | |
| Safety standard | UL 775 ETL / CE Marking (EMC, Machinery directive, and RoHS) / REACH / RCM / KC / UKCA | |
| Power supply | (Single phase, AC200-240V±10%, 50/60Hz±1Hz, 24 A) ×3 | |
| Power consumption | INLET1 to 3 | Each INLET: Less than 4.8 kVA | |
| Installation environment | Temperature | 20 – 30 °C (68 – 86 °F) |
| Relative humidity | 35 - 65％Rh (Non condensing) | |
| Accuracy maintained temperature | 20 – 25 °C (68 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (± 18 °F/h) | |
| Dust | Similar to standard office environments | |
| Assembled Dimensions (W×D×H) | Approx. 5,400×5,600×1,700 mm (212.6×220.5×66.9") or less | |
| Weight | Approx. 1,500 kg (3,306.9 lbs.) or less | |
*1 Stretchability of each stretchable ink may vary depending on materials, please test on actual materials in advance.
| ||
After the sale
A machine this size is a relationship, not a transaction. Here is what SignWarehouse does once it is on your floor.
Installed and set up
Basic setup is typically included with the purchase of your device. Placement, rigging and site prep are quoted with your order.
Trained operators
Advanced Process Training is hands-on: the techniques and best practices that help you produce better output, reduce waste and run a more efficient shop.
Factory-certified service
Factory-certified technicians diagnose and repair your equipment so you get back up and running fast. During business hours, expect a response within 60 minutes.
Running costs
Ink is supplied from 1-liter bottles per color, and white ink circulates continuously through MCT so it does not settle between runs. Cost per square foot depends on your ink set and coverage — ask your specialist for a job-based estimate.
Equipment financing.Structured with your quote.
Lease and finance terms for machines at this price are quoted with your application, not estimated here. Tell us your volume and we'll structure the terms alongside the quote.
