Printer/Cutter
Sale

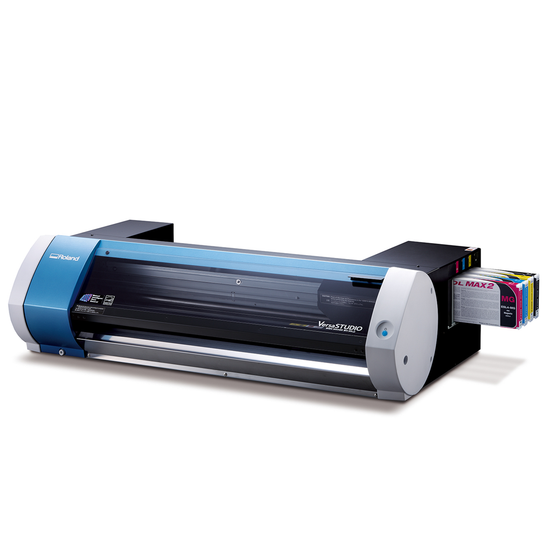

Roland VersaSTUDIO BN-20A Printer/Cutter - Essentials Plus Package
Retail price:
SW Wholesale Price:
Sale price:
Sku:
Special Offer!
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
* When purchasing this product before the displayed date, your account will be issued a partial credit each month until the total amount has been issued.
Overview
Specs
Applications
The Roland VersaSTUDIO BN-20 is the best-selling and most-affordable eco-solvent printer in America. The VersaSTUDIO BN-20 has helped countless graphics entrepreneurs create custom t-shirts, posters, stickers, and decal graphics. Do it all from the comfort of your desktop. With the VersaSTUDIO BN-20 t-shirt graphic printing & cutting machine, you can print, cut, and create super high-quality graphics at an affordable price. The Roland VersaSTUDIO BN Series comes in two options. The original BN-20 offers five ink slots with white and silver metallic options while the BN-20A is a traditional CMYK printer
The VersaSTUDIO BN-20 series printers are integrated desktop printer/cutters that support creation of stickers and contour-cut decals in one compact package. The Roland VersaSTUDIO BN-20 is a great platform for the creation of traditional color signs and graphics, PLUS heat transfer graphics for jerseys, hoodies, bags and more. This legendary Roland DG machine combines reliability with exceptional image quality and color to give you the solution you need to succeed. The BN20A features a 4-color ink slot for CMYK eco-solvent ink system and a full design to print solution that includes FlexiDESIGNER VersaSTUDIO Edition design software and VersaWorks 6 RIP.
This Essentials Plus Bundle for the Roland VersaSTUDIO BN-20A includes everything in the Basic Bundle Package plus a SilverBolt 1620CSM full-size professional heat press with a mug attachment. This amazing bundle also includes the necessary media to start producing beautiful designs. It includes PrismJET 203 glossy printable vinyl, EnduraMask Perfect Tear application tape plus a variety of the most popular Logical Color printable heat transfer vinyls along with Logical Color ClearMask heat transfer tape. Bring your creativity to life and design, print and cut from your new Roland BN-20A Desktop printer/cutter.
The SilverBolt 1620CSM is a full-size clamshell heat press with a mug attachment. The mug attachment makes the 1620CSM two heat presses in one! Use the 16 in x 20 in platen for decorating apparel and the mug attachment for decorating drink ware. One machine supports almost all your heat transfer applications! The SilverBolt 1620CSM can be reconfigured in minutes for quick changes from apparel to mugs and back.
Product Features:
- Compact, Integrated print & cut workflow
- Roland Intelligent Pass Control™
- CMYK ink configuration
- Starter priced - perfect for aspiring creatives looking for an affordable startup opportunity
- Easy to use - create professional quality graphics with little or no experience
- Professional quality piezo print head, outdoor-durable inks
- Maximum resolution: 1440 dpi
- Compact footprint - the 20 inch BN-20 printer/cutter can be used as desktop printers in most office spaces. Perfect for small print shops and home-based businesses
- Bundled software FlexiDesigner VersaSTUDIO Edition simplifies design & production of professional quality decals
- Bundled VersaWorks 6 output software optimizes print quality and includes color management tools
Roland BN-20A Essentials Plus Bundle Contents:
- Roland BN-20A Printer
- FlexiDESIGNER VersaSTUDIO Edition software, VersaWorks 6 RIP software & Roland DG Connect
- Set of Eco-Sol 220cc CMYK ink set
- Roland Cleaning Liquid Kit
- Online Video Training + Personal Setup Assistance
- SilverBolt 1620-CSM Clamshell Heat Press with Mug Attachment
- 5 pack 45 degree Roland DG Blades
- PrismJET 203 - Glossy Printable Vinyl - 20 in x 50 yd roll
- EnduraMASK PerfectTear Transfer Tape - 20 in x 100 yd roll
- Logical Color Universal Print Printable HTV - 20 in x 10 yd roll
- Logical Color ColorSOFT Print Printable HTV - 20 in x 10 yd roll
- Logical Color WarmPEEL CP Print Printable HTV - 20 in x 10 yd roll
- Logical Color ClearMASK HTV Transfer Tape - 20 in x 30 yd roll
- One year depot warranty *
- One year of Complimentary Gold Support
*Ships on a pallet with the printer in a wooden crate and materials boxed separately.
Roland BN-20A Specifications
| Roland BN-20 | BN-20A Specifications | ||
| BN-20 | BN-20A | |
| Print Method / Cutting Method | Piezoelectric inkjet / Grit roller feed | |
| Maximum Resolution | 1440 dpi | |
| Maximum Print Speed | 22.6 Sq ft/hr * | |
| Printing/Cutting Width | Maximum 18.89 in. (480 mm) | |
| Media width | 5.91 to 20.2 in. (150 to 515 mm) | |
| Media thickness | Maximum 1.0 mm (39.3 mil) with liner, for printing | |
| Maximum 0.4 mm (16 mil) with liner. | ||
| Media Roll Outer diameter | Maximum 5.9 in. (150 mm) | |
| Media Roll Weight | Maximum 13.2 lb. (6 kg) | |
| Media Core Diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm ) | |
| Ink type | Roland Eco-sol Max, Eco-Sol Max2, 220-ml cartridges | |
| Color configuration | Cyan, Magenta, Yellow, Black, White, Silver Metallic | CMYK | Cyan, Magenta, Yellow, Black |
| Cutting Speed | 0.39 to 5.9 in/s (10 to 150 mm/s) | |
| Cutting Force | 30 to 300 gf | |
| Blade Type | Roland CAMM-1 series blade | |
| Software resolution (cutting) | 0.000984 in/step (0.025 mm/step) | |
| Media Pre-heater Set Temperature | Fixed at 95° F (35°C) | |
| Media Dryer Set Temperature | 86 to 100.4 °F (30 to 38 °C ) | |
| Connectivity | USB 2.0 | |
| Power-saving function | Automatic sleep feature / AC 100 to 240V ± 10%, 1.0 A, 50/60 Hz | |
| Rated Input | 100-240 Va.c. 50/60 Hz 2.1 A | |
| Power consumption | During Operation: Approx. 90 W | |
| In Sleep Mode: Approx. 5.5 W | ||
| Acoustic Noise Levels | During Operation: 62 dB (A) or less | |
| In Standby: 42 dB (A) or less | ||
| Dimensions | 39.7" W x 22.9" D x 11.5" H in ((1009 W x 582 D x 293 H mm). | |
| Weight | 79.4 lb. (36 kg) | |
| Operating Environment: Power On | Temperature: 68o - 90° F (20 to 32° C) | |
| Humidity: 35 - 80% RH (non condensing). | ||
| Operating Environment: Power Off | Temperature: 41o - 104o F (5 to 40o C) | |
| Humidity: 20 - 80% RH (non condensing) | ||
| Bundled software | VersaWorks 6 RIP, Roland DG Connect App | |
| Warranty | One Year Trouble-free Warranty | |
| Support | One year complimentary Gold Support | |
| Included Items | Power cord, USB cable, blade, blade holder, downloadable software and manual library— including VersaWorks RIP and User's Manual | |
| Notes | * 720 x 720 Bi-directional | |
| ◘ Warranty coverage activated upon product registration | ||
SilverBolt 1620-CSM Clamshell Heat Press & Mug Attachment:
Backlit, touch-screen digital control panel with auto shut-off feature
Quick-change mug attachment for decorating mugs and tumblers
Mug attachment can be used with optional 10-oz and 12-oz mug fittings
Programmable auto-shutoff sleep mode
Even, consistent cross-platen temperature control
Sturdy aluminum construction
PrismJET 203 Printable Vinyl:
Indoor and outdoor graphics and signage
Conforms well to flat surfaces and simple curves
Building Signs
Window Signage
Exterior Signage
POP Retail Graphics
Decals
Nameplates
EnduraMask PerfectTear Application Tape:
High Tack Formula
Release with ease
No tearing or wrinkles
No glue string when transferring
BEST application tape ever
High adhesive coating weight enables it to transfer challenging vinyls
Despite high initial tack, tape can be easily removed with no residue, even after long periods of time on the vinyl
Logical Color Universal Print Printable HTV:
Suitable for 100% otton, 100% polyester, cotton/poly blends, polyester/acrylic blends, leather, elastane and Lycra/Spandex, rayon, nylon and other similar fabrics
Excellent print resolution and durability
Peels Warm with Self-adhesive PET Liner
Compatible with Eco-solvent, Solvent, and Latex Inks
Logical Color CozySoft Print Printable HTV:
Suitable for 100% cotton, 100% polyester, cotton/poly blends, polyester/acrylic blends and similar fabrics
Excellent print resolution and durability
Peels Warm with Non-adhesive PET Liner
Compatible with Eco-solvent, Solvent, and Latex Inks
Logical Color WarmPEEL CP Print Printable HTV:
Suitable for 100% cotton, 100% polyester, cotton/poly blends, polyester/acrylic blends and similar fabrics
Excellent print resolution and durability
Peels Warm with Non-adhesive PET Liner
Compatible with Eco-solvent and Solvent
Logical Color ClearMask Transfer Tape:
Suitable for use with most digitally printable heat transfer films for transfer onto cotton, polyester, cotton-poly blends, Lycra, Nylon and similar fabrics
Low tack adhesive reduces the risk of stretching fabric during removal after transfer
Heat-resistant acrylic adhesive
Siliconized white paper liner for easy unwinding
Ideal for use with Logical Color Universal Print
With the ability to print vibrant, detailed graphics on vinyl, film, heat transfer material, and other types of media, the BN-20A offers outstanding versatility. This media compatibility, combined with faster print speeds, integrated print/cut functionality, and unsurpassed ease of use, makes these value-packed desktop devices perfect for a wide variety of applications. The BN series makes creating everything from custom T-shirts and accessories to eye-catching signs, decals, and wall décor quick and simple – even for print novices.
Applications:
- Heat transfer apparel
- Customized tote bags
- Die-cut custom labels & decals
- Signs, displays, and posters
- Window graphics
- Art & wall decor
