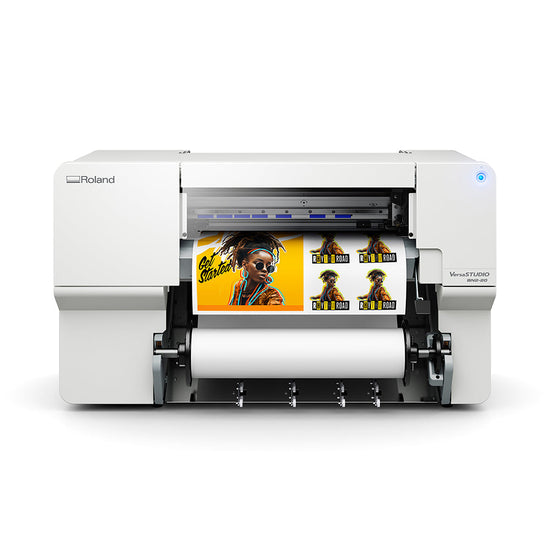

Roland VersaSTUDIO BN2-20 Printer/Cutter - Basics Starter Package
Retail price:
SW Wholesale Price:
Sale price:
Sku:
Special Offer!
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
* When purchasing this product before the displayed date, your account will be issued a partial credit each month until the total amount has been issued.
Overview
Specs
Applications
Video
With the next-generation Roland VersaSTUDIO BN2 Series printer/cutter, Roland DG has taken a great thing and made it even better. The Roland VersaSTUIDO BN2-20 is a 20-inch compact, eco-solvent printer & cutter that offers significantly faster print speeds than the original BN20. Convenient new features, ease of use, and a space-saving design easily allows for placement in a home, office, or shop.
The VersaSTUDIO BN2 series printers are integrated desktop printer/cutters that support creation of stickers and contour-cut decals in one compact package. The Roland BN2-20 is everything you need to get started in professional print and cut graphics production. The BN20 features a 5-color CMYK+White ink system and a full design to print solution that includes FlexiDESIGNER VersaSTUDIO Edition design software and VersaWorks 6 RIP.
This Basics Starter Bundle for the Roland VersaSTUDIO BN2-20 has all the basic level items you will need to get started. With the added benefit of software, cleaning supplies, online support & training, and warranty.
Product Features:
- Compact, Integrated print & cut workflow
- Features a 5-color CMYK+White eco-solvent ink system
- Professional quality piezo print head, outdoor-durable inks
- Print speeds 4X Faster than previous BN-20
- 1440 x 1440 dpi
- Starter Priced - perfect for aspiring creatives looking for an affordable startup opportunity
- Easy to Use - the BN2 series retains the BN20's ease of use. Create professional quality graphics with little or no experience
- Compact footprint - the 20 inch BN2-20 printer/cutter can be used as desktop printers in most office spaces. Perfect for small print shops and home-based businesses
- Bundled software FlexiDesigner VersaSTUDIO Edition simplifies design & production of professional quality decals
- Bundled VersaWorks 6 output software optimizes print quality and includes color management tools
Roland BN2-20 Basics Starter Bundle Contents:
- Roland BN2-20 Printer
- FlexiDESIGNER VersaSTUDIO Edition software, VersaWorks 6 RIP software & Roland DG Connect
- Set of Eco-Sol 220cc CMYK+White ink set
- Roland Cleaning Liquid Kit
- Online Video Training + Personal Setup Assistance
- One year depot warranty
- One year of Complimentary Gold Support
Roland BN2-20 Specifications
| Print Method | Piezo ink-jet method |
| Maximum Resolution | 1440 dpi |
| Maximum Print Speed | 52.8 sq ft/hr * |
| Printing/Cutting Width | Maximum 18.89 in. (480 mm) ** |
| Media width | 5.91 to 20.2 in. (150 to 515 mm) |
| Media thickness | Maximum 1.0 mm (39.3 mil) with liner, for printing |
| Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting | |
| Media Roll Outer diameter | Maximum 5.9 in. (150 mm) |
| Media Roll Weight | Maximum 13.2 lb. (6 kg) |
| Media Core Diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm ) |
| Ink type | Roland Eco-sol Max2, 220-ml cartridges |
| Color configuration | Cyan, Magenta, Yellow, Black, White |
| Cutting Speed | 0.39 to 5.9 in/s (10 to 150 mm/s) |
| Cutting Force | 30 to 500 gf |
| Blade Type | Roland CAMM-1 series blade |
| Blade Offset | 0.000 to 1.500 mm (0.0 to 59 mil) |
| Software resolution (cutting) | 0.025 mm/step (0.98 mil/step) |
| Media Pre-heater Set Temperature | 86 to 95 °F (30 to 35 °C) ◘ |
| Media Dryer Set Temperature | 86 to 100.4 °F (30 to 38 °C ) |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| Power-saving function | Automatic sleep feature |
| Rated Input | 100-240 Va.c. 50/60 Hz 2.1 A |
| Power consumption | During Operation: Approx.185 W |
| In Sleep Mode: Approx. 27W | |
| Acoustic Noise Levels | During Operation: 62 dB (A) or less |
| In Standby: 60 dB (A) or less | |
| Dimensions | 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm) |
| Weight | 137 lbs. (62 kg) |
| Shipping Dimensions | 46 in. x 29in. x 27in. |
| Shipping Weight | 184 lbs. |
| Shipping Crate/Pallet | Shipped in a box on top of a pallet |
| Environment: operating ♠| Temperature: 68 to 89.6 °F (20 to 32 °C), |
| Humidity: 35 to 80 % RH (no condensation) | |
| Environment: non-operating | Temperature: 41 to 104 °F (5 to 40 °C) |
| Humidity: 20 to 80 % RH (no condensation) | |
| Bundled software | FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect |
| Warranty | One Year Depot Warranty |
| Support | One year complimentary Gold Support |
| Included Items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software |
| Notes | * Draft mode, Generic Media setting |
| ** The length of printing or cutting is subject to the limitations of the program | |
| â—˜ Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached. | |
| ♠Operating environment（Use in an operating environment within this range: See below) | |
 |
Applications:
- Heat transfer apparel
- Customized tote bags
- Die-cut custom labels & decals
- Signs, displays, and posters
- Window graphics
- Art & wall decor
