    • PrismJET 54 Gen2 Print & Cut Special with Q54 Vinyl Cutter
    • PrismJET 54 Gen2 Print & Cut Special with Q54 Vinyl Cutter
    • PrismJET 54 Gen2 Print & Cut Special with Q54 Vinyl Cutter

    Special Offer

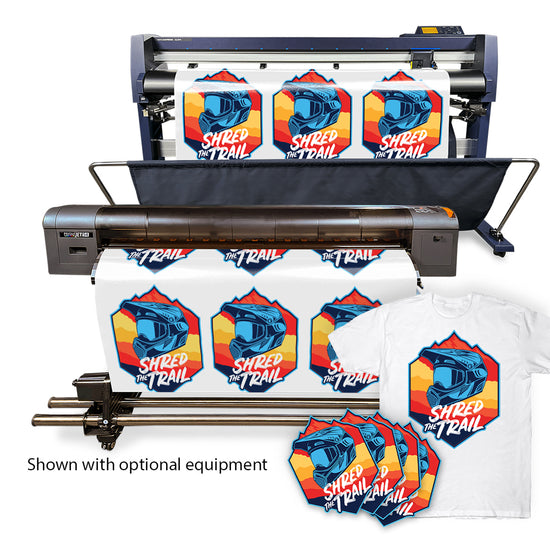

    PrismJET 54 Gen2 Print & Cut Special with Q54 Vinyl Cutter

    No customer reviews Write a review

    Sku:

    Retail price:

    SW Wholesale Price:

    SignWarehouse Pro Icon

    Sale price:

    Get $299.85 back with SignWarehouse PRO

    Call Now Buy Online
    Add to Wishlist

    Note:
    Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.

    Overview

    Specs

    Applications

    The PrismJET 54 Gen 2 builds on the class-leading features in the newest iteration of our best-selling printer. The advanced TruePoint piezo print head and wave print firmware make printing stunning graphics easier than ever. To get the most out of your PrismJET 54, you’ll want to bundle it with an advanced contour-cutting large format vinyl cutter. To outfit your shop with the equipment to take on all challenges, bundle your PrismJET with a Vinyl Express Q54.

    Features:

    • New TruePoint print head achieves high productivity and high image quality
    • New advanced print head supports the automatic bypassing of clogged nozzles for trouble-free printing
    • The larger print head has 11% more nozzles, a higher nozzle resolution
    • 12% faster print speeds than PrismJET VJ54
    • The built-in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
    • DropMaster2 firmware precisely controls dot size and maintains print quality
    • FeedMaster automates media feed adjustments to maintain precise high-resolution print production.
    • The New Barcode media tracker feature helps monitor media roll status.
    • Three head height settings accommodate a wider range of media thickness
    • End-user-replaceable wiper, new access door for easier maintenance.

    Content:

    • PrismJET 54 Gen2 Large-format Printer
    • Vinyl Express Q54 Gen3 vinyl cutter w/ARM 8.0 firmware
    • 25 ft ethernet cable
    • 10FT Power cord
    • 90 Day depot warranty
    • 90 Days of Complimentary Gold Support*
    • Ink and cleaning cartridges are not included
    • RIP and lettering software are not included
    • LTL Freight Delivery $1245

    PrismJET 54 Gen2 Specifications:

    • Print Technology: Single TruePoint variable drop-on demand piezo print head
    • Nozzle Configuration: 1600 (400 nozzles x 4 lines)
    • Maximum Resolution: 1200 dpi
    • Head Heights: Low: 1.5mm / Middle: 2mm / High: 2.5mm
    • Production print speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi
    • Banner Mode print speed: 313 sf/hr in Banner4 mode (300 x 600 dpi)
    • Max. Media Width: 54 inches (1371mm)
    • Max. Print Width: 53.58 inches (1361mm)
    • Max. Media Roll Weight: 44 lbs (19.9kg)
    • Max. Media Roll Diameter: 6" / 2" (3" optional)
    • Media Drying System: Individually controlled pre-heater, fixer & dryer (30 - 50 °C)
    • Media take-up system: Optional motorized
    • Media Sheet-off function: One-touch control panel cross-cut function
    • Ink Type: Endura Ink PRO eco-solvent ink
    • Ink Volume: 220 ml & 1000 ml  / 1000 ml
    • Ink Colors: CMYK
    • UV durability—without lamination: 3 years outdoor
    • Data Interface: Ethernet (10BASE-T、100BASE-TX)
    • During Printing < 500 W
    • In Stand-by: 45 W
    • Warming Up ≤ 1550 W
    • Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz
    • Power Consumption-Operation: AC100V〜120V/AC200V〜240V, T.B.D W or below
    • Power Consumption - Sleep Mode: AC100V〜120V/AC200V〜240V, T.B.D W or below
    • Operating Temperature: 71 - 86°F (22°C - 30 °C) with Δt: max. 2 °C/h
    • Operating Humidity Range: 40% - 60 % (no condensation) with ΔRH: max. 5% RH/h
    • External Dimensions: 75.43"W x 26.97"D x 47.95"H (1916 x 685 x 1218 mm)
    • Weight: 181.44 lbs (82.3 kg)

    Vinyl Express Q54 Gen 3 Specifications:

    • Digital Servo motor
    • Max Cutting Speed: 55 inches per second
    • Max Cutting Force: 500 grams
    • Max Media width: 60.20 inches
    • Max Cutting width: 54 inches
    • Advanced ARMS 8.0 contour-cutting firmware
    • Number of Push Rollers: 4 Rollers
    • Tools: Cutting Blade, Plotting Pen, or Pouncing Tool
    • Cross-Cutting
    • Perforation Cutting
    • Buffer Memory: 2 MB
    • Display: Graphic type LCD (3.7-inch, backlight)
    • Power Source: 100 V to 240 V AC, 50/60 Hz.

    PrismJET 54 Gen2 Wide Format Color Printer: One printer. Limitless applications.

    Here are some of the ways you can make money with a PrismJET 54 print & cut starter bundle.

    • Car Wraps, fleet motor sports & marine graphics
    • Commercial and residential wall and floor graphics
    • Commercial window displays & P.O.P. graphics
    • Industrial labels, peel & stick decals
    • Garment decoration; vivid graphics on dark shirts.
    • Indoor & outdoor banners
    • Exhibition graphics and retail backlit signage
    • Outdoor-durable posters
