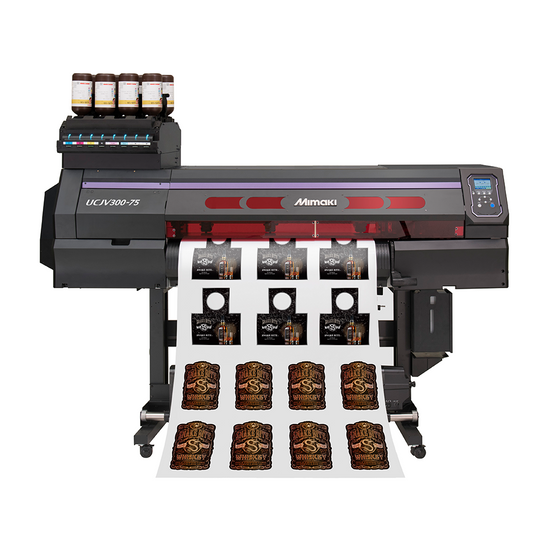

Mimaki UCJV300-75 Series - 32 Inch UV-LED Printer
Retail price:
SW Wholesale Price:
Sale price:
Sku:
Affirm
Pay as low as $/month or 0% APR by selecting
at checkout
Orders exceeding the stock on hand amount are processed as special orders, which require additional processing and shipping time and are not eligible for return.
Overview
Specs
Applications
Professional installation and training required. Contact our Sales Department for all-inclusive pricing. (903)-462-7700
The UCJV300 Series offers unparalleled flexibility and benefits to businesses of all types. The Mimaki UCJV300 print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images. Graphics are instantly cured, so you can efficiently create applications that will meet (and exceed) your customers’ needs.
Features:
- Available in 32 in, 42 in, 54 in, and 64 in sizes
- Print speeds up to 277.7 SqFt/Hr
- 2 in-line on-demand piezo printheads
- Print and cut capability in one unit
- Highest media versatility with unparalleled scratch resistance
- Ability to pre-cut before printing to prevent film separation
- Instantly cured prints for shorter turnarounds and additional cost savings
- Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
- RIP software RasterLink6 Plus with ID cut function included
- Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
- The Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
- USB/Ethernet connectivity
- Maximum print area: 31.5 inches
- Maximum media width: 31.9 inches
Important: Mimaki printers are designed to use a single ink type at a time (e.g., eco-solvent, dye-sublimation, UV). Once an ink type has been installed, switching to another requires complete system flushing and cleaning. Always consult your user manual and follow Mimaki’s official procedures. Improper ink changes may damage the printer and void your warranty.
UCJV300-75 Series Compatible Inks:
- LUS-170
- LUS-200
| Mimaki UCJV300-75 Specifications | |
| Print Head | Two In-line On-demand Piezo Heads |
| Maximum Print Resolution | 1200 dpi |
| Maximum Print Speed (4 Color Mode) | 152.8 SqFt/Hr (14.2 m2/h) |
| Maximum Print Area | 31.5 in (800 mm) |
| Maximum Media Width | 31.9 in (810 mm) |
| Maximum Media Thickness | 0.04 in (1 mm) |
| Maximum Media Weight | 88.2 lbs (40 kg) |
| Ink type | LUS-170, LUS-200 |
| Cutting Speed | 16.5 in sec (42.0 cm/sec) |
| Maximum Cut Pressure | 450 |
| Blade Types | Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen |
| Interface | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power Supply | Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2 |
| Power Consumption | AC100V: 1.44kW or less x2 / AC200V: 1.92kW or less x2 |
| Operational Environment | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions | 82.3 in x 30.6 in x 58.1 in (2,090 mm x 776mm x 1,475 mm) |
| Weight | 317.5 lbs (144 kg) |
| Shipping Dimensions | 105 in x 30 in x 41 in |
| Shipping Weight | 485 lbs |
| Shipping Crate/Pallet | Shipping in a crate on a pallet |
| Certifications | VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL / CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM |
| Bundled software | RIP software RasterLink6 Plus with ID cut function included |
| Warranty | One Year Trouble-free Warranty |
| Support | One year complimentary Gold Support |
Applications:
- Posters & Paper
- PET Film
- Stickers & labels
- Interior/exterior signage
- Pop-ups & much more
