Overview
Specs
Applications
Video

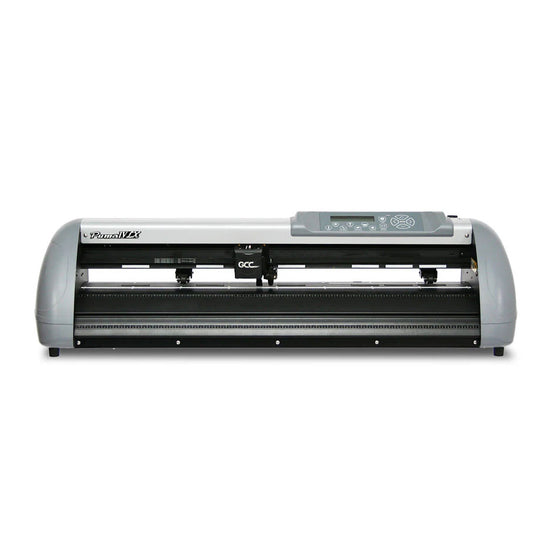

GCC Puma IV LX vinyl has a family of professional quality vinyl cutters which provide sign makers with optimum speed, solid reliability and affordable pricing that is unmatched. Powered by a digitally controlled servo system, the Puma IV can produce phenomenal graphics with impeccable cutting speeds and tracking capabilities. See why GCC Puma IV LX edition vinyl cutters are a solid choice for professional businesses of all sorts. The ability to cut graphics with the Puma IV is made easy with its user friendly operation and fast speed. You can load your digitally printed graphic and it will scan your registration marks, track smoothly to ensure a perfect cut graphic. From car & window decals to boat graphics & heat transfers for apparel. Experience for yourself that there isn't much you can't cut with this compact cutting machine.
Discover unparalleled precision and performance with the Good Cutter Package, our most advanced offering yet. At its heart is the GCC Puma IV LX plotter, a high-performance machine renowned for its reliability, versatility, and razor-sharp cutting accuracy. Equipped with the AAS-II system, it effortlessly reads registration marks, ensuring flawless alignment and precision for even the most intricate designs. Tailored for professionals, artisans, and serious hobbyists, the Puma IV LX empowers you to turn your boldest ideas into reality with impeccable execution. The Good Cutter Package can be purchased with an optional floor stand for space efficiency and optimal tracking performance.
The Good Cutter Package is further enhanced with LXI Expert, a feature-rich software suite designed to unleash your creative potential. Offering advanced design tools and a user-friendly interface, this software enables you to confidently craft detailed, professional-quality projects with ease and efficiency.
Features:
- Phenomenal cutting with a digitally controlled servo system
- Advance Contour Cutting System - AAS II with the LX Models
- Available in 24 inch size
- Auto Rotation
- Segmental positioning
- User-friendly Interface
- Cutting Force: 500 grams
- Cutting Speed: 40.2 ips
- Tracking ability: 5 meters (16.4 feet)
- Compatible with Windows 7 and up | MAC OS X 10.6 and up
- Available with stand or without stand
GCC Pum IV-LX 24 Inch Good Cutter Package Contents:
- GCC Puma IV-LX 24 Inch Vinyl Cutter with or without stand
- LXi Expert Software
| GCC Puma IV-24LX Specifications | |
| Operational Method | Roller-Type |
| Max. Cutting Width | 23.6 in (600 mm) |
| Max. Media Width | 28.3 in (719 mm) |
| Min. Media Width | 1.97 in (50 mm) |
| Media Thickness | 0.8 mm |
| Number of Pinch Rollers | 2 |
| Drive | DC Servo Control |
| Max. Cutting Force | 500 g |
| Max. Cutting Speed | 1,020 mm/sec (40.2 ips at 45° direction) |
| Offset | 0-1.0 mm (with an increase of 0.025 mm) |
| Mechanical Resolution | 0.009 mm (0.00035in) |
| Software Resolution | 0.025 mm (0.00098 in) |
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater |
| Repeatability | ±0.1 |
| Memory Size | 32 MB/16 MB (when using AAS) |
| Type of Command | HP-GL, HP-GL/2 |
| Configurable Origin | Yes |
| Curve & Arc Smoothing | Yes |
| Test Cut Capability | Yes |
| Repeat Function | Yes |
| Copy Function | Yes |
| Tangential Mode | Yes |
| Overcut Capability | Yes |
| Pause and Move | Yes |
| Control Panel | LCM (20 digits X 2 lines), 14 Keys , 1 power LED |
| Diameter of Blade | 2.5 mm |
| Dimensions | 8.76 in x 34.61 in x 10.16 in |
| Weight | 28.6 lbs (13 kg) |
| Shipping Dimensions | |
| Shipping Weight | |
| Stand | No Stand or Stand |
| Automatic-Aligning System (AAS II) | Available in Puma IV LX models, including Segmental Positiong and Auto Rotation functions |
| Power Supply | AC 100-240V, 50~60 Hz (auto switching) |
| Power Consumption | Max. 170 W |
| Operation Environment | Temperature: 15° C~30° C / 60°F~86° F | Humidity: 25% - 75% RH |
| Warranty | One Year Trouble-free Warranty |
| Support | One year complimentary Gold Support |
Lifetime Phone Support Included ‡
‡ Lifetime is used to define the duration of time during which the product is available for sale.
LXI Expert Specifications:
- Fully Compatible and supported for Windows 11
- 32-bit install option for harmony with older devices and computers
- Dynamic marquee for Make Background Transparent Bitmap edit tool
- Reorder installed devices in the Production Manager
- Click here to see all the new features of LXI software.
Applications:
- Cut Vinyl for Signs and Banners
- Cut Commercial Fleet & Custom Vehicle Graphics
- Cut Sandblast-resist Stencil
- Contour Cut Large Format Printed Graphics
- Cut Rhinestone Stencil Template
