PrismJET 54 Gen2 Large Format Eco-Solvent Printer & Stand

The second generation PrismJET 54-inch eco-solvent printer is smarter, faster, and simpler. The PrismJET 54 incorporates advances in print head technology and precise Japanese engineering. The new piezo print head has more and larger nozzles for faster throughput. The Second gen is 12% faster than our best-selling VJ54 and has brilliant new features that make it easier to use and maintain. What hasn't changed is the combination of outstanding print quality, high production, and rock-solid reliability. The bundled LXI RIP Design 19 software includes raster and vector design tools, a powerful 64-bit RIP engine and color management tools. Engineered and built in Japan. Exclusively from SIGNWarehouse.

Features:

• New print head achieves high productivity and high image quality
• New advanced print head supports automatic bypassing of clogged nozzles for trouble-free printing
• Larger print head has 11% more nozzles, higher nozzle resolution
• 12% faster print speeds than PrismJET VJ54
• Built in color sensor can achieve automation on feeding and Bi-Directional adjustment for each media
• DropMaster2 firmware precisely controls dot size and maintains print quality
• FeedMaster automates media feed adjustments to maintain precise high resolution print production
• New Barcode media tracker feature helps monitor media roll status
• Three head height settings accommodate a wider range of media thickness
• End user-replaceable wiper, new access door for easier maintenance

• Indoor & outdoor banners
• Car Wraps, fleet, motor sports, & marine graphics
• Commercial and residential wall and floor graphics
• Peel & stick decals, industrial labels, commercial signage
• Exhibition graphics and retail backlit signage
• Garment decoration; vivid, durable graphics on light and dark apparel.

Print Method: Variable drop-on demand piezo drive method

Number of Nozzles: 1600 (400 nozzles x 4 lines)

Maximum Resolution: 1200 dpi

Variable Dot: Yes

Print Modes: 12000 / 900 / 720 / 600 / 300dpi 10 print modes

Number of Print Heads: 1

Maximum Print Speed: 163 sf/hr in High Production Mode @ 600 x 600 dpi

Ink Type: EnduraINK PRO eco-solvent ink

Color Configuration: CMYK process color

Compatible Ink Cartridges: 220ml, 1000ml *

Head Height Options: Low: 1.5mm / Middle: 2mm / High: 2.5mm

Maximum Media Width: 54 inches (1371mm)

Maximum Print Width: 53.58 inches (1361mm)

Maximum Media Weight: 44 lbs. **

Maximum Media Roll Diameter: 6" / 2" (3" optional)

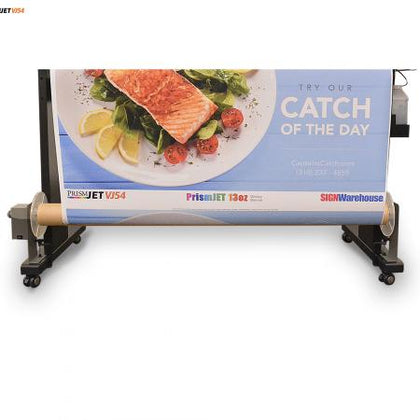

Media Take-up System: Optional motorized

Media Cross-cut Function: Yes. One-touch control panel function

Interface: Ethernet (10BASE-T、100BASE-TX)

Power Supply: Voltage: AC 100V〜120V ±10% / AC 200V〜240V ±10% Frequency: 50/60Hz ±1Hz

Power Consumption: Operating: AC100V〜120V/AC200V〜240V, T.B.D W or less | Sleep: AC100V〜120V/AC200V〜240V, T.B.D W or less

Operating Temperature: 71 - 86°F (22°C - 30 °C) with Δt: max. 2 °C/h

Operating Humidity Range: 40%〜60% No condensation

Dimensions: 69.8" x 26" x 38.7"

Shipping Dimensions: 75.43"W x 26.97"D x 47.95"H (1916 x 685 x 1218 mm)

Shipping Weight: 242 LBS (110KG)

RIP Software Options: LXI RIP Design 19, FlexiSign & Print 21

Warranty: One Year Warranty, parts & labor

Support: One year complimentary Gold Support
